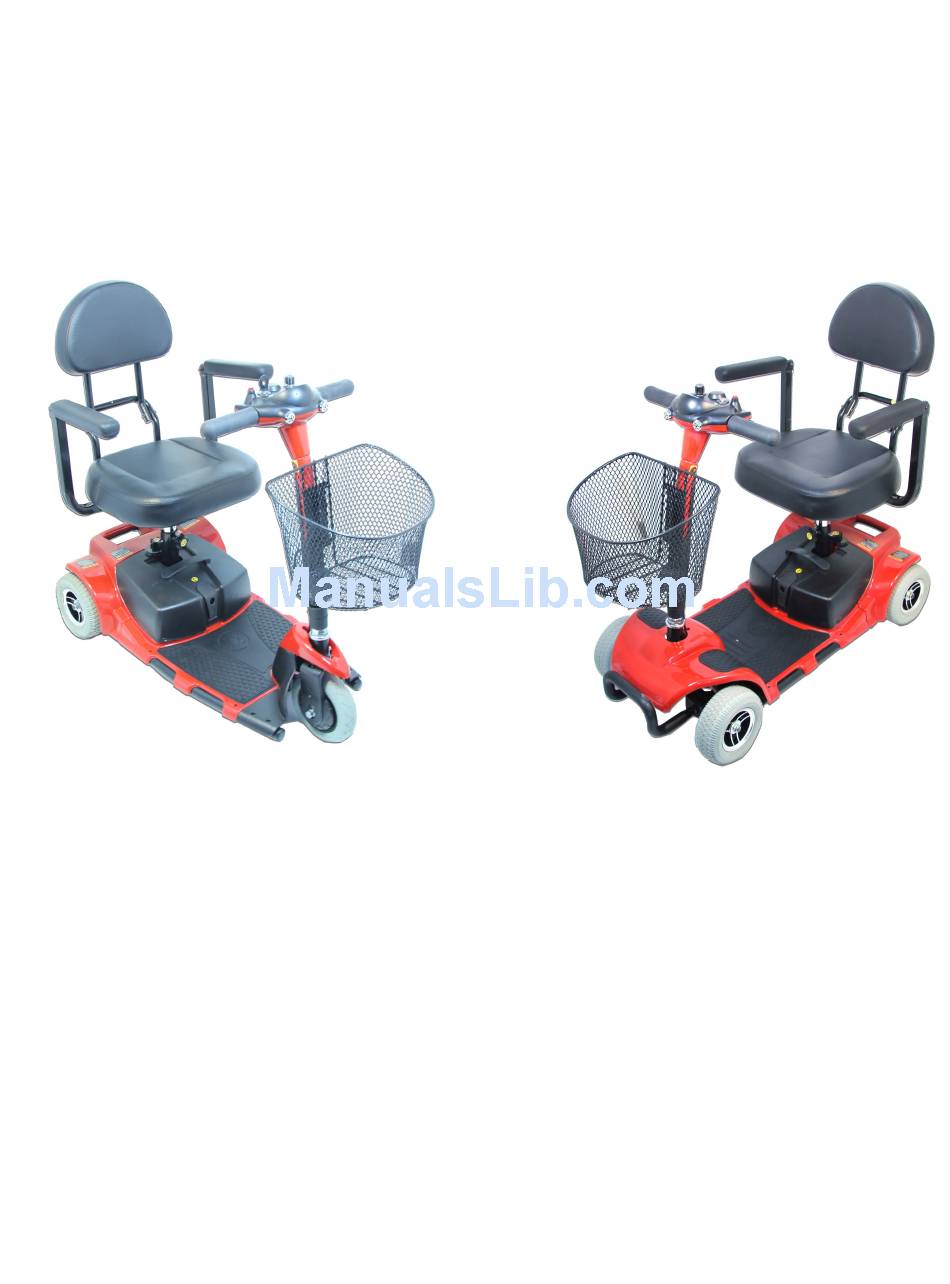

- Page 1 EZ5S & EZ6S Mobility Scooters Owners Manual EZee Life™ Products 220 Wildcat Road, Toronto, ON M3J 2N5...
-
Page 2: Table Of Contents
EZ5S TABLE OF CONTENTS 1. INTRODUCTION…………………………........... 3 2. SPECIFICATIONS AND STRUCTURE………………………....4 3. ASSEMBLY..................... 7 4. DISASSEMBLY....................9 5. ADJUSTMENTS................... 10 6. OPERATION....................11 7. BATTERY AND CHARGING............... 13 8. CARE AND MAINTENANCE..............16 9. SAFETY ......................18 10.ELECTROMAGNETIC INTERFERENCE..........23 11.TROUBLESHOOTING ................ -
Page 3: Introduction
Your understanding of these instructions is essential for the safe operation of your new scooter. EZee Life™ is not liable for damage to property or personal injury from the failure of any user to properly follow the instructions and recommendations set forth in this manual and/or on the scooter. -
Page 4: Specifications And Structure
SPECIFICATIONS AND STRUCTURE DRIVE WHEEL 7.3"....... (186mm) solid foam filled FRONT WHEEL 7.16"......(182mm) solid foam filled ANTI-TIP WHEEL 2.2"......(56mm) solid SPEED MAXIMUM....... Fwd = 3.5 mph / Reverse = 2.2 mph BRAKING SYSTEM......Intelligent brake GROUND CLEARANCE....... 2" (51mm) TURNING RADIUS....... - Page 5 SPECIFICATIONS AND STRUCTURE Your scooter mainly consists of four parts: The front section, rear section, seat, and battery case. The tiller console, handle bars, and footplate are located on the front section. The motor, brake system and controller are located in the rear section. See Figure 1.
- Page 6 SPECIFICATIONS AND STRUCTURE TILLER CONSOLE (Figure 2) CHARGING SYSTEM (Figure 3)
-
Page 7: Assembly
INITIAL ASSEMBLY In order to avoid shipping damage, the batteries and the seat unit are not separately packaged, so you will need to assemble them onto the main frame of your scooter. OPENING THE PACKING BOX Open the packing box of your new scooter and remove all of the protective materials, then carefully remove the scooter and separated components from the box. -
Page 8: Initial Assembly
INITIAL ASSEMBLY ASSEMBLING BATTERY UNIT (Figure 6. & 6.1) • Lower the battery case into the trough and ensure that the electrode terminals are aligned. • Loosen safety locking knob located directly behind the black seat post, turn the locking cap such that it is centred over each side of the battery case, and then retighten the locking knob. -
Page 9: Disassembly
DISASSEMBLY Your EZee Life™ mobility scooter has been designed to easily disassemble and transport. You can easily disassemble the scooter into four pieces, the front section, the rear section, the seat unit and the battery case (Figure 9). DISASSEMBLY • Lift the seat off of the scooter seat post. -
Page 10: Adjustments
ADJUSTMENTS Before operating the scooter, you may find the need to make some adjustments to increase your comfort, such as the seat height, armrest width, and tiller angle. WARNING! Remove the key from the key switch before adjustments. Never attempt to do adjustments while the scooter is in motion. -
Page 11: Operation
OPERATION TILLER CONSOLE The tiller console houses all of the tools needed to operate your scooter, including the key switch, the speed adjustment knob, throttle control lever, battery condition indicator, horn button and the headlight button. KEY SWITCH (Figure 2.) •... -
Page 12: Figure
OPERATION OFF-BOARD CHARGER (see fig. 3) Lift the cover on the battery case, so that you can use the off-board charger to charge your batteries through a 3-pin charger power receptacle in the middle of the scooter.(see Batteries and Charging) LOAD PROTECTOR (see fig. -
Page 13: Battery And Charging
BATTERY AND CHARGING Your scooter uses two long lasting, 12-volt deep cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep cycle batteries are designed to handle a longer and deeper discharge. Though they are similar in appearance to automotive batteries, they are not interchangeable. - Page 14 BATTERY AND CHARGING FREQUENTLY ASKED QUESTIONS (FAQs) QUESTION: Why is my charger warm? ANSWER: The battery charger takes the standard wall outlet voltage(alternating current) and converts it to 12V DC(direct current). This scooter’s batteries use direct current to run your scooter. When the battery voltage is low, the charger sends more current to the batteries so that the charger has a higher temperature, this is normal.
- Page 15 BATTERY AND CHARGING Deep-cycle batteries employ a much different chemical technology than that used in car batteries, nickel-cadmium, or in other common battery types. Deep-cycle batteries are specifically designed to provide power, drain down their charge, and then accept a relatively quick recharge. AGM and gel-cell batteries should be charged as often as possible.
-
Page 16: Care And Maintenance
CARE AND MAINTENANCE Your scooter, like any motorized vehicle requires a routine maintenance check. Preventative maintenance is very important. You can perform some of these regular checks by yourself. If you follow the maintenance checks in this section as scheduled, you can help ensure that your scooter gives you years of trouble-free operation. - Page 17 CARE AND MAINTENANCE DAILY CHECK • With the power off, check the throttle control lever. Make sure it returns to the primary position when you release it. • Check the right/left lock-nuts on the low end of the tiller. Make sure it is fastened to the tiller. Make sure the battery lock knob is engaged.
-
Page 18: Safety
SAFETY PRE-RIDE SAFETY CHECK A safety check is recommended before each use to make sure your scooter operates smoothly and safely. Perform the following procedures prior to using your scooter: • Check all electrical connections. Make sure they are tight and not corroded. •... - Page 19 SAFETY The maximum safe incline angle is 8 degrees for your scooter. If a slope is less than this angle, it is safe for your scooter to climb or descend. BRAKING INFORMATION Your scooter is equipped with two powerful brake systems •...
- Page 20 SAFETY DOOR OBSTACLE • Determine in advance if the door opens towards or away from you. • Use your hand to turn the knob or push/pull the door open. • Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly backward to pull the door open.
- Page 21 SAFETY SCOOTER TRANSPORT There are no standards approved for tie-down systems in a moving vehicle of any type to transport a person while seated in a scooter. Anyone traveling in a motor vehicle should be properly secured in the motor vehicle with safety belts fastened securely. WARNING! Do not sit on your scooter while it is in a moving vehicle.
- Page 22 SAFETY WARNING! Position yourself centred and upright in the scooter seat to prevent the scooter from tipping over and causing injury. WARNING! Avoid using your armrests and tiller for weight bearing purposes. Such use may cause your scooter to tip over and cause you injury.
-
Page 23: Electromagnetic Interference
ELECTROMAGNETIC INTERFERENCE (EMI/RFI) EMI/RFI WARNINGS Radio waves are a form of electromagnetic energy, and can cause unintended motion of electric mobility vehicles. When electromagnetic energy adversely affects the operation of an electrical device, that adverse effect is called “Electromagnetic Interference” or EMI, or “Radio Frequency Interference” or RFI. -
Page 24: Troubleshooting
TROUBLESHOOTING Any electromechanical device may require some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge. -
Page 25: Warranty Information
WARRANTY INFORMATION THREE MONTH LIMITED WARRANTY The batteries are covered by a three month limited warranty. WARRANTY EXCLUSIONS Transaxle: In cases where there is an increase in the operational noise level, the warranty does not apply. (The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter).
