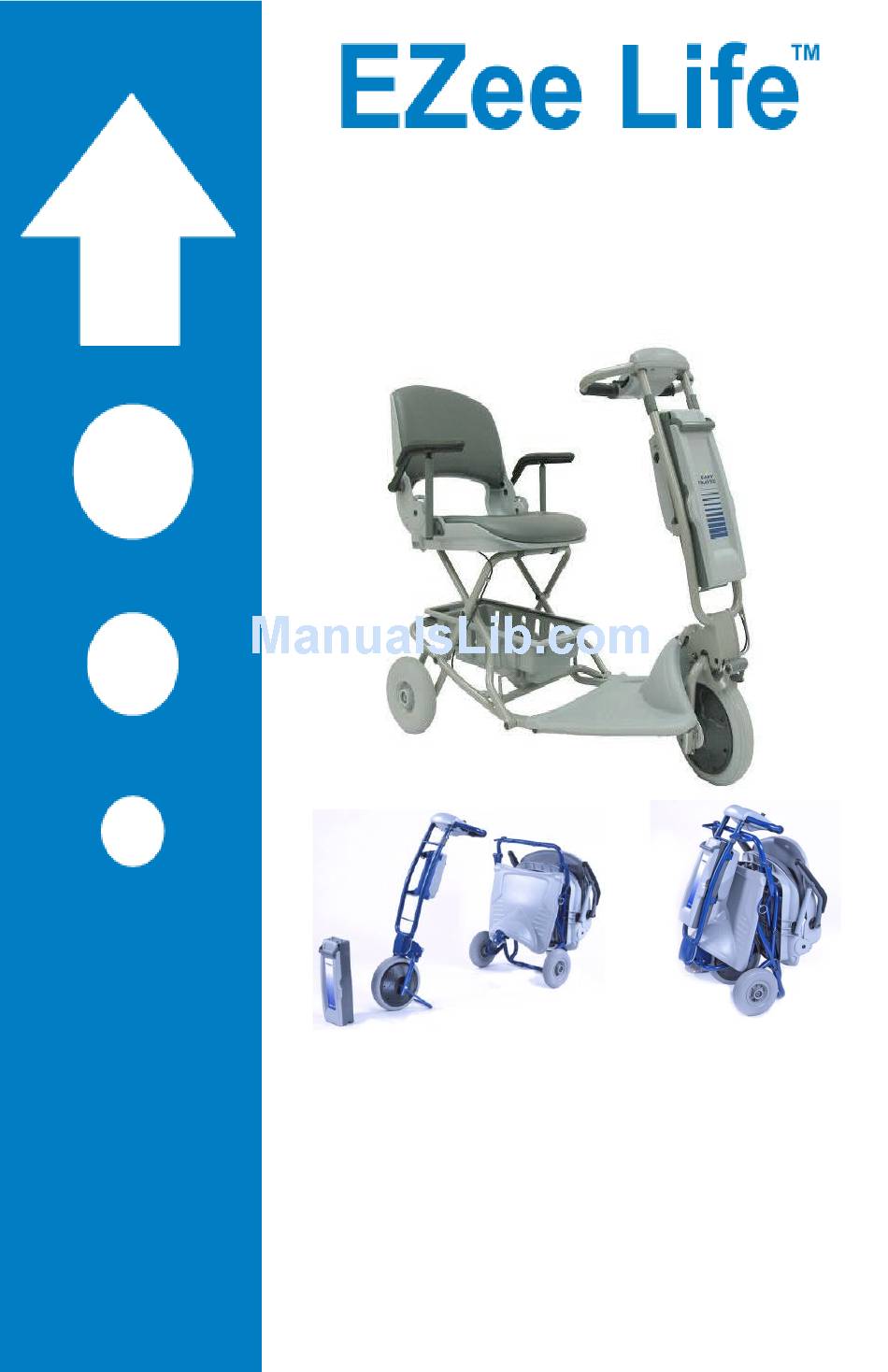

Page 1: User Manual

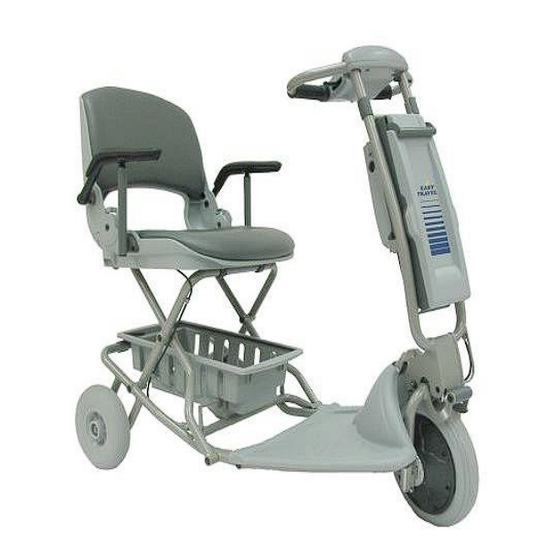

…..........Elite Portable Scooter Model: CH1044 User Manual Disassembled Folded EZee Life™ Products 34 Futurity Gate, Unit 15, Concord, Ontario... - Page 2 Speci fications: Carrying capacity: 250 lbs 115 kg Dimensions (L x W x H): 41” x 22” x 34” 104 x 57 x 86 cm Length: 43 inch 108 cm Width: 22 inch 57 cm Height: 37 inches 93 cm Folded (vertical) 31”...
-
Page 3: Table Of Contents
Table of Contents: Introduction Safety System Components Assembly and Folding Instructions Operating Your Elite Scooter Moving and Transporting Your Elite Scooter Helpful Hints for Everyday Use General Maintenance and Inspection EMI – Electromagnetic Interference Fault Finding Disposal and Recycling *NOTE: Design details may change without notice. -
Page 4: Introduction
Introduction The EZee Elite is a “Class A” Electrically powered scooter. It is intended to be used by individuals that are able to walk, but suffer from mild mobility limitations. The user must have suf ficient arm and leg strength to get on and off the EZee Elite alone and to safely steer under all driving conditions. -
Page 5: System Components
Safety (continued) 7. Do not operate your scooter when under the in fluence of alcohol, medications or drugs that may impair your safety. 8. Always keep your feet on the foot platform when driving. 9. Do not sit on the scooter while being transported in a moving vehicle. Always fold down and secure your EasyTravel Elite and transfer yourself to a vehicle seat. - Page 6 Control Panel 1. Switch 2. Hand control lever (right and left) 3. Speed adjusting knob 4. Indicator light (LED) 5. Battery Gauge 6. Hand-grips BELL: If the user requires an audible warning device, a standard bicycle bell can be attached to the handlebar.
-
Page 7: Assembly And Folding Instructions
Assembly and folding instructions Unfolding rear frame Pull on the folded frame lock pin ring ( fig. 4/1) to release the foot platform and unfold the frame. Pull the seat backrest (Fig. 4/2) and lift it to the upright position. Ensure that the unfolded frame lock pin secures the platform in the horizontal position. - Page 8 Front Column Adjustment (Figure 6) To adjust the angle of the front column, pull the column lock triggers upward. Move the column into the desired position and release. Push lightly back and forth on the column to ensure that it is locked in the desired position. 1.
- Page 9 Folding and Unfolding your EZee Elite Folding the EZee Elite Step 1: Fold backrest of seat down (Fig. 7/1) Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or “Entry/Exit” position and push forward away from seat to fold platform upwards. Step 3: Grasp platform handle (Fig.
-
Page 10: Operating Your Elite Scooter
Operating Your EZee Elite Control Panel operation features The switch located on the right side of the control panel (Fig. 9/1), will turn the power of the EZee Elite ON or OFF. NOTE: Turn your EZee Elite switch to the OFF position when not in use in order to conserve battery power, and prevent unintentional operation. - Page 11 Indicator light flashes rapidly - This indicates that there is a fault. Please follow the following procedure: 1. Switch off the EZee Elite 2. Make sure that the EZee Elite is not in the FREEWHEEL position. 3. Make sure that the charger is not connected to the EasyTravel Elite.
- Page 12 Safety considerations when driving your EZee Elite 1) Footpaths and sidewalks appear to be level but are usually slightly sloped for drainage of rainwater. Counter-steering may be necessary for overcoming excessive slopes. In such cases the speed should be reduced as necessary. 2) When approaching ditches, bumps or similar obstacles –...
- Page 13 Battery Charging Instructions (cont'd) 2. Plug the charging connector in the back of the battery pack and then connect the charger to an electrical outlet socket. During charging, the indicator light on the charger will be red. When the battery is approaching full charge the indicator light will turn green.
-
Page 14: Moving And Transporting Your Elite Scooter
WARNING: Store batteries in the 'correct' position. (See Fig. 14). Battery Replacement and Disposal The EZee Elite battery pack contains two 12V maintenance-free batteries. Replacement batteries must be purchased from an authorized dealer. Battery cells may emit minor acid fumes. Batteries must be recycled. - Page 15 2) “Walking” your EZee Elite when Folded The folded EZee Elite may be pulled along suitcase style. The battery should be carried separately (Fig. 11) or in the utility basket. See folding instructions on page 7. 3) Transporting the EZee Elite Quickly and Easily Your EZee Elite can be disassembled and transported in most car trunks.
-
Page 16: Helpful Hints For Everyday Use
Helpful Hints Before using your EZee Elite take the following precautions: • Ensure that the front column and rear frame are locked together. • Ensure that the rear frame is locked open. Speed Controls Operate your EZee Elite at a reasonable speed for both your personal safety and others. -
Page 17: General Maintenance And Inspection
General Maintenance and Inspections Basic maintenance should prevent unnecessary repairs. Keep Your EZee Elite Scooter Shining Wipe the seat clean with a damp cloth. Protect the painted parts with a coat of auto wax. WARNING: Water or excessive moisture around the controller unit or electrical connections may cause contamination of electrical circuitry, damage and malfunction as well as personal injury. - Page 18 Monthly Care Clean upholstery, plastic and metal parts with a mild surface cleaner. CAUTION: Keep cleaning solvents away from electrical wires and connectors. Six Month Maintenance 1) Apply a lubricant/cleaner (such as WD40 or similar) these locations: a) Column tilt lock pin and housing. b) Unfolded lock pin and housing.
-
Page 19: Emi - Electromagnetic Interference
Emi – Electromagnetic Interference CAUTION: It is important that you read this information regarding the possible effects of electromagnetic interference on your EZee Elite. Motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 20 Emi – Electromagnetic Interference (cont'd) 2) Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances, and taxis. These usually have the antenna mounted on the outside of the vehicle; and 3) Long-range transmitters and transceivers, such as commercial broad-cast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.
- Page 21 Emi – Electromagnetic Interference (cont'd) 1) Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such an cellular phones, while your EZee Elite is turned ON; 2) Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them;...
-
Page 22: Fault Finding
Troubleshooting Hereunder are some types of disorders, which can usually be repaired rather simply. If these following measures are unsuccessful, contact your authorized dealer! Problem Check point The driving of the scooter is too slow Batteries are exhausted and need or insuf ficient, the status indicator to be recharged lamp flashes slowly... -
Page 23: Disposal And Recycling
Disposal and Recycling 1) The packing material must be separated to plastic and paper/cardboard components and submitted to authorized recycling lo-cations. 2) The EZee Elite device consists of electronic components, cables, plastic parts, steel and aluminium frame and adapter parts. Do not discard of any components to normal garbage facilities.
