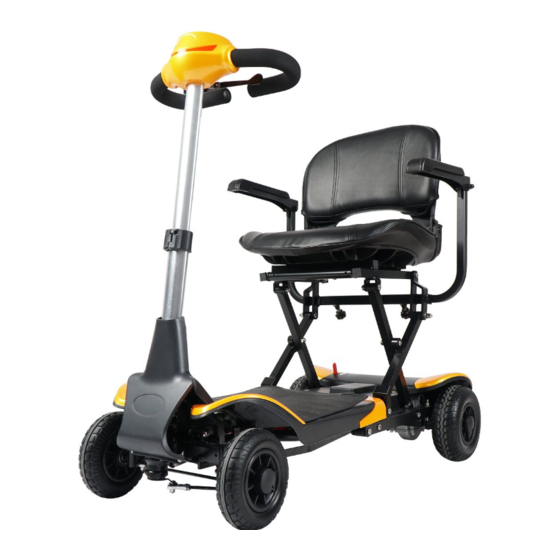

Auto-fold scooter

Advertisement

Quick Links

..................................................
Auto-Fold Scooter
User Manual
CH4035 – Yellow
CH4036 – Red
CH4037 – Orange
EZee Life™ Products
34 Futurity Gate, Unit 15, Concord, Ontario L4K 1S6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH4036 and is the answer not in the manual?

Questions and answers

Summary of Contents for EZee Life CH4036

  • Page 1 …..........Auto-Fold Scooter User Manual CH4035 – Yellow CH4036 – Red CH4037 – Orange EZee Life™ Products 34 Futurity Gate, Unit 15, Concord, Ontario L4K 1S6...
  • Page 2 Thank you for choosing the Auto-Fold Folding Scooter Please carefully read thorough this manual fully before operating the scooter. Should you not understand the content well or need to help, please contact the dealer nearby or contact with our after-service department directly. This manual has brief introduction to the operational approach on every part of the scooter, specification and how to deal with accidental conditions.
  • Page 3: Table Of Contents

    Contents Safety Information Parts Description Operating Instructions Battery & Charging Folding & Unfolding Adjustments Inspection & Maintenance Trouble Shooting Specifications Warranty...
  • Page 4: Safety Information

    Safety Information Please drive on the sidewalk. For roads where there is no sidewalk, drive facing traffic as far off to the side of the road as possible. Pay attention to traffic of other vehicles on the road when there is no sidewalk available.
  • Page 5: Parts Description

    Drive carefully near curbs, slopes, soft terrains, obstacles, people, pets, furniture, etc. ● Any change and modification on initial setting and modification is prohibited. ● Please drive carefully when you are in the busy street, market and shopping center. ● Driving on unsafe and non-permitted roads is prohibited.
  • Page 6: Operating Instructions

    Tiller Head Components Speed Control Horn Button HUSB Interface Control Lever Key Switch Battery Indicator Operating Instructions Power Switch The key switch is operatied using the supplied keys. Turn key clockwise to turn the scooter on and counter clockwise to turn the scooter off. Warning! Never enter or exit the scooter with the power turned on! If the power is turned off while driving the scooter will come to an abrupt...
  • Page 7 Horn Button Pressing the horn button will sound the horn. Used to warn others in an emergency where an accident seems imminent. Battery Holder The battery compartment contains the 24 volt 6 ah lithium Ion battery which powers the scooter for driving and folding. Controller The controller is the electronics module set under the seat frame that enables the scooter to run and react to signals sent form the tiller head control panel.
  • Page 8: Battery & Charging

    Caution: Ensure the power is off when entering or exiting the scooter. Do not operate the control lever with both hands at the same time. Do not turn off power when moving. Drive at low speed indoors, in crowds or when reversing. Stopping The brakes will automatically engage when the control lever is released and it returns to the neutral (center) position.
  • Page 9: Folding & Unfolding Adjustments

    Folding and Unfolding the Scooter Remote Control • On the reomte control press and hold the lock button to unfold the scooter. • Press and hold the unlock button to fold the scooter. The scooter can also be folded and unfolded manually by using the switch found at the back on the shroud under the seat.
  • Page 10: Inspection & Maintenance

    Routine Inspection Before driving please ensure the scooter is safe and working properly. Below are a list of items that should be checked regularly. Inspection Item Inspection Content Tiller Ensure the tiller is secure, locked in place and turning properly. Speed Adjuster Ensure the speed control rotates smoothly and operates correctly...
  • Page 11: Troubleshooting

    Troubleshooting The controller is designd=ed to be trouble free and is equipped with a system to diagnose common problems. A flashing LED light on the control panel will give an indication of the problem. Number Problem Possible Solution of flashes Low battery or bad connection Check connections and try recharging Motor problem...
  • Page 12: Warranty

    This EZee Life™ product carries a three-year warranty against manufacturing defects, faulty materials and workmanship only. Any alterations, misuse, abuse, or accidental damage voids this warranty. EZee Life™ reserves the right to replace or repair any part that has become defective.
