EZEE Travel
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZEE Travel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EZee Life EZEE Travel

Summary of Contents for EZee Life EZEE Travel

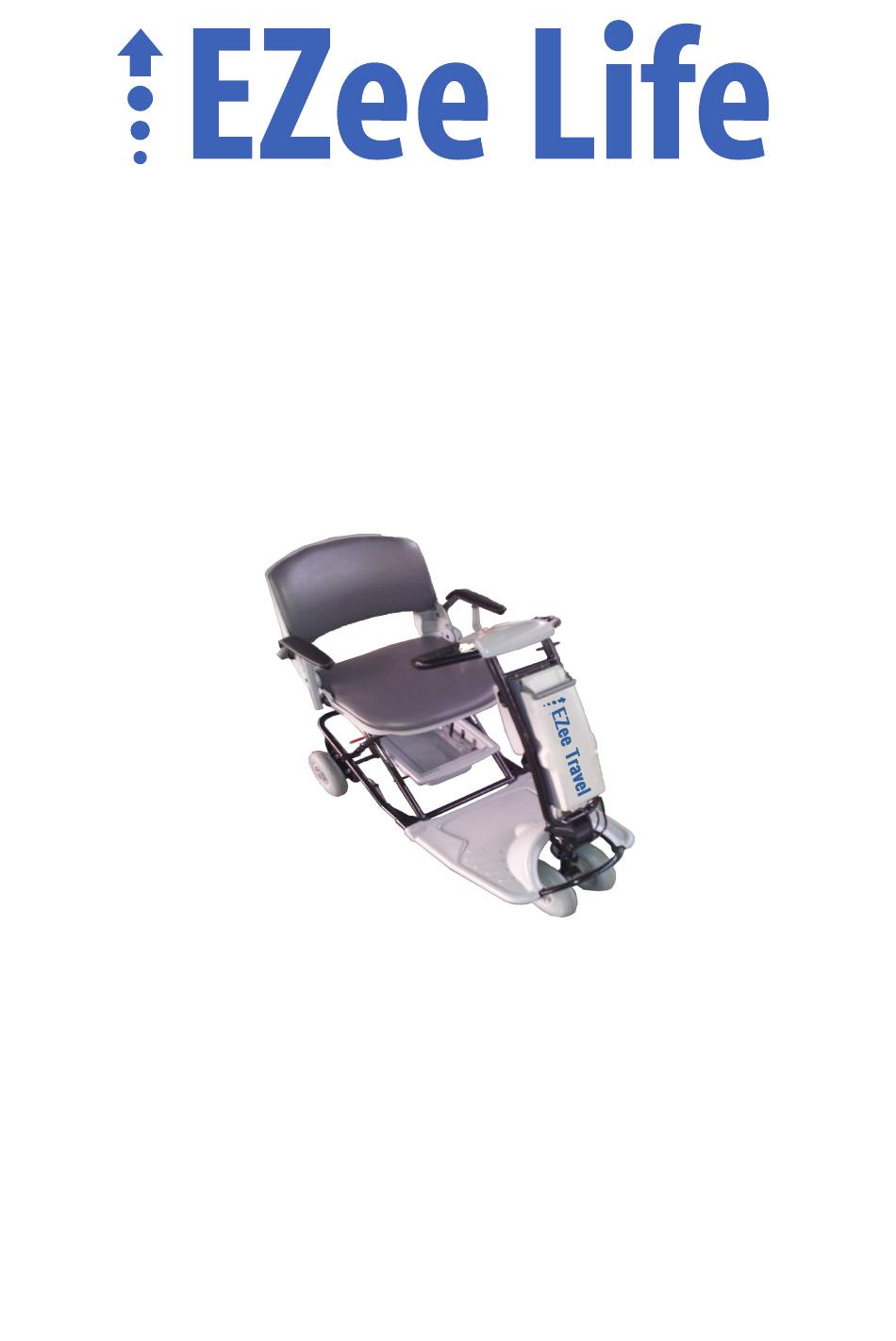

  • Page 1 EZEE Travel USER’S MANUAL...

  • Page 2: Table Of Contents

    Table of contents: Page Introduction Safety System Components Folding Instructions Operating your EzeeTravel Lite Moving and Transporting your EzeeTravel Lite Helpful Hints for Everyday Use General Maintenance and Inspection EMI – Electromagnetic Interference Fault Finding Disposal and Recycling Technical Data NOTE: Design details may change without notice.

  • Page 3: Introduction

    The user must have sufficient arm and leg strength to get on and off the Ezee Travel alone and to safely steer un- der all driving conditions. The Ezee Travel is intended for indoor and re- stricted outdoor use on pavements or paved footpaths only during daylight hours.

  • Page 4: System Components

    9. Do not sit on the scooter while being transported in a moving vehicle. Al- ways fold down and secure your Ezee Travel and transfer yourself to a vehicle seat. 3. SYSTEM COMPONENTS AND DETAILS 3.1. Travel Compact parts – (Figure 1) 1.
  • Page 5 3.2. Control Panel – (Figure 2) On-Off Switch Hand control lever (right and left) Speed adjusting knob Indicator light (LED) Battery Gauge Hand-grips BELL: If the user requires an audible warning device, a standard bicycle bell can be attached to the handlebar.

  • Page 6: Folding Instructions

    Frame and let the Crossbar (Fig. 4-A) fall into the Crossbar Sup- Figure 3 ports (Fig. 4-B) 4.2. Folding your Ezee Travel Grasp top of Backrest, lift it a little bit just to release the Crossbar (Fig. 4-A) from the Supports (Fig.
  • Page 7 (Fig. 5/3). CAUTION: When getting in and out of the Ezee Travel Lite seat, step only Figure 5 on CENTER of foot platform. DO NOT STEP ON SIDE OF FOOTPLATFORM to avoid tipping the Ezee Travel.

  • Page 8: Operating Your Ezeetravel Lite

    The switch located on the right side of the handle control cover (Fig. 6/1), will turn the power of the EZee Travel ON or OFF. NOTE: Turn your Ezee Travel switch to the OFF position when not in use in order to conserve battery power, and prevent unintentional operation.
  • Page 9 CAUTION: If control lever does not return by itself to the middle po- sition - do not operate. Contact your service agent. 5. Switch the Ezee Travel Lite on again and the indicator light. If it flashes rapidly again, switch off and do not operate. Contact your service agent! 5.3.
  • Page 10 When approaching ditches, bumps or similar obstacles – reduce speed as necessary.  Do not operate Ezee Travel in places or on surfaces where a loss of wheel grip could be hazardous, for example on wet grassy slopes. 5.6. Armrests (optional)
  • Page 11 1. Plug the charging connector into the Ezee Travel charging socket and then connect the charger to an electrical outlet socket. 2. Plug the charging connector in the back of the battery pack and then connect the charger to an electrical outlet socket.

  • Page 12: Moving And Transporting Your Ezeetravel Lite

    (Fig. 1/13) and the handle on the motor (Fig. 1A/15). Switch: before activating, make sure your Ezee Travel is switched on. Turn freewheel switch to the "freewheel" position and push or pull the Ezee Travel Lite manually.
  • Page 13 1. Disconnect battery pack and place in Utility basket Figure 9 2. Fold the Ezee Travel , see folding in- structions on page 7 3. For storage – set the Ezee Travel Lite in an upright position (Fig. 9) 4.

  • Page 14: Helpful Hints For Everyday Use

    Ensure that the rear frame is locked open. • Speed Controls Always operate your Ezee Travel at a reasonable speed for both your per- sonal safety and others. Stopping Dynamic braking will gradually bring your Ezee Travel to a stop when hand control lever is released.

  • Page 15: General Maintenance And Inspection

    1. Throttle test: Pull the throttle to the full speed position and switch ON the Power switch. The Ezee Travel should not move and the LED on the panel should flash. If the Ezee Travel does move – do not use your Ezee Travel. Contact your authorized dealer.
  • Page 16 “blade” type – 20 A). There is a spare fuse attached to the battery-pack cover. Figure 15 WARNING: Do not attempt to repair or service the Ezee Travel or any of its components, as this will void your warranty. SERVICE AND REPAIR: CONTACT YOUR AUTHORIZED DEALER.

  • Page 17: Emi - Electromagnetic Interference

    EMI. Your Ezee Travel as shipped, with no further modification, has an immunity level of 20 V/m. This immunity was tested with the inclusion of these accesso- ries: a utility basket with a spare battery-pack and the charger unit carried in- side it.
  • Page 18 EM energy very close to the motorized scooter’s control system while using these devices. This can affect the scooter’s movement and braking. Therefore, the warnings listed below are recommended to pre- vent possible interference with the control system of your Ezee Travel.
  • Page 19 OFF as soon as it is safe to do so; 4) Be aware that adding accessories or components, or modifying your Ezee Travel, may make it more susceptible to EMI (Note: There is no easy way to evaluate their effect on the overall immunity of your Ezee Travel);...

  • Page 20: Fault Finding

    The motor has a short circuit to a battery 3 flashes connection. 4 flashes Freewheel is engaged. The Ezee Travel 5 flashes Not used. does not function, The controller is being inhibited from Battery/Status 6 flashes driving;...

  • Page 21: Disposal And Recycling

     tic parts, steel and aluminium frame and adapter parts. Do not discard of any components to normal garbage facilities. When Ezee Travel is no longer operational, it is to be dismantled and separated into above mate- rial groups and submitted to authorized recycling facilities.
  • Page 22 For safety and for warranty assurance reasons, any modifications and repair of the Ezee Travel or its components must be performed exclusively by au- thorized personnel and exclusively with original spare parts.
