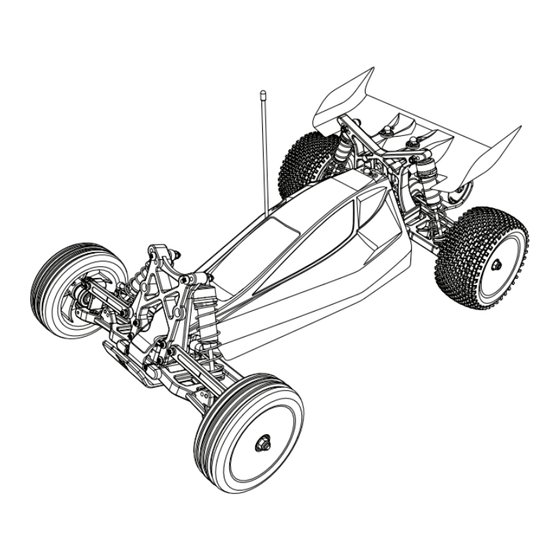

1/10 electrIc Buggy
ecX3000 | ecX3000au | ecX3100 | ecX3100au
InstructIon Manual
BedIenungsanleItung
Manuel d'utIlIsatIon
Manuale
tM
Congratulations on your purchase of the Electrix
RC
Boost
TM
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des Electrix
RC
Circuit
TM
Model öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat du Electrix RC
Circuit
Stadium Truck. Ce modèle 1/10 vous
TM
introduit au sport de la conduite RC.
Congratulazioni per l'acquisto di questo RC Circuit
Stadium Truck Electrix. Questa vettura in scala
1/10 vi introdurrà nel mondo dei modelli RC.
Buggy. This 1/10-scale model
TM
Stadium Truck. Dieses 1/10 Scale
TM
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Electrix RC Boost ECX3000
Summary of Contents for Electrix RC Boost ECX3000

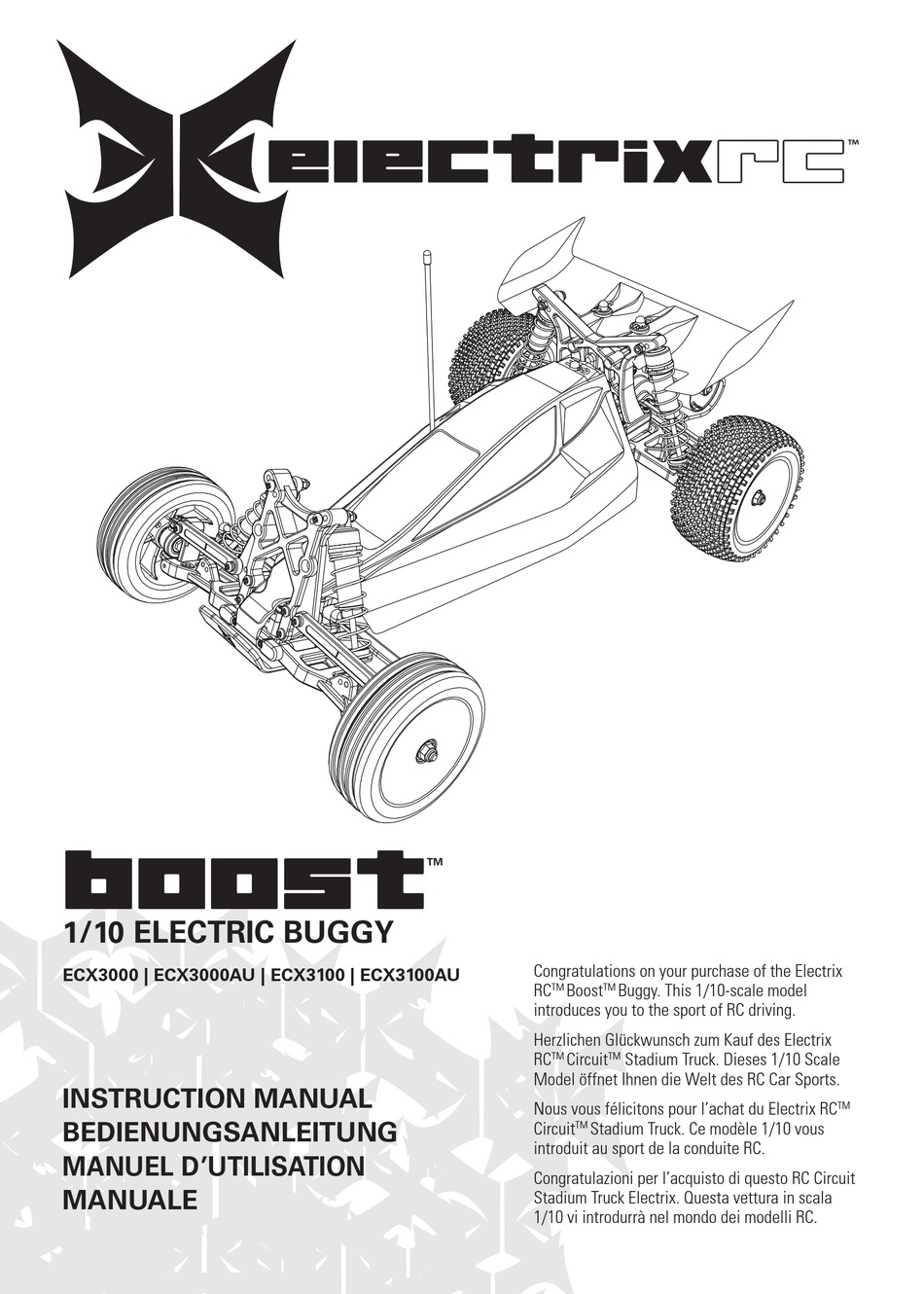

- Page 1 1/10 electrIc Buggy Congratulations on your purchase of the Electrix ecX3000 | ecX3000au | ecX3100 | ecX3100au Boost Buggy. This 1/10-scale model introduces you to the sport of RC driving. Herzlichen Glückwunsch zum Kauf des Electrix Circuit Stadium Truck. Dieses 1/10 Scale Model öffnet Ihnen die Welt des RC Car Sports.
-
Page 2: Table Of Contents
Installing Transmitter Antenna .............4 Troubleshooting Guide ..............9 Charging the Batteries ..............4 Warranty and Repair Policy ............10 Installing Vehicle Battery ..............5 Contact Information ..............11 Operation FCC and Compliance Information for the European Union ..11 Transmitter controls ..............6 Fasteners ..................42 Getting Started................7 Parts Diagram................43 boost... -
Page 3: Specifications
27 x 35 x 17.3mm Size 40.5 x 20 x 36.8mm Weight 34 g - 36 g COMPONENTS 1. Electrix RC Boost 1/10 Buggy 2. Transmitter 3. Antenna Tube (ECX1087) Included Items 4. AA (8) 5. ECX3013 Battery Charger Note: Charger power outlet terminals not shown. -
Page 4: Installing Transmitter Battery
Divide the mAh capacity on the to the touch or starts to change form during the charge process. label of a battery by 500 to know how long battery charging will require. For example, an 1800mAh battery requires 3.5 hours to charge. boost... -
Page 5: Installing Vehicle Battery
Frequent turns Stops and starts Pushing objects Driving in deep sand or tall grass Driving continuously uphill • Over-temperature protection is installed on the ESC to prevent circuit damage, but cannot protect the motor from driving against heavy resistance. boost... -
Page 6: Transmitter Controls
Stop DYN1970 2300mAh Tx NiMH Forward causing injury to persons Conversion Kit: FUT, ECX and/or damage to property . Controls power to motor for forward or reverse note: The center pin on the charge jack is positive boost... -
Page 7: Getting Started
3. Disconnect Battery. 1. Power off Electronic Speed Control (ESC). 4. Remove Battery from vehicle. 2. Power off the Transmitter and Lower Antenna. note: To prevent damage to antenna, collapse the antenna by pulling the lower sections in first. boost... -
Page 8: Setting The Gear Mesh
AM Receiver Crystal (Rx) note: For correct operation, Channels 1 and 2 must be used as shown in wiring Channel 2 diagram. The motor can be disconnected Channel 1 from the ESC at the connectors in the wiring. Receiver Steering Servo boost... -
Page 9: Maintenance
Short Run Time • Motor dirty or brushes worn • Check/clean/replace •Motor dirty or brushes worn • Check/clean/replace Sluggish Action • Bind in drivetrain • Clean/adjust • Vehicle battery is not charged • Replace/recharge Controls Reversed • ST. REV or TH. REV • Change switch position Motor/ESC overheat • Over-geared • Install smaller pinion • Transmitter batteries low • Replace/recharge • Transmitter powered off • Power On Doesn’t Operate • ESC powered off • Power On • Vehicle battery is not charged • Replace/recharge • Transmitter batteries low • Replace/recharge • Transmitter antenna is damaged or loose • Check/tighten Poor Range • Receiver antenna damaged • Check/repair/replace • Motor dirty or brushes worn • Check/clean/replace boost... -
Page 10: Warranty And Repair Policy
Visa, MasterCard, American Express, and conflict of law principals). Discover cards. By submitting any item to Horizon for inspection or repair, you are agreeing to Horizon’s Terms and Conditions found on our website under the Repairs tab. boost... -
Page 11: Contact Information
COMPLIANCE INfORMATION fOR ThE EUROPEAN UNION declaration of conformity (in accordance with ISO/IEC 17050-1) No. HH20110212 Product(s): ECX 1/10th Scale Buggy Boost Item Number(s): ECX3000, ECX3100 Equipment class: The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC:... - Page 12 TAPPING FLAT HEAD Senkkopfschraube Madenschraube Senkkopfschraube Vis auto-taraudeuse tête Vis bridée Vis auto-taraudeuse à tête bouton Vite autofilettante testa Svasata Grano Vite autofilettante testa Svasata M3x16mm LOCK WASHER TAPPING FLAT HEAD Senkkopfschraube Vis tête plate Vite autofilettante testa Svasata boost...
-
Page 13: Parts Diagram
VUE ÉCLATÉE dES PIÉCES | ESPLOSO dEL MOdELLO CON REfERENZA PEZZI RECOMMENdEd ITEMS Empfohlene Werkzeuge Outils Recommandés Attrezzi raccomandati M3X25 M3X10 M3X10 M4.3X13 M3X12 M3X12 M4.3X13 M4.3X13 M3X18 M3X12 M3X8 M3X12 M3X12 M2X8 M3X18 M3X12 M3X16 M3X18 M4.3X13 M3X25 M2.5X4 M3X12 boost... - Page 14 En cas de démontage de l’écrou hexagonal, la broche de l’axe d’entraînement peut sortir de l’axe et tomber. nota: Quando montate le ruote, accertatevi che il trascinatore esagonale sia allineato con la spina del mozzo ruota. Quando togliete il trascinatore esagonale la spina può sfilarsi dal mozzo. boost...
- Page 15 20-Tooth Pinion Gear 20-Tooth Pinion Gear Pignon 10 dents Pignone a 20 denti ECX1071 Motor Motor Moteur Motore ECX1048 Body Clip Body Clip Clips Carrosserie Clippe per carrozzeria ECX1023 Top Shaft/Spacer Top Shaft/Spacer Set de Goupilles Set di spessori boost...
- Page 16 United Kingdom Hamburger Str. 10 +49 4121 46199 60 Germany Horizon Hobby GmbH 25335 Elmshorn service@horizonhobby.de Germany 14 Rue Gustave Eiffel +33 (0) 1 60 47 44 70 France Horizon Hobby SAS Zone d’Activité du Réveil Matin infofrance@horizonhobby.com 91230 Montgeron boost...
- Page 17 NOTES | hINWEIS | A NOTER | NOTA boost...
- Page 18 Created 1/11 28957 © 2011 Horizon Hobby, Inc.
