Electrix RC RUCKUS ECX2000 Instruction Manual

1/10 electric monster truck
Hide thumbs Also See for RUCKUS ECX2000:
Table of Contents

Advertisement

Quick Links

Download this manual

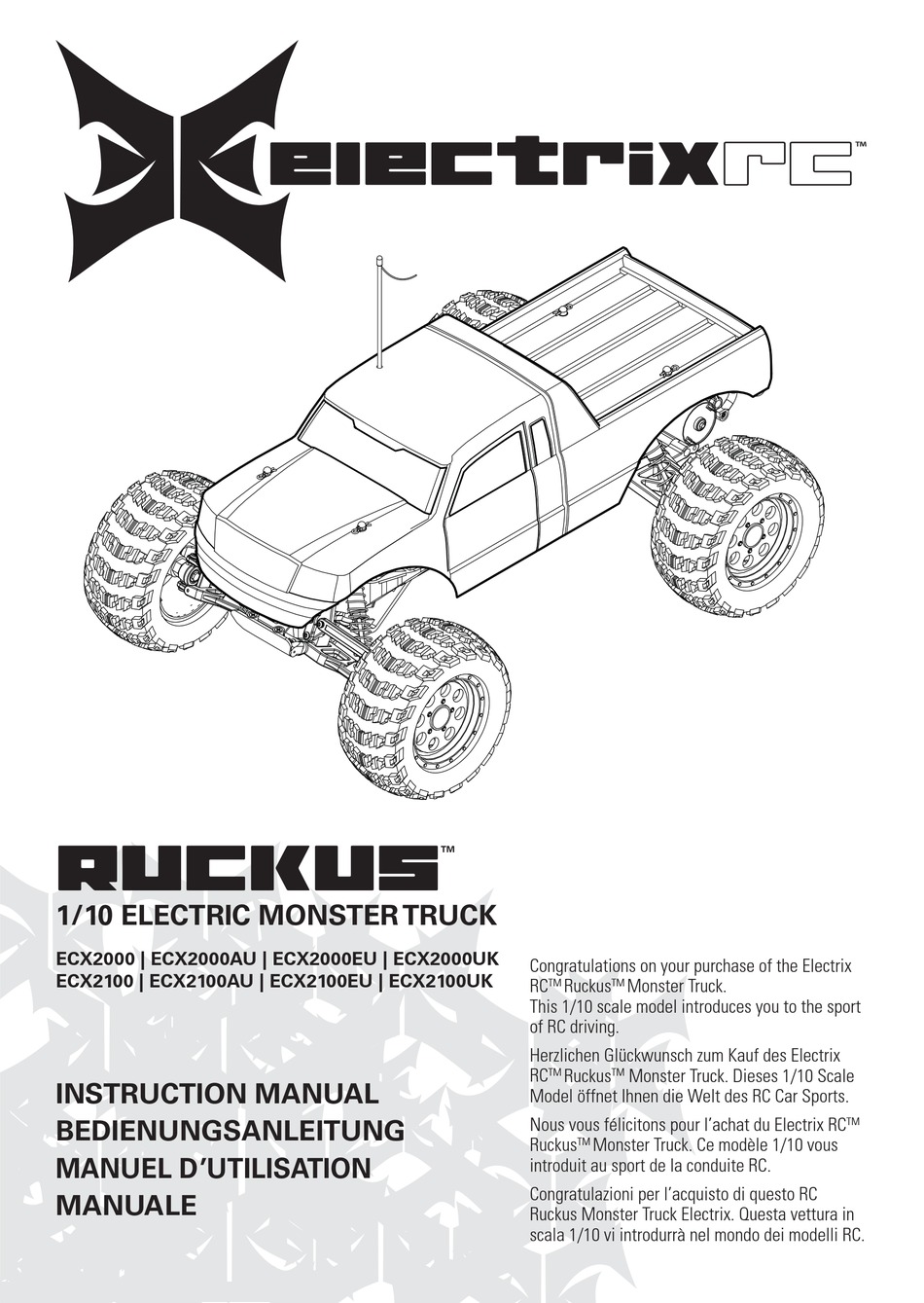

RUCKUS
1/10 ELECTRIC MONSTER TRUCK
ECX2000 | ECX2000AU | ECX2000EU | ECX2000UK
ECX2100 | ECX2100AU | ECX2100EU | ECX2100UK
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE
TM
Congratulations on your purchase of the Electrix
RC
TM
Ruckus
TM
This 1/10 scale model introduces you to the sport
of RC driving.
Herzlichen Glückwunsch zum Kauf des Electrix
RC
Ruckus
TM
TM
Model öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat du Electrix RC
Ruckus
TM
Monster Truck. Ce modèle 1/10 vous
introduit au sport de la conduite RC.
Congratulazioni per l'acquisto di questo RC
Ruckus Monster Truck Electrix. Questa vettura in
scala 1/10 vi introdurrà nel mondo dei modelli RC.
Monster Truck.
Monster Truck. Dieses 1/10 Scale
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUCKUS ECX2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Electrix RC RUCKUS ECX2000

Summary of Contents for Electrix RC RUCKUS ECX2000

  • Page 1 Herzlichen Glückwunsch zum Kauf des Electrix Ruckus Monster Truck. Dieses 1/10 Scale INSTRUCTION MANUAL Model öffnet Ihnen die Welt des RC Car Sports. Nous vous félicitons pour l’achat du Electrix RC BEDIENUNGSANLEITUNG Ruckus Monster Truck. Ce modèle 1/10 vous MANUEL D’UTILISATION introduit au sport de la conduite RC.

  • Page 2: Table Of Contents

    NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

  • Page 3: Specifi Cations

    Size 40.5 x 20 x 36.8mm Size 27 x 35 x 17.3mm Weight 34 g - 36 g COMPONENTS 1. Electrix RC Ruckus 1/10 Monster Truck 2. Transmitter 3. Antenna Tube (ECX1066) Included Items 4. AA (8) 5. ECX1075 Battery Charger...

  • Page 4: Installing Transmitter Battery

    INSTALLING TRANSMITTER BATTERIES Note: Optional AA NiMH battery charger DYN1970 is available. Use only batteries approved for use with that charger. DYN1970 2300mAh Tx NiMH Conversion Kit: FUT, ECX 1. Slide panel open on bottom of transmitter. 2. Obey battery plus (+) and minus (-) diagram in transmitter to install 8 AA batteries.

  • Page 5: Installing Vehicle Battery

    INSTALLING VEHICLE BATTERY • Turn the thumb nuts on the chassis to remove the battery strap holding the battery. Remove or install a battery and replace the battery strap, locking the strap in place by turning the thumb nuts. • You can put the foam blocks (ECX2015) in front of the battery so the weight of the battery increases rear traction or in back of the battery to increase steering response.

  • Page 6: Transmitter Controls

    TRANSMITTER CONTROLS AM 27MHZ TRANSMITTER CRYSTAL REVERSE SWITCH AM Transmitter Crystal AM Receiver Crystal ANTENNA (Tx) (Rx) Pull antenna out to its Part # Description full length ECX1081 Crystal Set 1 26.995 (ECX1067 Antenna Only) ECX1082 Crystal Set 2 27.045 AM Rx AM Tx ECX1083 Crystal Set 3 27.095...

  • Page 7: Getting Started

    GETTING STARTED 3. Do a Test of Transmitter’s control of vehicle with vehicle wheels 1. Fully extend Antenna and Power on Transmitter. off ground. 2. Connect battery (page 3) to Electronic Speed Control (ESC) and 4. Start driving slowly and if the vehicle does not go straight, adjust power on the ESC.

  • Page 8: Setting The Gear Mesh

    SETTING THE GEAR MESH Gear mesh has already been set at the factory, and setting it is only necessary when changing motors or gears. Note: You must remove the vehicle’s gear cover (A) to do this adjustment. Proper gear mesh (how gear teeth meet) is important to the performance of the vehicle.

  • Page 9: Maintenance

    MAINTENANCE SHOCK CLEANING REAR SHOCK FRONT SHOCK ECX1037 • Oil-fi lled shocks will require regular maintenance due to the oil ECX1037 breaking down or getting dirty. This maintenance should be ECX1043 performed after about every 3 to 5 hours of use depending on ECX1043 ECX1057 conditions that the vehicle is used in.

  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Problem Possible Cause Solution • Battery damaged/not charged • Check/change battery Short Run Time • Motor dirty or brushes worn • Check/clean/replace •Motor dirty or brushes worn • Check/clean/replace Sluggish Action • Bind in drivetrain • Clean/adjust • Vehicle battery is not charged •...

  • Page 11: Contact Information

    sales receipt verifying the proof-of-purchase date. Provided warranty exceeds 50% of the retail purchase cost. By submitting the conditions have been met, your Product will be repaired or replaced item for repair you are agreeing to payment of the repair without free of charge.
  • Page 12 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI Recommended Items Empfohlene Werkzeuge M3X10 Outils Recommandés Attrezzi raccomandati M3X12 M3X10 M3X10 M3X12 M3X12 M3X12 M3X12 M3X25 M3X10 M3X12 M3X10 M3X15 M3X12 M3x15 M3X10 M3x25 M3x15 M3X8...
  • Page 13 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI Note: The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut. Then loosen the nut two full turns. Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
  • Page 14 Part # | Nummer Numéro | Codice Description Beschreibung Description Descrizione ECX2008 Main Chassis  Chassis Châssis principal Telaio principale ECX1028 Servo Saver Set  Servo Saver Set Jeu de sauvegarde de servo Set salvaservo ECX2011 Cover and Rear Mount Set mont de couverture et arrière ECX1050 Setscrew M3x12 (4) ...
  • Page 15 NOTES / HINWEIS / A NOTER / NOTA RUCKUS...
  • Page 16 NOTES / HINWEIS / A NOTER / NOTA RUCKUS...
  • Page 17 NOTES / HINWEIS / A NOTER / NOTA RUCKUS...
  • Page 18 Created 10/10 22425.1 © 2010 Horizon Hobby, Inc. ECX2000, ECX2000UK, ECX2000EU, ECX2000AU ECX2100, ECX2100UK, ECX2100EU, ECX2100AU...
