Disassembly

1. Separation of Front and Rear Bodies

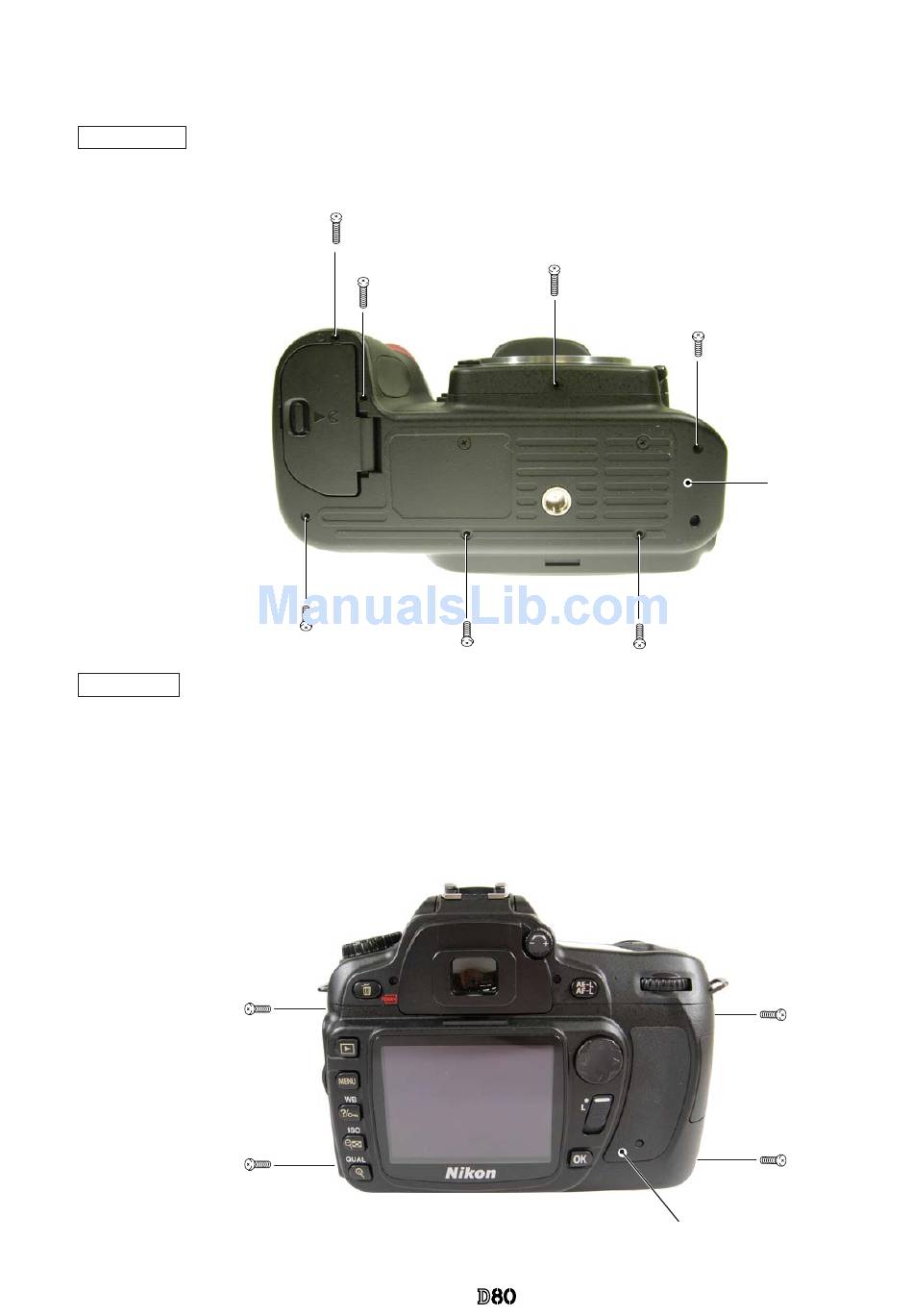

Bottom Cover
・ Take out two screws (#692), one screw (#658) and four screws (#657).
・ Remove the bottom cover.
Rear cover
・ Take out two screws (#657) and two screws (#656).
・ Remove the rear cover.
Note: Remove the rear cover slowly so as not to cut TFT-PCB
connection-FPC of the upper portion of the cover.
#657×2
#692×2
- Ｄ  ･
#658
#657×4
Rear cover
-
VBA14001-R.3694.A
Bottom cover
#656×2
