C&T Solution CT-CIB61 User Manual

Intel 3rd generation core processor i7/i5/i3/celeron com express type 6 module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CT-CIB61
rd
Intel® 3
Generation Core™ Processor i7/i5/i3/Celeron
COM Express™ Type 6 Module

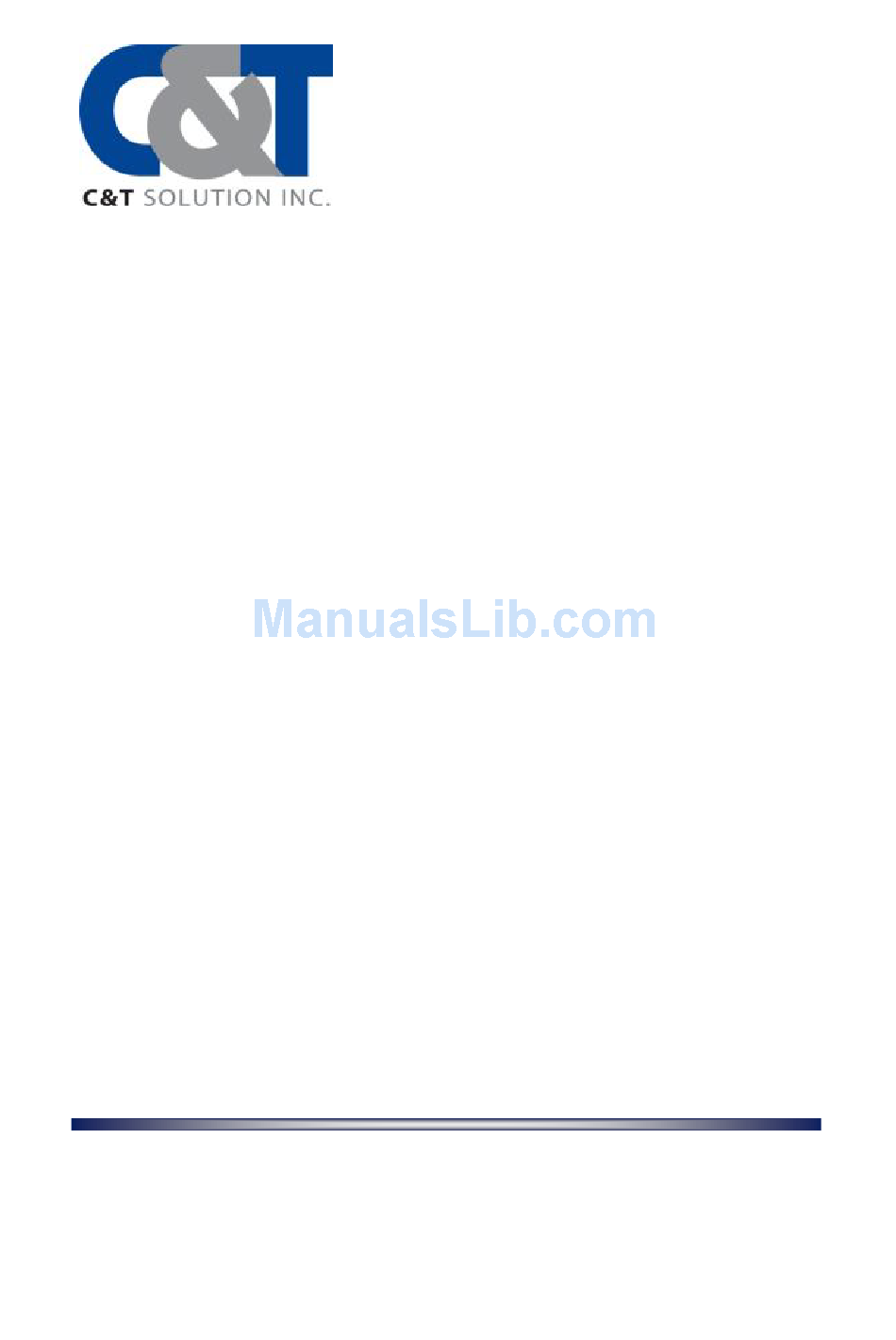

User's Manual
Version 1.0
C&T Solution Inc.
12F. -1, No.700, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
TEL: 886-2-77317888
http://www.candtsolution.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-CIB61 and is the answer not in the manual?

Questions and answers

Related Manuals for C&T Solution CT-CIB61

Summary of Contents for C&T Solution CT-CIB61

  • Page 1 CT-CIB61 Intel® 3 Generation Core™ Processor i7/i5/i3/Celeron COM Express™ Type 6 Module User’s Manual Version 1.0 C&T Solution Inc. 12F. -1, No.700, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan TEL: 886-2-77317888 http://www.candtsolution.com...

  • Page 2: Table Of Contents

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Table of Contents I. Preface ..................... ５ 1.1 Disclaimer ..................５ 1.2 Copyright Notice ................５ 1.3 Trademarks Acknowledgment ............５ II. Introduction....................６ 2.1 Product Description ................ ６...
  • Page 3 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 4.9 High Definition Audio ..............３０ 4.10 Ethernet ..................３０ 4.11 LPC ................... ３１ 4.12 SPI .................... ３１ 4.13 SMBus ..................３２ 4.14 ExpressCard ................３３ 4.15 General Purpose Input Output ..........３３...
  • Page 4 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.6 Save and Exit ................６９ VI. Address Map ..................７０ 6.1 I/O Port Address Map ..............７０ 6.2 Interrupt Controller (IRQ) Map ............. ７２ 6.3 Memory Map ................７５...

  • Page 5: Preface

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module I. Preface Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.

  • Page 6: Introduction

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module II. Introduction Product Description The CT-CIB61 is a new COM (computer-on-module) Express® basic form factor (125x95mm) in embedded computing platforms. It combines a socket G for Intel® 3 Generation Core i7/i5/i3 processors with Intel®...

  • Page 7: Specifications

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Specifications   Intel® 3 Generation Core i7/ i5/ i3/ Celeron processor  Socket G (rPGA988)  Chipset  Intel® QM77 Express Chipset  System Memory  Two 204-pin DDR3/DDR3L SODIMM sockets ...
  • Page 8 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module  Two UART Ports  LPC Interface  SMBus  SPI Interface  8-bit GPIO  Watchdog Timer  H/W Monitor  Power Management  ACPI (Advanced Configuration and Power Interface) ...

  • Page 9: Block Diagram

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Block Diagram Channel A DDR3/DDR3L 1333/1600MHz 204pin SODIMM Ivy Bridge PEG; 1x16; 2x8 &2x4 Channel B DDR3/DDR3L 1333/1600MHz 204pin SODIMM SDVO/Display Port/HDMI 24-bit LVDS dual-channel Display Port/HDMI Intel QM77 8xUSB2.0...

  • Page 10: Sku

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Product Processor Features Number CT-CIB61 Socket G for 3 QM77 2xDDR3, LVDS, VGA, 3xDDI, PCIex16, 7xPCIex1, Gen Core i7,i5,i3 GbE, 4xUSB3.0, 8xUSB2.0, 4xSATA, GPIO, iAMT8.0 １０...

  • Page 11: Mechanical Specification

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module III. Mechanical Specification Module Dimensions The PCB size of CT-CIB61 is 125mm x 95mm, the standard COM Express Basic Module size. The holes shown in the drawing below is for stacking the module with the Heat Spreader / Fan Sink and the Carrier Board.

  • Page 12: Layout

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Layout There are two SODIMM sockets. Each of them is mounted separately on each side of the CT-CIB61. Two 220-pin COM Express connectors are mounted at the bottom side of the PCB.

  • Page 13: Top Side

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Top Side: Bottom Side: １３...

  • Page 14: Connectors And Switch

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Connectors and Switch Connector Description Top DDR3 SO-DIMM Connector Bottom DDR3 SO-DIMM Connector LPC Debug Port CPLD JTAGE COM™ Express connector Row A, B COM™ Express connector Row C, D PCIE Port Bifurcation Straps 3.3.1...
  • Page 15 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Row A Row B Row C Row D GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) GBE0_MDI3- GBE0_ACT# GBE0_MDI3+ LPC_FRAME# USB_SSRX0- USB_SSTX0- GBE0_LINK100# LPC_AD0 USB_SSRX0+ USB_SSTX0+ GBE0_LINK1000# LPC_AD1 GBE0_MDI2- LPC_AD2 USB_SSRX1- USB_SSTX1-...
  • Page 16 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Row A Row B Row C Row D USB4- USB5- DDI3_PAIR0+ DDI2_PAIR0+ USB4+ USB5+ DDI3_PAIR0- DDI2_PAIR0- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) USB2- USB3- DDI3_PAIR1+ DDI2_PAIR1+ USB2+ USB3+ DDI3_PAIR1- DDI2_PAIR1-...
  • Page 17 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Row A Row B Row C Row D LVDS_VDD_EN LVDS_B3+ LVDS_A3+ LVDS_B3- PEG_RX8+ PEG_TX8+ LVDS_A3- LVDS_BKLT_EN PEG_RX8- PEG_TX8- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) LVDS_A_CK+ LVDS_B_CK+ PEG_RX9+ PEG_TX9+ LVDS_A_CK- LVDS_B_CK-...

  • Page 18: Pcie Port Bifurcation: Sw1

    Fan Sink Step 1: Place the fan sink on top of the CT-CIB61 module. Step 2: Use three screws (M2.5x5L) to secure the fan sink with the CT-CIB61, as illustrated below. Step 3: Connect the COM Express connectors on the CT-CIB61 to the corresponding COM connectors on the Carrier Board.
  • Page 19 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module １９...

  • Page 20: Heat Spreader

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 3.4.2 Heat Spreader A heat spreader is designed for the CT-CIB61 to dissipate heat. All heat generating components are thermally conducted to the heat spreader in order to avoid hot spots.
  • Page 21 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module ２１...

  • Page 22: Features & Interfaces

    Processor Graphics and Integrated Memory Controller. Such platform enables higher performance, lower cost, easier validation and improved x-y footprint. BIOS The AMI uEFI BIOS, 8MB SPI Flash Rom is used in CT-CIB61 module. System Memory The Integrated Memory Controller (IMC) of the processor supports DDR3 protocols with two independent, 64-bit wide channels.

  • Page 23: Vga Output

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Embedded DisplayPort, Intel® SDVO and DVI along with legacy display technologies-Analog Port (VGA) and LVDS. The Analog Port and LVDS Port are dedicated ports on the PCH, and the Digital Ports B, C, and D can be configured to drive HDMI, DVI, or DisplayPort.

  • Page 24: Ddi

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Signal Description Red for monitor. Analog DAC output, designed to VGA_RED drive a 37.5Ω equivalent load. Green for monitor. Analog DAC output, designed VGA_GRN to drive a 37.5Ω equivalent load.
  • Page 25 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Signal Description DDI 1 to 3 Pair[0:3] differential pairs DDI[1:3]_PAIR[0:3]+ DDI[1:3]_PAIR[0:3]- Selects the function of DDI[1:3]_DDC_AUX_SEL I DDI[1:3]_CTRLCLK_AUX+ and DDI[1:3]_CTRLDATA_AUX-. This pin shall have a 1M pull-down to logic ground on the Module. If this input is floating the AUX pair is used for the DP AUX+/- signals.
  • Page 26 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Signal SDVO HDMI/DVI DDI2_PAIR0+ DP2_LANE0+ TMDS2_DATA2+ DDI2_PAIR0- DP2_LANE0- TMDS2_DATA2- DDI2_PAIR1+ DP2_LANE1+ TMDS2_DATA1+ DDI2_PAIR1- DP2_LANE1- TMDS2_DATA1- DDI2_PAIR2+ DP2_LANE2+ TMDS2_DATA0+ DDI2_PAIR2- DP2_LANE2- TMDS2_DATA0- DDI2_PAIR3+ DP2_LANE3+ TMDS2_CLK+ DDI2_PAIR3- DP2_LANE3- TMDS2_CLK- DDI2_HPD...

  • Page 27: Usb

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 4.5.3.2 DDI Signals: SDVO SDVO Signal Description Serial Digital Video red output differential pair SDVO1_RED+ SDVO1_RED- Serial Digital Video green output differential pair SDVO1_GRN+ SDVO1_GRN- Serial Digital Video blue output differential pair...

  • Page 28: Sata

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module supports USB 1.1 and 2.0 compliant devices. Signal Description USB differential pairs, channels 0 through 7, USB[0:7]+ transmit Data/Address/Command signals. USB[0:7]- USB over-current sense, USB channels 0 and 1.

  • Page 29: Pci Express

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Signal Description Serial ATA or SAS Channel 0 transmits SATA0_TX+ differential pair. SATA0_TX- Serial ATA or SAS Channel 0 receives SATA0_RX+ differential pair. SATA0_RX- Serial ATA or SAS Channel 1 transmits SATA1_TX+ differential pair.

  • Page 30: Pci Express X16

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 4.8.2 PCI Express x16 The processor contains one PCI Express controller that supports one external x16 PCI Express Graphics port. This port can also operate at Gen 2 speed, 5.0GT/s.

  • Page 31: Lpc

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module The integrated GbE controller contains power management registers for PCI, so it supports the Advanced Configuration and Power Interface (ACPI) specification. This enables the network-related activity (using an internal host wake signal) to wake up the host.

  • Page 32: Smbus

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module SPI-compatible flash devices. The SPI flash device can be up to 16MB (128Mb). The SPI bus is clocked at either 20MHz, 25MHz, 33MHz or 50 MHz. SPI devices selected should support one of these frequencies.

  • Page 33: Expresscard

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Signal Description System Management Bus bidirectional clock line SMB_CK System Management Bus bidirectional data line SMB_DAT System Management Bus Alert – active low input SMB_ALERT# can be used to generate an SMI# (System Management Interrupt) or to wake the system.

  • Page 34: Registers Description

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Pin # GPIO# Default Configuration GPIO1 GPI1 GPIO0 GPI0 The GPIO function, provided by Intel Panther IC, can be accessed through GPIO Base Address Register (GPIOBASE). The configuration on CT-CIB61 is described as below.
  • Page 35 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module (Offset GPIOBASE+0x04) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 GPIO0 (Offset GPIOBASE+0x06) Bit 7 Bit 6 Bit 5 Bit 4...
  • Page 36 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module (Offset GPIOBASE+0x2C) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 GPIO0 (Offset GPIOBASE+0x2E) Bit 7 Bit 6 Bit 5 Bit 4...

  • Page 37: Psuedo Code

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 4.16 Watchdog Timer Enable TCO Timer Reboot Function Set Initial Value into Timer Register Reload Timer Value into Register Start to Count 4.16.1 Board Design The WDT (Watchdog Timer) is implemented by using Fintek F81801.

  • Page 38: Power And System Management Signals

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 4.17 Power and System Management Signals Signal Description Indicates system is suspended to RAM state. SUS_S3# Active low output. Indicates system is suspended to Disk state. SUS_S4# Active low output.

  • Page 39: System Bios

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module V. SYSTEM BIOS The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset.

  • Page 40: Advanced

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Advanced Launch PXE OpROM : Enable or Disable Boot Option for Legacy Network Devices. AMT Configuration: Enable/Disable Intel® Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution.

  • Page 41: Acpi Settings

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.1 ACPI Settings Enables or disables BIOS ACPI Auto Configuration. ４１...

  • Page 42: Trusted Computing

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.2 Trusted Computing Security Device Support enables or disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

  • Page 43: Cpu Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.1 CPU Configuration Hyper-threading: Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled, only one thread per enabled core is enabled.

  • Page 44: Sata Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.2 SATA Configuration The BIOS automatically detects the presence of SATA device and the hardware installed in the SATA ports will be showed in the configuration. Each port can be enabled or disabled individually.

  • Page 45: Usb Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.3 USB Configuration Legacy USB Support: AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 46: W83627Dhg Super Io Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.4 W83627DHG Super IO Configuration Two serial ports could be configured. ４６...
  • Page 47 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.4.1 Serial Port 1 Configuration Each serial port could be enabled or disabled. ４７...

  • Page 48: W83627Dhg H/W Monitor

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.5 W83627DHG H/W Monitor Smart Fan Configuration: Select CPU Smart Fan 0 Mode ４８...

  • Page 49: F81801 Super Io Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.6 F81801 Super IO Configuration ４９...
  • Page 50 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.6.1 Serial Port 0 Configuration Each serial port could be enabled or disabled. ５０...

  • Page 51: F81801 H/W Monitor

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.7 F81801 H/W Monitor Smart Fan Configuration: Select CPU Smart Fan 0 Mode ５１...

  • Page 52: Serial Port Console Redirection

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.8 Serial Port Console Redirection ５２...

  • Page 53: Cpu Ppm Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.2.9 CPU PPM Configuration ５３...

  • Page 54: Chipset

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Chipset ５４...

  • Page 55: Pch-Io Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.1 PCH-IO Configuration ５５...
  • Page 56 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.1.1 PCI Express Configuration ５６...
  • Page 57 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.1.1.1 PCI Express Root Port Each PCI Express Root Port can be enabled or disabled individually. ５７...
  • Page 58 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.1.2 USB Configuration ５８...
  • Page 59 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.1.3 PCH Azalia Configuration ５９...

  • Page 60: System Agent Configuration

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.2 System Agent Configuration ６０...
  • Page 61 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.2.1 Graphics Configuration ６１...
  • Page 62 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.2.1.1 LCD Control ６２...
  • Page 63 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.2.2 NB PCIe Configuration ６３...
  • Page 64 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.3.2.3 Memory Configuration ６４...

  • Page 65: Boot

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Boot Boot Configuration: Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State: Select [Enable] or [Disable] for the keyboard NumLock state.

  • Page 66: Csm16 Parameters

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.4.1 CSM16 Parameters OpROM execution, boot options filter, etc. GateA20 Active: [Upon Request] – GA20 can be disabled using BIOS services. [Always] – do not allow disabling GA20; this option is useful wen any RT code is executed above 1MB.

  • Page 67: Csm Parameters

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module 5.4.2 CSM Parameters OpROM execution, boot options filter, etc. Launch CSM: This option controls if CSM will be launched always or never. Boot option filer: This option controls what devices system can boot to [UEFI and Legacy], [Legacy only] or [UEFI only].

  • Page 68: Security

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Security Administrator’s and User’s passwords could be set. If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup.

  • Page 69: Save And Exit

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Save and Exit Save Changes and Exit: Exit system setup after saving the changes. Discard Changes and Exit: Exit system setup without saving any changes. Save Changes and Reset: Reset the system after saving the changes.

  • Page 70: Address Map

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module VI. Address Map I/O Port Address Map The assignment of the I/O port addresses for the CT-CIB61 with CT-BT601 baseboard under Windows® 7 Ultimate/64bit are shown below. ７０...
  • Page 71 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module ７１...

  • Page 72: Interrupt Controller (Irq) Map

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Interrupt Controller (IRQ) Map The interrupt controller map for the CT-CIB61 with the CT-BT601 baseboard under Windows® 7 Ultimate/64bit are as shown below. ７２...
  • Page 73 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module ７３...
  • Page 74 CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module ７４...

  • Page 75: Memory Map

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module Memory Map The memory map of DRAM for the CT-CIB61 with CT-BT601 baseboard under Windows® 7 Ultimate/64bit are shown below. ７５...

  • Page 76: Electrical Specification

    CT-CIB61 Intel® 3rd Generation Core™ Processor i7/i5/i3 COM Express Type 6 Module VII. Electrical Specification Input Power The baseboard for the CT-CIB61 shall supply a single main power rail with a nominal value of +12V and two additional rails, a +5V standby power and +3V RTC power.
