C&T Solution BCO-2000 Series User Manual

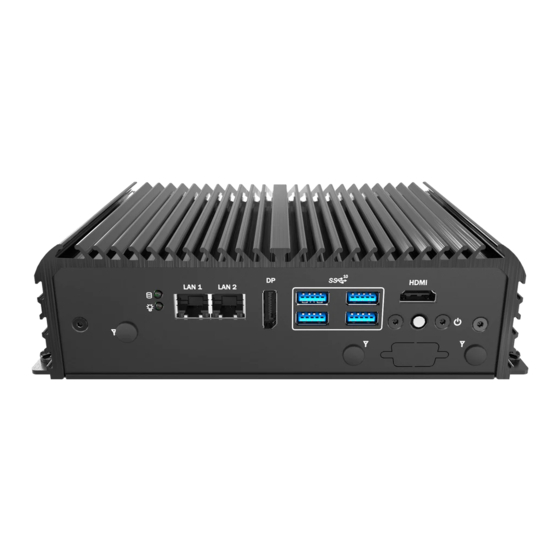

Compact fanless embedded system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BCO-2000
Compact Fanless Embedded System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCO-2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for C&T Solution BCO-2000 Series

Summary of Contents for C&T Solution BCO-2000 Series

  • Page 1 BCO-2000 Compact Fanless Embedded System...

  • Page 2: Table Of Contents

    BCO-2000 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 BCO-2000 l User’s Manual 4.3.4 RST (UEFI RAID) Configuration………………………….....…………..…...61 4.3.5 Trusted Computing……………………………..………………….………….….…………63 4.3.6 ACPI Settings…………...……………………………………….…………..………………….64 4.3.7 Super IO Configuration..………………………………..…….….………………………..65 4.3.8 Hardware Monitor…………………………………………….…..…………..…………..70 4.3.9 Serial Port Console Redirection…………………………....………………71 4.3.10 Network Stack Configuration ……………………….….......……….72 4.3.11 CSM Configuration……………..……………………......…………...73 4.3.12 USB Configuration……………..……………………......………...74 Chipset …………...……….………………….…..….…..………………………………………..…..75 4.4.1 System Agent (SA) Configuration ………………………………..…………………..

  • Page 4: Prefaces

    BCO-2000 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2021/01/30 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc.

  • Page 5: Safety Precautions

    Preface BCO-2000 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible. ...

  • Page 6: Technical Support And Assistance

    Preface BCO-2000 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Module Kit with 2x PoE for BCO-2000 Series 3-BC2000CMKIT-SO Module Kit with 4x COM for BCO-2000 Series 3-BC20002CKIT-SO Module Kit with 2x COM for BCO-2000 Series 3-BC2000U2KIT-SO Module Kit with 2x USB 2.0 for BCO-2000 Series 3-BC2000U3KIT-SO Module Kit with 2x USB 3.0 for BCO-2000 Series...

  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 9: Overview

    BCO-2000 l User’s Manual Chapter 1: Product Introductions 1.1 Overview C&T Basic Fanless Embedded Systems are designed for entry-level applications and basic needs. The BCO series can oversee connected devices and manage the collection, storage, and transmission of sensor data, and is capable of distilling unexplored value in data. It is not only robust and can withstand dust, shock, and vibration, but also can suitable for industrial automation, industrial control, kiosk &...

  • Page 10: Hardware Specification

    BCO-2000 l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification System Support 8th Gen. Intel® WL-UE Processor (15W TDP) Operating System Intel® Core™ i5-8365UE Processor 6M Cache, Windows Microsoft Windows 10 64-bit (RS5 or Higher) Processor up to 4.10 GHz Linux Kernel 5.x (Fedora 30 or Higher / Linux Intel®...

  • Page 11: System I/O

    BCO-2000 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O Front Panel LAN port ATX power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network Power LED Antenna hole Indicates the power status of the system Used to connect an antenna for optional Mini- PCIe WiFi module...
  • Page 12 BCO-2000 l User’s Manual Chapter 1: Product Introductions Rear Panel DC IN Expandable I/O bracket Used to plug a DC power input with terminal • COM Port： block COM2 or COM4 Support RS232/422/485 serial COM port device COM1 ~ COM2 support RS232/422/485 serial •...

  • Page 13: Mechanical Dimension

    BCO-2000 l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm...

  • Page 14: Chapter 2 Mechanical Specifications

    Chapter 2 Mechanical Specifications...

  • Page 15: Switch And Connector Locations

    BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.1 Switch and Connector Locations 2.1.1 Top View...

  • Page 16: Bottom View

    BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.1.2 Bottom View...

  • Page 17: Connector / Switch Definition

    BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.2 Connector / Switch Definition Connector Location Definition Clear CMOS header Panel PWR setting header Backlight PWR setting header Front Panel header AT/ATX setting header Panel Control USB3.1 port USB3.1 port COM1 COM1 Serial Port header COM2 COM2 Serial Port header...

  • Page 18: I/O Interface Descriptions

    BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.1 Clear CMOS Signal RTCRST# 2.3.2 Panel Power setting Signal +V3.3 P3P5V...
  • Page 19 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.3 Backlight Power setting Signal +V12 P5P12V...
  • Page 20 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.4 Front Panel Header Signal Signal Power(3.3V) SATA_LED# Power(3.3V) LOUT_R RESET_BUTTON_N LOUT_L PS_ON_BUTTON_N MICIN1_R MICIN1_L AGND_HD...
  • Page 21 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.5 AT/ATX setting Signal AT MODE PS_ON_BUTTON_N...
  • Page 22 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.6 Panel control Signal Signal LVDS_BKLTEN LBKLT_CTRL BLPWR BLPWR CH7511_BLUP CH7511_BLDN...
  • Page 23 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.7 USB3 Signal Signal USBVCC0 USBVCC0 USB2-2N_CONN USB2-1N_CONN USB2-2P_CONN USB2-1P_CONN USB3-RN2_CONN USB3-RN1_CONN USB3-RP2_CONN USB3-RP1_CONN USB3-TN2_CONN USB3-TN1_CONN USB3-TP2_CONN USB3-TP1_CONN...
  • Page 24 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.8 USB Signal Signal USBVCC0 USBVCC1 USB2-2N_CONN USB2-3N_CONN USB2-2P_CONN USB2-3P_CONN USB3-RN2_CONN USB3-RN3_CONN USB3-RP2_CONN USB3-RP3_CONN USB3-TN2_CONN USB3-TN3_CONN USB3-TP2_CONN USB3-TP3_CONN...
  • Page 25 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.9 eDP (Optional) CN31 Signal EDP_TXP1 EDP_TXN1 EDP_TXP0 EDP_TXN0 EDP_AUX-P EDP_AUX-N PNLPWR PNLPWR EDP_HPD...
  • Page 26 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.10 COM Port COM1 Signal Signal CM1_DCD CM1_DSR CM1_RXD CM1_RTS CM1_TXD CM1_CTS CM1_DTR CM1_RI...
  • Page 27 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.11 COM Port COM2 Signal Signal CM2_DCD CM2_DSR CM2_RXD CM2_RTS CM2_TXD CM2_CTS CM2_DTR CM2_RI...
  • Page 28 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.12 COM Port COM3 Signal Signal CM3_DCD CM3_DSR CM3_RXD CM3_RTS CM3_TXD CM3_CTS CM3_DTR CM3_RI...
  • Page 29 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.13 COM Port COM4 Signal Signal CM4_DCD CM4_DSR CM4_RXD CM4_RTS CM4_TXD CM4_CTS CM4_DTR CM4_RI...
  • Page 30 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.14 GPIO GPIO1 GPIO Default Configuration VCC5 DIO_PH_INT0 GPI0 DIO_PH_OUT0 GPO0 DIO_PH_INT1 GPI1 DIO_PH_OUT1 GPO1 DIO_PH_INT2 GPI2 DIO_PH_OUT2 GPO2 DIO_PH_IN3 GPII3 DIO_PH_OUT3 GPO3...
  • Page 31 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.15 SATA SATA1 Signal SATA_TX0_C_DC_DP SATA_TX0_C_DC_DN SATA_RX0_DC_DN SATA_RX0_DC_DP...
  • Page 32 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.16 SATA SATA2 Signal SATA_TX1_C_DC_DP SATA_TX1_C_DC_DN SATA_RX1_DC_DN SATA_RX1_DC_DP...
  • Page 33 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.17 SATA Power SATA1_PWR1 Signal +V12...
  • Page 34 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.18 SATA Power SATA2_PWR1 Signal +V12...
  • Page 35 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.19 USB2.0 USB_2 Signal Signal USBVCC2 USBVCC2 USB2-5N_CONN USB2-6N_CONN USB2-5P_CONN USB2-6P_CONN...
  • Page 36 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.20 DC12_IN DC_IN2 Signal...
  • Page 37 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.21 FAN Power FAN1 Signal +12V FAN_SENSE FAN_CONTROL...
  • Page 38 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.22 HDMI HDMI Signal Signal HDMI_TX2+_C HDMI_TXC-_C HDMI_TX2-_C HDMI_TX1+_C HDMI_SCL HDMI_TX1-_C HDMI_SDA HDMI_TX0+_C VCC5_HDMI HDMI_TX0-_C HDMI_HPD_CON HDMI_TXC+_C...
  • Page 39 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.23 DP Signal ML_LANE0+ ML_LANE0- ML_LANE1+ ML_LANE1- ML_LANE2+ ML_LANE2- ML_LANE3+ ML_LANE3- AUX CH+ AUX CH- DP_PWR Return...
  • Page 40 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.24 RJ45 Signal Signal R1 GBE1_MDI0P R1 GBE2_MDI0P R2 GBE1_MDI0N R2 GBE2_MDI0N R3 GBE1_MDI1P R3 GBE2_MDI1P R4 GBE1_MDI1N R4 GBE2_MDI1N R5 GBE0_CT R5 GBE0_CT R6 GBE0_CT R6 GBE0_CT R7 GBE1_MDI2P R7 GBE2_MDI2P R8 GBE1_MDI2N...
  • Page 41 BCO-2000 l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.25 LVDS (Optional) LVDS1 Signal Signal LB_DATA-N3 LB_DATA-P3 LB_CLK-N LB_CLK-P LB_DATA-N2 LB_DATA-P2 LB_DATA-N1 LB_DATA-P1 LB_DATA-N0 LB_DATA-P0 MIICSDA MIICSCL LA_DATA-P3 LA_DATA-N3 LA_CLK-P LA_CLK-N LA_DATA-P2 LA_DATA-N2 LA_DATA-P1 LA_DATA-N1 LA_DATA-P0 LA_DATA-N0 PNLPWR PNLPWR PNLPWR...

  • Page 42: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 43: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 3.2 Removing the chassis bottom cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.
  • Page 44 BCO-2000 l User’s Manual Chapter 3: System Setup 3. Remove the sata cable、power cable & remove the bottom cover.

  • Page 45: Installing Sodimm

    Chapter 3: System Setup 3.3 Installing SODIMM 1. SODIMM sockets are available for BCO-2000 series on the top side. 2. Insert memory module from 45 degree direction. 3. Press the memory module vertically downward until you hear the “click” sound. Make...

  • Page 46: Installing Mini Pcie Card / Msata

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.4 Installing Mini PCIe card / mSATA 1. Mini PCIe 2 can support mSATA. 2. Insert mini PCIe card or mSATA module from 45 degree direction. 3. Press the mini PCIe card or mSATA module down and lock it with one screws (M2.5x3.7L).

  • Page 47: Installing Antenna

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.5 Installing antenna 1. Remove antenna hole cover on the system panel. Front Rear 2. Have antenna jack penetrate through the hole. 3. Put on washer and fasten the nut with antenna jack.
  • Page 48 BCO-2000 l User’s Manual Chapter 3: System Setup 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the cable-end onto the communication module.

  • Page 49: Removing Hdd Bracket

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.6 Removing HDD bracket 1. Unscrew four screws (M3x5L) circled below.

  • Page 50: Installing Sata Hdd

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.7 Installing SATA HDD 1. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L).
  • Page 51 BCO-2000 l User’s Manual Chapter 3: System Setup 2. Fasten the four screws (M3x5L) to lock the HDD bracket in place. 3. insert power cable and sata cable.

  • Page 52: Installing Sim Card

    BCO-2000 l User’s Manual Chapter 3: System Setup 3.8 Installing SIM card 1. Following the below direction to open the SIM cover 2. Inser SIM card. 3. Following the below direction until you hear the “click” sound. Make sure the SIM card is firmly in place.

  • Page 53: Installing Din Rail Holder

    Chapter 3: System Setup 3.9 Installing DIN rail holder 1. Din rail holder is available for BCO-2000 series as optional accessories. 2. Place the system upside down so you can see the bottom cover. The highlighted screw holes below will be used.

  • Page 54: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 55: Bios Introduction

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens.

  • Page 56: Main Setup

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■...

  • Page 57: Advanced Setup

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Setup...

  • Page 58: Cpu Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.1 CPU Configuration Item Options Description Intel (VMX) Virtualization Disabled, When enabled, a VMM can utilize the Technology Enabled[Default] additional hardware capabilities provided by Virtualization Technology. Active Processor Cores All[Default] Number of cores to enable in each processor package.

  • Page 59: Pch-Fw Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.2 PCH-FW Configuration Item Options Description AMT BIOS Features Disabled, When disabled AMT BIOS Features are no Enabled[Default] longer supported and user is no longer able to access MEBx Setup. Note:This option does not disable Manageability Features in FW.

  • Page 60: Sata And Rst Configuratio

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.3 SATA and RST Configuration Item Options Description SATA Controller(s) Disabled, Enable/Disable SATA Device. Enabled[Default] SATA Mode Selection AHCI[Default] , Determines how SATA controller(s) operate. Intel RST Premium With Intel Optane System Acceleration Use RST Legacy OROM Disabled[Default] ,...

  • Page 61: Rst (Uefi Raid) Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to “Intel RST Premium With Intel Optane System Acceleration“, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”...
  • Page 62 BCO-2000 l User’s Manual Chapter 4: BIOS Setup 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...

  • Page 63: Trusted Computing

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.5 Trusted Computing Item Options Description Security Device Support Enabled, Enable/Disable BIOS support for security Disabled[Default] , device. O.S. will not show Security Device.TCG EFI protocol and INT1A interface will not be available. Pending operation None[Default] , Schedule an Operation for the Security Device.

  • Page 64: Acpi Settings

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.6 ACPI Settings Item Options Description Enable Hibernation Disabled , Enables or Disables System ability to Enabled[Default], Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State Suspend Disabled, Select the highest ACPI sleep state the S3 (Suspend to RAM)[Default]...

  • Page 65: Super Io Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.7 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB).
  • Page 66 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 1 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3F8h; IRQ=4; , &...
  • Page 67 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 2 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=2F8h; IRQ=3; , &...
  • Page 68 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 3 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3E8h; IRQ=7; , &...
  • Page 69 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 4 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=2E8h; IRQ=7; , &...

  • Page 70: Hardware Monitor

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.8 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures.

  • Page 71: Serial Port Console Redirection

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.9 Serial Port Console Redirection Item Options Description Console Redirection Disabled[Default], These items allows you to enable or disable Enabled COM1 console redirection...

  • Page 72: Network Stack Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.10 Network Stack Configuration Item Options Description Network Stack Disabled[Default] , Enable/Disable UEFI Network Stack. Enabled...

  • Page 73: Csm Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.11 CSM Configuration Item Options Description CSM Support Disabled, This item allows users to enable or disable Enabled[Default] for “CSM Support”. GateA20 Active Upon Request[Default] , This item allows users to set Upon Request Always or Always for "GateA20 Active“.

  • Page 74: Usb Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.3.12 USB Configuration Item Options Description Legacy USB Support Enabled[Default] Enables Legacy USB support. AUTO option Disabled disables legacy support if no USB devices are Auto connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 75: Chipset

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration...
  • Page 76 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Memory Configuration Item Options Description Max TOLUD Dynamic[Default], Maximum Value of TOLUD. Dynamic 1GB, assignment would adjust TOLUD 1.25GB, automatically based on largest MMIO length 1.5 GB, of installed graphic controller 1.75 GB, 2 GB, 2.25 GB,...
  • Page 77 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Graphic Configuration Item Options Description GTT Size 2MB, Select the GTT Size . 4MB, 8MB[Default] Aperture Size 128MB, Select the Aperture Size. 256MB[Default] , Note : Above 4GB MMIO BIOS assignment is 512MB, automatically enabled when selecting 1024MB,...

  • Page 78: Pch-Io Configuration

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.4.2 PCH-IO Configuration Item Options Description PCH LAN Controller Enabled [Default] , Enable/Disable onboard NIC. Disabled Wake on LAN Enable Enabled, Enable/Disable integrated LAN to wake the Disabled [Default] system. Restore AC Power Power On, Specify what state to go to when power is Loss...
  • Page 79 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ PCI Express Configuration...
  • Page 80 BCO-2000 l User’s Manual Chapter 4: BIOS Setup • PCI Express Root Port 8 / 9 / 16 Item Options Description PCI Express Root Port Disabled [Default] , Control the PCI Express Root Port. Enabled 8 / 9 /16 ASPM Disabled [Default] , Set the ASPM Level: L0s,...
  • Page 81 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ USB Configuration Item Options Description XHCI Disable Disabled [Default] , Option to enable Compliance Mode. Default Compliance mode Enabled is to disable Compliance Mode. Change to enabled for Compliance Mode testing.
  • Page 82 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ HD Audio Configuration Item Options Description HD Audio Disabled, Control Detection of the HD-Audio device. Enabled [Default] Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled.

  • Page 83: Security

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password.
  • Page 84 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Security Boot Item Options Description Secure Boot Disabled [Default] , Secure Boot feature is Active if Secure Boot Enabled is Enabled,Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset Secure Boot Mode Standard,...
  • Page 85 BCO-2000 l User’s Manual Chapter 4: BIOS Setup ■ Key Management Item Options Description Factory Key Provision Disabled [Default] , Install factory default Secure Boot keys after Enabled the platform reset and while the System is in Setup mode...

  • Page 86: Boot

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.6 Boot This menu allows you to setup the system boot options. Item Options Description Setup Prompt 1[Default] Number of seconds to wait for setup Timeout activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock On[Default] , Select the Keyboard NumLock state.

  • Page 87: Save & Exit

    BCO-2000 l User’s Manual Chapter 4: BIOS Setup 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.

  • Page 88: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 89: Gpio Sample Code

    BCO-2000 l User’s Manual Appendix – WDT & GPIO GPIO Sample Code GPIO Setting PIN# GPIO# Default Configuration SIO_GPO4 DIO Output4 SIO_GPI DIO Input4 SIO_GPO 3 DIO Output3 SIO_GPI 3 DIO Input3 SIO_GPO 2 DIO Output2 SIO_GPI 2 DIO Input2 SIO_GPO 1 DIO Output1 SIO_GPI1...
  • Page 90 BCO-2000 l User’s Manual Appendix – WDT & GPIO #define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, 0x07); WriteByte (DataPort, SIO_LDN_GPIO); //Set OUT1~OUT4Value WriteByte (AddrPort, GPIO_Port); WriteByte (DataPort, 0x00); //set OUT1~OUT8 value, OUT1=Bit0, OUT2=Bit1 Bit 7 Bit 6 Bit 5 Bit 4...

  • Page 91: Wdt Sample Code

    BCO-2000 l User’s Manual Appendix – WDT & GPIO WDT Sample Code: #define AddrPort 0x2e #define DataPort 0x2f #define SIO_UnLock_Value 0x87 #define SIO_Lock_Value 0xaa #define WATCHDOG_LDN 0x08 #define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value); //Enter WATCHDOG LDN WriteByte (AddrPort, 0x07);...
  • Page 92 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
