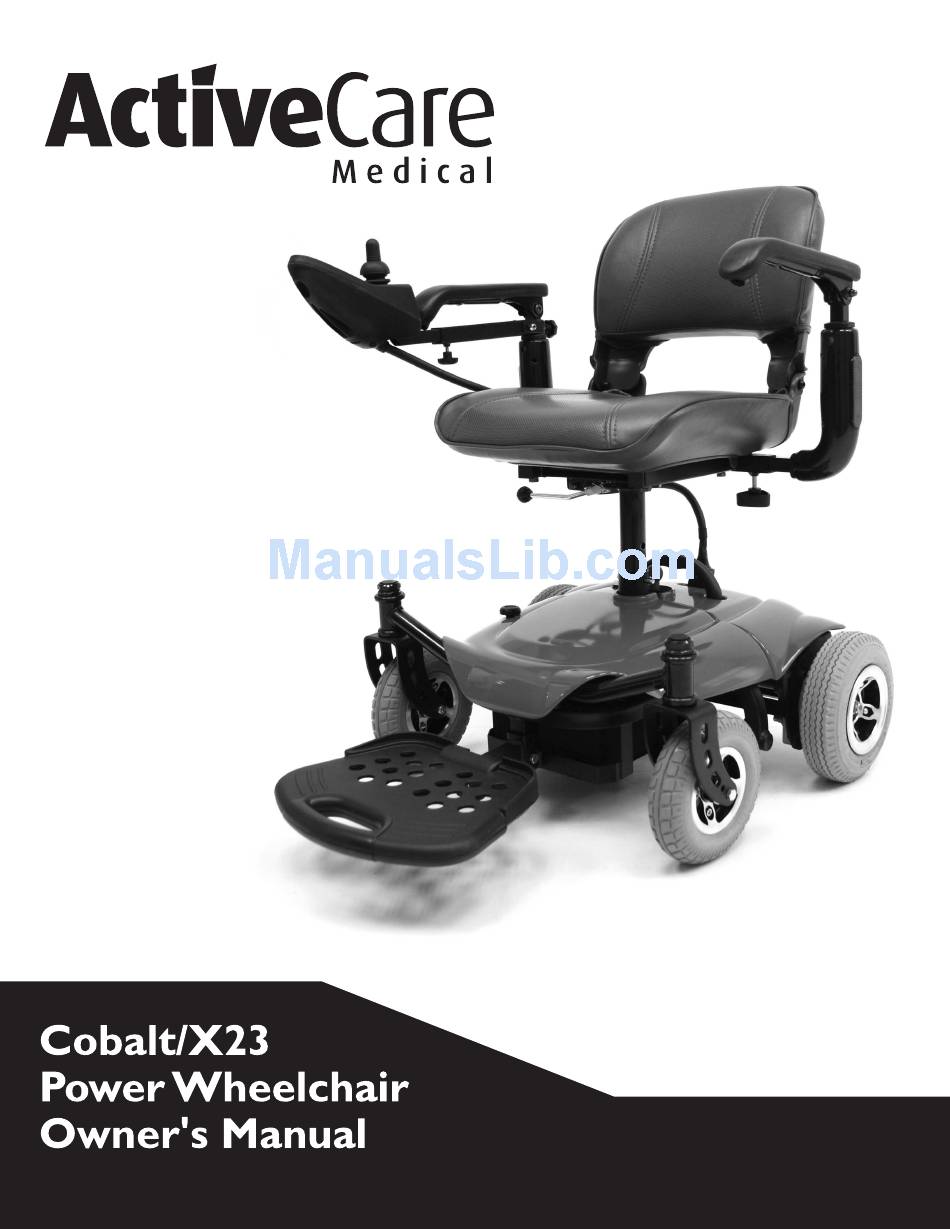

Summary of Contents for Active Care Medical Cobalt
-
Page 2: Table Of Contents
Transporting Your Chair .........................14 Positioning Belts..........................15 Use on Inclines..........................15 Batteries ............................16 Motor ..............................16 Electrical Brakes ..........................17 Troubleshooting..........................17 Batteries & Charger ........................18 Charger Features ...........................18 Operation Instructions ........................18 Usage Environment........................19 Notes..............................19 Specifications..........................20 Limited Warranty ..........................21 Product Registration........................22 Cobalt/ Cobalt X23 Owners Manual... -
Page 3: Preface
We reserve the right to make design modifications. The manufacturer disclaims all responsibilities for any personal injury or property damage which may occur as a result of improper or unsafe use of its products. Cobalt/ Cobalt X23 Owners Manual... -
Page 4: Safety Notices
20. When the power does not come on, recheck all connections and recharge if necessary. Please check the screws under the joystick periodically and make sure they are not loose, and tighten them if needed. Cobalt/ Cobalt X23 Owners Manual... -
Page 5: Electromagnetic Interference
4. Be aware that adding accessories or components, or modifying the mobility power mobility product, may make it more susceptible to EMI. 5. Report all incidents of unintended movement or brake release to ActiveCare Medical, and note whether there were sources of EMI nearby. Cobalt/ Cobalt X23 Owners Manual... -
Page 6: Parts
Parts COBALT Backrest Armrest Joystick Controller Seat Front Shroud Front Caster Footplate Handle 10. Rear Shroud 11. Drive Wheel 12. Anti-tipper 13. Manual Freewheel Levers Cobalt/ Cobalt X23 Owners Manual... -
Page 7: Assembly
3. Remove the cover shroud from the front of the 4. Place battery pack on the front frame. chair. 5. Connect battery pack connectors with the main 6. Fasten battery pack with safety straps. cable. Cobalt/ Cobalt X23 Owners Manual... - Page 8 Ensure that the 115V/230V switch on the product’s battery charger is set to 115V. If the switch is set to 230V, the batteries will not charge properly. Full charging normally takes 6-8 hours, but can take as many as 10 hours depending on the batteries’ charge level when starting and the ambient temperature. Cobalt/ Cobalt X23 Owners Manual...
-
Page 9: Disassembly For Transport
The wheelchair can be quickly and easily separated into 3 sections: seat assembly, front section, and rear section with batteries. Your Cobalt travel power wheelchair comes standard with a bolt in place to hold the front and rear sections together. - Page 10 Allen wrench to loosen and remove the bolt. Carefully slide the front and rear sections apart. For added ease of disassembly, your Cobalt also comes with a spring lever that can be installed in place of the bolt. With the spring lever installed, simply pulling up on the lever allows you to separate the front and rear sections.
- Page 11 To join the front and rear sections together, align the two sections as usual, but do so while pulling upward on the spring lever. After connecting the two sections together, release the spring lever to lock the sections in place. Cobalt/ Cobalt X23 Owners Manual...
-
Page 12: Comfort Adjustments
ARMREST WIDTH The width of armrests can be adjusted by loosening the bolts on the underside of the armrests and sliding the armrests inward or outward to the desired width. Cobalt/ Cobalt X23 Owners Manual... -
Page 13: Footplate Height
Set the seat post at the desired height setting and replace and tighten the bolt, making sure the screw passes completely through the seat post before tightening the nut. Cobalt/ Cobalt X23 Owners Manual... -
Page 14: Operation
Red lights: the power-chair should be charged as soon as possible. FREEWHEEL MODE Your power wheelchair is equipped with two freewheel levers. These levers allow you to disengage the drive motors and maneuver the chair manually. Cobalt/ Cobalt X23 Owners Manual... -
Page 15: Security Functions
Always be sure your power chair and its batteries are properly secured when it is being transported. Batteries should be secured in an upright position and protective caps should be installed on the battery terminals. Batteries should not be transported with any flammable or combustible items. Cobalt/ Cobalt X23 Owners Manual... -
Page 16: Positioning Belts
Warning! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Cobalt/ Cobalt X23 Owners Manual... -
Page 17: Batteries
Please charge the batteries after long distance driving to prolong the battery. If you don’t drive the chair for along period of time, then charge at least every month. Please use a maintenance/water-free battery to avoid trouble. MOTOR The carbon brush connector & brakes should be replaced regularly. Cobalt/ Cobalt X23 Owners Manual... -
Page 18: Electrical Brakes
If more than one fault exists, the fault having the highest priority (and lowest number of flashes) is indicated. All faults disable the controller and require the controller to be turned off then on again once the source of the fault is removed. Cobalt/ Cobalt X23 Owners Manual... -
Page 19: Batteries & Charger
Keep the AC power switch off until the battery and charger have been connected. Make sure the output end of the charger corresponds with the positive/negative pole of battery. Turn on the AC power switch to “I” (the fan should begin to run). Cobalt/ Cobalt X23 Owners Manual... -
Page 20: Usage Environment
Do not store the charger in humid places or in a closed area. The warranty is given for use within norma l operating conditions; it does not cover accidental damage, or problem caused by user’s neglect or misuse. Cobalt/ Cobalt X23 Owners Manual... -
Page 21: Specifications
User’s weight, road conditions, battery charge, etc. will influence performance. ActiveCare reserves the right to modify the specifications if necessary. The final specifications are subject to the individual power wheelchair your purchase from your dealer. Cobalt/ Cobalt X23 Owners Manual... -
Page 22: Limited Warranty
If the following items are found to be defective or damaged possible technical and customer service. immediately after the product is removed from the box, ActiveCare Medical will repair or replace, at our option to the original Cobalt/ Cobalt X23 Owners Manual... -
Page 23: Product Registration
Product Registration Thank you for purchasing an ActiveCare power mobility product! Your ActiveCare product will provide you years of dependable service and mobility ease. To validate your product’s warranty, you must complete this form and return it to ActiveCare Medical immediately. Please print or type. - Page 24 _____________________________ Place Stamp Here _____________________________ _____________________________ ActiveCare Medical Product Registration 2 Harbison Way Columbia, SC 29212 --------------------------------------------------- Fold Here Fold Here ---------------------------------------------------------------------- Fold Here...
