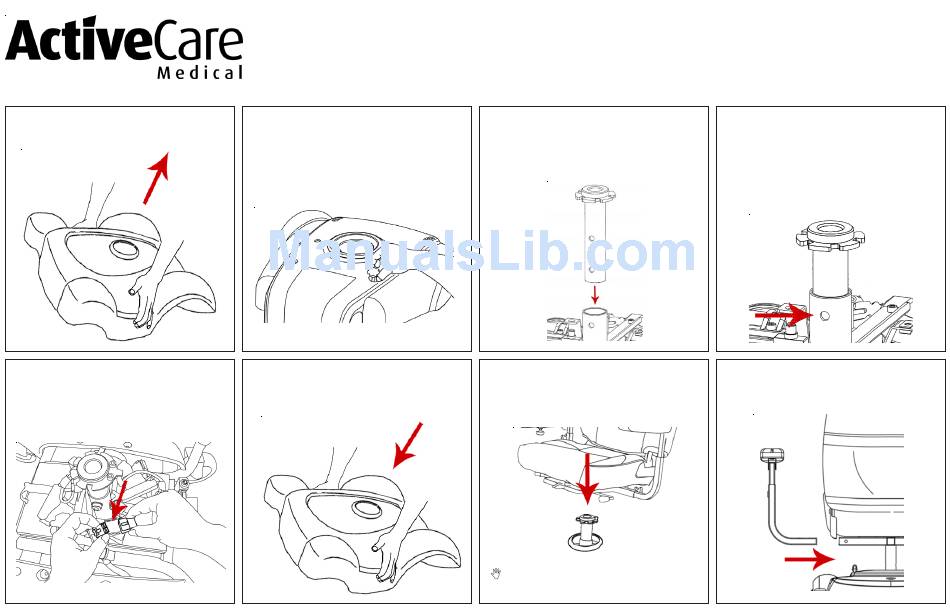

Active Care Medical Renegade Quick Start Manual

1a.
Remove your wheelchair from its packaging.
On the Renegade, lift up carefully on the cover
shroud to remove.
4.
Attach the two battery connectors to the
batteries (red to red and black to black).
Quick Start Guide
Renegade/Medalist
1b.
On the Medalist, remove the two knobs on the
cover shroud then lift up carefully on the cover
shroud to remove.
5.
Replace the cover shroud. The shroud must
slide over the brake levers, which should be
positioned in the engaged mpde. On the Medalist,
replace and tighten the two knobs removed in Step
1b.
Please Read Before Operating!
Your wheelchair is packaged with a packet of tools you will need for initial setup.
Please locate this packet first.
2.
Install the seat post. Ensure that the seat post
is aligned so that the two flanges with holes are
facing the rear of the product. Having these flanges
rotated into any other position will result in instability
in the seat.
6.
Lift the seat and pull the swivel lever up at the
same time. Lower the bottom of the seat onto
the seat post. Release the lever, swivel the seat
and push down on the seat until it locks in place.
NOTE: Get help when placing the seat onto the
post to avoid scratching the cover shroud.
3.
From behind the product, looking forward, insert
the seat bolt into hole on the left side of the seat
post. This bolt is also used to adjust the seat height.
Insert the bolt as far into the hole as it will go, making
sure that the bolt passes all the way through to the
hole on the opposite side. Install the washer and nut
and tighten them using the included flat wrench.
7.
Insert the armrests into the attachment points
in the seat frame so that the armrests face
forward.
