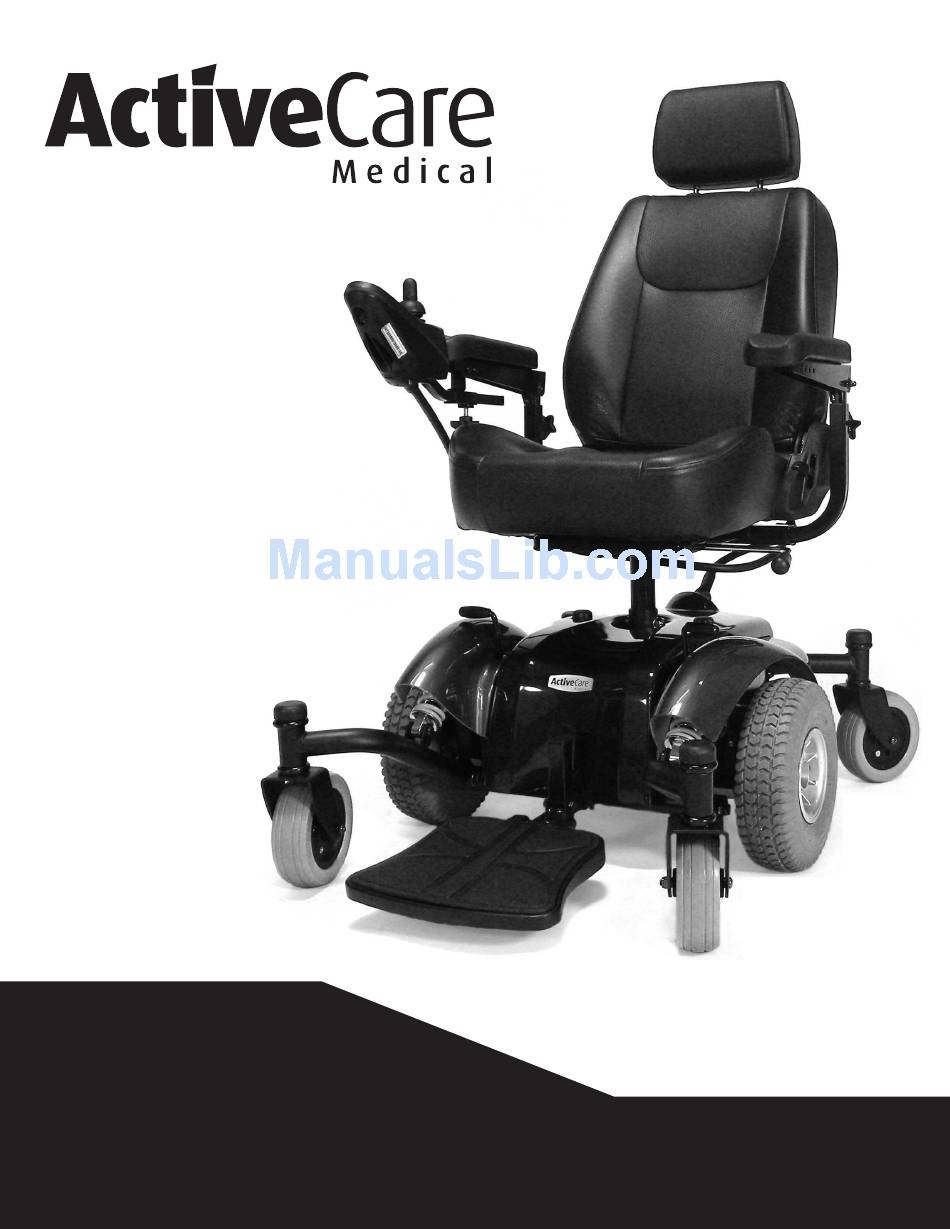

  • Page 1 Intrepid/P22 Power Wheelchair Owner's Manual...

  • Page 2: Table Of Contents

    For service assistance, please call your authorized ActiveCare dealer. Table of Contents Preface..........................2 Safety Notices ........................3 EMI .............................4 Electromagnetic Interference (EMI) From Radio Wave Sources ........4 Powered Wheelchair Electromagnetic Interference (EMI)..........5 Parts...........................6 Assembly...........................7 Operation.........................12 General Information......................12 Controller..........................12 Freewheel Mode.......................12 Security Functions......................13 Transporting Your Chair....................13 Positioning Belts.......................14 Use on Inclines.........................14...

  • Page 3: Preface

    For service assistance, please call your authorized ActiveCare dealer. Preface NOTICE! An authorized ActiveCare Provider or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual. This owner’s manual includes operation instructions for every aspect of the power wheelchair, assembly instructions, as well as instructions for how to deal with possible accidents.

  • Page 4: Safety Notices

    For service assistance, please call your authorized ActiveCare dealer. Safety Notices Always fully charge your power chair before operating. Always make sure the power is off when getting in and out of the power chair. Always make sure the clutch levers are engaged (parallel to the wheels) before getting in or out the wheelchair.

  • Page 5: Emi

    For service assistance, please call your authorized ActiveCare dealer. Eletromagnetic Interference (EMI) This portion of the manual will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure;...

  • Page 6: Powered Wheelchair Electromagnetic Interference (Emi)

    For service assistance, please call your authorized ActiveCare dealer. Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. NOTE: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD player, and cassette players, and small appliances, such as electric shavers and hair dryers, are not likely to cause EMI problems to your power wheelchair.

  • Page 7: Parts

    For service assistance, please call your authorized ActiveCare dealer. Parts INTREPID Headrest Joystick Controller Seat Front Caster Footplate Backrest Armrest Shroud 10. Rear Caster 11. Drive Wheel 12. Rear Bag 13. Main Cable Intrepid/P22 Owner’s Manual...

  • Page 8: Assembly

    For service assistance, please call your authorized ActiveCare dealer. Assembly Your new ActiveCare Power Wheelchair comes packaged with all of the following. Please locate all pieces before beginning assembly. 1 ActiveCare Power Wheelchair 1 Seat 2 Armrests 1 Headrest 1 Controller with Arm 1 Battery Charger 1 Tool Packet 2 Batteries...
  • Page 9 For service assistance, please call your authorized ActiveCare dealer. 3. Install the seat post into the seat tube in the wheelchair’s frame to the desired height. From behind the product, looking forward, insert the seat bolt into hole on the left side of the seat post mount in the wheelchair’s frame, ensuring the bolt passes through the seat post.
  • Page 10 For service assistance, please call your authorized ActiveCare dealer. 6A. Attach the seat by lifting up on the handle on the left side of the seat and placing the seat down on the scooter’s seat post. Release the handle and move the seat side-to-side to ensure the seat in locked facing forward.
  • Page 11 For service assistance, please call your authorized ActiveCare dealer. 9. Affix the headrest to the top of the seat by inserting the headrest posts into the holes in the top of the seat. 10. Insert the controller’s square tube into the tube under the armrest.
  • Page 12 For service assistance, please call your authorized ActiveCare dealer. 12. Fully charge the wheelchair’s battery by inserting the round charger connector into the battery charging terminal on the front of the wheelchair’s controller and inserting the 3-pronged plug into a standard electrical outlet. NOTE: Full charging normally takes 6-8 hours, but can take as many as 10 hours depending on the batteries’...

  • Page 13: Operation

    For service assistance, please call your authorized ActiveCare dealer. Operation GENERAL INFORMATION 1. Make sure that the motor levers are in engaged mode. (Parallel to the wheels) 2. Once seated on the wheelchair, turn on the power (Press the power button). The battery gauge will turn on.

  • Page 14: Security Functions

    For service assistance, please call your authorized ActiveCare dealer. Warning! DO NOT use your wheelchair while the drive motors are disengaged unless someone is there to push you. The chair could roll on its own causing injury! To engage or disengage the freewheel feature: Turn the freewheel levers outward to disengage the drive motors.

  • Page 15: Positioning Belts

    For service assistance, please call your authorized ActiveCare dealer. Warning! Always be sure your power chair and its batteries are properly secured when it is being transported. Batteries should be secured in an upright position and protective caps should be installed on the battery terminals. Batteries should not be transported with any flammable or combustible items.
  • Page 16 For service assistance, please call your authorized ActiveCare dealer. Warning! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Warning! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.

  • Page 17: Batteries & Charging

    For service assistance, please call your authorized ActiveCare dealer. Batteries & Charging Before using your power mobility product for the first time, you will need to charge your batteries for 8 – 10 hours to ensure that they are fully charged. Suggestion ActiveCare Medical recommends that frequent users of their power mobility products charge their batteries overnight, 8 –...

  • Page 18: Charger Features

    For service assistance, please call your authorized ActiveCare dealer. CHARGER FEATURES Ensures the battery connection automatically. Monitoring all procedures until the battery is fully charged. For protecting exhausted batteries, slow charge starts in the beginning then fast charge until it goes up to the normal voltage. Compact, portable and light-weight.

  • Page 19: Inspection & Maintenance

    For service assistance, please call your authorized ActiveCare dealer. Inspection & Maintenance BATTERY Please charge the batteries after long distance driving to prolong the battery. If you don’t drive the chair for along period of time, then charge at least every month. Please use a maintenance/water-free battery to avoid trouble.

  • Page 20: Troubleshooting

    For service assistance, please call your authorized ActiveCare dealer. Troubleshooting The diagnostic flash codes for your power wheelchair are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from all 6 of the LED’s located on the controller in the event one of the conditions listed below develops.

  • Page 21: Specifications

    For service assistance, please call your authorized ActiveCare dealer. Specifications Max. Weight Capacity 300 lbs. Maximum Speed 4 mph Estimated Range 20 miles Maximum Grade/Incline 6° Turning Radius 18" Ground Clearance 3" Overall Dimensions Length 40" Width 24.5" Floor to Seat Height 20”-23”...

  • Page 22: Limited Warranty

    Limited Warranty For the periods listed below, beginning at the date of purchase, purchaser, free of charge, these items within 30 days of the product ActiveCare Medical will repair or replace, at our option to the being removed from the box. original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of ActiveCare Exclusions also include components with damage caused...

  • Page 23: Product Registration

    Product Registration Thank you for purchasing an ActiveCare power mobility product! Your ActiveCare product will provide you years of dependable service and mobility ease. To validate your product’s warranty, you must complete this form and return it to ActiveCare Medical immediately. Please print or type.
  • Page 24 Place _____________________________ Stamp Here _____________________________ _____________________________ ActiveCare Medical Product Registration 2 Harbison Way Columbia, SC 29212 --------------------------------------------------- Fold Here Fold Here ---------------------------------------------------------------------- Fold Here Seal This Side...
