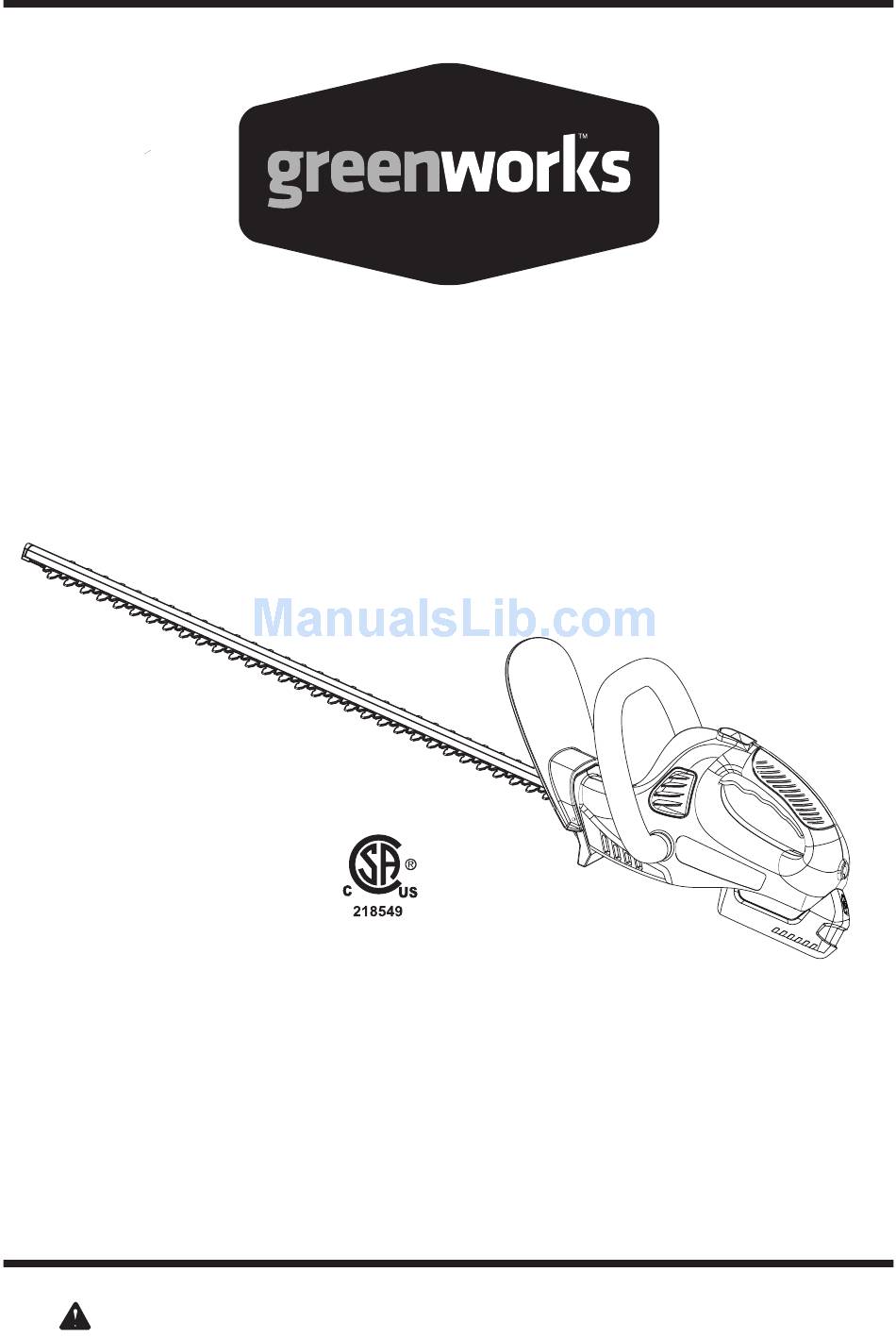

- Page 1 18V CORDLESS HEDGE TRIMMER 22032 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Introduction .......................... 2 Product specifications......................2 General Safety Rules ......................3-6 Symbols ..........................7-8 Know your hedge trimmer ....................9 Assembly ........................10-11 Operation ........................... 12 Battery Charger........................13-14 Maintenance ........................15 Environmentally Safe Battery Disposal..................16 Troubleshooting ......................... 17 Warranty ..........................18 Exploded View ........................ -
Page 3: General Safety Rules
GENERAL SAFETY RULES W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • For safe operation, read and understand all instructions before using this product. Be familiar with all controls and proper use of the machine. - Page 4 GENERAL SAFETY RULES • DANGER — Risk of Cut. Keep hands away from cutting area. Keep both hands on handles when power is on. • Keep hands away from blades. Do not reach underneath work or around or over the blade while blade is rotating.
- Page 5 GENERAL SAFETY RULES • Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. • For best results, your battery tool should be charged in a location where the temperature is more than 50°F but less than 100°F.
-
Page 6: General Safety Rules
GENERAL SAFETY RULES CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. • Keep children out of the working area and under the watchful care of a responsible adult. • Do not allow children under the age of 14 to operate this hedger. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent. -
Page 7: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 8: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 9: Know Your Hedge Trimmer
KNOW YOUR HEDGE TRIMMER Lock-off button Auxiliary handle Guard Blade support rod Soft grip handle Upper cutting blade Lower blade Switch trigger Circuit breaker button Battery pack Battery pack latch Blade sheath Battery charger Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 10: Assembly
ASSEMBLY BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the hedge trimmer for the first time, place the battery pack in the battery charger and charge for 24 hours. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. - Page 11 ASSEMBLY W A R N I N G To avoid injury and to reduce the risk of electrical shock or fire: • Replace the battery pack or charger immediately if the battery case or charger cord is damaged. • Always make sure the hedge trimmer switch is OFF before inserting or removing the battery pack.
-
Page 12: Operation
OPERATION (See Figure 4.) ON/OFF SWITCHES & CIRCUIT-BREAKER The hedge trimmer has two switch controls and a lock-OFF button used together to prevent accidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the Auxiliary handle (2). 2. -
Page 13: Battery Charger
BATTERY CHARGER CHARGING PROCEDURE (See Figure 5.) With regular use, the battery pack will need 90 MINUTES or less to fully charge. Allow the battery to fully discharge before recharging. It is recommended to charge the battery pack every 3 months when not in use. 1. -
Page 14: Battery Charger
BATTERY CHARGER W A R N I N G If the battery is inserted into the charger when warm or hot the CHECK BATTERY indicator light may switch on. If this occurs allow the battery to cool outside of the charger for 30 minutes. CHARGER MAINTENANCE •... -
Page 15: Maintenance
MAINTENANCE W A R N I N G To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. -
Page 16: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Cadmium, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model. -
Page 18: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 19: Exploded View
EXPLODED VIEW... -
Page 20: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 31102906 18V battery 34106177 Connecter 3410887-3 Switch trigger 3690111 Overload protector 3110187-3 Housing 3110387 Motor and blade assy. 3410587-2 Left venting 3220848 Bolt 3220203 Screw 3410711-3 Guard 3110287-3 Auxiliary handle 3410787-3 Lock-off button 3410687-2 Right venting 3330523... -
Page 21: Notes
NOTES... - Page 22 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (11-20-09) Printed in China on 100% Recycled Paper...
