2003 Explorer/Mountaineer Workshop Manual

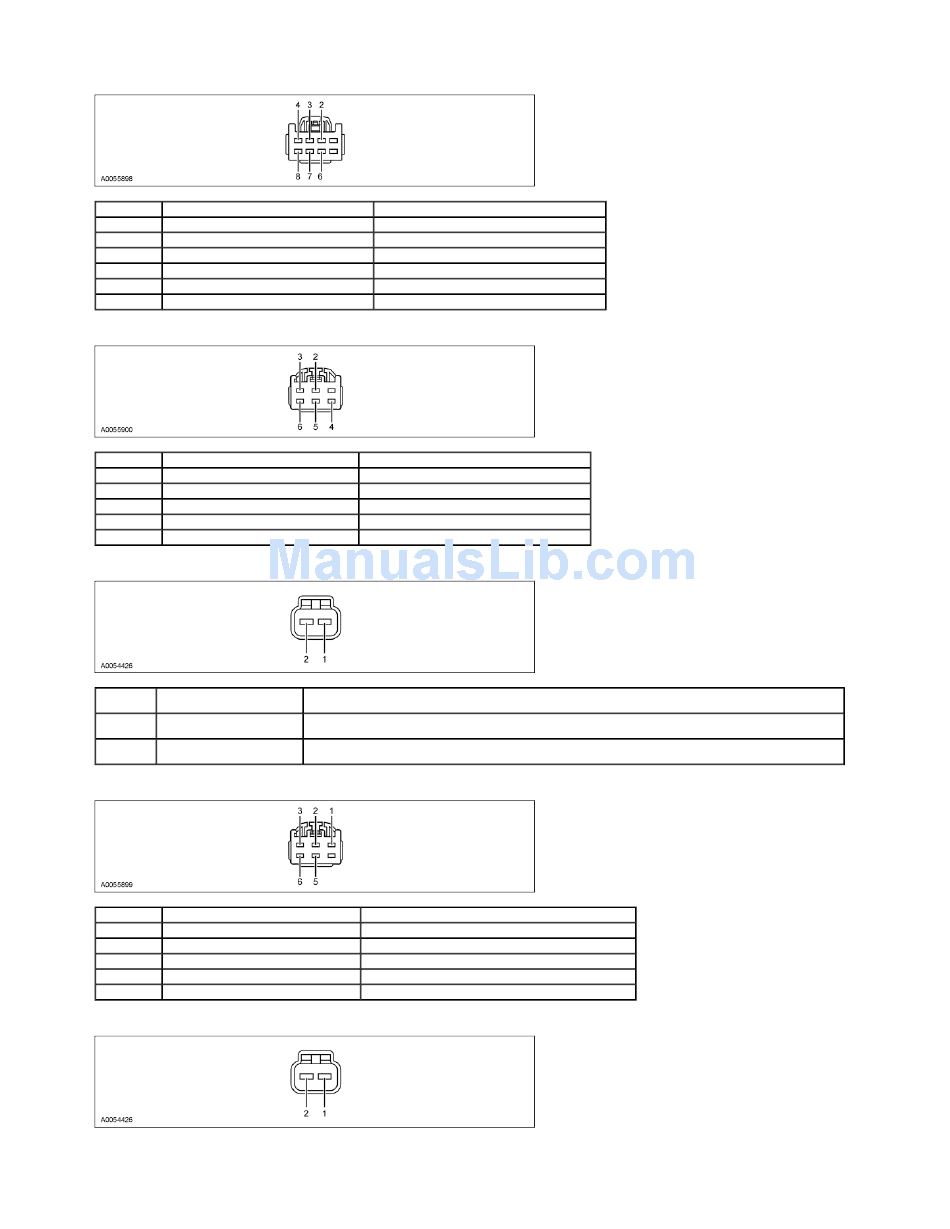

Pin Number(s) Circuit Designation/Description
2 CKT 1205 (BK) driver window control switch ground Less than 5 ohms to chassis ground.
3 CKT 314 (TN/LB) passenger front window down
4 CKT 313 (WH/YE) passenger front window up
6 CKT 400 (LB/BK) accessory delay power feed
7 CKT 991 (TN/LB) driver window down
8 CKT 992 (WH/BK) driver window up
Driver Window Control Switch C504b
Pin Number(s) Circuit Designation/Description
2 CKT 320 (RD/BK) passenger rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 319 (YE/BK) passenger rear window up
4 CKT 170 (RD/LB) lock-out power feed
5 CKT 317 (GY/OG) driver rear window up
6 CKT 316 (YE/LB) driver rear window down
Driver Power Window Motor C524
Pin Number
(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 992 (WH/BK) driver window
up
2 CKT 991 (TN/LB) driver window
down
Passenger Front Window Control Switch C604
Pin Number(s) Circuit Designation/Description
1 CKT 314 (TN/LB) passenger front window down Greater than 10,000 ohms to chassis ground and 0 volts.
2 CKT 334 (RD/YE) passenger front window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 170 (RD/LB) lock-out power feed
5 CKT 333 (YE/RD) passenger front window up
6 CKT 313 (WH/YE) passenger front window up
Passenger Front Power Window Motor C608
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS3N/~MUS~LEN/19/S...
Normal Condition/Measurement
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10 volts with the key ON.
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
Normal Condition/Measurement
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
Less than 5 ohms to chassis ground. Greater than 10 volts with the key ON and the driver window control switch depressed in the UP
position with the key ON.
Less than 5 ohms to chassis ground. Greater than 10 volts with the key ON and the driver window control switch depressed in the
DOWN position with the key ON.
Normal Condition/Measurement
Greater than 10 volts with the key ON and the lock out feature OFF.
Greater than 10,000 ohms to chassis ground and 0 volts.
Greater than 10,000 ohms to chassis ground and 0 volts.
