20
EN

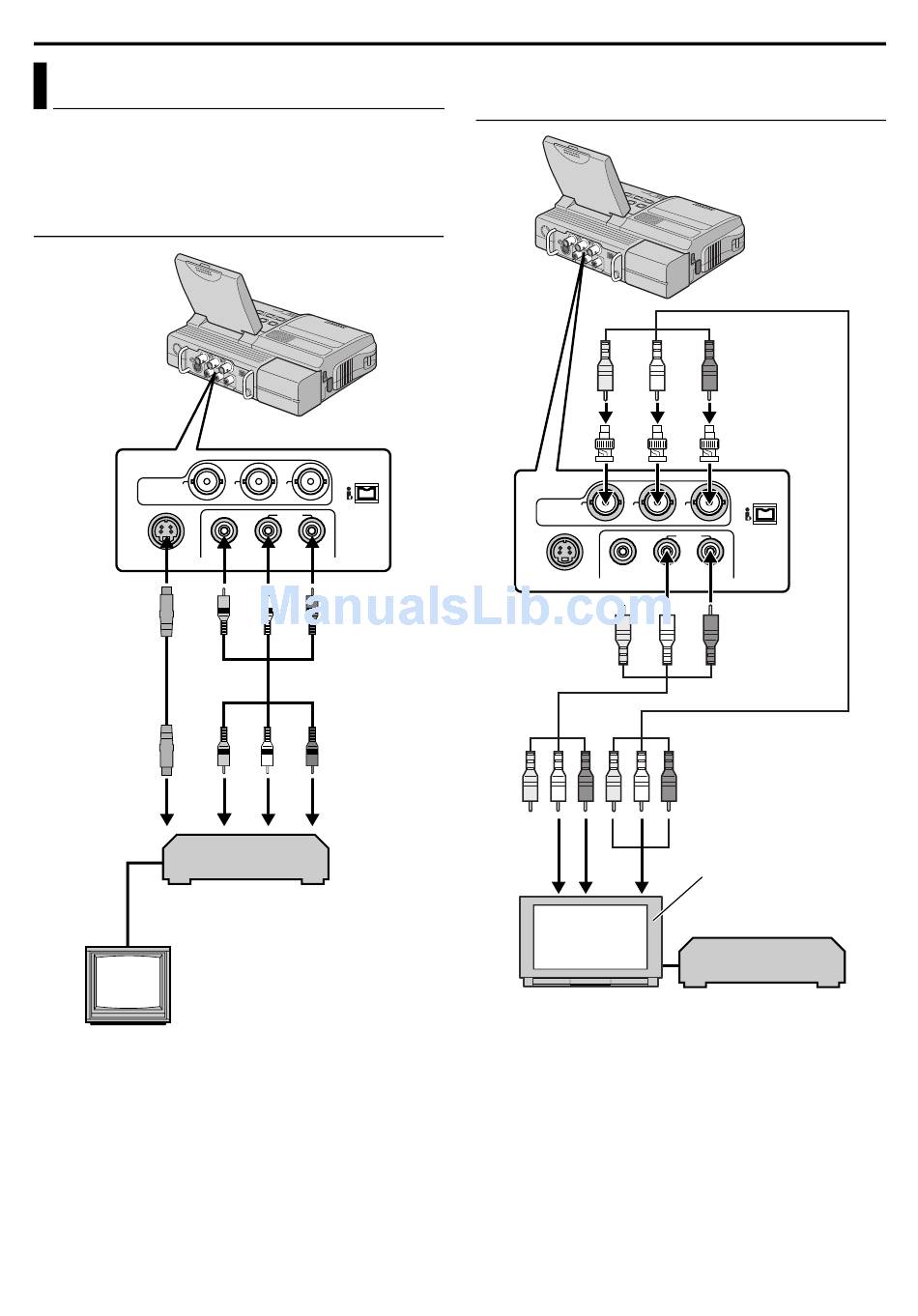

Connections To A TV Or VCR

These are some basic types of connections. When
making the connections, refer also to your VCR and
TV instruction manuals.
To Connect A Conventional TV or VCR
COMPONENT
COMPONENT
Y Y
VIDEO
VIDEO
OUT
OUT
S2
S2
To S2
S-Video cable
(provided)
A
B
A To S-VIDEO IN*
B Yellow to VIDEO IN**
C White to AUDIO L IN***
D Red to AUDIO R IN***
TV
*
Connect when your TV/VCR has S-VIDEO IN
and A/V input connectors. In this case, it is not
necessary to connect the yellow video cable.
**
Connect when your TV/VCR has only A/V input
connectors.
*** Not required for watching still images only.
Pb
Pb
Pr
Pr
VIDEO
VIDEO
L L
AUDIO
AUDIO
R R
To AUDIO/
VIDEO
Audio/Video cable
(provided)
C
D
VCR
VIDEO PLAYBACK (cont.)
To Connect To A TV or VCR Equipped With The
Component Video Connectors
COMPONENT
COMPONENT
Y Y
Pb
Pb
VIDEO
VIDEO
OUT
OUT
S2
S2
VIDEO
VIDEO
A
Audio/Video
cable
(provided)
A
B
C
D
A Not required for connection.
B White to AUDIO L IN*
C Red to AUDIO R IN*
D To component video connectors
*
Not required for watching still images only.
To Y/Pb/Pr
RCA-BNC
Adapter
Pr
Pr
L L
AUDIO
AUDIO
R R
To AUDIO
Component video cable
(provided)
Wide-screen TV or
high definition TV
VCR
