Installation Instructions & Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
What to Do if You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electric switch.
•
Do not use any phone in your building.
•
Immediately call your gas supplier from your
neighbours phone. Follow the gas suppliers
instructions.
•
If you cannot reach your gas supplier call the
fire department.
INSTALLER: DO NOT DISCARD THIS MANUAL - Leave For Homeowner
Vermont Castings, Majestic Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com

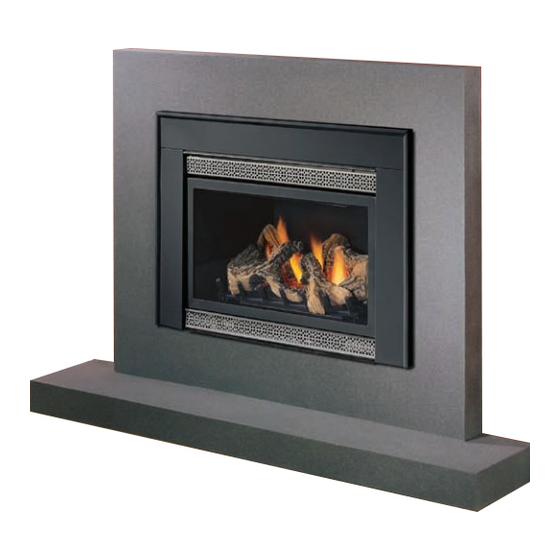

Natural Vent Insert
Models: LHER20
LHEC20
LHEC30
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
•
Installation and service must be performed
by a qualified installer, service agency or
your gas supplier.
C E RT I F I E D
10005360 6/03 Rev. 0
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Vermont Castings LHER20
Summary of Contents for Vermont Castings LHER20
- Page 1 If you cannot reach your gas supplier call the your gas supplier. fire department. Vermont Castings, Majestic Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com C E RT I F I E D INSTALLER: DO NOT DISCARD THIS MANUAL - Leave For Homeowner 10005360 6/03 Rev.
-
Page 2: Table Of Contents
Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THIS APPLIANCE. Thank you and congratulations on your purchase of a Vermont Castings fireplace insert. IMPORTANT - Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the manufacturers' warranty. -
Page 3: Important Curing/Burning Instructions
The size of the fireplace cavity (min. 25¹⁄₄"W x 17¹⁄₄"H x indicated on the rating plate. 13¹⁄₂" D for the LHEC20 and LHER20, 28³⁄₄"W x 21"H x 15¹⁄₂"D for LHEC30 ), the design of the chimney for Proposition 65 Warning: Fuels used in gas, effective venting should be determined. -
Page 4: Fireplace & Trim Dimensions
Vermont Castings, Majestic Products LHE Natural Vent Insert Fireplace & Trim Dimensions Zero Clearance Kit Insulation Minimum Fireplace Insert Opening Air Circulating Channel Gas Inlet Knockout 1 = LHESSB 2 = LHESLB/LHEABSL/LHESLGA Q - Fireplace opening height U - Firebox depth at insert back height (V) -
Page 5: Mantels
Vermont Castings, Majestic Products LHE Natural Vent Insert Mantels When the unit is installed into a woodburning fireplace, 37¹⁄₄" (946mm) the minimum distance the mantel can be placed above the fireplace is governed by local building codes applicable to woodburning fireplaces. Consult local authorities having jurisdiction for these clearances. -
Page 6: Gas Specifications
Vermont Castings, Majestic Products LHE Natural Vent Insert Gas Specifications Preparation Max. Min. Before beginning, remove glass door and logs from Input Input unit. Also check to make sure there is no hidden Model Fuel Gas Control Btu/h Btu/h damage to the unit. Take a minute and plan out the... -
Page 7: Gas Supply Pressures
Fan Kit Screw Stud 115 volt, 60 Hz. 56w (Model FK24) NOTE: The LHER20 is not designed for a fan kit. Fan Speed Control/Junction Box The fan kit includes the following: fan, temperature sensor, speed control and a 6 ft. cord. The following... -
Page 8: Venting And Installation
25¹⁄₄"W x 17¹⁄₂" H x 13¹⁄₂"D for LHEC20 and LHER20 or 28³⁄₄"W x 21"H x 15¹⁄₂"D for LHEC30 and has been installed in accordance with the National, Provincial/State and local building codes and is constructed of noncombustible materials. -
Page 9: Common Flue Installations
3" flue collar for LHEC20 and adequate draft. LHER20 and 4" flue collar for LHEC30. For best results use three (3) sheet metal screws and a hose clamp. Test for draft at these two For natural draft inserts, packing noncombustible openings. -
Page 10: Vent Safety System
Vermont Castings, Majestic Products LHE Natural Vent Insert screw that secures the switch assembly. Holding the Blocked Flue Shut Off System bracket switch carefully pull out the entire switch assembly. These inserts are equipped with a blocked flue shut off switch. -
Page 11: Operating Instructions
1. Remove two (2) screws at the bottom of the frame. (Fig. 17) 2. Lift up and unhook glass frame at the top. Front Grate Burner Lava Rock LG285 Fig. 18 LHEC20 and LHER20 log and lava rock placement. 10005360... -
Page 12: Large Lava Rock Placement
Vermont Castings, Majestic Products LHE Natural Vent Insert LHEC30 (Fig. 19) Honeywell Valve a. Place the rear center log (KR24). Use the log's Turn bottom holes to locate it onto the two (2) pin studs counterclockwise Turn clockwise of the rear log bracket on the center. -
Page 13: First Firing
Vermont Castings, Majestic Products LHE Natural Vent Insert First Firing Upon completing the gas line connection, a small amount of air will be in the lines. When first lighting unit with pilot light, it will take a few minutes to purge them- selves of this air. -
Page 14: Lighting & Operating Instructions
Vermont Castings, Majestic Products LHE Natural Vent Insert Lighting And Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 15: Troubleshooting Gas Control (820 Millivolt Gas Valve)
Vermont Castings, Majestic Products LHE Natural Vent Insert Troubleshooting the Gas Control System SIT NOVA 820 Millivolt Valve NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. WARNING: Before doing any gas control service work, remove glass front. -
Page 16: Troubleshooting Gas Control (Honeywell)
Vermont Castings, Majestic Products LHE Natural Vent Insert Troubleshooting the Gas Control System Honeywell Millivolt Valve START CHECK Gas Supply On Supply Line Hooked Up Shutoff Valve Open Lockout Has Engaged. Wait 60 Seconds And Try Again. For Spark At Electrode While Pilot Lights With Depressing Piezo 1/8"... -
Page 17: Instructions For Rf Comfort Control Valve
Vermont Castings, Majestic Products LHE Natural Vent Insert 7. If the manual switch is in the LOCAL position, the Instructions for RF Comfort Control Valve valve will be at the highest fixed pressure setting. The transmitter will control the fan only. - Page 18 Vermont Castings, Majestic Products LHE Natural Vent Insert Delay Timer Mode Pilot Assembly The shut off delay timer has a maximum of 2 hours and a minimum of zero minutes. To change the timer level, press the time key followed by an arrow key. Pushing the key once will change the timer by 10 minutes.
- Page 19 Vermont Castings, Majestic Products LHE Natural Vent Insert 2. Slide the Remote/Local switch to REMOTE and teach the valve a transmitter (refer to Item 6, page Auto Path 1). The Error Code will clear itself after approxi- mately 1¹⁄₂ minutes and return to normal operation.
- Page 20 Vermont Castings, Majestic Products LHE Natural Vent Insert Comfort Valve system control sequence of operation with transmitter Set manual switch Five minute wait to local or remote period Light pilot burner Did the LED stop Review LED blinking? failure analysis...
-
Page 21: Maintenance
Vermont Castings, Majestic Products LHE Natural Vent Insert Maintenance Burner and Burner Compartment Visually inspect pilot. Brush or blow away any dust or lint accumulation. If pilot orifice is plugged, disassembly It is important to keep the burner and the burner may be required to remove any foreign material from compartment clean. -
Page 22: Replacement Parts
7a/b 13a/b 9 a/b 22a/b 12a/b 28/29 24a/b 23 a/b ¥ 5360 Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. LHE Series 10005360... - Page 23 Vermont Castings, Majestic Products LHE Natural Vent Insert LHE Series (continued) Ref. Description LHER20 LHEC20 LHEC30 Log Set Complete 10005332 10005332 10004866 Log Rear Left KR22 Log Rear Right KR23 Log Rear Center KR24 Log Front Left KR25 Log Front Right...
- Page 24 Vermont Castings, Majestic Products LHE Natural Vent Insert LHE Series (continued) Ref. Description LHER20 LHEC20 LHEC30 Glass with Gasket 10005526 10005525 10004989 Gaskeet Glass 57317 57317 57317 Frame Window 10005295 10005067 10004873 Remote Switch (for RN or RP Units) 53606...
-
Page 25: Optional Accessories
Vermont Castings, Majestic Products LHE Natural Vent Insert Optional Accessories Remote Controls Trim Options Optional remote control units are available to control Face Kits different functions of the appliance. NOTE: One is required for LHEC20 and LHEC30 Model Function(s) Controlled... -
Page 26: Warranty
LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic or Northern Flame brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY Any part and/or component replaced under the provisions of this •... - Page 27 Vermont Castings, Majestic Products LHE Natural Vent Insert 10005360...
-
Page 28: Energuide
Fan-ON (AFUE%) LHEC20RN 51.2 LHEC20RP 51.2 LHEC20RFN 51.2 LHEC20RFP 51.2 LHER20RN 51.0 LHER20RP 51.0 LHEC30RN 48.5 LHEC30RP 48.5 LHEC30RFN 48.5 LHEC30RFP 48.5 Vermont Castings, Majestic Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com...
