- Page 1 5.1 Active Home Theater Speaker System OPERATION MANUAL BTR5-10 www.sven.
-
Page 2: Buyer Recommendations
BTR5-10 Operation Manual Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. -
Page 3: Package Contents

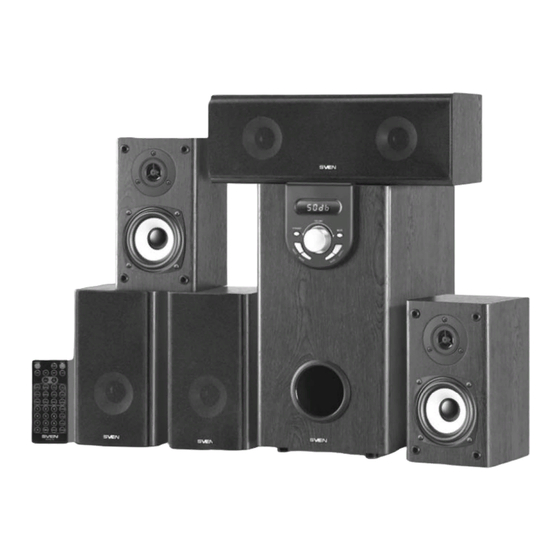

• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only. 4. TECHNICAL DESCRIPTION BTR5-10 5.1 Home Theater Speaker System (HTSS) equipped with AM/FM tuner is designed for playing music and sounding games, movies, etc., as well as being used as radio tuner. The built-in ampli er allows to connect the speaker system to virtually any audio source. -
Page 4: Operation Manual
BTR5-10 Operation Manual Special features • Built-in 6-CH ampli er • Built-in AM/FM tuner • Analog 5.1 input, two stereo AV inputs for connection to various audio devices • Electronic audio input switch • Full-function remote control • Master volume and subwoofer volume control •... - Page 5 FM/AM MEMORY remote control. • Insert the CR2025 battery (included). • Close the battery compartment. BTR5-10 Notes: • Use the remote control at an angle of no more Fig. 3. Remote control than 30°, no more than 7 meters away.
-
Page 6: Preparation And Operation
BTR5-10 Operation Manual 5. PREPARATION AND OPERATION Speaker placement • To achieve optimum sound, it’s recommended that you place the speakers according to Fig. 4. The center and front speakers should be located along an imaginary circle with the distance between the listener and the center channel speaker as a radius, and the listener’s head as the... - Page 7 Rear right satellite Fig. 5. Speakers connection diagram Connecting an audio source BTR5-10 5.1 Home Theater Speaker System can be connected to virtually any audio source (see connection diagram, Fig. 6). • Before connecting, make sure that the device is unplugged.
- Page 8 BTR5-10 Operation Manual • Be sure to connect the left and right channels correctly. The left RCA jacks should be inserted into the left ports of the ampli er (usually white), and the right RCA jacks should be inserted into the right ports of the ampli er (usually red).
- Page 9 5.1 Active Home Theater Speaker System Installation and Connection of Antennas FM Antenna Connection • Insert the included room FM antenna into the FM ANT terminal on the subwoofer rear panel, as shown in Fig. 5. Install the FM antenna in such a way that reception quality is satisfactory, and then x the position of the antenna.
- Page 10 BTR5-10 Operation Manual two blinking stripes will illuminateon the display of the subwoofer. Press it again, and the speaker system will return to operation mode. Audio Source Selection • There are two stereo inputs ( , AUX) and 5.1CH input in the Home Theatre Speaker System.
-
Page 11: Troubleshooting
5.1 Active Home Theater Speaker System 6. TROUBLESHOOTING Problem Cause Solution The HTSS does The HTSS isn’t connected to a mains outlet. Check the connection. not turn on. The power switch is o . Turn on the switch. Volume level is set at minimum value. Adjust volume control knob. -
Page 12: Technical Specifications
> 45 FМ, dB Notes: • Technical specifications given in this table are supplemental information and cannot give occasion to claims. • Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production. -
Page 13: Automatic Voltage Regulator
02-02, , 427447. « », 48310, , 15. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China. BTR5-10 ® Registered Trademark of Oy SVEN SPS-619 Scandinavia Ltd.
