Summary of Contents for Sven BTR2-10

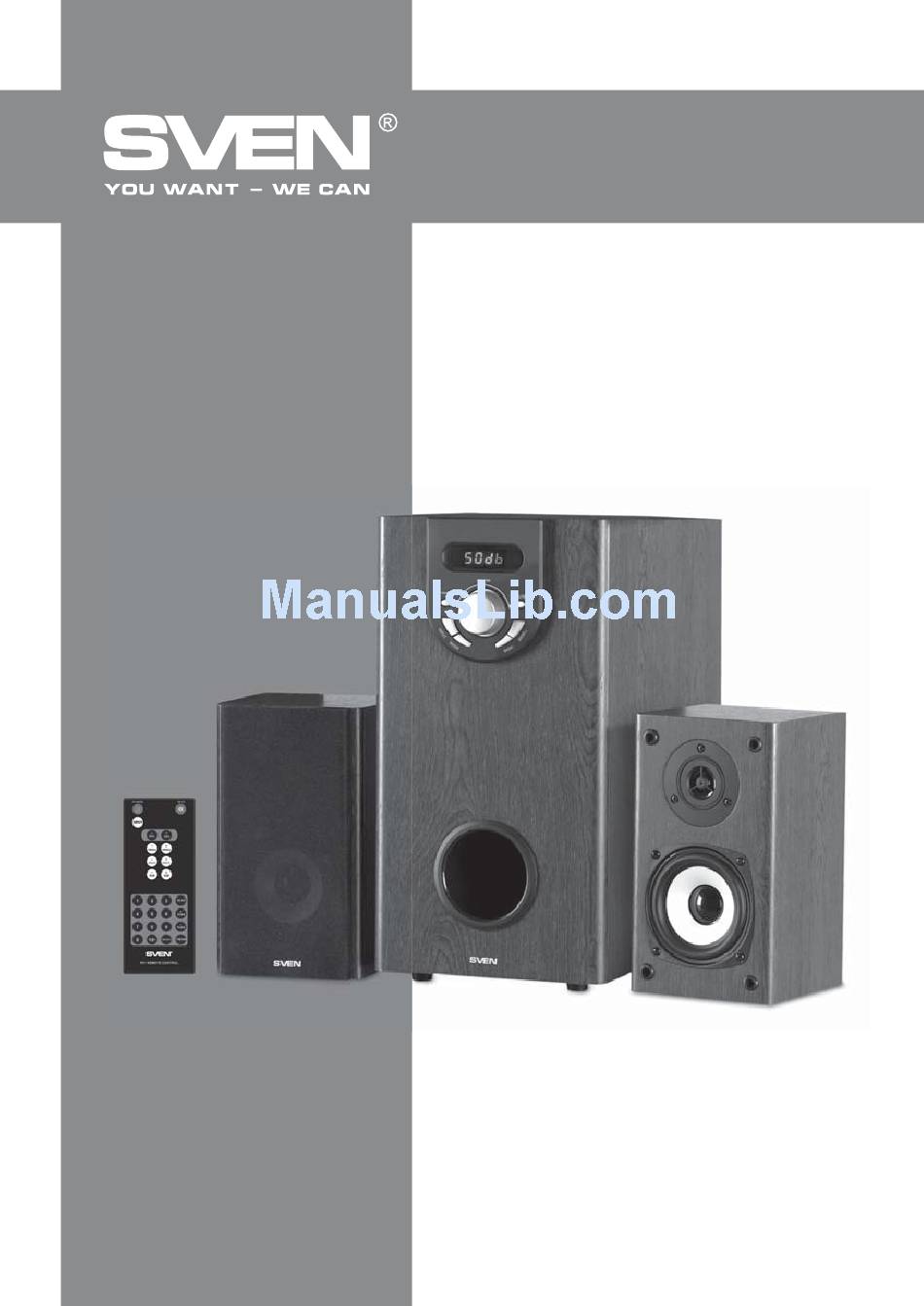

- Page 1 2.1 Multimedia Speaker System OPERATION MANUAL BTR2-10 www.sven.fi...
-
Page 2: Table Of Contents
BTR2-10 2.1 Multimedia Speaker System Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. -
Page 3: Package Contents
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only. 4. TECHNICAL DESCRIPTION BTR2-10 2.1 Multimedia Speaker System (MSS) equipped with an AM/FM tuner is designed for playing music and sounding games, movies, etc., as well as being used as a radio tuner. Due to the built-in amplifier, the speaker system can be connected to any audio source. - Page 4 BTR2-10 2.1 Multimedia Speaker System Special features • Built-in transformer power source • Built-in AM/FM tuner • Two stereo AV inputs for connection to various audio devices • Electronic audio switch • Full-function remote control • Master volume control, bass/midrange/treble control, subwoofer volume control •...
- Page 5 2.1 Multimedia Speaker System STANDBY MUTE INPUT – – INPUT TREBLE TREBLE CD-1 – CD-2 MIDLE MIDLE INPUT – SCAN TUNE TUNE FM/AM MEMORY Fig. 2. Subwoofer rear panel Fig. 3. Remote control Remote control a STANDBY: STANDBY mode button i FM/AM: FM and AM band selection b MUTE: MUTE button j MEMORY: button for saving tuner settings...
-
Page 6: Preparation And Operation
MSS сonnecting and control BTR2-10 2.1 Multimedia Speaker System (MSS) can be attached to virtually any audio source (see Fig. 4). • Before connecting, make sure that the MSS is unplugged. Then, connect the subwoofer to the satellites using the audio cables supplied (see Fig. - Page 7 2.1 Multimedia Speaker System FM antenna AM antenna Subwoofer rear panel 2RCA to 2RCA signal cable INPUT CD-1 CD-2 INPUT Right Left speaker speaker Power cord Fig. 4. Connection diagram...
- Page 8 BTR2-10 2.1 Multimedia Speaker System АM antenna connection • To install the loop antenna, fix the bracket to the hole at the bottom of the antenna as shown below, Fig. 5 (step 1). Fig. 5. АM antenna connection • Turn the visor of AM terminal anticlockwise to loosen it slightly, insert the cord of the loop antenna under the visor and turn the visor clockwise to firmly clamp the cord (step 2).
- Page 9 2.1 Multimedia Speaker System Turning on and setting the tuner • Press SCAN g and FM/AM i on the remote control to turn on the tuner and select FM or AM. • Manual setting. Press TUNE + or TUNE- buttons h on the remote control for finetuning radio station frequency (see tuning steps in Technical Specifications).
-
Page 10: Troubleshooting
BTR2-10 2.1 Multimedia Speaker System 6. TROUBLESHOOTING Problem Cause Solution The MSS does not The MSS isn’t connected to a mains outlet. Check the connection. turn on. Power switch is off. Turn on the switch. Volume level is set at minimum value. - Page 11 FМ, dB ≥ 40 Notes: • Technical specifications given in this table are supplemental information and cannot give occasion to claims. • Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.
- Page 12 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
