Thermolec ACU-STEAM User And Maintenance Manual

Humidifier
Hide thumbs Also See for ACU-STEAM:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Use and Maintenance Manual

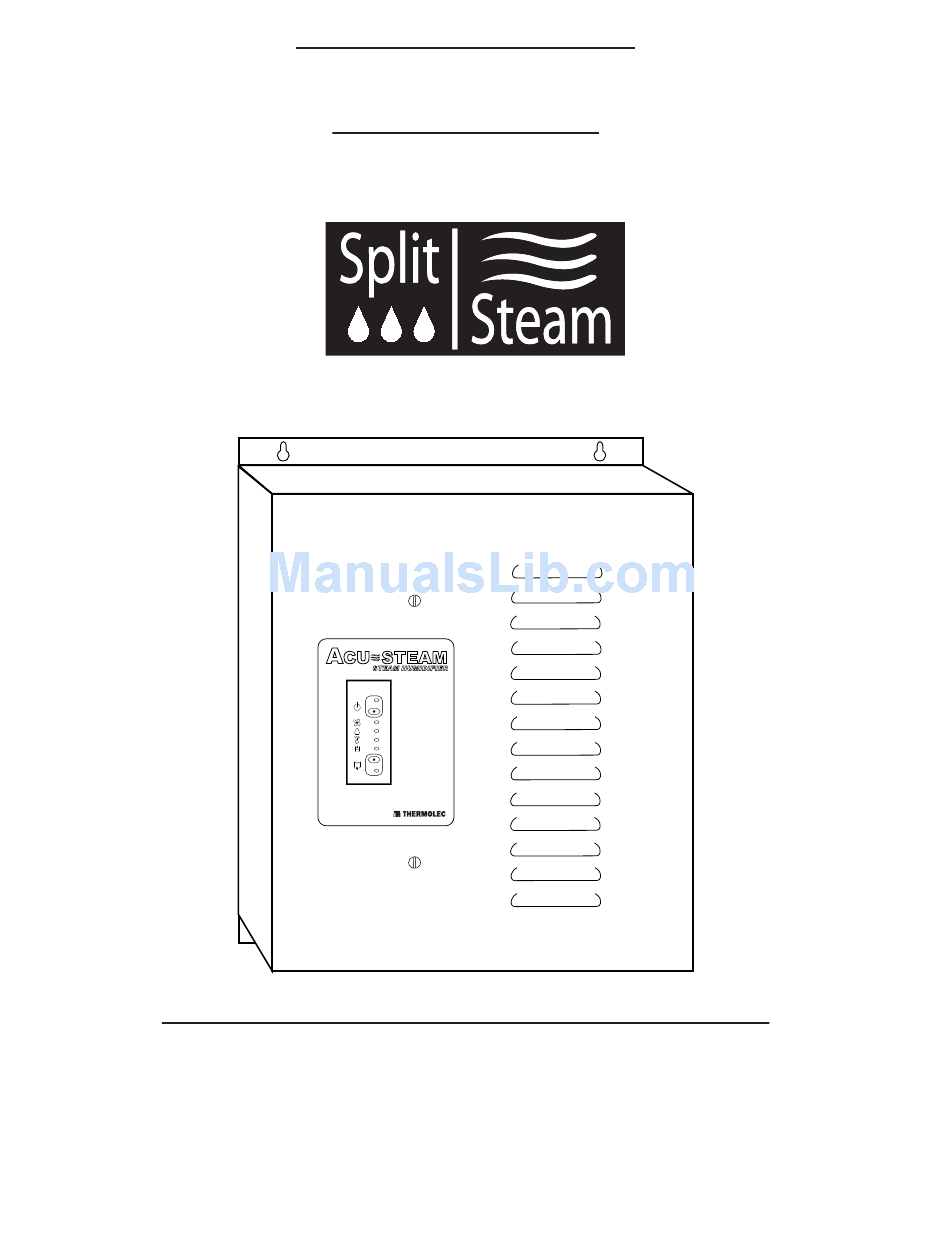

User and Maintenance Manual
for the Homeowner
and
Installation Instructions
for the Contractor
ACU-STEAM™
Humidifi er
by Thermolec
!
Please read this manual carefully before beginning installation.
Important Notice to the Contractor :
Once the installation is complete, please leave this manual with the customer for future reference.
July 2010 V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACU-STEAM and is the answer not in the manual?

Questions and answers

Related Manuals for Thermolec ACU-STEAM

Summary of Contents for Thermolec ACU-STEAM

  • Page 1 User and Maintenance Manual for the Homeowner Installation Instructions for the Contractor ACU-STEAM™ Humidifi er by Thermolec Please read this manual carefully before beginning installation. Important Notice to the Contractor : Once the installation is complete, please leave this manual with the customer for future reference.
  • Page 3 Warnings and Disclaimer – Installation Precautions Please read and understand the warnings and instructions fully before you begin this installation and keep them handy for future reference. The manufacturer will assume no responsibility and the warranty will be void if the installer or the user does not adhere to the following precautions : This humidifi...

  • Page 4: View Of The Unit

    Instructions and User Manual for the Homeowner View of the unit Fig. 2a External view of the humidifi er.  Water Tank Top View. Please see Fig. 2b. Fig. 2b Water tank Side View. Please see Fig. 2c.   ...
  • Page 5 Startup The startup of the humidifi er is done in as follows :  Put the main power ON at the electrical panel. The green pilot light comes ON. The humidifi er is ready to work.  Open the water supply valve. ...
  • Page 6 If you installed an ACU-STEAM humidistat and an outdoor sensor, this adjustment will be done automatically. The outdoor sensor reduces the setting of the humidistat according to the outdoor temperature during cold days without having to set the humidistat knob manually.
  • Page 7 - Yellow Fig. 5a The ACU-STEAM humidistat also has two pilot lights to indicate the current status. The green light is lit when the humidistat is demanding for humidity, thus activating the boiling cycle. The red light indicates a warning and reproduces the same warning code as the red light on the humidifi er control panel.
  • Page 8 Warning Red light An abnormal condition occurred. Please refer to the error code table in Section 7. Steam White light The humidifi er is heating water to produce steam. Filling cycle Blue light The electric water valve is open thus fi lling the humidifi...

  • Page 9: What To Do If A Malfunction Occurs

    What To Do if a Malfunction Occurs Shut the main power OFF and restart the humidifi er to see if the error code disappears. If you see a water leak, follow the water supply tube and close the valve installed on the water pipe located near the humidifi...

  • Page 10: Cleaning The Tank

    The humidifi er will stop and drain. Please note that when using an ACU-STEAM electronic humidistat, if the relative humidity is extremely low the humidifi er may still run with the knob at the minimum setting because of a range limiter inside the cover. If this occurs you will need to remove the humidistat cover by pulling it off and turn the knob completely counter-clockwise.
  • Page 11 Pull the plastic tube attached to the bottom of the unit out of the rigid drain pipe on the wall. You do not have to remove the plastic tube attached to the bottom of the pan. Remove the overfl ow pan from the unit by slightly loosening the front screw then lifting the front of the pan off the screw and pulling it towards you.
  • Page 12 Put the overfl ow pan under the tank by sitting it back on its holding screws. 8.10 Reconnect the white wire of the overfl ow sensor on the water pan. 8.11 Put the overfl ow and main drain tubes back into the rigid drain pipe attached to the wall. 8.12 Put the cover back on the humidifi...

  • Page 13: Preventative Maintenance

    Preventative Maintenance Preventive maintenance to be performed every two years. In order to avoid problems due to accumulation of deposits, we suggest that you replace the centre metal tube, the silicone drain tube and the low level sensor. We also suggest you replace the round o-ring gasket around the tank.

  • Page 14: Warranty

    Thermolec responsibility shall be limited in any case to the replacement or repair, in its factory or in the fi eld, by its own personnel or by others chosen by Thermolec, at its option, of such steam humidifi er or parts thereof, as shall prove to be defective within the warranty period.

  • Page 15: Unpacking The Unit

    Detailed Instructions for the Contractor Unpacking the Unit 11.1 Contents Please inspect the carton’s contents and report any missing parts or damage immediately. 1 Humidifi er 1 fan housing 1 plastic faceplate 1 Main Drain tube (32” long – already installed and coiled inside the unit) 1 Steam hose (2 feet long x 1 inch I.D.) 1 Instruction and maintenance manual 1 Plastic bag containing installation material and hardware as follows:...
  • Page 16 Dimensions and Available Models Fig. 12a 12.1 Humidifi er dimensions 11 5/8” 14” 9” 13” Fig. 12b 12.2 Available models Capacity Model Lbs/Hr Power Voltage Current (Kg/Hr) (Kw) Acu-5-SP (2.2) 12.5 Page 14...
  • Page 17 Detailed View and Wiring Fig. 13a View of the top of the unit. Electric Black Steam Outlet Valve Heating Element Black Manual Thermal High Level Cut-out Low Level Level Sensors Yellow White Green Blue Blue Water Pan White Page 15...
  • Page 18 View and list of the wire harness by color and function. Please see Fig. 13b & Fig. 13c. Overflow Sensor Ground connection connection On/Standby LED On/Standby Element Switch Relay Fan LED Neutral Alarm LED Fuse connection Steam LED Fill LED Transformer Relay 1 2 3...
  • Page 19 fi gure 14a. Longer hoses at a length of 4 feet are available from Thermolec. For distances up to 12 feet, a section of insulated copper pipe can be connected between two pieces of steam hose.
  • Page 20 14.3 Attached the mounting fl anges to the fan module with the screws provided but do not tighten the screws so that the fl anges are able to slide along the slots. Slide the fan module into the wall until the front edge is fl...

  • Page 21: Installing The Humidifi Er

    Installing the Humidifi er For ease of service, keep a minimum space of 24” in front of the unit. 15.1 Remove the cover by turning the two 1/4 turn screws to the left and pull the cover towards you. 15.2 Remove the white wire connected on the water pan at the bottom of the unit.
  • Page 22 also install a siphon (P-trap) with a drain cap. The two fl exible tubes coming from the humidifi er and which will be inserted in the rigid pipe, require a minimum free vertical length of 18”. It is very important to leave an air gap between the rigid pipe and the tubes to allow the siphon to function properly.

  • Page 23: Installing The Water Supply

     Never install the humidifi er directly on the furnace body as this could void your furnace warranty. Installing the Water Supply Important Notes :  Turn off the main water supply before beginning.  The supply valve (not supplied) must be attached to a cold water pipe only, close to the humidifi er. Since the unit is draining hot water, cold water is added to reduce the temperature before sending the water to the drain.

  • Page 24: Making Electrical Connections

    Making Electrical Connections NOTE : All internal wiring is done at the factory. All external wiring shall be done by a qualifi ed electrician and must conform to procedures, regulations and local codes. 18.1 A dedicated breaker in the main panel (or fused disconnect) must be installed. 18.2 The voltage of the available power supply must be the same as the one required by the humidifi...
  • Page 25 Installing and Connecting the Humidistat 19.1 See wiring diagrams in section 21 for proper connection. If you are using an ACU-STEAM electronic humidistat with outdoor sensor please refer to the instructions included with the humidistat. If you decide to use a standard mechanical humidistat, connect the mechanical humidistat between the terminals marked GND (ground) &...

  • Page 26: Start-Up And Test Procedure

    Start-up and Test Procedure 20.1 Take the 5/16 dia. plastic tube previously uncoiled and push one end on the connector located at the bottom of the overfl ow pan. Please see Fig. 20a and Fig.20b. Fig. 20a Fig. 20b 20.2 Install the overfl...
  • Page 27 NOTE: The Acu-Steam board has a memory that remembers the last sequence of operation when the power is turned off, hence the unit might start at step 2 or 3 when you put the power back on. Also, timings may slightly vary depending on the capacity of the unit (1.5 kW, 3 kW or 4 kW), the pressure of the water inlet and the quality of...
  • Page 28 Page 26...

  • Page 29: Wiring Diagrams

    Wiring diagrams Page 27...
  • Page 30 Page 28...

  • Page 31: Detailed Error Codes

    Detailed Error Codes Page 29...
