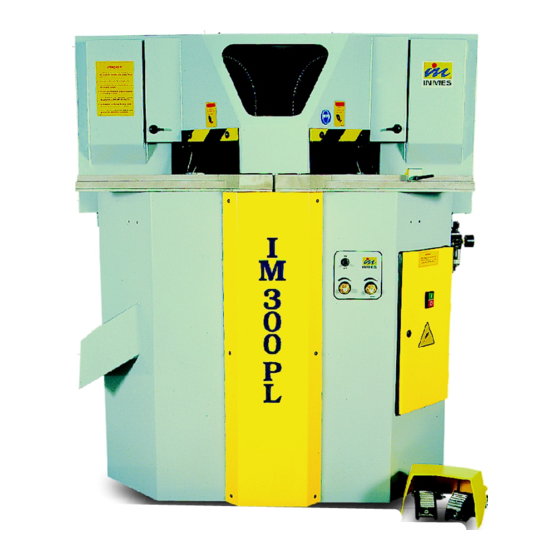

THE LEFT BLADE to cut, step on the left foot pedal, holding it down until the cut is completed. Then release the pedal for the blade to return to its original position. INMES Industrial Ltda. - Double Miter Saw IM300PL...
General – Upon receiving the saw, and on a regular basis, you should check the bolts which attach the control panel to the body, since vibration during transport and operation can loosen them. You should occasionally check all of the bolts on your saw for tightness. INMES Industrial Ltda. - Double Miter Saw IM300PL...
B3-3-880 Manual de Instalação e Manutenção Filtro/Regulador Mini Installation and Maintenance Bulletin Mini Filter/Regulator Apresentação Warning - Apply silicone grease or vaseline in all seals; Filtro/Regulador é a combinação do Filtro - Clean parts with water and neutral soap; com Regulador de Pressão. O Filtro/Regulador - Do not use cloth or rags to dry parts;...
Page 17
B3-3-880 Manual de Instalação e Manutenção Filtro/Regulador Mini Installation and Maintenance Bulletin Mini Filter/Regulator Dimensões/ Dimensions Fixação do Conjunto Filtro/Regulador ao Lubrificador Sem Suporte: Kit P3A-KA00CDN Com Suporte: Kit P3A-KA00CDN + P3A-KA00CWN Mounting Filter/Regulator to Lubrificator Without Mounting Bracket: Kit P3A-KA00CDN With Mounting Bracket: Kit P3A-KA00CDN + P3A-KA00CWN Fixação do Filtro/Regulador Fixação com Suporte Pescoço...
Page 18
B3-3-880 Manual de Instalação e Manutenção Filtro/Regulador Mini Installation and Maintenance Bulletin Mini Filter/Regulator Manutenção - Para filtro com dreno automático, não considere os itens 3 e 11. - For filter with auto drain, don't consider items 3 and 11. Para bom e permanente desempenho deste produto, ele deve sofrer limpezas periódicas e manutenção preventiva.
B3-3-880 Manual de Instalação e Manutenção Filtro/Regulador Mini Installation and Maintenance Bulletin Mini Filter/Regulator Kit de Reparo Repair Kit Filtro/Regulador com Sangria: Ref.: P3A-KA00RE - Relieving Filtro/Regulator: Part nº: P3A-KA00RE Filtro/Regulador sem Sangria: Ref.: P3A-KA00RG - Non Relieving Filter/Regulator: Part nº: P3A-KA00RG Referências/Part Numbers Item Qtde./ Qty.
Page 20
B3-3-882 Manual de Instalação e Manutenção Lubrificador Mini Installation and Maintenance Bulletin Mini Lubrificator Technical Characteristcs - Ports Sizes: 1/8” and 1/4” - Type of Thread: NPT or BSP - Type of Drain: Manual - Bowl Material: Polycarbonate -10 ° C to +50 ° C ( 14 °...
Page 21
B3-3-882 Manual de Instalação e Manutenção Lubrificador Mini Installation and Maintenance Bulletin Mini Lubrificator Dimensões/ Dimensions 120.0 Sem suporte/ Without mounting bracket 123.0 Com suporte/ With mounting bracket Versão/ Version Versão/ Version Com Dreno Manual Com Dreno Manual With Manual Drain and Short Bowl With Manual Drain and Short Bowl Com Dreno Manual e Copo Longo Com Dreno Manual e Copo Longo...
Page 22
B3-3-882 Manual de Instalação e Manutenção Lubrificador Mini Installation and Maintenance Bulletin Mini Lubrificator Fixação Unitária do Lubrificador Lubrificator Unit Mounting Suporte de Parede: Kit P3A-KA00CWN Wall Mounting Bracket: kit P3A-KA00CWN Manutenção Fig. 1 Para bom e permanente desempenho deste produto, ele deve sofrer manutenções periódicas.
Page 23
B3-3-882 Manual de Instalação e Manutenção Lubrificador Mini Installation and Maintenance Bulletin Mini Lubrificator Repair Kit Kit de Reparo Ref. P3A-KA00RL Part nº P3A-KA00RL Referências/ Parts Numbers Item Qtde./ Qty. Descrição/ Description Referência/ Part Nº Guarnição Chata/ Flat Seal 1539-2 "O"...
