Summary of Contents for Inmes IM-30 MM

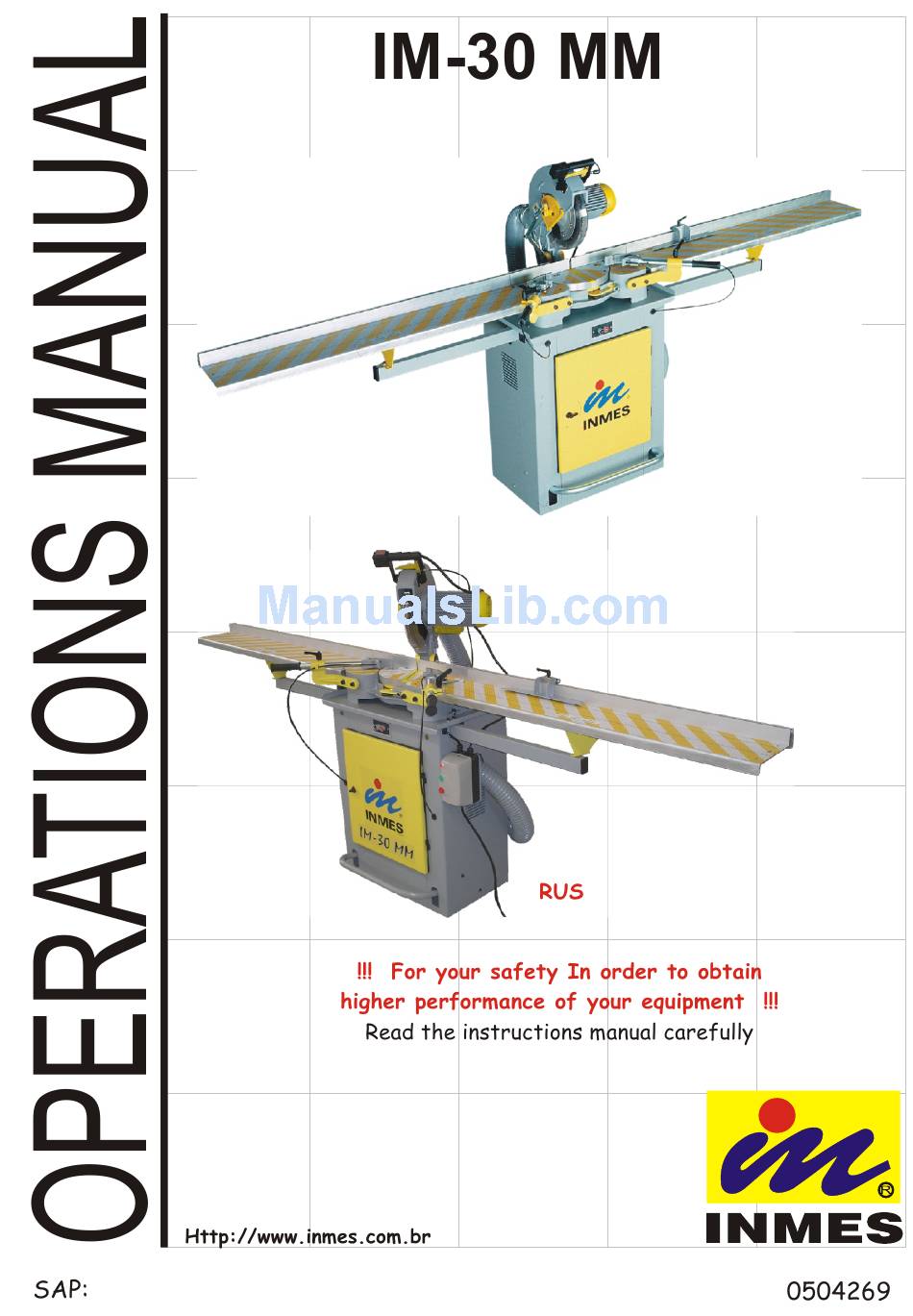

- Page 1 147/153...
-
Page 3: Visit Our Website

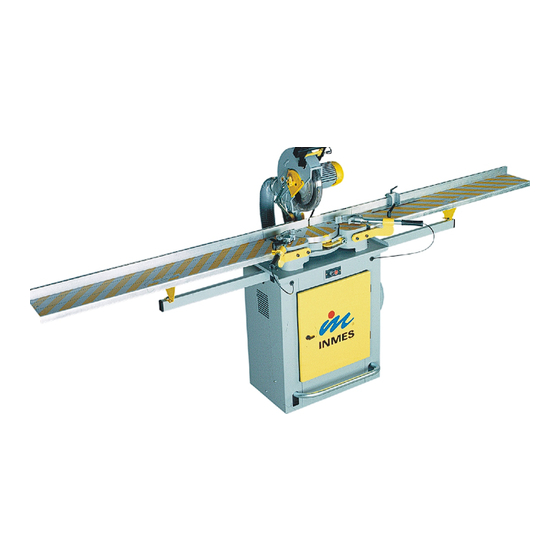

Congratulations for choosing the IM-30 MM and thanks for your confidence in INMES products. This equipment was developed to satisfy safety and meet your needs for high performance. The IM-30 MM was especially designed to make high-quality cuts in wood, profiles, however each material requires the proper blade. -
Page 4: Safety Instructions
1 – SAFETY INSTRUCTIONS For operator safety and durability of your equipment, the instruction must be carried out with great care when installing and operating your machine, staying alert and learn how to use the IM-30 MM. 1.1 – Safety Signals DANGE R If the safety instruction is not followed the operator will be seriously injured or killed. -
Page 5: Before Each Use
If any part is missing, bent or broken in any way, or electrical part does not work properly, turn the saw • off, unplug the saw and provide the proper maintenance; Never use your machine if you observe something which can cause an accident or damage the machine; • Use only sharp blade; • INMES Industrial Ltda – IM-30 MM... - Page 6 Wear ear plugs or muffs; • Always wear safety goggles; • For dusty operations, wear a dust mask along with safety goggles; • Always remember that a fraction of a second can cause a serious injury. • INMES Industrial Ltda – IM-30 MM...
-
Page 7: Before Leaving The Machine
Disconnect the circuit breaker from the power. • 2 – UNPACKING AND CHECKING CONTENTS As soon as you receive the IM-30 MM Rotating Miter Saw, make sure that all parts are included. The following parts are included: Part or Assembly... -
Page 8: Getting To Know Your Miter Saw
! If you are missing any part, please do not hesitate to whenever you have to lift the saw. contact our distributor. ! Inmes developed a movable base for ! Always order by part number, use “Vista explodida” IM-30; contact our distributor for you may find it at the list of parts located in the end further information. - Page 9 4ª – Turn on the saw 04 fig. 02. 1ª – Turn off the saw 04 fig. 02. 2ª – Turn off the dust collector 03 fig. 02. 3ª – Turn off the main switch 05 fig. 02. INMES Industrial Ltda – IM-30 MM...
- Page 10 ! Overloading can occur if the operator start and stop many times in a short time, also the use of improper or dull saw blades are used; ! Before plugging in the machine to the electrical INMES Industrial recommends to use a thermo magnetic circuit breaker on the electrical source as instructed in item 5.3 described in this instructions manual.
- Page 11 50Hz 5.3 - Chart with specification for thermo magnetic circuit breaker Inmes Industrial recommends installing a thermo magnetic circuit breaker on the electrical source, preferably IEC Curve C standard (For inductive equipments) before connecting the machine to the electrical source and make sure the circuit is properly grounded using the green/yellow wires for this purpose. This service must be performed by a qualified staff.
-
Page 12: Tools Needed
5) Rotate the wrench B down; 6) Rotate the wrench A up; 7) Remove the nut figure 03 (03); 8) Take the flange off figure 03 (04); 9) You are finally ready to remove the blade, figure 03 (05); INMES Industrial Ltda – IM-30 MM... - Page 13 Allen key 6mm that comes with the machine. Lift the top as far as possible, using the handle, place the spring in the direction of the arrow, until you are able to replace bolt in its original hole. 8. OPERATING YOUR IM-30 MM ROTATING MITER SAW CAUTION W ARNING...
-
Page 14: Cutting Capacity
8.2 - Choosing the right angle you wish to cut The IM-30 MM has a quick adjust rotation feature with precision lock position for the most used angles (45° - 30° - 22,5° - 15° -10° ), and respectively for square and rectangles 6-8-12 and 18 sided frames, and manual adjust for the other angles. - Page 15 W ARNING ! Before cutting, observe the clamping (04) fig (06); if it’s clamping the profile in the correct way, otherwise it’s possibly to release during cutting, damaging the machine, or even hurting the operator. INMES Industrial Ltda – IM-30 MM...
-
Page 16: Maintenance
! To each eighty (80 hours) working hours it’s necessary to lubricate the yellow quick-adjust cable with dust-graphite; ! It’s not required any other type of lubrication for the life of your IM-30 Plus. INMES Industrial Ltda – IM-30 MM... -
Page 17: Troubleshooting
Have it sharpen Debris between the profile and moulding fence Clean it up Mains spring is broken Replace the spring Hard to pull Back Hex nut from pivot shaft is too tight Release the nut slowly INMES Industrial Ltda – IM-30 MM... - Page 18 11 – PART LIST FOR IM-30 MM ROTATING MITER SAW CODE DESCRIPTION CODE DESCRIPTION 0302022 Saw blade shaft nut 0408025 Allen screw m8x16mm 0306003 Internal flange IM-30 0408026 Allen screw m8x20mm 0306004 External flange IM-30 0408027 Allen screw m8x25mm 0306006...
- Page 19 0405117 Label 240V 50HZ 0413073 Motor 208/230V 50Hz 0405119 Label 0413105 Motor 240V 50Hz 0408008 Label 0415006 Cabinet door handle 0408018 Allen screw m6x20mm 0415007 Cabinet door hinge 0405120 Label 0417017 Cabinet door gasket INMES Industrial Ltda – IM-30 MM...
- Page 20 Pin for the clamping 0408254 Pim 1,75mm 0306115 Right clamping 0415011 Gasket for the clamping 0306116 Right support 0416024 Spring 0306117 Handle m8x27mm (mechanical clamping) 0417008 Flexible pin 04x24 0306316 Whasher 0417040 Flexible lock 503.120 INMES Industrial Ltda – IM-30 MM...
- Page 28 Caixa Postal 65 - CEP 88750-000 Braço do Norte - SC - Brasil h t t p : / / w w w . i n m e s . c o m . b r e-mail: vendas@inmes.com.br S A C 0 3 0 0...
