Summary of Contents for Slide Kamera S-980 STANDARD

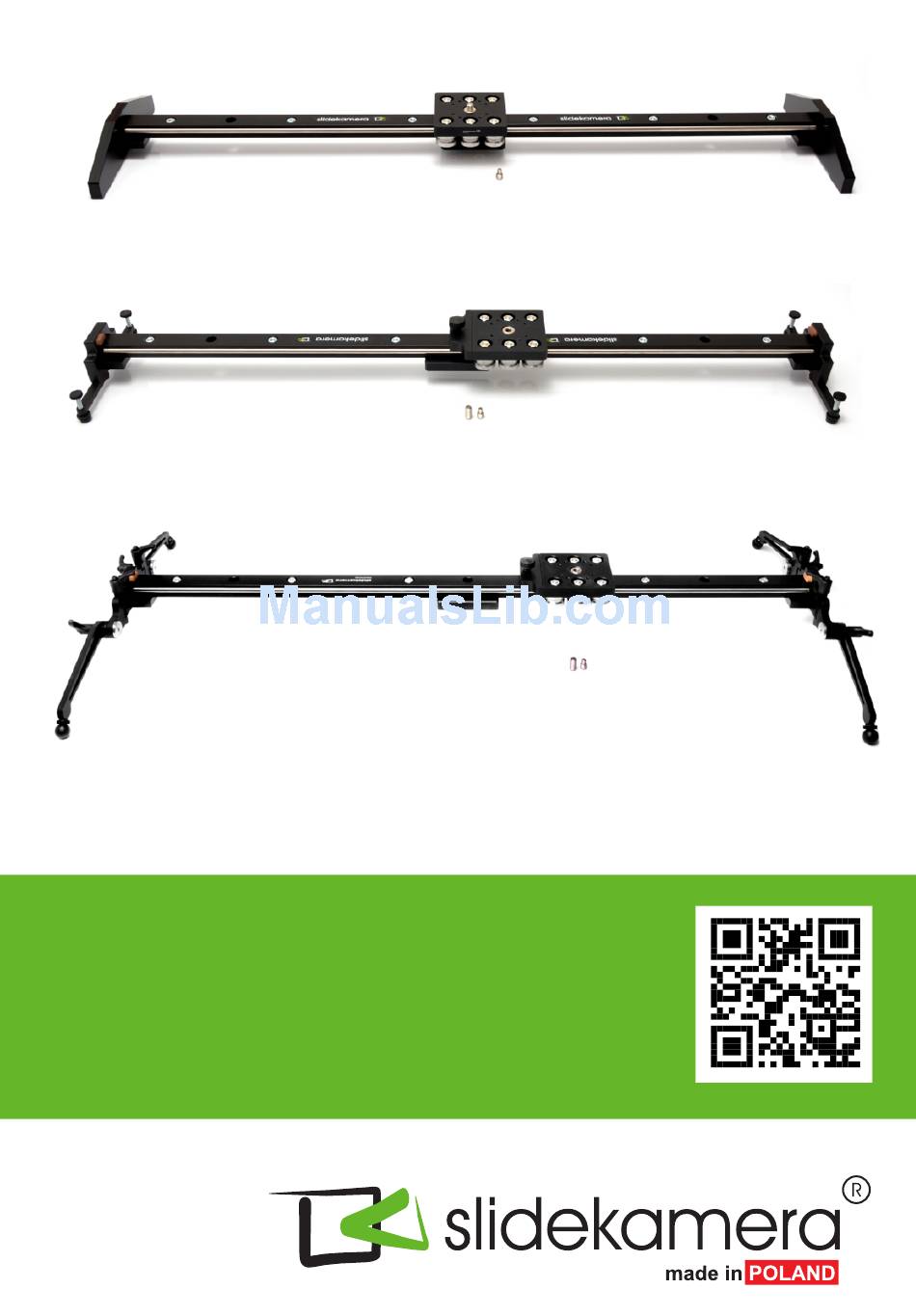

- Page 1 Slide Kamera S-980 BASIC Slide Kamera S-980 / S-1500 STANDARD Slide Kamera S-980 / S-1500 PRO User Manual Slide Kamera S series BASIC, STANDARD, PRO Pdf version of the manual available for download: www.slidekamera.eu 1/2013...
-
Page 2: Table Of Contents
High Engineering Technology CNC s.c. Sebastian Pawelec Karol Mikulski Glina 45 82-522 Sadlinki Vat Identification Number: 581-188-33-32 Slide Kamera Office 80-175 Gdańsk (Poland) Ul. Kartuska 386 tel./fax (+48) 58 710 41 04 e-mail: biuro@slidekamera.pl / office@slidekamera.eu www.slidekamera.pl / www.slidekamera.eu Slide Kamera S series... -
Page 3: Slide Kamera S Series Components
(included in STANDARD, PRO model ) side feet - 2 pcs (feet model depends on the Slide Kamera model) Model Length of the rail Amount of AF-8 Slide Feet Type Brake S-980 BASIC 980 mm BASIC S-980 STANDARD 980 mm STANDARD Included... -
Page 4: Cart
AF-11SL reduction 1/4"-3/8" mandrel [4] AF-12SL reduction 3/8" mandrel [5] Standstill brake [6] AF-9 STANDARD side feet [7] Slide Kamera S-980 BASIC Rail [1] AF- 8 port [2] Cart with a 3/8" threaded hole [3] AF-11SL reduction 1/4"-3/8" mandrel [4] AF-12SL reduction 3/8"... -
Page 5: Rail And Af-8 Port
AF-1 side feet AF-13 BASIC side feet AF-3-S PRO adjustable feet AF-9 STANDARD adjustable feet AF-1 side feet as well as PRO feet are equipped with 3/8'' threaded hole that allows to mount the Slide Kamera on two tripods, what considerably increases stability of the support. 1.3. -
Page 6: Mounting Akc-3 Slide Kamera Adapter / Manfrotto Mn577 To The Af-8 Lower Port
Screw in Slide Kamera AK-101 sliding plate to the camera head equipped with 1/4" or 3/8" threaded hole using a suitable photographic screw for camera heads (1/4" or 3/8"). Slide the head into the adapter base. Lock the clamping knobs of the adapter. Mounting Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter on the cart allows to change the accesories used in photo-video productions in a vary fast and easy way. -
Page 7: Example Of Mounting Slide Kamera Device To Hgo-2 Rotational Head
2.2.1. Example of mounting Slide Kamera to the HGO-2 rotational head Remove AF-12LG reduction screwed into the 3/8" central hole of the rotational head. Mount Slide Kamera AKC-3 adapter base to the rotational head disc using short M4 screws (supplied with Slide Kamera AKC-3 adapter). -
Page 8: Maintenance And Operation
Any changes in the design and repairs are made only and exclusively by the manufacturer Failure to comply with the recommended guidelines outlined in this manual will result in loss of warranty. You can find the list of service centres on the manufacturer's website: www.slidekamera.pl/ www.slidekamera.eu 5.
