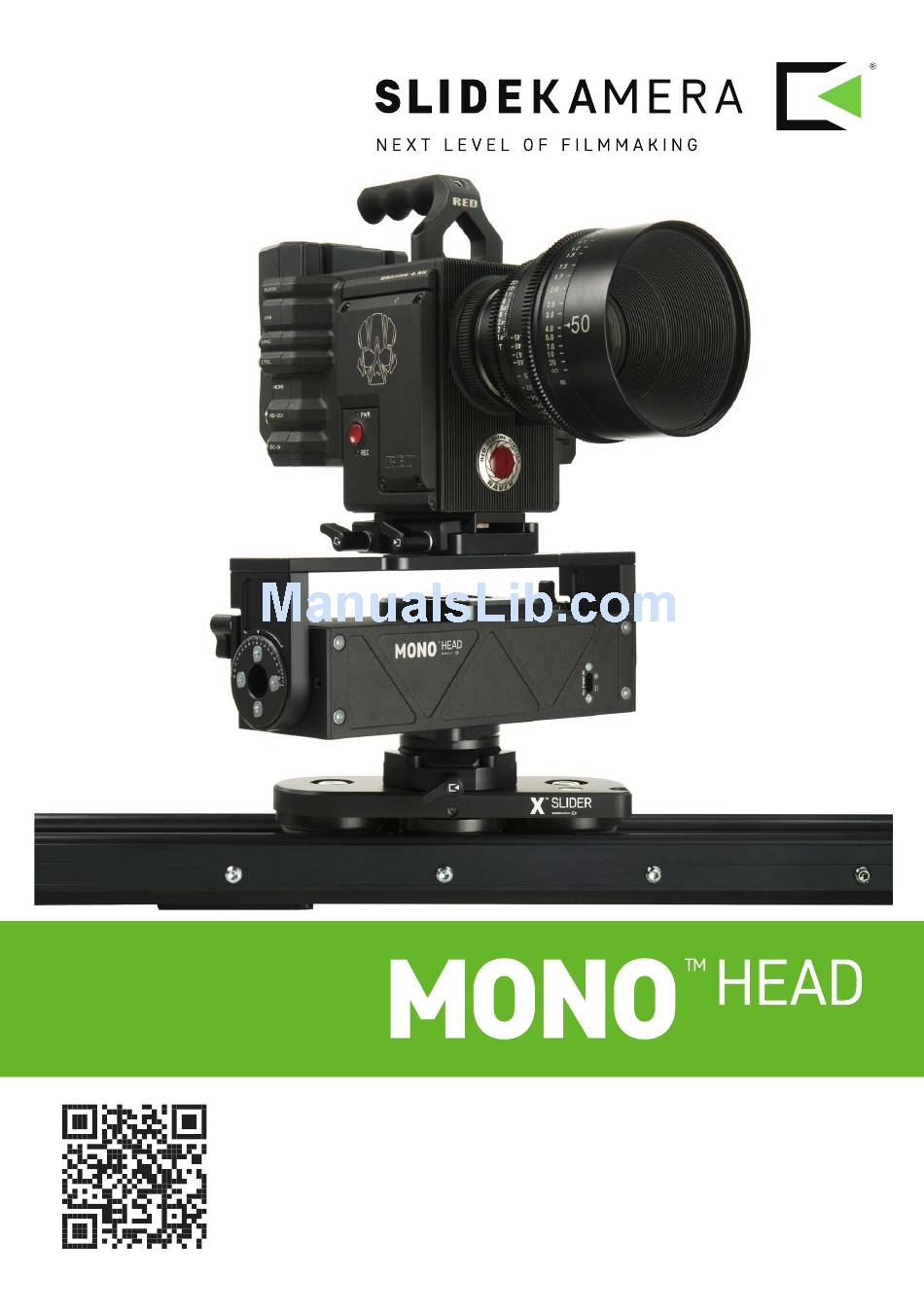

- Page 1 REMOTE CONTROLLED 1D HEAD User Manual pdf version of the manual available for download: www.slidekamera.com 6/2017...
-
Page 2: Table Of Contents
Before you start your work with the MONO HEAD adapter we strongly recommend to read the manual carefully. On the margins you will find information, which complement the Please note that using the adapter in a manner inconsistent with contents of the manual. -
Page 3: Content Of The Set
2. Content of the set transport case head power cable HET BUS cable (RJ45) camera quick release plate (AKC-3) head quick release plate 3. Construction mounting bracket for manual camera quick release plate (AKC-3) adjustment of the camera’s tilt clamping lever clamping lever mounting port to attach the camera directly to the head... -
Page 4: Power Supply
• BP-U battery with SLIDEKAMERA BP-U Adapter with magnetic holder. 5. Mounting MONO HEAD is designed to be mounted on tripods and sliders by a quick release plate, which is included in the set. By using this adapter mounting of the head is fast, safe and reliable. -
Page 5: Connections
6. Connections MONO HEAD can be controlled by a wide range of devices equipped in the HET BUS socket (RJ45), such as AION controllers or SLIDE LINK wireless adapter. This allows the head to work with other elements of the motion control system, such as slider motors. -
Page 6: Aion Iq Controller
MONO HEAD remote included in the set with X MOTOR drives. head. After connecting to the MONO HEAD the AION IQ controller offers additional features, that are available only during operation with the head. Options mentioned below apply only to operation... -
Page 7: Aion Iq Modes
The MONO HEAD remote head can operate in all modes of the AION IQ controller and SLIDEKAMERA drives. LIVE - mode used to record footage in real time. MONO HEAD can be set to work automatically (Smart Eye feature), or to be controlled manually by the operator. -
Page 8: Maintenance And Operation
8. Maintenance and operation BULL HEAD remote controlled head does not need any additional service or lubrication of the components. Maintenance procedures are reduced to keeping the equipment clean. 9. Terms of warranty All SLIDEKAMERA products are covered by the manufacturer’s warranty for a period of 12 months from the date of sale.
