User Manual
Extremely rigid, stable and reliable
Slide Kamera HST-3 tripod ideal
for indoor and outdoor applications.
Specially designed construction
allows to stabilize video heads
and Slide Kamera devices.
All components of the tripod
are made with high precision,
what ensures high rigidity
of the device.

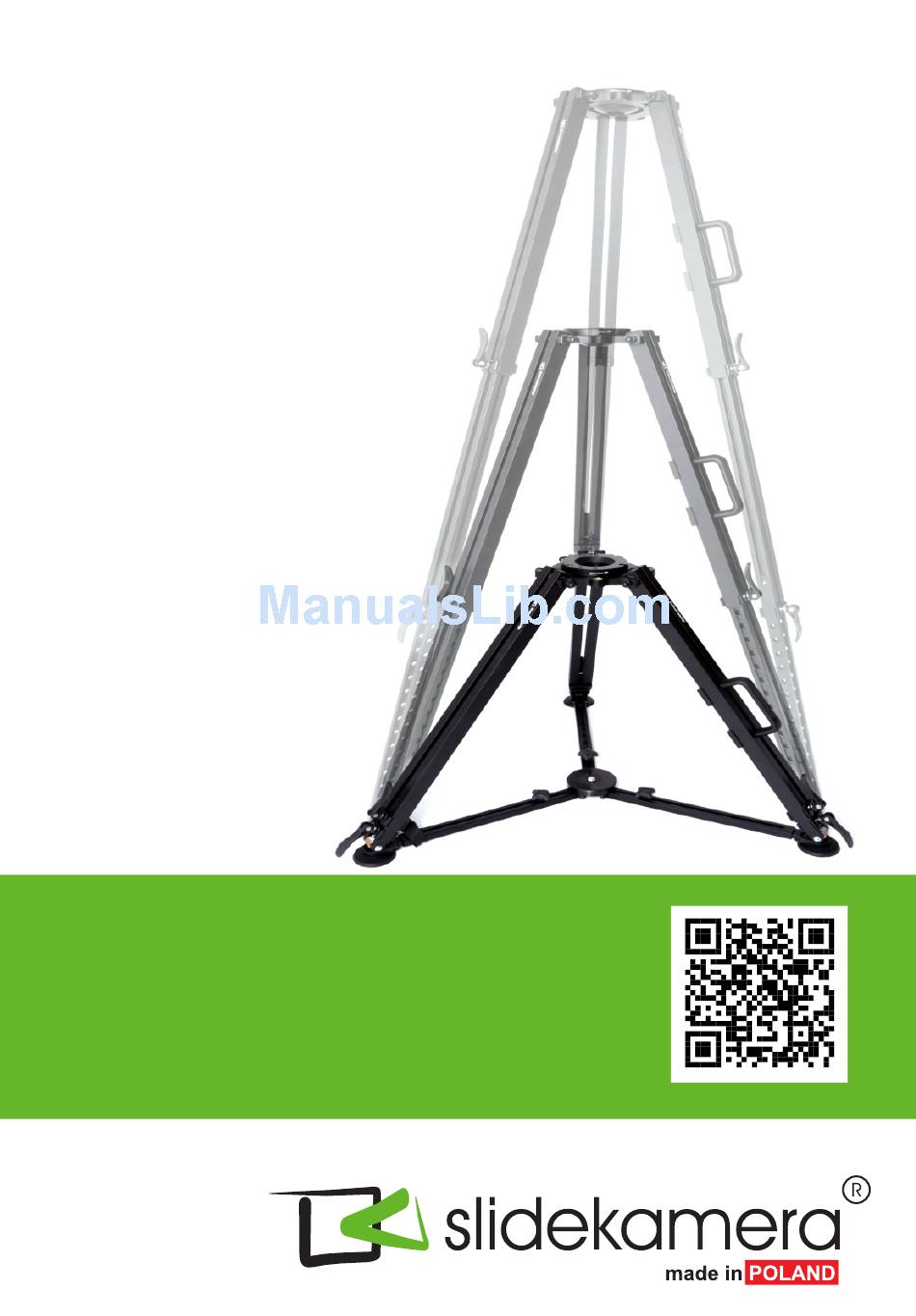

Slide Kamera HST-3
Tripod
Pdf version of the manual available for download: www.slidekamera.eu
1/2014
Advertisement
Table of Contents
Related Manuals for Slide Kamera HST-3
Summary of Contents for Slide Kamera HST-3
- Page 1 Slide Kamera devices. All components of the tripod are made with high precision, what ensures high rigidity of the device. Slide Kamera HST-3 Tripod Pdf version of the manual available for download: www.slidekamera.eu 1/2014...
-
Page 2: Table Of Contents
Before you start your work with Slide Kamera HST-3 tripod we strongly recommend to read the manual carrefully. Please note that using the device in a manner inconsistent with the instructions, unauthorized repair attempts or any kind of modification of the device can cause a damage the manufacturer is not responsible for. -
Page 3: Elements And Construction Of Slide Kamera Slide Kamera Hst-3 Tripod
Elements and construction of Slide Kamera Slide Kamera HST-3 tripod Once the shipment is received please make sure that all the elements of Slide Kamera HST-3 tripod are inside. Set includes: Slide Kamera HST-3 tripod with Slide Kamera HCZ 75mm or 100mm socket... -
Page 4: Additional Accessories
HST-3 tripod crown with Slide Kamera HCZ 75mm or 100mm [1] Tripod crown [2] Slide Kamera HCZ socket [3] Bubble level [4] Tripod leg that consists of three double strut leg sections [5] Carrying handle [6] Clamping lever [7] Ground level spreader [8]... -
Page 5: Plastic Fastening
Slide Kamera HST-3 tripod has a ground level spreader equipped with three locking knobs that help to set legs of the tripod accurately. Slide Kamera HST-3 tripod comes with plastic fastening clamp in the set, that secures the legs during transport. -
Page 6: Setting Up The Tripod
[1] and locking knobs are fastened. 5.1. Spreader set-up In order to spread Slide Kamera HST-3 tripod legs unlock spreader locking knobs and set the legs in a desired position. Ground level spreader allows for even and accurate spacing of the tripod legs. -
Page 7: Setting Up On Uneven Ground
Clamping lever locked Clamping lever unlocked Range of height of Slide Kamera HST-3 tripod 1630mm 290mm 5.3. Setting up on uneven ground Aluminium legs of the tripod are equipped with self-aligning rubber feet with high fritcion coefficient that allow to set and stabilise the tripod on uneven ground. Additionally, the construction of our tripod allows to set the legs of the device on different heights, what proves extremely useful on uneven ground, hills, stairs etc. -
Page 8: Slide Kamera Af-18 Leveling
6. Mounting devices on Slide Kamera HST-3 tripod Slide Kamera HST-3 tripod allows to mount various accessories in many configurations. You can mount your equipment on the tripod, using either Manfrotto half ball or Slide Kamera HSZ-2 quick mounting screw There is also a possibility to mount accessories directly to the tripod crown using three M4 or M5 screws. -
Page 9: Adapter For Mounting Photo-Video Accessories On Slide Kamera Hst Series Tripods
Adapter can be mounted either with a mounting plate facing the inside or outside of the tripod. Additionaly AF-24 adapter can be mounted on the entire length of the tripod leg. Slide Kamera HST-3 Tripod... -
Page 10: Maintenance
9. Transport Slide Kamera manufacturer recommends to transport Slide Kamera HST-3 tripod in Slide Kamera PSK-8 cover that allows to carry the device safely, in any way so that it is protected against any damage. Cover dimensions allow to transport the tripod with video head or Slide Kamera head mounted, there is no need to remove it. - Page 11 You can download the complaint form from: www.slidekamera.pl / www.slidekamera.eu. After the warranty period is exceeded any spare parts can be purchased directly from the manufacturer or in any selected points of sale.
