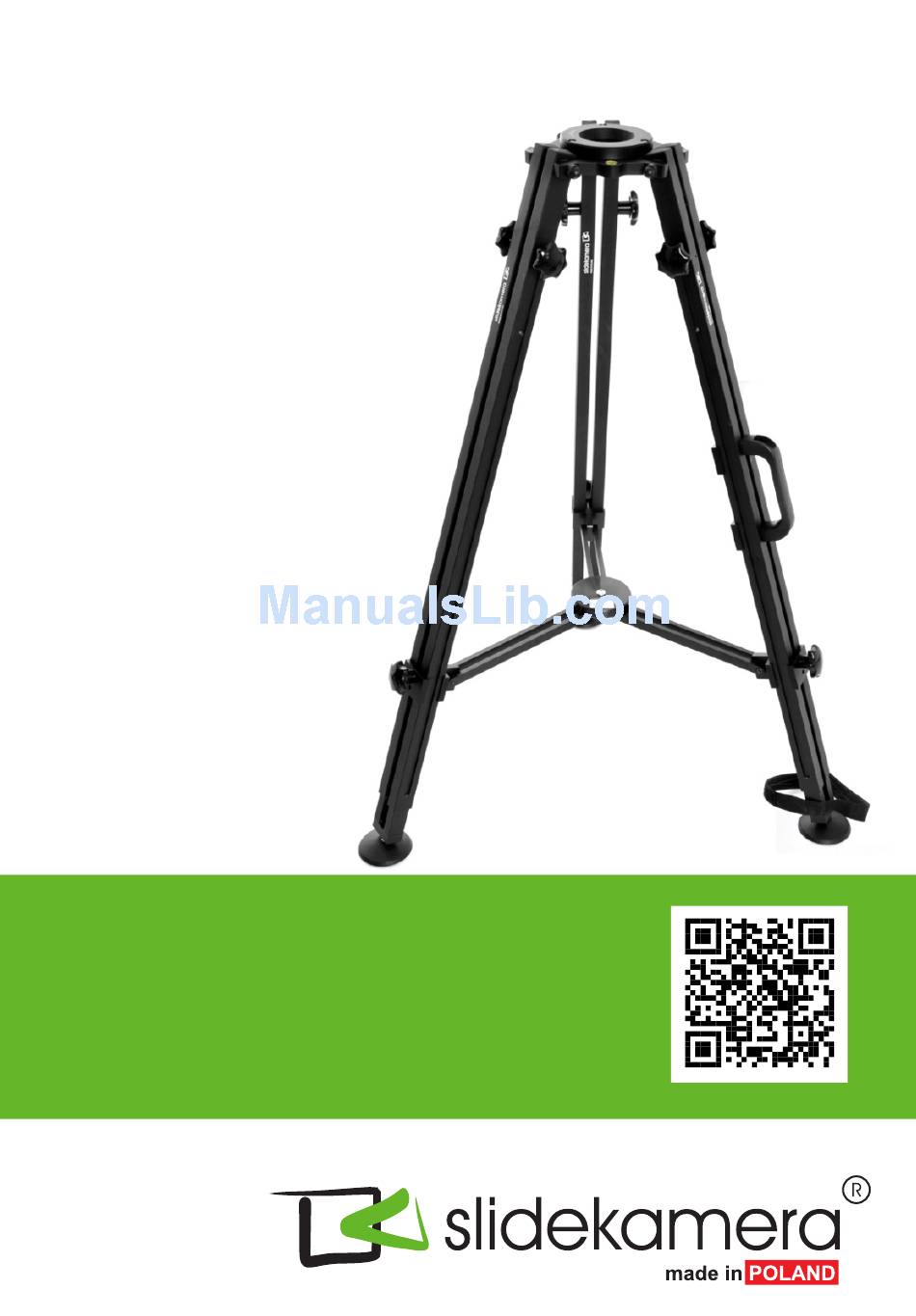

User Manual
Extremely rigid, stable and reliable
Slide Kamera HST-2 tripod ideal
for indoor and outdoor applications.
Specially designed construction
allows to stabilize video heads
and Slide Kamera devices.
All components of the tripod
are made with high precision,
what ensures high rigidity
of the device.

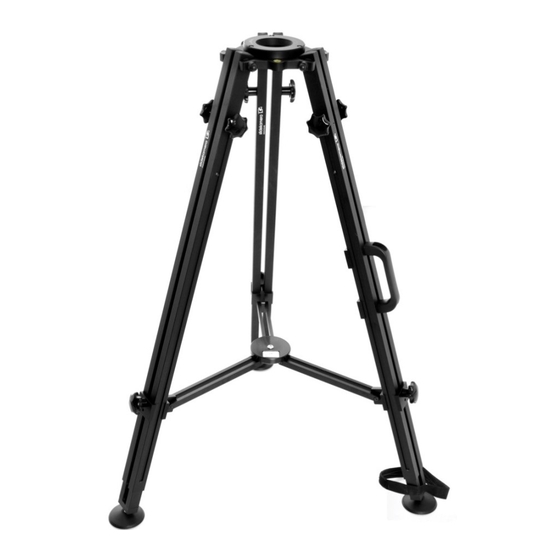

Slide Kamera HST-2
Tripod
Pdf version of the manual available for download: www.slidekamera.eu
1/2014
Advertisement
Table of Contents
Related Manuals for Slide Kamera HST-2
Summary of Contents for Slide Kamera HST-2
- Page 1 User Manual Extremely rigid, stable and reliable Slide Kamera HST-2 tripod ideal for indoor and outdoor applications. Specially designed construction allows to stabilize video heads and Slide Kamera devices. All components of the tripod are made with high precision, what ensures high rigidity of the device.
-
Page 2: Table Of Contents
Before you start your work with Slide Kamera HST-2 tripod we strongly recommend to read the manual carrefully. Please note that using the device in a manner inconsistent with the instructions, unauthorized repair attempts or any kind of modification of the device can cause a damage the manufacturer is not responsible for. -
Page 3: Elements And Construction Of Slide Kamera Slide Kamera Hst-2 Tripod
1. Elements and construction of Slide Kamera Slide Kamera HST-2 tripod Once the shipment is received please make sure that all the elements of Slide Kamera HST-3 tripod are inside. Set includes: Slide Kamera HST-3 tripod with Slide Kamera HCZ 75mm or 100mm socket... -
Page 4: Additional Accessories
HST-2 tripod crown with Slide Kamera HCZ 75mm or 100mm [1] Tripod crown [2] Slide Kamera HCZ socket [3] Bubble level [4] Clamping knob [5] Tripod leg that consists of two double strut leg sections[6] Carrying handle [7] Spreader locking knob [8]... -
Page 5: Slide Kamera Hsta-1 Castor Wheels With A
Slide Kamera HSZ-2 [9] Half ball levelers: Manfrotto MN520BALL 75mm [8] Manfrotto MN500BALL 100mm [9] Wheels: Slide Kamera HSTA-1 castor wheels with a brake [10] Bags: Support: Slide Kamera PSK-8 for HST-2 700 tripod [11] HSTA-2 support for Slide Kamera PSK-9 for HST-2 920 tripod [12]... -
Page 6: Specification
Specially designed construction allows to stabilize video heads and Slide Kamera devices. All components of the tripod are made with high precision, what ensures high rigidity of the device. Slide Kamera HST-2 tripod comes in two models and at the same time lengths: HST-2 700mm and HST-2 920mm. -
Page 7: Setting Up The Tripod
Slide Kamera HST-2 tripod has a slidable spreader equipped with three locking knobs that help to set legs of the tripod accurately. Slide Kamera HST-2 tripod comes with plastic fastening clamp in the set, that secures the legs during transport. When purchased with wheels, set also includes Slide... -
Page 8: Spreader Set-Up
5.2. Spreader set-up In order to spread Slide Kamera HST-2 tripod legs unlock spreader locking knobs and set the legs in a desired position. Slidable spreader allows for even and accurate spacing of the tripod legs therefore allowing to achieve perfect stability of the device. Additionaly, each leg is equipped with markers that facilitate setting the spreader. - Page 9 Standard version of Slide Kamera HST-2 tripod comes with self-aligning feet. In order to mount HSTA-1 castor wheels remove the feet from tripod legs. To make mounting more comfortable place the tripod on the tripod crown. Using M10x30 screws included in the set (6mm Allen key) attach wheel mounting base to the tripod leg. Insert the screws in leg base.
-
Page 10: Mounting Devices On Slide Kamera Hst-2 Tripod
Slide Kamera HST-2 tripod allows to mount various accessories in many configurations. You can mount your equipment on the tripod, using either Manfrotto half ball or Slide Kamera HSZ-2 quick mounting screw There is also a possibility to mount accessories directly to the tripod crown using three M4 or M5 screws. -
Page 11: Adapter For Mounting Photo-Video Accessories On Slide Kamera Hst Series Tripod
3/8" holes and 1/4" hole. There are also two M6 holes for mounting the clamping lever in two positions (top or bottom). Elements of Slide Kamera AF-24 adapter for mounting additional photo-video accessories Clamping lever with M6 thread [1] Fixing plate [2]... -
Page 12: Maintenance
Coverdimensions allow to transport the tripod with video head, Slide Kamera head mounted or HSTA-1 castor wheels attached. There is no needto remove the accessories. Slide Kamera PSK cover is made of waterproof polyester fabric of high durability, resistant to abrasion and weather conditions. -
Page 13: Terms Of Warranty
Terms of warranty All Slide Kamera products are covered manufacturer's warranty for a period of 12 months from the date of sale. Warranty covers any design faults or of the material of the product which resulted in the product malfunctioning. The warranty covers the repair, or, if the repair proves impossible, replacement of the product with a new one. - Page 14 Statyw Slide Kamera HST-2...
- Page 15 Statyw Slide Kamera HST-2...
