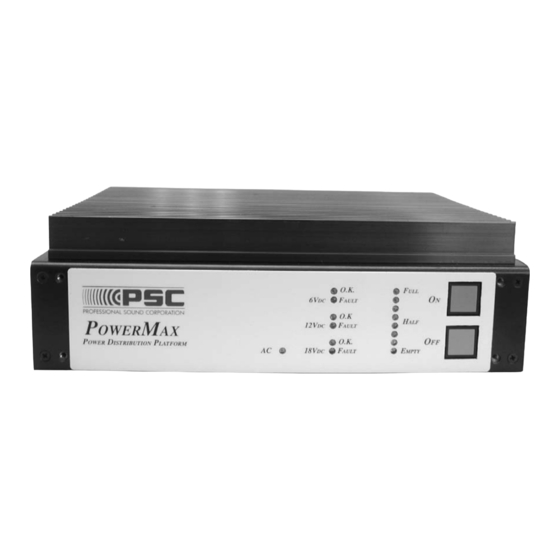

- Page 1 PowerMax Power Distribution System Operation Manual Version 1.0 Copyright 2003 Professional Sound Corporation Printed in the U.S.A.
- Page 2 The PSC PowerMax provides all of the various voltages required to power your entire digital audio recording package. Its rugged design allows for complete confidence that you will have uninterrupted power throughout your recording sessions.
- Page 3 CHARGING: The PSC PowerMax contains a built in charger designed to charge up to two external Sealed Lead Acid (SLA) batteries. That means you can connect either one or two separate SLA batteries such as pelican battery boxes to the PowerMax.
-
Page 4: Battery Storage
PowerMax’s front panel electronics turned on. By pressing the “ON” button, the PowerMax will turn on and begin to supply all of the various output voltages to your equipment. If the PowerMax is connected to a battery, but not plugged into AC, all of the power will come from the battery. - Page 5 It is highly recommended that you have your cables built by qualified personnel and tested prior to use with your PowerMax. All power cables should be clearly labeled on both ends as to what they are to be connected to. For example, label one end “PowerMax”...
-
Page 6: Rear Panel Connections
SHORT CIRCUIT BEFORE THE INTERNAL POLYSWITCH TRIPS. THIS IS MORE THAN ENOUGH POWER TO SEVERELY DAMAGE UNPROTECTED EQUIPMENT! DO NOT DISASSEMBLE THE PSC POWERMAX! IT CONTAINS NO USER SERVICEABLE PARTS OR ADJUSTMENTS. HIGH VOLTAGE AND CURRENT MAY BE PRESENT. REFER ALL SERVICE TO QUALIFIED PERSONNEL... -
Page 7: Terms Of Use
INCURRED DUE TO ACCIDENT, CARELESS HANDLING, ABUSE OR MISSUSE, IMPROPER CONNECTION, AND/OR INSTALLATION, IMPROPER ELECTRICAL CONTACT OR GROUNDING. OWNERSHIP AND/OR USE OF THE PSC POWERMAX CONSTITUTES AGREEMENT WITH THESE TERMS. SPECIFICATIONS: Size: 10” x 8” x 3.25” (25.4cm x 20cm x 8.2cm) Weight: 7Lbs (3.2Kg)
