PSC PowerStar EuroLiFE Distribution Box
Made in the U.S.A.
• 8 XLR Outputs Each with Power Filtering and Polyfuse Protection
• 4 USB Power Outlets
• 1 SpeakOn Power Input
• 8 Segment Multi-Colored LED battery Meter
• Easy to Use "ON" and "OFF" Buttons
• Secure, ¼"-20 Threaded Mounting Points, Thumb Screws Provided
Operation Manual Version 1.0
Copyright 2019 Professional Sound Corp
28085 Smyth Drive, Valencia, CA 91355 USA
CE RoHS
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for PSC PowerStar EuroLiFE
Summary of Contents for PSC PowerStar EuroLiFE

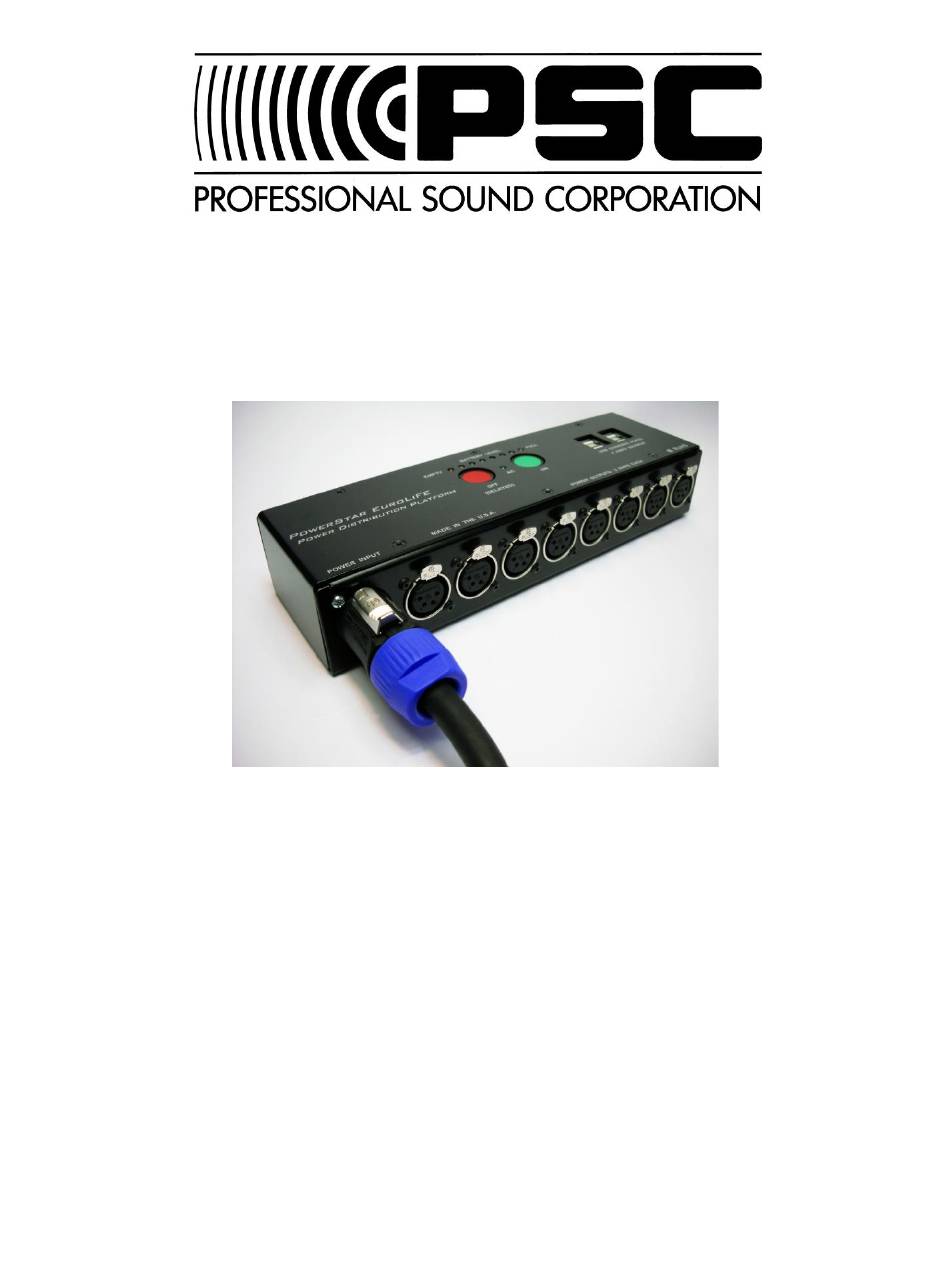

- Page 1 PSC PowerStar EuroLiFE Distribution Box Made in the U.S.A. • 8 XLR Outputs Each with Power Filtering and Polyfuse Protection • 4 USB Power Outlets • 1 SpeakOn Power Input • 8 Segment Multi-Colored LED battery Meter • Easy to Use “ON” and “OFF” Buttons •...
- Page 2 Thank you for purchasing your new PSC PowerStar EuroLiFE power distribution box. This new power system provides Power Distribution, Power Filtering and Protection Circuitry all in a compact box. We believe this design is the new gold standard for compact field power systems.
-
Page 3: Distribution Box
The PSC PowerStar EuroLiFE Distribution Box contains eight (8) DC power output connections on 4 pin female XLRs. A SpeakOn connector used to connect the unit to a PSC Pelican LiFE Battery or similar power source. The front panel of the distribution box contains a Multi Colored LED “Fuel Gauge”... - Page 4 PSC PowerStar LiFE distribution box mounted under the PSC EuroCart Handle. BATTERY CABLE CONNECTION: The PSC PowerStar EuroLiFE Distribution Box is equipped with a 4 pole SpeakOn connector for its power input. Please make sure that your 2 pole or 4 pole SpeakOn cable is made from heavy duty cable (12 AWG) and is also made as short in length as possible in order to minimize cable voltage drops.
- Page 5 DC CONNECTIONS: There are eight (8) XLR female DC output connectors located on the bottom edge panel of the PSC PowerStar EuroLiFE Distribution Box. Each of the eight (8) output connectors are rated for 3.5 Amps of output current. Each connector is individually Poly Fuse protected and filtered to provide clean, reliable DC power.
- Page 6 FUEL GAUGE: The PSC PowerStar EuroLiFE Distribution Box is equipped with an easy to read and easy to understand multi-colored battery “Fuel Gauge”. Just a quick glance and you will immediately know the charge condition of your battery. A full row of Green LEDs indicates a fully charged battery.
- Page 7 Our competitors do not understand inter-modulation noise and thus do not take the additional steps to prevent it like we do at PSC. Though not every piece of equipment will suffer from inter-modulation noise issues, here at PSC we believe that the extra parts cost and design time are worth it if it solves even one issue in the field.
- Page 8 THE IMPROPER CONNECTION OF THIS POWER SUPPLY TO AUXILIARY EQUIPMENT MAY RESULT IN DAMAGE TO SAID EQUIPMENT AND/OR PERSONAL INJURY. THIS PRODUCT IS DESIGNED TO BE OPERATED BY PROFESSIONALS IN THE FILM AND TELEVISION INDUSTRIES. THE PSC POWER STAR EUROLiFE DISTRIBUTION BOX SHOULD ONLY BE OPERATED AFTER READING AND UNDERSTANDING THIS ENTIRE INSTRUCTION MANUAL.
-
Page 9: Specifications
SPECIFICATIONS: SIZE: 9.00” wide, 1.75” deep, 2.75” high (23cm x 4.4cm x 6.8cm) WEIGHT: 1.0Lbs (450gm) TEMPERATURE RANGE: Use: -4F to +124F (-20C to +50C) AC INPUT: 100 – 240Vac, 47Hz -63Hz OUTPUTS: 8 x 3.5Amp OUTPUT VOLTAGE: 12.8Vdc Nominal OUTPUT CURRENT: On LiFE Battery, 15 Amps. -
Page 10: Declaration Of Conformity
LVD: This product is in compliance with the requirements of the Low Voltage Directive, 73/23/EEC. 93/68/EEC as defined in EN60065, 1993 and/or EN60950/A1/A2/A3: 1995 TRADE NAME: MODEL: PowerStar EuroLiFE Power Distribution Box RESPONSIBLE PARTY: Professional Sound Corp. 28085 Smyth Drive...
