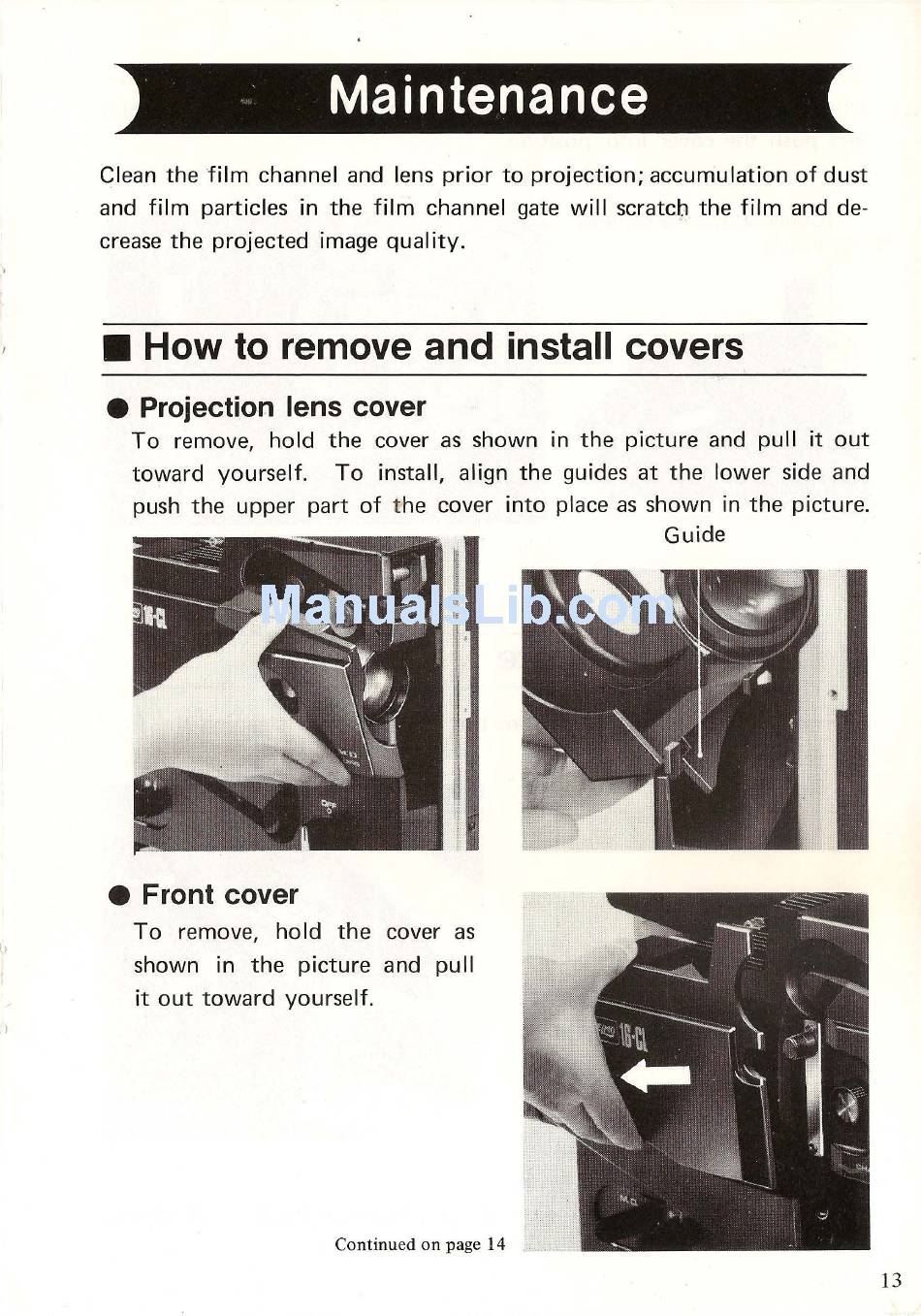

Maintenance
Clean the film channel and lens prior to projection; accumulation of dust
and film particles in the film channel gate will scratct"l the film and de-
crease the projected image quality .
• How to remove and install covers
• Projection lens cover
To remove, hold the cover as shown in the picture and pull it out
toward yourself. To install, align the guides at the lower side and
push the upper part of t he cover into place as shown in the picture.
• Front cover
To remove, hold the cover as
shown in the picture and pull
it out toward yourself.
Continued on page 14
Guide
13
