5.
5.

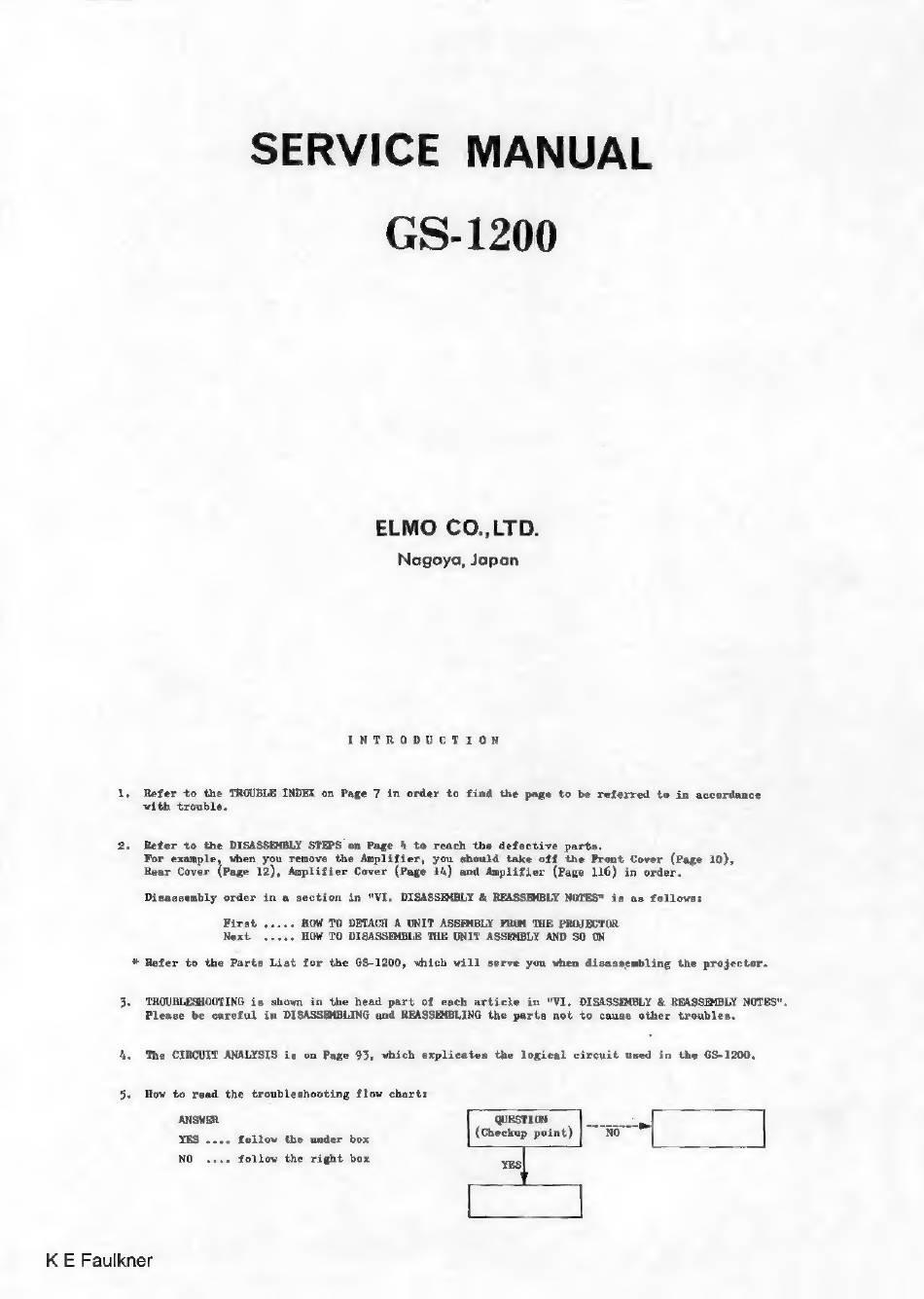

ELMO CO.,LTD.
Nagoya, Japan
INTRODUCTION
Refer to the TROUBLE INDEX on Page 7 in order to find the page to be referred te in accordance
with trouble.
Refer to the DISASSEMBLY STEPS on Page 4 to reach the defective parts.
For example, when you remove the Amplifier, you should take off the Front Cover (Page 10),
Rear Cover (Page 12), Amplifier Cover (Page 14) and Amplifier (Page 116) in order.
Disassembly order in a section in "VI. DISASSEMBLY & REASSEMBLY NOTES" is as follows:
First .
- HOW TO DETACH A UNIT ASSEMBLY FROM THE PROJECTOR
Next
+ HOW TO DISASSEMBLE THE UNIT ASSEMBLY AND SQ ON
Refer to the Parts List for the GS-1200, which will serve you when disassembling the projector.
TROUBLESHOOTING is shown in the head part of each article in "VI, DISASSEMBLY & REASSEMBLY NOTES".
Please
be careful
in DISASSEMBLING
and REASSEMBLING
the parts
not
to cause
other
troubles.
The CIRCUIT ANALYSIS is on Page 95, which explicates the logical circuit used in the GS-1200.
1
How to read the troubleshooting flow chart:
ANSWER
(QUESTION
YES .... follow the under box
(Checkup point)
NO .... follow the right box
YES|
K E Faulkner
