IMPORTANT INFORMATION REQUIRED BY THE FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)this device may not cause harmful interference; and (2) this device must accept
any interference received, including interference that may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation .
This equipment generates.uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio elevation
reception, which can be determined by turning the equipment off and on. The user is encouraged
to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
PDF created with FinePrint pdfFactory trial version
http://www.pdffactory.com
Instruction Manual
7" TFT
OPEN
MIC
MODE
MUTE
INT
RPT
APS
1
2
"
7

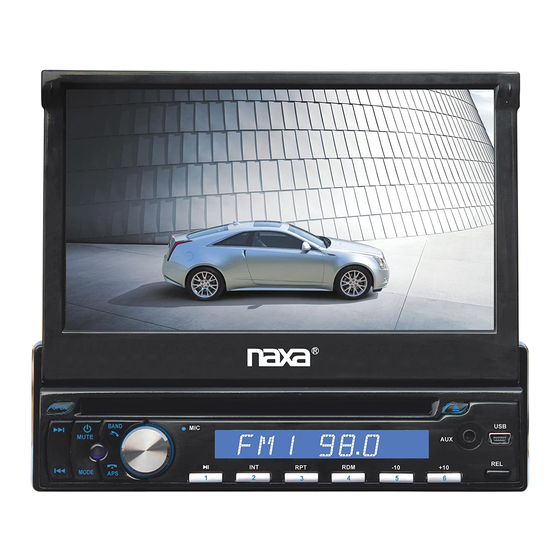

Touch Screen LCD Display Motorized Slide Down
Full Detachable PLL Electronic Tuning Stereo AM/FM Radio
Multimedia Player With Aux-in Jack And Bluetooth
Remark: Any information subject to change without further notice
NCD-702
NCD-702
U SB
AV IN
REL
RDM
-10
+10
6
3
4
5

Advertisement

Table of Contents
loading

Related Manuals for Naxa NCD-702

Summary of Contents for Naxa NCD-702

  • Page 1 NCD-702 Instruction Manual IMPORTANT INFORMATION REQUIRED BY THE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference; and (2) this device must accept NCD-702 any interference received, including interference that may cause undesirable operation.
  • Page 2 PRECAUTION WARNING: TO REDUCE THE CAUTION RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE RISK OF ELECTRIC SHOCK THIS APPLIANCE TO RAIN OR DO NOT OPEN MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Table Of Contents

    Contents 1. Before Operation...................3 1.1 Glossary....................3 1.2 Precautions....................3 1.3 Maintenance and Cleaning of Discs............4 1.4 Battery Information of the Remote Control..........4 1.5 The Remote Control Description...............5 1.6 The Locations and Names of Controls on or in the Unit........6 1.7 Wires Connection Description..............7 1.8 Unit Installation..................8 2.

  • Page 4: Before Operation

    1. Before Operation 1.1 Glossary PBC (playback control) It is a kind of signal(menu) recorded in the disc with SVCD or VCD2.0 format used for the playback control. For the discs contained PBC, It can playback interactive software with the menu displayed on monitor screen. If the disc contain still images, it can playback high definition of still image.

  • Page 5: Maintenance And Cleaning Of Discs

    1.3 Maintenance and Cleaning of Discs 7. Specification Disc Maintenance 1. To keep the disc clean, andle the disc by its edge, do not touch the disc surface of the play side. General Specification 2. Do not stick paper or tape on the disc. If there is glue (or analog) on the disc surface, must wipe it up before using.

  • Page 6: The Remote Control Description

    1.5 The Remote Control Description 6. The Trouble Shooting 1. TILT BUTTON Please read the user ’s manual carefully before usi ng the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble af ter using all the suggestions, please contact the company or the 2.

  • Page 7: The Locations And Names Of Controls On Or In The Unit

    1.6 The Locations and Names of Controls on or in the unit 4. In the connection status: the audio of mobile phone transfers to the car audio system whenever a dialling takes place or receiving a call. 5. Dialling when in connection status 5.1 Dial with the mobile phone directly.

  • Page 8: Wires Connection Description

    1.7 Wires Connection Description The Description of the Wires Connection 5. BLUE TOOTH HANDFREE SYSTEM Wiring Connecting Socket 1 Fixing Screw Bolt Enter Bluetooth mode When you use MODE button or Mode Menu to enter Bluetooth mode, it will display Bluetooth interface as right.

  • Page 9: Unit Installation

    The Region Code 1.8 UNIT INSTALLATION Q: Not begin to playback but to display REGION ERROR after inserting disc into disc compartment. Why ? INSTALLATION INSTRUCTIONS A: Because the DVD player and disc has respective region code. If the region codes of them are not match with each other, the DVD player can not play the disc.

  • Page 10: Common Operation

    2. Common Operation It is for adjusting the hue of the video output. SATURATION 1. To turn on/off the unit It is for adjusting the saturation of the video output. In power off mode, short press the POWER button to turn on the unit. SHARPNESS In power on mode, long press the POWER button on the front panel or short It is for adjusting the sharpness of the video output.

  • Page 11: Radio Operation

    4.24.2 LANGUAGE SETUP 10.To do general setup To do general setup, first pop up Mode Menu as in item 3 then tap the icon in the Mode M enu to pop up GENERAL SETUP interface as right. In the interface, select one of CLOCK SET, RDS MODE , OSD LANG, RADIO FREQ and SENSE SET on the left side by tapping them, then set them by tapping some icons on the right side accordingly.

  • Page 12: Disc, Usb And Mmc/Sd Card Operation

    finishing a circle of scanning , it will resume broadcasting on the M1.(It can store 3x6 For the DVD System Menu, there are 6 setup pages in all. They display as follows: stations for FM and 2x6 stations for AM in all) 2) When briefly pressing the APS button, the radio will scan each preset station for 5 seconds in FM or AM band from M1.
  • Page 13 To play files in a USB or Card, insert the USB or Card 3. During JPEG playback, press one of the >/</^/v buttons to change the angle of into the USB jack or Card Slot(firstly detach the front viewing picture that is displaying as follows: panel and remove it), then it will automatically play.

  • Page 14: Pause Playback

    4.20 Program Playback 4.2 Pause Playback It allows you to enter the order in which you want some chapters/tracks in DVD/VCD/MP3/WMA/CD to play. In the state of DVD/VCD/CD/MP3/WMA playing, press the PAUSE 1 During playback, press the PROG button to enter a program interface as button on IR remote control to pause the playback, press the PLAY follows: button to resume normal playback.

  • Page 15: Playback With Speed

    ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF. Press one of the ^/v/>/< buttons to select the area you want to enlarge. Press the direction buttons to select your desired title, and then press the OK or PLAY button to open the root menu of the selected title. 4.16 Change the Caption Language Press the direction buttons to select your desired chapter, finally press the OK or PLAY button to play the selected chapter.

  • Page 16: Display Still Frame Step By Step

    4.11 Playback in Scan Mode During slow forward, press the PLAY button to resume normal playback. The function is only for video. 1. In the state of VCD(PBC OFF)/CD playing, press the INT button to play the previous seconds part of each track on the disc. Press the INT button again to resume normal playback.
