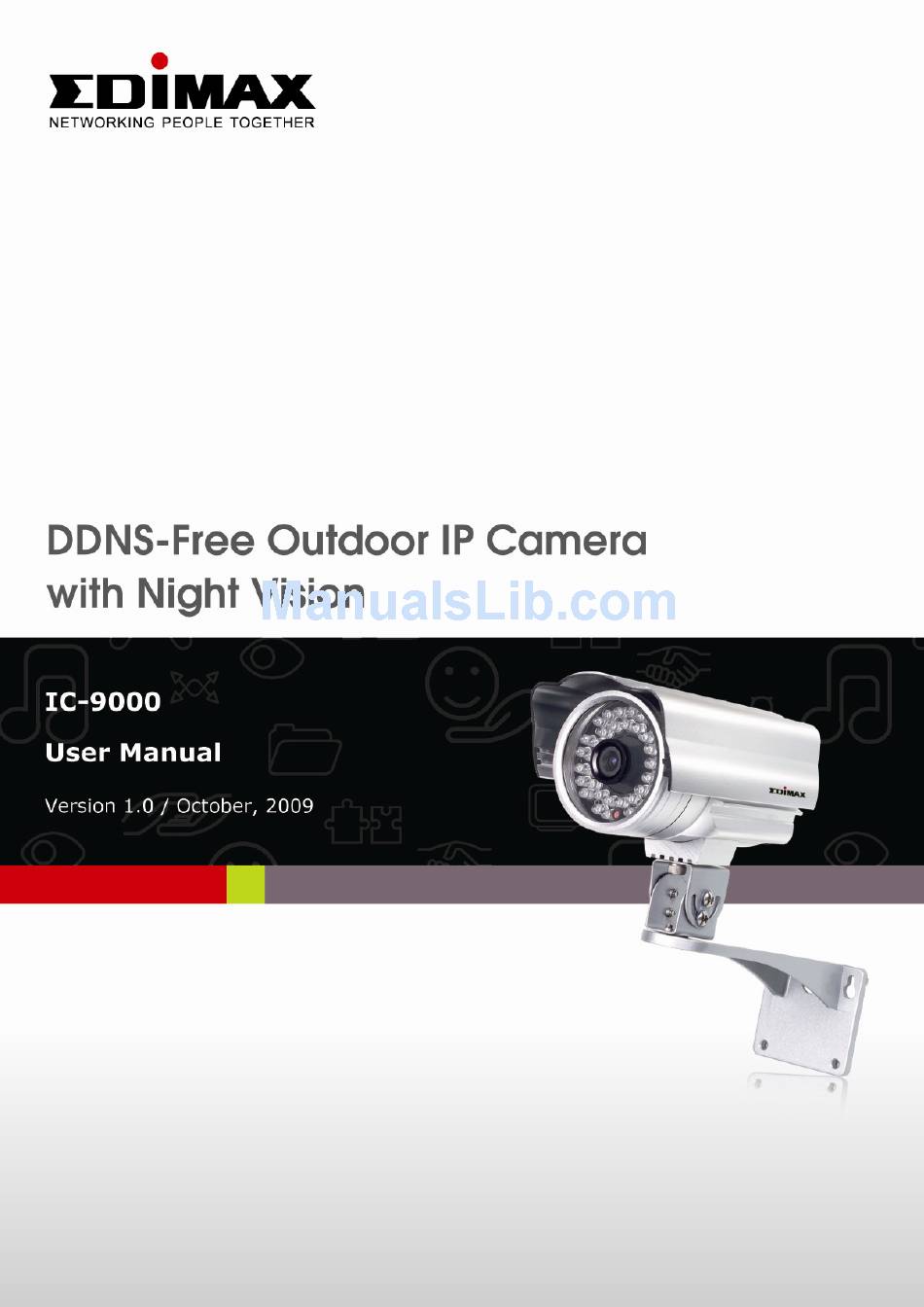

Edimax IC-9000 User Manual

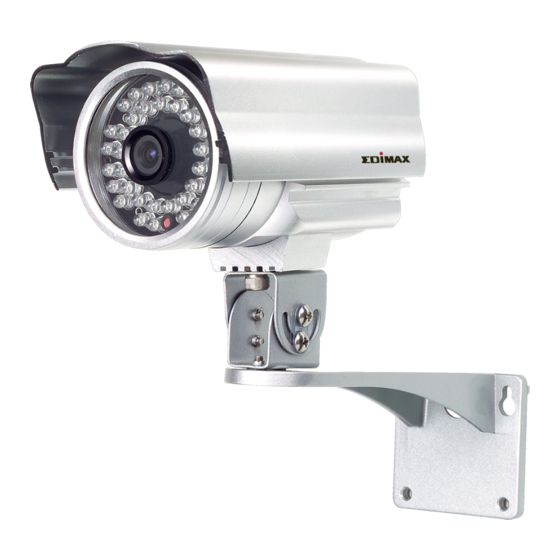

Ddns-free outdoor ip camera with night vision
Hide thumbs Also See for IC-9000:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax IC-9000

Summary of Contents for Edimax IC-9000

  • Page 2 ErP Announcement Product: Internet Camera (IP CAM) Purpose: 24 hours surveillance and transfer the picture for safety and health of intended use. Detail description: Health purpose: User can pass through the internet (from everywhere) to control the product (IP CAM). To watch and listen the people who needs to be cared in house and automatically send e-mail and phone to warn you and ask your attention.

  • Page 3: Table Of Contents

    Chapter I Product Introduction…………………………………………………………………….7 1-1 Package Contents……………………………………………………...……………………...7 1-2 System Requirements……………………………………………………...………………..8 1-3 Highlights of the DDNS-Free Outdoor IP Camera…………………………………..9 1-4 Familiar with the IC-9000……………………………………………………......10 1-5 Install the IC-9000…………………………………………………………………………….11 1-5-1 Hardware Installation………………………………………………………………………11 1-5-2 Software Installation……………………………………………………….......12 Chapter II Start Using the DDNS-Free Outdoor IP Camera………………………………….13 2-1 Use CamView Software to See the Video………………………………………………….14...
  • Page 4 4-3-3 Rename……………………………………………………………………………………..47 4-3-4 Delete………………………………………………………………………………………..48 4-3-5 Refresh Status……………………………………………………………………………...48 4-3-6 Camera Adjustment………………………………………………………………………..49 4-3-7 Play on Selected Window…………………………………………………………………50 4-3-8 ID / Password Settings…………………………………………………….......50 4-3-9 Video Settings………………………………………………………………………………51 4-3-9-1 Quality Function Tab…………………………………………………….......52 4-3-9-2 Video Function Tab………………………………………………………………………52 4-3-9-3 Control Function Tab…………………………………………………….......54 4-3-9-4 Camera Info Tab…………………………………………………………………………54 4-3-10 3GPP Setting……………………………………………………………………………...55 4-3-11 Firmware Upgrade………………………………………………………………………..56 4-3-12 Delete Camera……………………………………………………………………………56 4-4 Displayed Video Control……………………………………………………………………..57...
  • Page 5 6-3-2 General Settings……………………………………………………………………………92 6-3-2-1 ‘General’ tab……………………………………………………………………………...92 6-3-2-2 ‘E-Mail Setting’ tab……………………………………………………………………….94 6-3-2-3 Security…………………………………………………………………………………...96 6-3-2-4 About…………………………………………………………………………………….98 6-4 Change Display Layout…………………………………………………….......99 6-5 Full-screen Modes………………………………………………………………………….102 6-6 Scan………………………………………………………………………….......103 6-7 Zoom-in / Zoom-out…………………………………………………………………………104 6-8 PTZ…………………………………………………………………………………………...105 6-9 Snapshot……………………………………………………………………………………..106 6-10 Recording…………………………………………………………………………………106 6-11 Video Playback…………………………………………………………….......107 Appendix A. Features…………………………………………………………………………...108 Appendix B. Specifications…………………………………………………………………….109 Appendix C.
  • Page 6 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 7: Chapter I Product Introduction

    Chapter I Product Introduction 1-1 Package Contents Thank you for purchasing this DDNS-Free Outdoor IP Camera! Before you start to use this product, please check every item in the package. If any of them is missing, please ask your dealer of purchase for a new package. Packaging List Item Name...

  • Page 8: System Requirements

    1-2 System Requirements CPU: Pentium 4 (or equivalent AMD) 1.0 GHz or above, 1 GB RAM OS: Windows XP/Vista/Win 7 Browser: IE 7 or above...

  • Page 9: Highlights Of The Ddns-Free Outdoor Ip Camera

    1-3 Highlights of the DDNS-Free Outdoor IP Camera Thanks again for choosing this DDNS-Free Outdoor IP Camera. The IC-9000 is designed with the User-friendly concept. You can install the IP Camera easily on your home network and then access the IP Camera anywhere in the world with the video management utility.

  • Page 10: Familiar With The Ic-9000

    1-4 Familiar with the IC-9000 The IC-9000 is designed to be very easy to install and use. First, let’s see the major components of the IP CAM products. Item Name Description Indicates if the Ethernet link is ok and packet traffic is Ethernet sending/receiving.

  • Page 11: Install The Ic-9000

    1-5 Install the IC-9000 There are only three things that you need to do to see the video from the IC-9000: 1. Connect the IP CAM to the home/office network. 2. Install the CamView software on the notebook/PC. 3. Key in the ID/password of the IP CAM(from the ID/Password card) on the CamView, and then you can see the video.

  • Page 12: Software Installation

    1-5-2 Software Installation 1. Before installing CamView software on your PC or laptop, please make sure you have correctly installed the IC-9000. It’s highly recommended to close other Windows applications to prevent the installation from any possbile confliction. 2. Please insert the installation CD into the CD-ROM drive in your notebook or personal computer (must be running Microsoft Windows OS).

  • Page 13: Chapter Ii Start Using The Ddns-Free Outdoor Ip Camera

    IC-9000 is connected to the same network, the ID of the IC-9000 will be displayed in the “Auto Search” list. If you have more than 1 piece of the IC-9000, you can double click the “Auto Search” to search all the connected the IC-9000s any time. The only thing left right now for seeing the video is to double click the IP CAM ID item in the “Auto Search”...

  • Page 14: Use Camview Software To See The Video

    2-2 Seeing the Video in a Remote Location After the IC-9000 is installed and you can see the video from the CamView software in the local network, it’s very easy to see the video in a remote location. All you need to do is add a camera item in the “CameraList”...

  • Page 15: Chapter Iii Start Using Web Configuration Page

    Chapter III Start Using Web Configuration Page You can login into the web configuration page by directly key-in the IP address of the IP CAM or right-click the searched IP CAM in the “Auto Search”15list of the CamView software and click the “Web Configure” to open the login window of the IP CAM. The default login account is “admin”, leave the Password field empty.

  • Page 16: Information

    3-1 Information The first page of the web configuration of the IP CAM is the information page. You can see the model name/firmware version, IP CAM ID, registration status, network type and current video settings (bandwidth & resolution) in this page. The IP CAM can be viewed remotely by the CamView software only when the IP CAM is registered.

  • Page 17: Video Display

    3-2 Video Display This display page allows you to view the video display of the IP camera. For the first time use of this display on a computer, an activeX component will be automatically downloaded into the browser. This could take some time, depends on the internet speed. The component is downloaded from a public domain, so that the computer must be connected to the Internet.

  • Page 18: Network

    3-3 Network The Network page allows you to modify the network settings of the wired Ethernet. The default settings use DHCP to obtain an IP address automatically. In most of the home and office network environment, there is a DHCP server running. In this situation, by using this default settings, the IP CAM can work immediately in most of the time.

  • Page 20: Advanced Network

    3-4 Advanced Network In some special situation, your network environment only provides PPPoE connection (ADSL service), there is no NAT/router available. You will then need to set the PPPoE settings in the “Advanced Network”20page. Only the PPPoE username and password are needed to let PPPoE work.

  • Page 21: Video Settings

    3-5 Video Settings The IP CAM is designed to provide high quality video for viewing from CamView software. In this page, you can modify some settings related to the video viewing: 1. Password (play video) - This is the password needed for viewing the video from the CamView software.
  • Page 22 clearance. The default value of this setting is “high”. 10. Video color - Choose between “colored” and “black&white”. 11. Outdoor/Indoor video - For better video display quality, modify this setting when taking indoor or outdoor video. The default setting is “Outdoor video”, in most cases, this is also ok for indoor usage.

  • Page 23: 3Gpp/Rtsp Settings

    3-6 3GPP/RTSP Settings The IP CAM is able to be viewed from a 3G mobile phone, for detailed settings on the 3G mobile phone, please refer to Appendix F. Users can disable the 3G mobile access ability in this page. After the 3GPP/RTSP feature is disabled, no 3G mobile phone is allowed to access the video of the IP camera.

  • Page 24: Night Mode Control

    3-7 Night Mode Control The IP Cam is able to work both in day time and night time. There are some IR LEDs that can let the IP camera see the objects in the night time. Users can adjust the numbers of the IR LEDs according to the view sight distance during night mode to get the best night mode vision.

  • Page 25: Email/Ftp Alarm

    3-8 Email/FTP Alarm The IP CAM provides the Email/ftp function, you can enable or schedule the Email/ftp ability in this page, the IP CAM will then send out an email with a jpeg picture attached in the email and/or send out the jpeg picture file to a ftp server. The related settings are explained below: 1.
  • Page 26 email message. The SMTP server and username/password account are only for transfer the email message to the “Email recipient”, the “Email recipient” could be on another email server or any reachable email address. The username and password fields could be left empty if no authentication is needed for the SMTP server. 7.

  • Page 27: Di/Do Settings

    3-9 DI/DO Settings The IP camera provides DI alarm detection function. The related settings are explained below: 1. Digital input – can select the normal status of the digital input as either open circuit or closed circuit. The current status is also displayed. An active status could trigger the email/ftp or the NAS/SD card recording by setting the scheduling.

  • Page 28: Nas Settings

    Notice: when the IP camera is doing NAS recording, this is counted as one video user. Please refer to appendix B about allowed maximum video users. Notice: *For the NAS compatible list, please check www.edimax.com 1. If the “Always Recording” is selected, the system will start to record to the NAS storage device immediately and keep recording always.
  • Page 29 In the Microsoft Windows environment, you can access to the NAS device by keying the URL address \\”NAS name”\”shared folder name” or \\”NAS IP address”\”shared folder name” in the windows Internet Explorer, and then key in the “NAS access account” and “NAS access password”...

  • Page 30: Scheduling

    3-11 Scheduling The IP Camera provides the scheduling function for the motion detection triggered email/ftp sending and/or the NAS recording with the individual parameters set in the . “Email/ftp alarm” settings and the “NAS settings” page. Totally 12 schedule list items are allowed. There is no conflict check for the scheduling, it means that the scheduling time could be overlapped, and the IP camera will do all the scheduled events during the overlapped time period.

  • Page 32: Date/Time

    3-12 Date/Time The IP CAM can synchronize the date/time with the universally available time server (for example stdtime.gov.tw) through NTP protocol. The date/time will then be corrected with the time server anytime when the Internet is connected. Users can choose the different TimeZone of their areas to display the correct time. For some TimeZone areas, the “Daylight Saving Time”...

  • Page 33: Admin

    3-13 Admin In this page, you can modify the web login account. With this account, you can login to the IP CAM and do any modifications. The default account is “admin” without password. If the login account is forgotten, you can reset the IP CAM to the factory default settings by following the steps in section 3-17 and login with the “admin”...

  • Page 34: Upgrade

    3-14 Upgrade If there is some new firmware available for this IP CAM, you can upgrade the firmware via this page. A status message about the percentage done in the upgrade procedure is displayed. Please be noticed that during the upgrade procedure, do not power off the IP CAM, otherwise, the IP CAM could probably enter into the safe mode (section 3-16).

  • Page 36: Reboot

    3-15 Reboot You can restart the IP CAM manually on this page. All the connected video viewing users will be disconnected.

  • Page 37: Safe Mode

    3-16 Safe Mode If by some abnormal operation, for example, powered off during the critical point of the upgrade procedure, the IP CAM will enter into the safe mode. In this mode, you will see the following “Safe mode” page when login into this IP CAM. Please do the upgrade operation immediately to recover the system.

  • Page 38: Set To Factory Default

    3-17 Set to Factory Default For some reason, for example you forgot the web login password, you may want to set the IP CAM to the factory default settings. The only thing you need to do is pressing the “reset” button on the cable for more than 4 seconds and release it, do this when the IP CAM is powered on.

  • Page 39: Chapter Iv Start Using Camview

    Chapter IV Start Using CamView 4-1 Install CamView Program Please close other windows applications before proceeding. Insert the installation CD into your CD-ROM drive and find the CamViewInstaller.exe. Double click it to start the installation process and you will see the “Welcome”...
  • Page 40 Click to proceed to proceed Make a selection and click lick to proceed. Click to proceed. to proceed.
  • Page 41 Click to exit. CamView installation now is completed.

  • Page 42: Startup And The Layout Of Camview

    4-2 Startup and the Layout of CamView 4-2-1 Startup CamView You can startup CamView from either Start Programs CamView or the shortcut of CamView on the windows desktop. 4-2-2 Layout of CamView Disk space information for recording Video Information Camera List Close Camview Time Information Software Version...

  • Page 43: Display Mode

    4-2-3 Display Mode CamView supports 10 display modes. By pressing each mode, you can have a different live view display.

  • Page 44: Managing Camview Camera Ip Cameras

    4-3 Managing CamView Camera IP cameras Right click the “Camera List” .You can add a new IP cam, create a new folder, rename the IP cam or the folder, and delete any IP cams or any folder. Right Click “Camera List”, and choose New Camera...

  • Page 45: New Camera

    4-3-1 New Camera Users can add a new camera to the list by entering IP cam ID and password. Users can also name the IP cam. Enter Name & ID &Password and Click The Camera named “Test” will show under “Camera List”...

  • Page 46: New Folder

    4-3-2 New Folder Users can group IP cams by creating a new folder. Right click on the “Camera List”. Click “New Folder” Name the new folder...

  • Page 47: Rename

    4-3-3 Rename You can rename the folder. New folder shows up after you create it Rename folder...

  • Page 48: Delete

    4-3-4 Delete You can delete the folder. Delete Folder 4-3-5 Refresh Status You can click Refresh Status to update the latest connection status of cameras...

  • Page 49: Camera Adjustment

    4-3-6 Camera Adjustment By right clicking on a green light status IP cam, you can access the video display, do ID and password settings, adjust video settings, upgrade firmware, and delete from the list. Function List Right click Green status Camera Note: Camera status must be green in order to access function list.

  • Page 50: Play On Selected Window

    4-3-7 Play on Selected Window Click it Video shows up here 4-3-8 ID / Password Settings Edit Camera Name, ID, and Password. Click OK to activate new setting.

  • Page 51: Video Settings

    4-3-9 Video Settings Click Update for the changes to take effect. All the settings are categorized according to its function.

  • Page 52: Quality Function Tab

    4-3-9-1 Quality Function Tab Bandwidth Available selections are from 64K to 1.5M. Appropriate bandwidth setting must match the camera physical site internet uploading bandwidth. Higher bandwidth contributes better picture quality. Video Setting If you check the box of select the best resolution and frame rate automatically, the camera will automatically adjust the most suitable video setting in Resolution and Frame Rate Resolution: higher resolution you set, bigger image you get.
  • Page 53 Disable or enable the microphone. When you enable the Mic., the user who monitors the image can hear the sounds. Video Flip This function is only available for the Pan Tilt type of camera to flip the image.

  • Page 54: Control Function Tab

    4-3-9-3 Control Function Tab Check the box to allow user remotely controls the motors for Pan and Tilt. (Only available for the Pan/Tilt type of camera) Status of LED Control User can control the behavior of the status LED. Motion Detection Sensitivity The level of how sensitive the camera is in terms of the motion detection.

  • Page 55: 3Gpp Setting

    4-3-10 3GPP Setting To allow 3GPP connections from mobile phones, user has to enable it. Bandwidth The bandwidth setting for 3GPP connection from 32k to 256K. Video Setting Check the box to make the camera determine the best combination of the resolution and frame rate according to the given bandwidth.

  • Page 56: Firmware Upgrade

    4-3-11 Firmware Upgrade The firmware upgrade function is designed for trouble shooting and technical assistance remotely. For firmware upgrade locally, please refer to 3-14 4-3-12 Delete Camera...

  • Page 57: Displayed Video Control

    4-4 Displayed Video Control Use mouse to select displayed window. Right click to see various functions Double click information bar to make it Snapshot button full window display Press it to snapshot Record Status Light Black: Non recording Red: Continuous recording Green: MD recording Double click displayed video to make it full screen display...
  • Page 58 Recording status turns into green Properties: Show current IP cam’s frame rate, consuming bandwidth, and camera physical site time. Snapshot & Continuous Recording Click to do continuous recording. Status light becomes red. Click to take snapshot.
  • Page 59 Swap Function: This function is available only in 6, 13, 21 window display modes. Press swap button to move the minor window video to/from main window. Press Swap button to move minor window display video to or from main window display video.
  • Page 60 Auto Search List: List all the found Cam IDs within this LAN. Web configure: Click to open I.E. browser for further configuring this IP Cam. Move your mouse over Cam ID 001006123 to see its IP address. IP Cam Online Status Indication: There is an IP Cam icon in front of the Camera Name which indicates the online status of that IP Camera.
  • Page 61 Panel will be activated as below: Pan Scan: make the Pan Tilt Dome move left and right Tilt Scan: make the Pan Tilt dome up and down Speed: the speed of Pan Tilt Dome has 3 level of speed (3 is the fastest, 1 is the slowest) : Move Up : Move Down : Move Right...
  • Page 62 Preset: This function will be activated after any PTZ Dome connect with video server Zoom in & out: This function will be activated after any analog PTZ Dome Camera connect to IP video server...

  • Page 63: Camview Software Functions

    4-5 Camview Software Functions CamView Function Bar. 4-5-1 Setting Click Setting and get into the Setting Function menu Directories Settings: to set the directory path for the Recording and Snapshot Where to save the recording files. Click to open the recording folder.
  • Page 64 Startup Options: Determine the camera state at startup Automatically start CamView when Windows starts: When Microsoft Windows starts, CamView will start running automatically. Restore the last time playing/running state: Restore the state of each video window to what it was before CamView closed. Click to save the setting...

  • Page 65: Camplay

    4-5-2 CamPlay Click CamPlay to start it for playback. 4-5-3 Scheduling Click Scheduling to configure scheduled recording/playing. Schedule the time for each channel to be used and recorded by certain camera Camera: The information of the camera to be connected. You can either double click on one of the listed cameras or drag the camera off the Camera field to import the settings.

  • Page 66: Continuous Recording

    Continuous Recording: Window number. Enable/disable the scheduling for current window number. The schedule mode The start/end time (for play only/continuous recording mode) Enter the information of the camera to be connected.
  • Page 67 Periodic Recording: The schedule mode (Periodic recording) The period of time for this schedule to be valid Arrange the days of week for camera to record Determine the priority between “current camera” and “scheduled camera” Recording/Playing Conflict When the schedule time is reached, the program needs to determine either to run the scheduled camera or keep the currently used camera for this window.

  • Page 68: Language

    4-5-4 Language Click Language button to change the language settings. Right now, CamView supports 19 languages shown as following picture: 4-5-5 All Functions Any of following functions applies to all the channels in current layout only Record all: start/enable recording. Snapshot all: Take snapshot.

  • Page 69: Uninstall Camview

    4-6 Uninstall CamView There are two ways to invoke the CamView uninstaller. 1. Uninstall from the start menu Start CamView Uninstall CamView 2. Uninstall from the control panel Start Settings Control Panel Add or Remove Programs Select CamView program and click “Change/Remove”...

  • Page 70: Chapter V Start Using Camplay

    Chapter V Start Using CamPlay There are two ways to start CamPlay for playback the recorded files or view the snapshot files. One way is clicking the CamPlay button on the tool bar of CamView. Click the CamPlay button. Another is double click on the Camplay shortcut on your Windows desktop.

  • Page 71: Camplay File Tree

    5-1 CamPlay File Tree Recorded videos and snapshots are separated as shown: Name / ID of cameras Date: yyyy/MM/dd Time: hh/mm/ss The folder structure is: Camera (Name-ID) -- Date -- File (time)

  • Page 72: Camplay Functions

    5-2 CamPlay Functions Refresh file tree Directory Language Refresh File Tree: Click it to refresh the file trees especially after CamView is done with recording or snapshot. Directory: Click to get into the directory settins dialog for recording and snapshot. Click to change the settings.

  • Page 73: Language

    5-3 Language Right now, CamPlay supports 18 languages as following: English, Chinese, Japanese, French, Germany, Italian, Spanish, Hungarian, Turkish, Czech, Hebrew, Indian, and Finnish. 5-4 Headline Explanation HDD available space CamPlay Version Minimize CamPlay Exit CamPlay...

  • Page 74: Convert To "Avi

    5-5 Convert to “AVI” Transcoding to avi format is supported. Simply right click on the file you want to transcode and select “Covnert to .avi”. Wait for a while and the transcoded file will be saved in the same folder with the original file. Select “Open folder” to browse all the files recorded in the same day from the same camera.

  • Page 75: Playback Function Bar

    5-6 Playback Function Bar To playback the recorded file, you can either double click on it or drag it to the video window directly. To view the snapshot file, simply double click on it and the snapshot will be opened by the default viewer of your computer.

  • Page 76: Chapter Vi Start Surveillance Software

    Chapter VI Start Surveillance Software If you have IC-9000 as well as other Edimax IP cameras, you are suggested to install surveillance software for viewing all IP cameras you own. 6-1 Installing IP Camera Surveillance Software The IP camera surveillance software provides various functions like video recording, after this software is installed, you can use your IP camera to safeguard your property.
  • Page 78 3. If you need installation program to create a desktop icon or a quick launch icon for you, click all items you need here, then click ‘Next’ to continue. 4. Here lists all options you chose in previous steps, if everything’s correct, click ‘Install’ to start installing procedure, or click ‘Back’...
  • Page 79 5. The installing procedure will take some time, please be patient. 6. When you see this window, it means the software installing procedure is complete. Please click ‘Finish’ to finish the procedure (IP camera surveillance software will start after you click ‘Finish’ button, if you want to start it later, uncheck ‘Launch IPCam Surveillance Software’...

  • Page 80: Using Ip Camera Surveillance Software

    6-2 Using IP camera Surveillance Software You can click ‘IPCam Surveillance Software’ icon from desktop, quick launch bar, or start menu to start the IP camera surveillance software. Before you start: IP camera surveillance software will only work when your monitor’s resolution is ‘1024 x 768’.
  • Page 81 You can put the mouse cursor on a certain component and see its button name, and here’re You can put the mouse cursor on a certain component and see its button name, and here’re You can put the mouse cursor on a certain component and see its button name, and here’re detailed descriptions of all buttons: detailed descriptions of all buttons: Item...
  • Page 82 Close window Terminates IP camera surveillance software. (stop surveillance) Minimize window Minimizes IP camera surveillance software window. Video displaying Displays the image of all cameras by the display layout you area selected.

  • Page 83: Configure Ip Camera Surveillance Software

    6-3 Configure IP camera Surveillance urveillance Software 6-3-1 Configure Cameras Before you use this IP camera surveillance software, you must configure the camera(s) you Before you use this IP camera surveillance software, you must configure the camera(s) you Before you use this IP camera surveillance software, you must configure the camera(s) you wish to connect.

  • Page 84: Camera' Tab

    6-3-1-1 ‘Camera’ tab In this tab you can configure all cameras you wish to connect. Up to 16 cameras can be connected simultaneously: Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. Camera All cameras found on your local network will be displayed in ‘Camera Search...
  • Page 85 Input the IP address of camera. Username* Input the user name of camera. Web Port* Input the web port of the camera. By default it’s ‘80’. Input the password of camera. Default value is ‘1234’. You should Password change the password if you changed the password of selected camera.

  • Page 86: Schedule Recording

    6-3-1-2 Schedule Recording In this tab, you can setup scheduled video recording, so you can record the video captured by all cameras you have by a pre-defined schedule.
  • Page 87 Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. One Time You can specify the one-time schedule for selected camera; Schedules this schedule will be executed once only. Click this button and a new window will appear: (One Time Schedules) Please specify the time duration of this one-time schedule (the...
  • Page 88 You can modify a scheduled recording item. Select a schedule Edit in ‘One Time Schedules’ list, and click ‘Edit’ button to edit the start and end time of this schedule. Delete Delete a selected schedule item. Save settings in this tab. Cancel Discard all settings in this tab.

  • Page 89: Audio

    6-3-1-3 Audio For cameras that support audio, you can use this tab to decide if you wish to hear the audio captured by selected camera. Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. Check this box and the IP camera surveillance software will not Mute Audio play the audio captured by this camera.

  • Page 90: Motion Record

    6-3-1-4 Motion Record With this function activated, only motions captured by the camera will be recorded, so you don’t have to waste hard disk storage space on images you don’t need to pay attention to. WARNING: For applications that security is highly concerned, it’s not recommended to use this function since some tiny changes you may need to know may not be able to trigger the camera and the camera will not start recording.
  • Page 91 Save settings in this tab. Cancel Discard all settings in this tab.

  • Page 92: General Settings

    6-3-2 General Settings You can set system-wide settings of this IP camera surveillance software in this menu. 6-3-2-1 ‘General’ tab All general settings like file storage directory and recording spaces can be set here. Here are the descriptions of all setting items: Item Description Set the directory (folder) you wish to store the recorded video and...
  • Page 93 Save settings in this tab. Cancel Discard all settings in this tab.

  • Page 94: E-Mail Setting' Tab

    6-3-2-2 ‘E-Mail Setting’ tab If you want to use motion detection function and wish to get an email that contains the image captured by the camera, please setup your email related parameters here first. Here are the descriptions of all setting items: Item Description E-Mail Subject Specify the subject of sending email.
  • Page 95 Sender E-Mail Specify the email address of email sender. Address Specify the IP address or host name of the SMTP server you wish to use. For most of ISPs they will only allow its subscriber to use their SMTP Server SMTP server, if you don’t know which SMTP server you should use, please refer to the setting of your email software or ask your ISP / network administrator.

  • Page 96: Security

    6-3-2-3 Security If you don’t want other people to access this IP camera surveillance software, you can set a password to protect it. You’ll need to input the password every time you wish to use this IP camera surveillance software: To set password, please use ‘Security’...
  • Page 97 Password authentication is not required when this software Disable starts. Password Input the password you wish to use here. Confirm Password Input the password you wish to use here again.

  • Page 98: About

    6-3-2-4 About This tab shows the version number of the IP camera surveillance software you’re using.

  • Page 99: Change Display Layout

    6-4 Change Display Layout This IP camera surveillance software provides 8 kinds of display layout: Every layout displays different number of camera and camera arrangement, you can click the icon that presents a specific kind of layout, and the video displaying area will change accordingly.
  • Page 100 Displays the video of up to 6 cameras. Layout style 3: 6 Cameras Displays the video of up to 8 cameras. Layout style 4: 8 Cameras Displays the video of up to 9 cameras. Layout style 5: 9 Cameras Displays the video of up to 10 cameras. Layout style 6: 10 Cameras Displays the video of up to 13 cameras.
  • Page 101 Displays the video of up to 16 cameras. Layout style 8: 16 Cameras...

  • Page 102: Full-Screen Modes

    6-5 Full-screen Modes If you want to use all available spaces on your monitor to display surveillance image, you can click ‘Full Screen’ button to switch display mode to full-screen mode. To exit full-screen mode, press ‘ESC’ key.

  • Page 103: Scan

    6-6 Scan If you have more than one camera configured, and you wish to switch the displaying image If you have more than one camera configured, and you wish to switch the displaying image If you have more than one camera configured, and you wish to switch the displaying image between cameras, you can click ‘Scan’...

  • Page 104: Zoom-In / Zoom-Out

    6-7 Zoom-in / Zoom-out For cameras that support zoom-in / zoom-out function, you can use this function to see more objects that fall in the scope of camera’s view, or enlarge the image size of a certain object to see its detail. Please select a camera in video displaying area by clicking on its image, then click button to see more objects that fall in the scope of camera’s view, or click to enlarge...

  • Page 105: Ptz

    6-8 PTZ For cameras that support pan - tilt function, you can change the position that camera points to, to see different places that fall in the scope of camera’s view. Please select a camera in video displaying area by clicking on its image, and then click the directions you wish the camera to move to (total 8 directions available).

  • Page 106: Snapshot

    6-9 Snapshot You can take a snapshot of selected camera and save it to ‘Snapshot’ sub-folder of pre-defined data directory. Click snapshot button once to take a snapshot; you can take as much snapshot as you want before hard disk is full. 6-10 Recording You can start video recording of selected camera manually by clicking ‘Start Recording’...

  • Page 107: Video Playback

    6-11 Video Playback You can playback all recorded video by clicking this button. A new window will appear: You have to search the video file before you can play it. There are two kinds of video search: Time Search (search all videos file that falls in a specific period of time) and Motion Search (search all videos recorded by motion detection function and falls in a specific period of time).

  • Page 108: Appendix A. Features

    Appendix A. Features Easily access the camera from anywhere in the world via the ID/password No complicated NAT/router settings needed. Free video management software - CamView program accompanied for easy access and multi-camera management. 3GPP/ISMA support. Dual video streaming with separate frame rate/resolution/bandwidth settings for PC and mobile.

  • Page 109: Appendix B. Specifications

    Appendix B. Specifications Models DDNS-Fee Outdoor IP Camera with Night Vision Power DC 12V, 1A Processors RISC CPU, hardware video processing and compression. Network interface Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45 Image sensor RGB VGA 1/4 inch CMOS Automatic exposure control, automatic white balance, automatic gain control, automatic brightness control.
  • Page 110 Video management software-CamView for video access and maintenance multi-camera management Firmware upgrades via FTP Minimum Web Built-in web server for standard web browser access browsing and Pentium 4 CPU 1.0 GHz or higher, or equivalent AMD management 1GB RAM software requirements Supported protocols IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, IGMP, RTCP,...

  • Page 111: Appendix C. Maximum Allowed Video Users

    Appendix C. Maximum Allowed Video Users The maximum allowed video users for a single IP Cam at the same time is dependent on the video settings including “Internet speed” and resolution. The followings are the summary of the maximum allowed video users: Notice: When the IP camera is doing NAS recording, this is counted as one video user.

  • Page 112: Appendix D. Performance Information

    Appendix D. Performance Information Video Performance Information The video quality is dependent on the video parameter settings and the network quality. If you want to have a better video quality, you will usually set higher resolution and higher frame rate. This is fine when you are viewing the video locally in the same network.
  • Page 113 Appendix E. Trouble shooting 1. Could I adjust the effective focus of the IP Cam? A: The effective focus of the IP Cam is from 30cm to infinity, so, in almost all circumstances you can see the video clearly. There is no need to adjust the effective focus.
  • Page 114 this will take about one minute after the IP camera is connected to the computer and you need to make sure that the WiFi interface on your PC/notebook computer is disabled. After about one minute, you can run the CamView software to access the IP camera, the CAM ID should be displayed on the “auto-search”...

  • Page 115: Appendix F. 3Gpp/Isma Operation

    Appendix F. 3GPP/ISMA operation 3GPP/ISMA is using RTSP protocol for 3G mobile phone to display the video stream from some network devices, including IP camera. The IC-9000 supports the RTSP protocol and video codec needed by 3GPP/ISMA. Users only need to access the address rtsp://ip_cam_address/CAM_ID.password on the 3G mobile phone to access the video of the IP camera.
  • Page 116 Warning: This device complies with part 15 of FCC Rules. Operation is Subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Compliance Statement: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 117 CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interface, in which case the user may be required to make adequate measures. A CE declaration of conformity is available on www.edimax.com...
