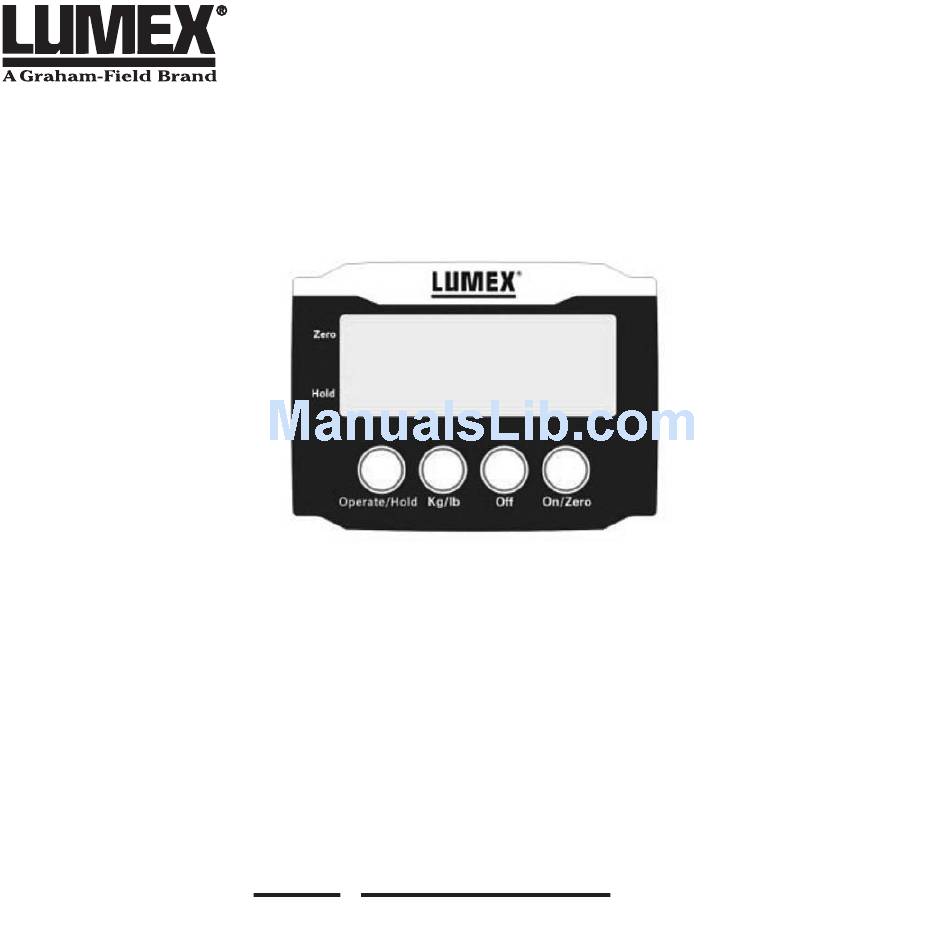

Page 1: User Manual
DSC250 SCALE for LF1050 and LF1090 Lifts USER MANUAL Read these instructions before using the Lumex Lift Scale. Save these instructions for future reference. The most current version of these instructions can be found online at www.grahamfield.com. DSC250-INS-LAB-RevB13... -
Page 2: Table Of Contents
GF Health Products, Inc. is not responsible for typographical errors. For the most updated and current information on packaging, warranties, products and specifications, including the most current version of these instructions, please visit our website at www.grahamfield.com. Graham-Field and Lumex are registered trademarks of GF Health Products, Inc. -
Page 3: Introduction
Safety WARNING: Important! Read and understand these instructions before assembling or using the Lumex Lift Scale. If you do not understand any part of these warnings or instructions, contact a healthcare professional for direction in the use of this product. If the Lift Scale is not properly assembled, personal injury and damage to the Lift Scale could result. - Page 4 WARNING: This product has a maximum weight capacity of 600 lb (300 kg). If patient weight exceeds maximum weight capacity, the scale will designate overload by displaying “-oL-”. DO not exceed the maximum weight capacity of the lift being used for measurement. WARNING: California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and...
-
Page 5: Assembly.instructions
ASSEMBLY INSTRUCTIONS Components Ensure all components shown below are included in the package. Item Picture Description Scale Bushing 1220 Bushing 1020 Universal bracket Key ring... - Page 6 1. Follow these instructions to attach the scale to the LF1050 or LF1090 Lift using the included mounting hardware. Do not use any other mounting hardware than that provided. 2. Keep the scale in a cool, dry place. If operation temperature is over 104°F (40°C), the tolerance will not be accurate within 0.2 lb (0.1 kg).
-
Page 7: Installation.on.lumex.lf1050.Patient.lift
Installation on Lumex LF1050 Patient Lift Install on Lumex LF1050 Patient Lift as shown above. Item numbers shown are those listed in the table shown on page 5. WARNING: Ensure scale is securely mounted as shown above before proceeding. -
Page 8: Installation.on.lumex.lf1090.Patient.lift
Installation on Lumex LF1090 Patient Lift Install on Lumex LF1090 Patient Lift as shown above. Item numbers shown are those listed in the table shown on page 5. WARNING: Ensure scale is securely mounted as shown above before proceeding. -
Page 9: Operation.instructions
OPERATION INSTRUCTIONS Keyboard Illustration Display Illustration Instructions for Use 1. Place sling to be used onto spreader bar without patient/resident/user. 2. Press the On/Zero button on the scale faceplate to zero-out the weight of the sling (this weight will remain zeroed out until the Off button is pressed). 3. - Page 10 4. Carefully lift the patient/resident/user in the sling and perform the lift so that all of the weight is supported by the lift. Stabilize the movement of the sling after lifting. 5. Weight will display on the scale. Press the Operate/Hold button to hold the weight displayed.
-
Page 11: Maintenance
MAINTENANCE Cleaning As needed, wipe scale gently, using mild soap or a mild disinfectant. s NOTICE: DO NOT wash under water pressure or steam clean. DO NOT use solvents, abrasive cleaners, or scouring pads to clean scale. Battery Replacement When the low battery indicator ( ) appears in the display’s right corner, replace the battery: 1. -
Page 12: Specifications
SPECIFICATIONS Model Number DSC250 Capacity 600 lb (300 kg) Resolution 1/3,000 ±1d Division 0.2 lb (0.1 kg) Power Source 9V alkaline battery x 1 Temperature Operating 32°F ~ 104°F (0°C ~ 40°C) Storage 32°F ~ 158°F (0°C ~ 70°C) Dimensions (W x H x D) 3.54 x 2.83 x 2.17 in. -
Page 13: Limited.warranty
LIMITED WARRANTY GF Health Products, Inc. (“Graham-Field”) guarantees the Lumex DSC250 Lift Scale free from defects in materials and workmanship under normal use for two years from the date of purchase. If a product is deemed to be under warranty, GF Health Products, Inc. - Page 14 relied on any representation, assertion, guarantee, warranty, collateral contract or other assurance, except those set out in this document.
- Page 15 NOTES...
- Page 16 GF Health Products, Inc. 2935 Northeast Parkway Atlanta, GA 30360 telephone: 770-368-4700 fax: 770-368-2386 www.grahamfield.com © 2013 GF Health Products, Inc. Made in Taiwan...
