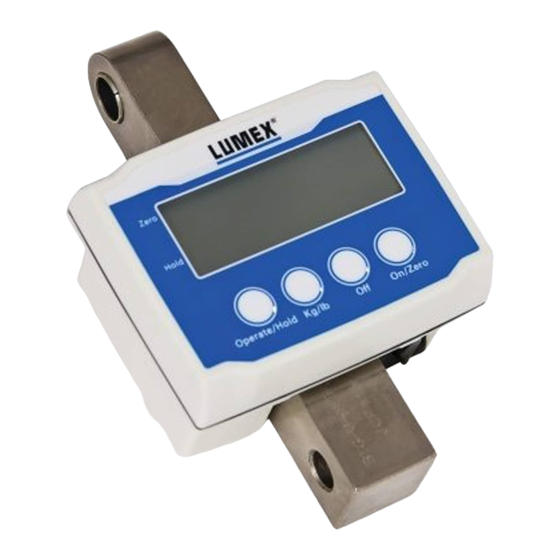

- Page 1 DSC250 SCALE for LF1050 / LF1090 Patient Lift DSC260 SCALE for LF1030 / LF1031 / LF1031FP / LF1040 / LF1041 Patient Lift USER MANUAL Read these instructions before using the Lumex Lift Scale. Save these instructions for future reference. DSC250-INS-LAB-RevC15...
-
Page 2: Table Of Contents
DSC250 SCALE COMPONENTS ................. 6 DSC250 SCALE INSTALLATION ON LF1050 / LF1090 PATIENT LIFT ....7 DSC260 SCALE COMPONENTS ................. 8 DSC260 SCALE INSTALLATION ON LF1030 / LF1031 / LF1031FP / LF1040 / LF1041 PATIENT LIFT ..................9 LIFT SCALE OPERATION INSTRUCTIONS ............10 KEYBOARD ILLUSTRATION .............. -
Page 3: Introduction
Important Safety Information WARNING: Important! Read and understand these instructions before assembling or using the Lumex DSC250 / DSC260 Lift Scale. If you do not understand any part of these warnings or instructions, contact a healthcare professional for direction in the use of this product. If the Lift Scale is not properly assembled, personal injury and damage to the Lift Scale could result. -
Page 4: Intended Use
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper assembly, installation or use of this product. Intended Use The intended use of the DSC250 / DSC260 Lift Scale is the measurement of patient weight. -
Page 5: Scale Installation On Patient Lift
SCALE INSTALLATION ON PATIENT LIFT 1. Use the following instructions (DSC250 or DSC260) to attach the Lift Scale to the appropriate Patient Lift with the included mounting hardware. Do not use any other mounting hardware than that provided. 2. Keep the scale in a cool, dry place. If operation temperature is over 104°F (40°C), the tolerance... -
Page 6: Dsc250 Scale Components
DSC250 SCALE COMPONENTS Ensure all components shown below are included in the DSC250 Scale package. Item Picture Description Scale Bushing 1220 Bushing 1020 Universal bracket Key ring Washer... -
Page 7: Dsc250 Scale Installation On Lf1050 / Lf1090 Patient Lift
DSC250 SCALE INSTALLATION ON LF1050 / LF1090 PATIENT LIFT Install DSC250 Scale on LF1050 / LF1090 Patient Lift as shown above. Item numbers shown are those listed in the page 6 table. WARNING: Ensure scale is securely mounted as shown above before proceeding. -
Page 8: Dsc260 Scale Components
DSC260 SCALE COMPONENTS Ensure all components shown below are included in the DSC260 Scale package. Item Picture Description Scale Bushing 1220 Bushing 1020 Universal bracket Key ring Screw Washer #10 Washer... -
Page 9: Dsc260 Scale Installation On Lf1030 / Lf1031 / Lf1031Fp / Lf1040 / Lf1041 Patient Lift
DSC260 SCALE INSTALLATION ON LF1030 / LF1031 / LF1031FP / LF1040 / LF1041 PATIENT LIFT Install DSC260 Scale on LF1030 / LF1031 / LF1031FP / LF1040 / LF1041 Patient Lift as shown above. Item numbers shown are those listed in the page 8 table. -
Page 10: Lift Scale Operation Instructions
LIFT SCALE OPERATION INSTRUCTIONS Keyboard Illustration Display Illustration Instructions for Use 1. Place sling to be used onto spreader bar without patient/resident/user. 2. Press the scale faceplate On/Zero button to zero- out the sling weight (this weight will remain zeroed out until the Off button is pressed). - Page 11 4. Carefully lift the patient/resident/user in the sling, performing the procedure so that all of the weight is supported by the lift. Stabilize the movement of the sling after lifting. 5. Weight will display on the scale. Press the Operate/Hold button to hold the weight displayed. To reset the scale to zero, press the Operate/Hold button again.
-
Page 12: Lift Scale Maintenance
LIFT SCALE MAINTENANCE Cleaning As needed, wipe scale gently, using mild soap or a mild disinfectant. s NOTICE: DO NOT wash under water pressure or steam clean. DO NOT use solvents, abrasive cleaners, or scouring pads to clean scale. Battery Replacement When the low battery indicator ( ) appears in the display’s right corner, replace the battery:... -
Page 13: Lift Scale Specifications
LIFT SCALE SPECIFICATIONS Model Number DSC250 / DSC260 Capacity 600 lb (300 kg) Resolution 1/3,000 ±1d Division 0.2 lb (0.1 kg) Power Source 9V alkaline battery x 1 Temperature Operating 32°F ~ 104°F (0°C ~ 40°C) Storage 32°F ~ 158°F (0°C ~ 70°C) Dimensions (W x H x D) 3.54 x 2.83 x 2.17 in. -
Page 14: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 15 5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection with such products which are not expressly authorized in writing, in advance, by GF; 6) Any labor or shipping charges incurred in the replacement part installation or repair; 7) Costs and expenses of regular maintenance and cleaning;...
