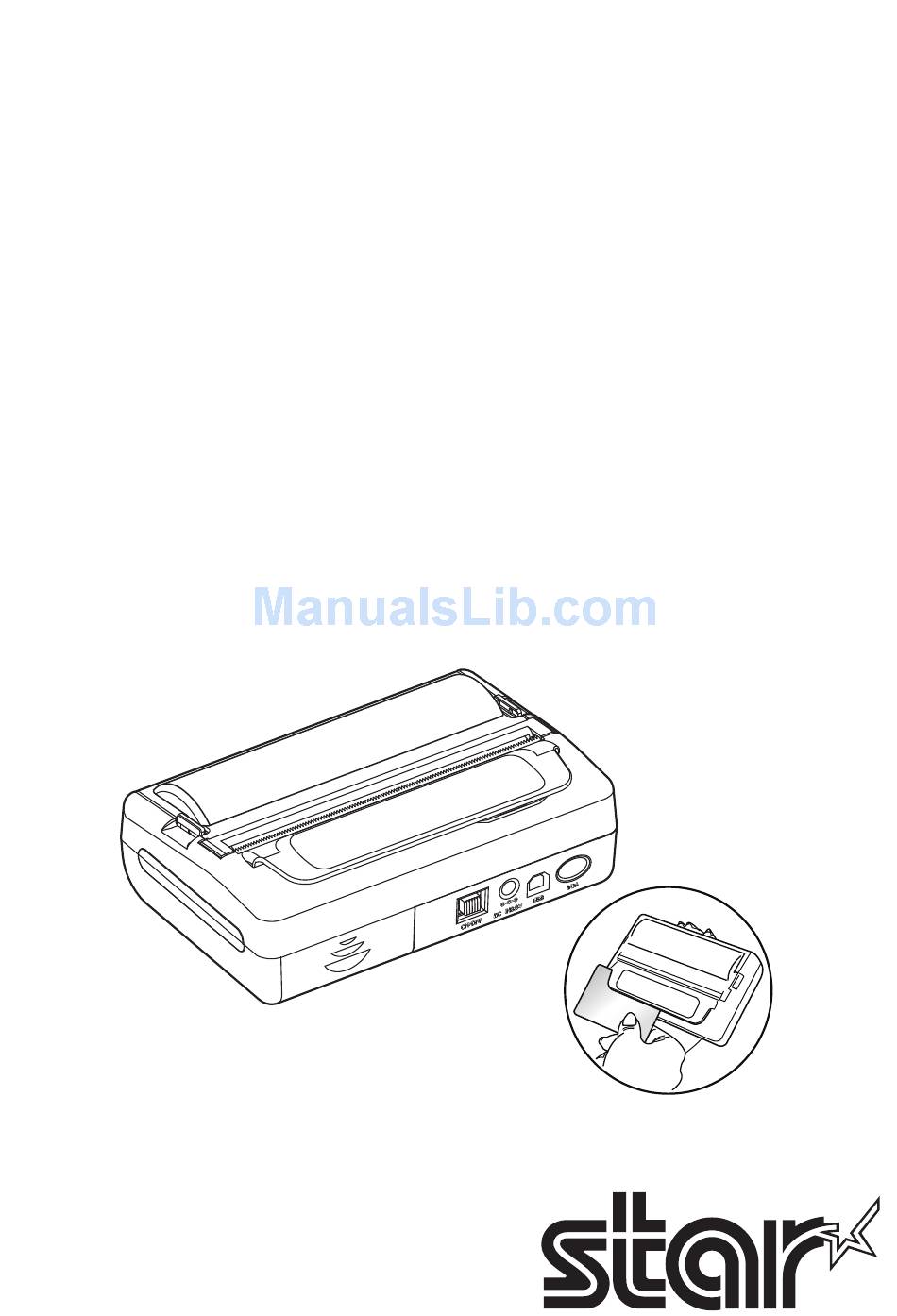

Page 1: Mobile Printer
Mobile Printer SM-S400 SERIES Models: SM-S401 SM-S402 Hardware Manual... - Page 2 For RF interference suppression, if a ferrite core is provided with this device, affix it to the interface cable. The above statement applies only to equipments marketed in U.S.A. <Europe model> English: Hereby, STAR MICRONICS CO.,LTD. declares that this Wireless Device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC Deutsch: Hiermit erklärt STAR MICRONICS CO.,LTD., dass sich das Gerät Wireless Device in Übereinstimmung mit den [German] grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Svenska: Härmed intygar STAR MICRONICS CO.,LTD. att denna Wireless Device står I överensstämmelse med de väsentliga [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
-
Page 3: Trademark Acknowledgments
• All efforts have been made to ensure the accuracy of the contents of this manual at the time of going to press. However, should any errors be detected, STAR would greatly appreciate being informed of them. • The above notwithstanding, STAR can assume no responsibility for any errors in this manual. Copyright © 2010-2011 Star Micronics Co., Ltd. -
Page 4: Operating Precautions
Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ■ ● Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or removed the cable on the rear side, in order to guard the printer against the static electricity. -
Page 5: Choosing A Place For The Printer
Choosing a Place for the Printer Before actually unpacking the printer, you should take a few minutes to think about where you plan to use it. Remember the following points when doing this. Choose a firm, level surface where the printer will not be exposed to vibration. The power outlet you plan to connect to for power should be nearby and unobstructed. -
Page 6: Table Of Contents
Table of Contents 1. Introduction ..................5 2. Setting Up the Printer ..............6 2.1. Printer & Accessories ................6 2.2. Printer Features ..................7 2.3. Replacing Paper Roll ................8 2.4. Power Supply ..................10 2.4.1. Specified Power Supply ..................10 2.4.2. -
Page 7: Introduction
1. Introduction This printer is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of this printer are as follows: ● Pocket size (138 × 89 × 46 mm) ●... -
Page 8: Setting Up The Printer
2. Setting Up the Printer 2.1. Printer & Accessories Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Charger Printer Paper Safety Instruction Sheet Communication Cable Battery Pack ( SERIAL CABLE SM-S ) ▼... -
Page 9: Printer Features
2.2. Printer Features ■ Part Name Paper Cover MSR Inside Paper Cover Lock Serial Connector Charge Connector Power Switch Battery Pack Platen Platen Gear Thermal Head Mechanism Ass’y Tear Bar Battery Power Lamp Feed Botton Power Lamp Mode Botton Error Lamp - 7 -... -
Page 10: Replacing Paper Roll
2.3. Replacing Paper Roll Cautions : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the pa- per end correctly. 1. Before opening the paper cover, ensure no data is being sent to the printer and turn off the power. - Page 11 3. Insert a new paper roll as shown. Push down gently on both sides of the paper cover to close it. Ensure the paper cover is securely closed. 4. Tear the excess paper off using the tear bar. 5. Turn the printer power on. - 9 -...
-
Page 12: Power Supply
2.4. Power Supply 2.4.1. Specified Battery Charger OUTPUT : DC 8.4 V/0.8 A (CC-CV) 2.4.2. Installing the Battery Cautions : 1) Before installing or removing the battery pack, ensure the printer is OFF. 2) If the printer is not used for long period of time, remove the battery pack from the printer. -
Page 13: Recharging The Battery Pack
Insert the Battery Charger to the charge connector of the printer or the bat- tery holder. Cautions Concerning Batteries u General Battery Characteristics ● The battery is a consumable and its performance over time will gradually decrease. ● While not in use, the battery will slowly discharge itself. ● Fully charge the battery before using the printer. ● To extend battery life, it is recommended to use a smart energy management solution such as the Auto Power Down Mode available on all Star Micronics Portable Printers. ● When used at low temperatures, battery performance will temporarily decline. Be sure to have a fully-charged spare battery standing by if the printer will operate in a cold environment. u Battery Charging ● Charge the battery in an environment with a temperature ranging from 0 °C to 40 °C. ● The time required to charge the battery depends on the voltage or ambient tempera- tures. The battery requires four hours of charging under normal conditions. -
Page 14: Memory Switch Settings
2.5. Memory Switch Settings 1. Change the Memory switch by this operation. (Refer to Table 1). MODE button : changing Printer MODE status FEED button : changing OPTION status. 2. [Example] The defaults of the printer are : Bluetooth/57600 bps/8 Data bit/No Parity/1 Stop bit/Density Medium If a user wants to change the defaults with RS-232C/9600 bps/7 Data bit/Even Parity/1 Stop bit/Density High u To put the printer into Memory Switch Setting mode, press and hold the... - Page 15 u Press FEED button twice, Power lamp twinkles six times and Error lamp twinkles twice. g Press MODE button once, Error lamp twinkles three times. (The density has set to high.) If all the mode have set, press the FEED button and the MODE button at the same time after then release the buttons at the same time.
- Page 16 Memory Switch Setting Table POWER Lamp ERROR Lamp Printer Mode Setting ( Green ) ( Red ) RS-232C Communication Port Bluetooth * 9600 bps 19200 bps 38400 bps Baud Rate 57600 bps * 115200 bps 7 Data bit Data Bit 8 Data bit * No Parity * Odd Parity...
-
Page 17: Interface
3. Interface 3.1. RS-232C This printer has a RS-232C interface and is connected by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Direction Function Output Transmit Data... -
Page 18: Bluetooth
1) If more than 1MB of data is sent to the printer over Bluetooth, the buffer will over- flow and the data will be corrupted. 2) Star Micronics recommends changing the default PIN code to an original number for security purposes. This can be done by using the mobile security utility, avail- able through our dealers. -
Page 19: Using The Printer
4. Using the Printer 4.1. Control Panel MODE Button Battery Power Lamp FEED Button POWER Lamp Direction for Cardreading ERROR Lamp u Button FEED Button : When the printer is on, paper can be fed manually by pressing and holding the FEED button for more than one second. -
Page 20: The Self Test
4.2. The Self Test The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly. 2) The Self-Test prints the current printer status, which provides the control ROM version and the communication method setting. -
Page 21: Consumable Parts
5. Consumable Parts 5.1. Paper Roll Specifications Type : Thermal Paper Paper width : 111.5±0.5 mm Paper thickness : 65±5 µm Outer diameter : Ø38 mm or less Inner diameter : Ø12mm or more Recording side : Outside of roll Cautions : 1) Do not paste the paper to the core. -
Page 22: Specifications
H/W Spec. MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes Receive buffer size 1M bytes SM-S401 ISO 7810 / 7811 / 7812 1st and 2nd Track Reading SM-S402 ISO 7810 / 7811 / 7812 2nd and 3rd Track Reading Battery Rechargeable 7.4V DC... - Page 23 ■ Dimensions External Dimensions : 138 mm (width) × 89 mm (depth) × 46 mm (height) Weight : 321 g (Including Battery Pack) Body Color : Black - 21 -...
- Page 24 - 22 -...
- Page 25 URL: http://www.star-m.jp/eng...
