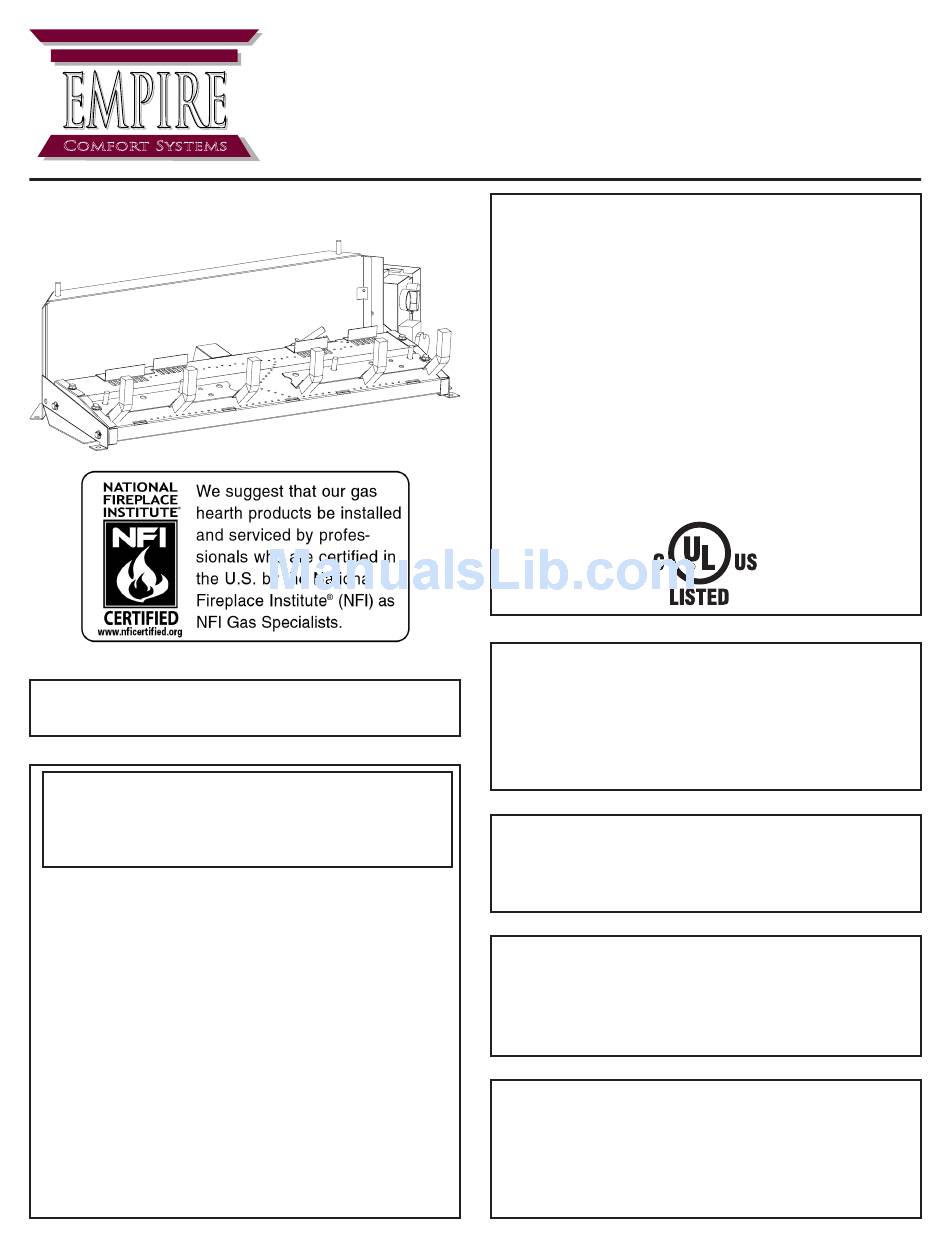

EMPIRE
EMPIRE
Comfort Systems
Vented/Vent-Free Burner
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury
or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
UNVENTED GAS LOG HEATER OR
INTERMITTENT MODELS
VFSE-(18,24,30)-1
VARIABLE MODELS
VFSV-(16,18,24,30)-4
VENTED DECORATIVE APPLIANCE
VARIABLE MODELS
VFSV-(16,18,24,30)-4
GAS-FIRED
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
This is an unvented gas-fired heater. It uses air (oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to page 6.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM
HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one (1)
ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 44.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFSE-18-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Empire Comfort Systems VFSE-18-1

  • Page 1 INSTALLATION INSTRUCTIONS EMPIRE EMPIRE AND OWNER'S MANUAL Comfort Systems Vented/Vent-Free Burner UNVENTED GAS LOG HEATER OR INTERMITTENT MODELS VFSE-(18,24,30)-1 VARIABLE MODELS VFSV-(16,18,24,30)-4 VENTED DECORATIVE APPLIANCE VARIABLE MODELS VFSV-(16,18,24,30)-4 GAS-FIRED This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, Installer: Leave this manual with the appliance.
  • Page 2 BEFORE YOU START Read the safety information on Page 41. If located in the Commonwealth of Massachusetts, please note the special requirements on page 44. Install the gas lines. See page 12. Fireplace sizing, see page 7. Install the burner. See page 11. Air shutter setting, see page 5.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Introduction ......................4 Product Specifications ....................5 Accessories ......................5 Provisions for Adequate Combustion & Ventilation Air ..........6 Clearances ......................7-8 Combustible Material ....................9 Fireplace Preparation .....................10 Installing as a Vented Appliance ................11 Before Fully Installing the Appliance ..............11 Gas Supply ......................12 Placement of Glowing Embers and Lava Rock ............13 Operation Instructions/Flame Appearance .............13...
  • Page 4: Introduction

    INTRODUCTION Important IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these installation instructions may All correspondence should refer to complete Model Number, Serial result in a possible fire hazard and will void the warranty. Number and type of gas. Attention: During initial use of log you will detect an odor as Save this manual for future reference.
  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS Natural Gas Propane Gas VFSE VFSV VFSE VFSV Regulator pressure setting 3.5" W.C. 4.0" W.C. 10.0" W.C. 10.0" W.C. Gas inlet pressure Max. 10.5" W.C. 10.5" W.C. 13.0" W.C. 13.0" W.C. Min. 7.0" W.C. 7.0" W.C. 11.0" W.C. 11.0"...
  • Page 6: Provisions For Adequate Combustion & Ventilation Air

    PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR Example of Large Room with 1/2 Wall divider. This heater shall not be installed in a confined space unless provi- sions are provided for adequate combustion and ventilation air. DIVIDER A confined space is an area with volume less than 50 cubic feet per 1,000 Btuh of the combined input rates of all appliances drawing FIREPLACE combustion air from that space.
  • Page 7: Clearances

    CLEARANCES Minimum Dimensions For Solid Fuel Burning Fireplaces UL127 Mantel Clearances Without Hood Factory Built Fireplaces (Figure 2) You must have non-combustible materials above the fireplace opening. Non-combustible material must extend at least 12" above Model fireplace opening. With sheet metal, you must have non-combustible VFSE-18 17"...
  • Page 8: Clearances

    CLEARANCES (continued) Mantel Clearances with Hood You must have non-combustible materials above the fireplace opening. Non-combustible material must extend at least 8" above fireplace opening. With sheet metal, you must have non-combustible material behind it. Heat resistant materials such as slate and marble must be at least 1/2"...
  • Page 9: Combustible Material

    COMBUSTIBLE MATERIAL Do not attach combustible material to the mantel of your fireplace. Television Considerations This is a fire hazard. Installing a television above a fireplace has become a desirable feature; however, the following information should be considered. All fireplaces, whether decorative or heater rated create heat. Most television manufacturers recommend not placing a television near a heat source.
  • Page 10: Fireplace Preparation

    FIREPLACE PREPARATION • Turn off gas supply to fireplace or firebox. FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES • Have the fireplace floor and chimney professionally cleaned to FOR MASONRY BUILT FIREPLACES remove ashes, soot, creosote or other obstructions. FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING Have this cleaning performed annually after installation.
  • Page 11: Installing As A Vented Appliance

    INSTALLING AS A VENTED APPLIANCE When installing your log set as a vent-free installation the damper Notice: (Damper Clamp Installation) clamp can be used to eliminate the potential for odors when burning When installing your log set as a vented installation the damper the logs for the first time.
  • Page 12: Gas Supply

    GAS SUPPLY Check all local codes for requirements, especially for the size and type of gas supply line required. Recommended Gas Pipe Diameter Pipe Length Schedule 40 Pipe Tubing, Type L Inside Diameter Outside Diameter Nat. L.P. Nat. L.P. 0-10 feet 1/2”...
  • Page 13: Placement Of Glowing Embers And Lava Rock

    Rock wool should not be placed in the area of the pilot assembly. Replacement of loose material (glowing embers) must be purchased from Empire Comfort Systems, Inc. Application of excess loose material (glowing embers) may adversely affect performance of the heater. WARNING: All previously applied loose material must be removed prior to reapplication.
  • Page 14: Vfse-(18,24,30) Lighting Instructions

    VFSE-(18,24,30) LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. BEFORE LIGHTING smell all around the appliance B.
  • Page 15: Vfse Remote Electronic Ignition And Control System

    VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM MAIN VALVE KNOB MANUAL KNOB PIEZO IGNITER CONNECTION FOR MANUAL IGNITION COMBINATION CONTROL ON/OFF SWITCH INTERRUPTER BLOCK THERMO CURRENT CABLE #2 OR ON/OFF SWITCH WITH SOLDERED CABLE THERMO CURRENT THERMOCOUPLE CABLE #1 IGNITION CABLE RF ANTENNA SPARK 8 WIRE CABLE...
  • Page 16 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM GENERAL NOTES NOTICE The handsets and receivers, are not interchangeable with previ- Radio Frequency Handset ous electronics. See Figure 17. 433.92 MHz for Europe; 315 MHz for U.S. (FCC ID: RTD-G6R) and for Canada (IC: 4943A-G6R). This device complies with part 15 of the FCC Rules.
  • Page 17 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM TO TURN ON APPLIANCE TO TURN OFF APPLIANCE WARNING Handset When pilot ignition is confirmed, motor turns automatically to • Press OFF button maximum flame height. ▪ Turn MANUAL knob to the ON, full counterclockwise po- sition.
  • Page 18 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM MODES OF OPERATION TO OPEN AND CLOSE SOLENOID VALVE/BURNER ▪ Briefly pressing the SET button changes the NOTE: The latching solenoid valve cannot operate manually. If mode of operation in the following order: the battery runs down it will remain in the last operating position.
  • Page 19 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM SETTING °C/24 HOUR OR °F/12 HOUR CLOCK SETTING THE ON/OFF TEMPERATURES Setting the “DAYTIME” Temperature • Press OFF and (small flame) button until DEFAULT SETTINGS: (SUN), 23°C/74°F display changes from Fahrenheit/12 hour clock •...
  • Page 20 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM SETTING PROGRAM TIMERS Setting the “NIGHTTIME SETBACK” Temperature Default Settings DEFAULT SETTINGS: (MOON), “--” (OFF) Program 1: P1 :6:00am P1 :8:00am CSA: Program 2: P2 :11:50pm P2 :11:50pm • Briefly press SET button to scroll to TEMP •...
  • Page 21 VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM MANUAL OPERATION (Only possible, when MANUAL knob is used) • Set the minutes by pressing the (small Access to the pilot burner is only required for ignition with a match. flame) button. When turning main valve knob, do not force. Knob has a slip clutch that clicks until the end stops are reached.
  • Page 22: Vfse Remote Electronic Ignition And Control System

    VFSE REMOTE ELECTRONIC IGNITION AND CONTROL SYSTEM TO TURN OFF GAS TO APPLIANCE AUTOMATIC SHUT OFF Place ON/OFF switch (if equipped) in O (OFF position). Low Battery Receiver If gas control is accessible turn main valve knob to the off full ▪...
  • Page 23: Intermittant Troubleshooting

    INTERMITTANT TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Will not operate with Handset 1. Transmitter batteries low Replace Transmitter batteries. Quality alkaline recommended. 2. Receiver batteries low Replace Receiver batteries with 1.5V "AA" quality alkaline batteries. 3. Optional Mains Adapter not operating Check Mains Adapter.
  • Page 24 INTERMITTANT TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY No transmission: (motor does not turn) 3. The Receiver is surrounded by metal, Change the position of the adjustable (continued) reducing the transmission range. antenna. WARNING Make sure that the adjustable antenna is not too close to the electrode cable and ignition coil (beneath the cover) It will damage the Receiver (see Figure 22).
  • Page 25 INTERMITTANT TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Ignition stops after the first spark 1. Loose ground connection at the valve Check ground connection at the Valve and tighten screw. See Figure 25. Figure 25 No pilot flame but spark 1. No gas supply Check the gas supply 2.
  • Page 26 INTERMITTANT TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Pilot flame lights but there is no main 1. Manual override knob (if equipped) is in Turn manual override knob to ON position gas flow MAN position. (See Figure 19). 2. Valve turned down to pilot flow. Turn flame to high fire by pressing up but- ton on remote handset.
  • Page 27: Intermittant Troubleshooting

    INTERMITTANT TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY New remote receiver batteries have 1. Receiver must learn new code Press and hold the Receiver’s reset button been installed, but the receiver is not (see figure 29) until you hear 2 acoustic responding to the handheld remote signals.
  • Page 28: Cleaning And Servicing

    CLEANING AND SERVICING Annual inspection and cleaning by your dealer or qualified ANNUAL CLEANING/INSPECTION – Refer to parts diagram for service technician is recommended to prevent malfunction location of items discussed below. and/or sooting. • Inspect and clean burner air intake hole. Remove lint or particles TURN OFF HEATER AND ALLOW TO COOL BEFORE with vacuum or brush.
  • Page 29: Pilot Flame Characteristitcs

    PILOT FLAME CHARACTERISTICS Figure 30 shows a correct pilot flame pattern. The correct flame will Cleaning and Maintenance/Pilot be blue and will extend beyond the thermocouple. The flame will Oxygen Depletion Sensor Pilot When the pilot has a large yellow tip flame, clean the Oxygen surround the thermocouple just below the tip.
  • Page 30: Vfse Parts View

    VFSE PARTS VIEW Page 30 28092-8-0614...
  • Page 31: Vfse Parts List

    VFSE PARTS LIST Attention: When ordering parts, it is very important that part number and description of part coincide. INDEX PART NO. DESCRIPTION INDEX PART NO. DESCRIPTION 15425 REAR LOG SUPPORT (16" MODELS) R10573 3/8" NPT, HEX PLUG 15426 REAR LOG SUPPORT (18" MODELS) R10559 BATTERY, 9-VOLT 15427...
  • Page 32: Vfsv-(16,18,24,30) Lighting Instructions

    VFSV-(16,18,24,30) LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by C.
  • Page 33: Vfsv Remote Control Instructions

    VFSV REMOTE CONTROL INSTRUCTIONS NOTE: This remote is for use on VFSV Models ONLY. INTRODUCTION • It is suggested that the slide switch be placed in the This remote control system was developed to a provide safe, reli- OFF position if you will be away from your home for an able, user-friendly remote control system for gas heating appli- extended period of time.
  • Page 34: Vfsv Remote Control Instructions

    VFSV REMOTE CONTROL INSTRUCTIONS TRANSMITTER WALL CLIP THERMO-SAFETY FEATURE The transmitter can be hung on a When the ambient temperature inside the receiver case reaches 130°F, the RECEIVER will automatically send power to the step wall using the clip provided. •...
  • Page 35: Pilot Flame Characteristitcs

    PILOT FLAME CHARACTERISTICS Figure 33 shows a correct pilot flame pattern. The correct flame will Cleaning and Maintenance/Pilot be blue and will extend beyond the thermocouple. The flame will Oxygen Depletion Sensor Pilot When the pilot has a large yellow tip flame, clean the Oxygen surround the thermocouple just below the tip.
  • Page 36: Cleaning And Servicing

    CLEANING AND SERVICING Annual inspection and cleaning by your dealer or qualified ANNUAL CLEANING/INSPECTION – Refer to parts diagram for service technician is recommended to prevent malfunction location of items discussed below. and/or sooting. • Inspect and clean burner air intake hole. Remove lint or particles TURN OFF HEATER AND ALLOW TO COOL BEFORE with vacuum or brush.
  • Page 37 This page intentionally left blank. 28092-8-0614 Page 37...
  • Page 38: Vfsv Parts View

    VFSV PARTS VIEW Page 38 28092-8-0614...
  • Page 39: Vfsv Parts List

    VFSV PARTS LIST Attention: When ordering parts, it is very important that part number and description of part coincide. INDEX PART INDEX PART DESCRIPTION DESCRIPTION 15425 REAR LOG SUPPORT (16" MODELS) 12389 CERAMIC MEDIA 15426 REAR LOG SUPPORT (18" MODELS) R2809 DAMPER CLAMP 15427...
  • Page 40: Troubleshooting

    TROUBLESHOOTING SYMPTOMS - POSSIBLE CAUSES AND CORRECTION When ignitor button is pressed, there is no spark at ODS/ c. Manual Shutoff valve not fully open - Fully open manual pilot. shutoff valve. a. Ignitor electrode positioned wrong - Replace pilot. d.
  • Page 41: Important Safety Information

    IMPORTANT SAFETY INFORMATION DANGER: Indicates a hazardous situation which, if not avoided, will • WARNING: DO NOT operate this appliance unless all components including logs, burners, and controls are in good result in death or serious injury. working condition. Never operate this appliance if any log or WARNING: Indicates a hazardous situation which, if not avoided, twig is broken, or out of their intended position.
  • Page 42: Safety Information For Users Of Lp-Gas

    SAFETY INFORMATION FOR USERS OF LP-GAS Propane (LP-Gas) is a flammable gas which can cause fires with the members of your household. Someday when there and explosions. In its natural state, propane is odorless and may not be a minute to lose, everyone's safety will depend colorless.
  • Page 43: Requirements For Canada

    REQUIREMENTS FOR CANADA WARNING; DO NOT OPERATE THIS GAS LOG SET WITH This unit cannot be installed in a UNVENTED application, this GLASS DOORS CLOSED unit can only be installed as a VENTED application with these requirements. • Clothing or other flammable material should not be placed on or near the appliance.
  • Page 44: General Information

    GENERAL INFORMATION This is an unvented gas-fired heater. It uses air (oxygen) from the Handle the gas log burner assembly by the grate and legs only. room in which it is installed. Provisions for adequate combustion Do not pick the unit up by the burner. and ventilation air must be provided.
  • Page 45: Master Parts Distributor List

    This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing Victor Division of F.
  • Page 46: Warranty

    WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci- fied below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual.
  • Page 47: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 28092-8-0614 Page 47...
  • Page 48 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com...
