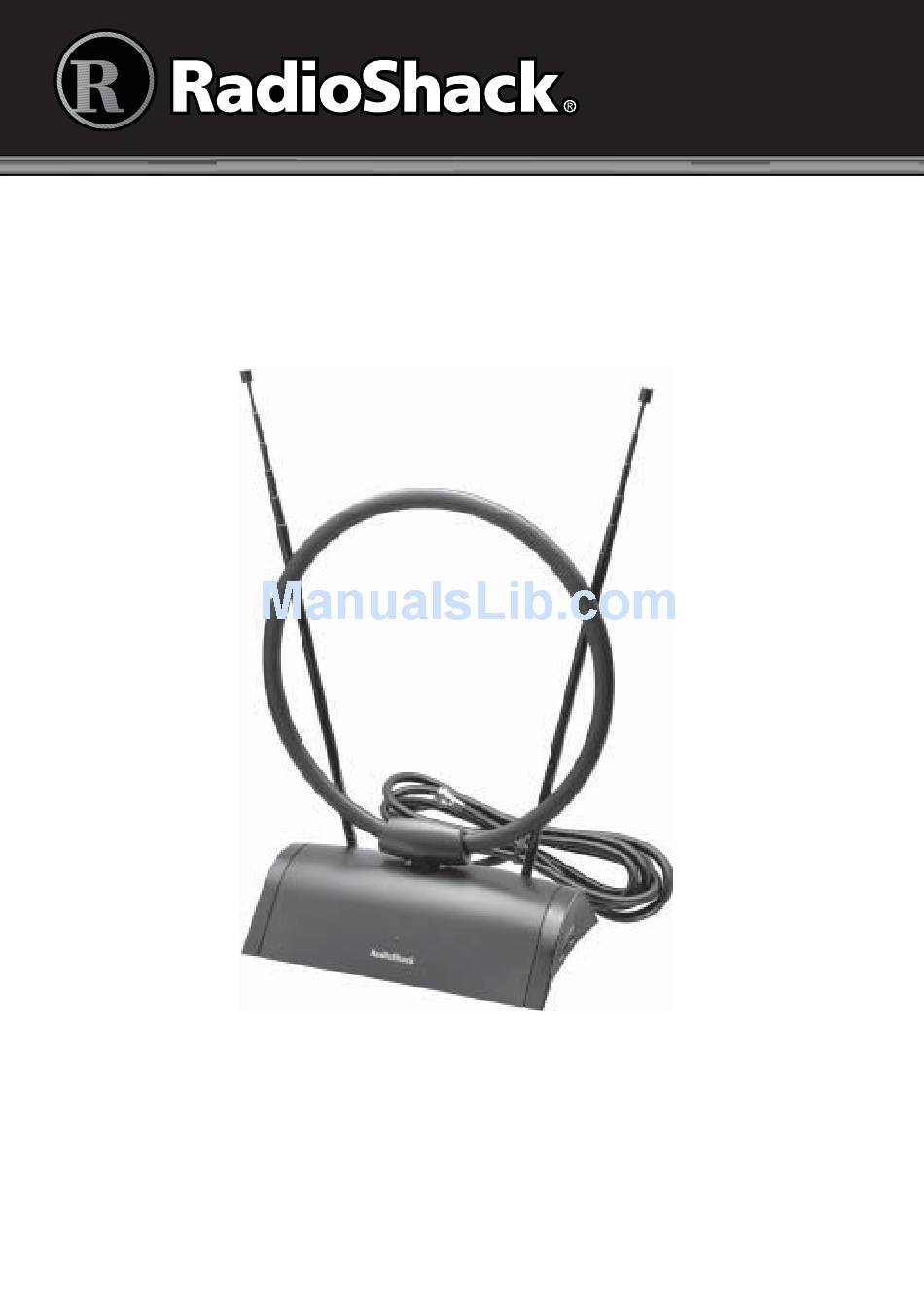

1500254 User’s Guide Indoor Amplifi ed HDTV Antenna Thank you for purchasing your Indoor Amplifi ed HDTV Antenna from RadioShack. Please read this user’s guide before installing, setting up, and using your new antenna.
Package Contents • TV Antenna • AC Adapter • VHF Telescoping Antennas (2) • User’s Guide Features • Receive HDTV, VHF, UHF, HD Radio signals, and FM radio signals • Adjustable VHF dipoles with built-in UHF loop Install Your Antenna 1.
Page 3
Note: • Use only an adapter that supplies 6VDC and delivers at least 100 mA. Its center tip must be set to positive and its plug must fi t this indoor antenna’s 6VDC 100mA jack. Using an adapter that does not meet these specifi cations could damage the indoor antenna or its adapter.
Page 4
VHF Telescoping Antennas Fully extend the telescoping antenna elements and fi nd the antenna position that works best for you. You may need to: • Shorten the telescoping elements slightly. • Adjust the angle of the telescoping elements. UHF Loop Antenna Tilt the antenna 90˚...
Page 5
Note: • Visit www.AntennaWeb.org to fi nd the location of antennas in your area. • To get the best performance from your antenna, select an indoor fl at surface as high as possible. • Make sure the antenna is not placed near metal objects such as cabinets, shelves, refrigerators, a metal door or wall, or a water pipe behind a wall.
Page 6
No Channels? In most cases, simply connecting your antenna to your TV will not instantly provide your local channels. Most televisions require some minor confi guration before you see programming. Refer to your television’s user’s guide for No Channels information about performing the following steps: 1.
Page 7
imited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES.
