VU-110XR VHF/UHF/FM Antenna with Matching Transformer
Your RadioShack VHF/UHF/FM Antenna performs better than
standard antennas because of its special design features.
UHF Bowtie — delivers more of the UHF signal to your TV.
Since UHF signals are more difficult to receive than VHF sig-
nals, this antenna gives UHF signals the extra boost they need.
VHF/UHF Isolation Network — prevents the two types of TV
signals from interfering with each other. This results in cleaner
signals and a better picture on your TV.
BEFORE YOU BEGIN
Before you begin installation, read this manual and the sepa-
rate Consumer Product Safety Commission information sheet.
For your safety and convenience, plan each step of the installa-
tion and purchase the necessary hardware in advance. The
hardware required and the order in which you perform the steps
depend on the mounting and connection method you choose.
Warning: When you install your antenna, use extreme caution.
If the antenna starts to fall, let it go! It could contact overhead
power lines. If the antenna touches the power line, contact with
the antenna, mast, cable, or guy wires can cause electrocution
and death. Call the power company to remove the antenna. Do
not attempt to remove it yourself.
ASSEMBLING THE ANTENNA
Assemble the entire antenna on the ground.

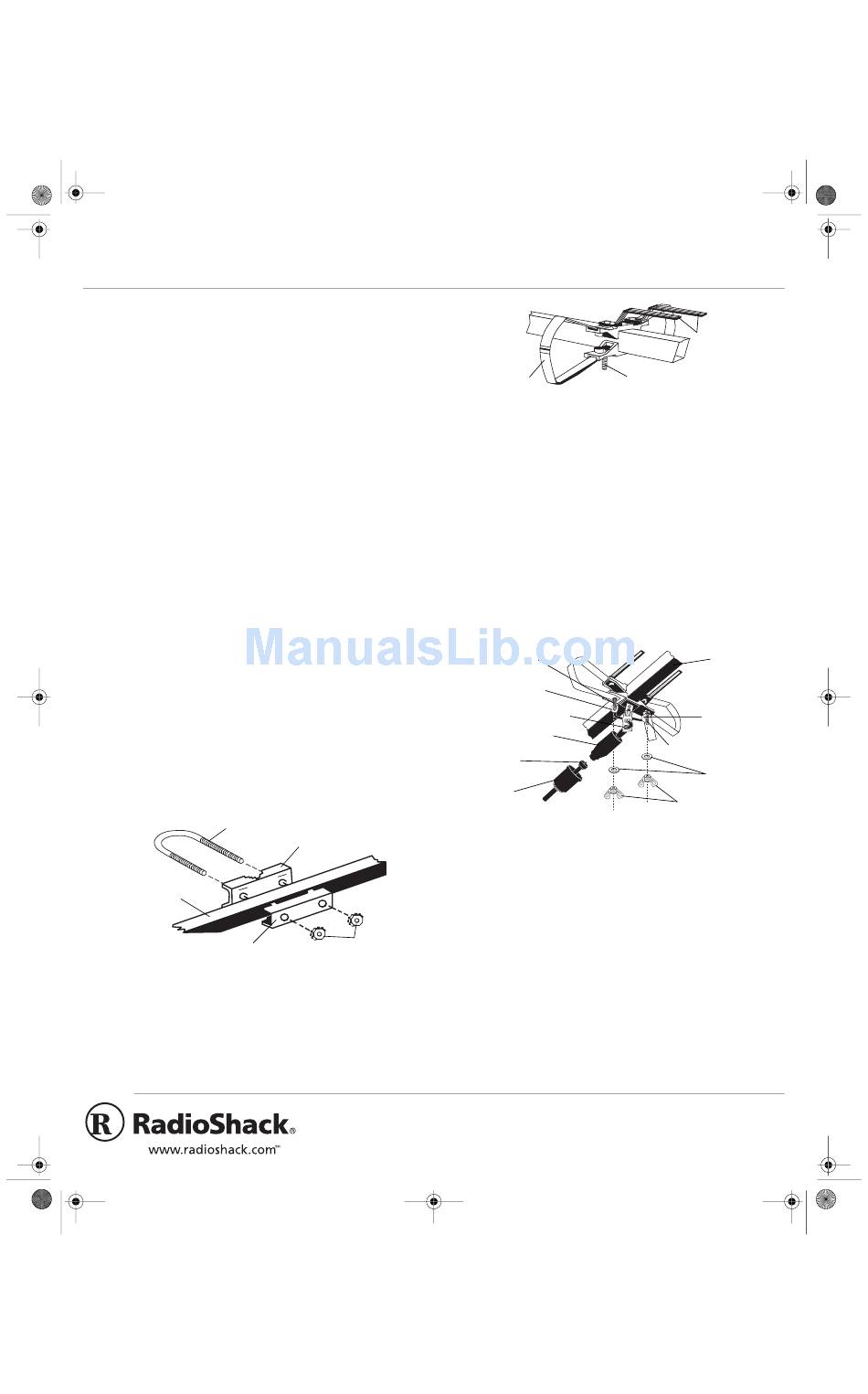

1. Use the supplied hardware to loosely attach the supplied
mast clamp assembly to the main boom, as shown.
Note: To access the mast clamp holes, move the antenna's
elements out of the way as needed.
U-Bolt
Main Boom
Backup Plate
2. Press the supplied large end plugs into the main boom.
3. Pull the UHF bowtie's two halves away from the main boom
until they lock into place. Then slide each half's unattached
end over one of the antenna's lead-in terminals (one for
each half of the UHF bowtie on each side of the boom).
CONNECTING LEAD-IN CABLE
TO THE ANTENNA
We recommend RG-6 cable and, if you prepare your own ca-
ble, a quality F-connector. You can also use 300-ohm flat, twin-
lead cable. (RadioShack carries a variety of suitable cables and
connectors.)
Note: If you prepare your own coaxial cable, be sure to slide
the supplied matching transformer's weather boot onto the ca-
ble before you attach the F-connector.
Using Coaxial Cable
Lead-In Terminal
Matching Transformer
F-Connector
Weather Boot
To connect coaxial cable to your antenna:
Mast Clamp
1. Thread the supplied matching transformer's spade termi-
2. Slide the spade terminals around the antenna's lead-in ter-
Lock Nuts
3. Screw the cable's F-connector onto the matching trans-
4. Slip the weather boot over the connection. If you use a
RadioShack is a registered trademark used by Tandy Corporation.
RadioShack.com is a trademark used by Tandy Corporation.
OWNER'S MANUAL — Please read before using this equipment.
UHF Bowtie Lead-In Terminal
Note: Both sections of the UHF/VHF isolation network
should remain parallel to the main boom.
Spade Terminal
Strain-Relief Tab
nals through the antenna's strain-relief tab.
minals (on both sides of the boom), then secure them with
the supplied flat washers and large wing nuts.
former.
rebuilt cable without a weather boot, cover the connection
with weather-resistant tape.
©
1998, 2000 Tandy Corporation.
All Rights Reserved.
UHF/VHF
Isolation Network
Main
Boom
Spade Terminal
Lead-In Terminal
Flat Washers
Large Wing Nuts
