Gehl 5625 Service & Parts Manual

Gehl 5625 Service & Parts Manual

Skid loader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Form No.
907221
Replaces
5625
904267
Skid Loader
SERVICE PARTS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5625 and is the answer not in the manual?

Questions and answers

Related Manuals for Gehl 5625

Summary of Contents for Gehl 5625

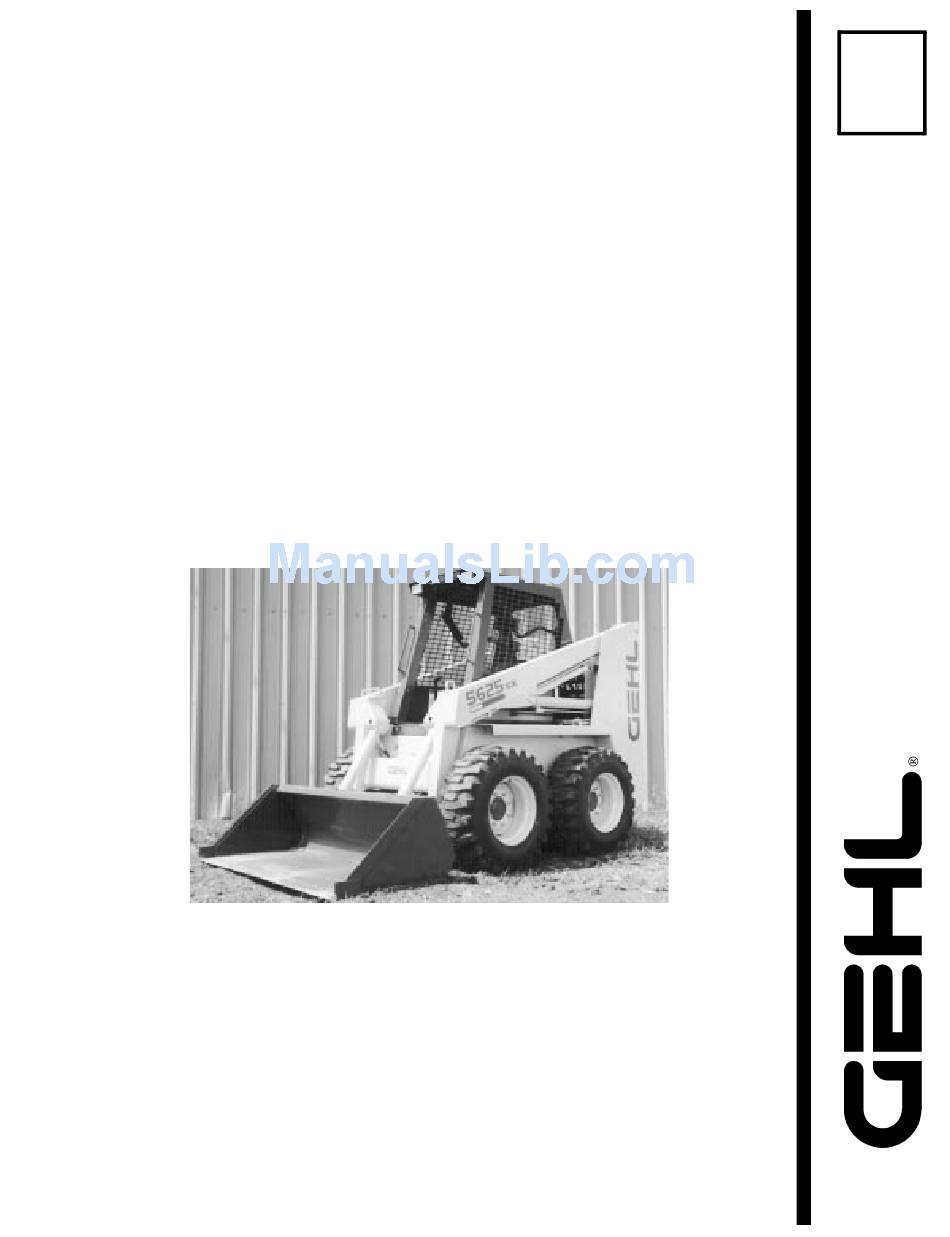

  • Page 1 Form No. 907221 Replaces 5625 904267 Skid Loader SERVICE PARTS MANUAL...
