Summary of Contents for URC Total Control MFS-8

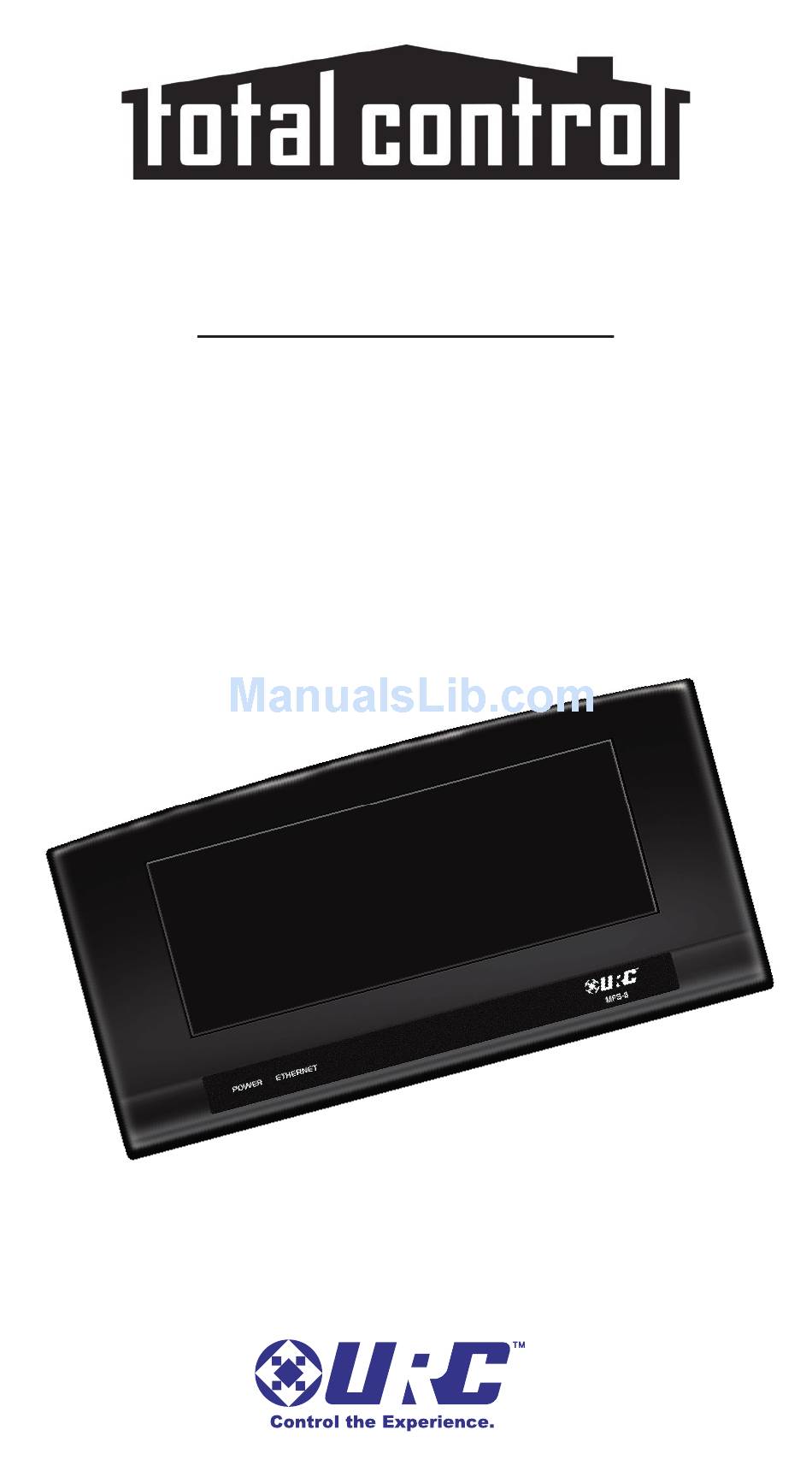

- Page 1 Installation Manual MFS-8 Network Switch...
- Page 2 URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. Total Control is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
-
Page 3: Table Of Contents
Introduction Features and Benefits Parts Guide Front Panel Descriptions Rear Panel Descriptions MFS-8 Installation Considerations MFS-8 Installed in a Small System MFS-8 Installed in a Large System MFS-8 Installed in the area with the Network Distribution Frequently Asked Questions Specifications... -
Page 4: Introduction
WITCH NSTALLATION ANUAL Introduction The MFS-8 Network switch is the ideal "Plug-n-Play" solution to pro- tect network WAPs (Wireless Access Points) from multicast audio streams. Total Control products, like the DMS-1200 (Multi-zone Amplifier), DMS-100 (Single-Zone Amplifier) and the SNP-1 (Streaming Network Player), all multicast audio streams onto the LAN. -
Page 5: Front Panel Descriptions
Power LAN Connectivity Indicator Indicator Power Indicator: Illuminates when the MFS-8 Power Supply is con- nected to AC outlet. Ethernet Network Connectivity Indicator: Illuminates when the MFS-8 is connected to a LAN and has received an IP Address. Page 2... -
Page 6: Rear Panel Descriptions
Wall Mount Bracket: Convenient removable wall bracket allows the MFS-8 to be mounted to the back of a cabinet or rack. Remove the wall bracket when placing the MFS-8 on a shelf or stand. Page 3... -
Page 7: Mfs-8 Installation Considerations
MFS-8 Standard Network Switch Installation 1. On the back of the MFS-8, connect one end of a CAT5 cable to the port labeled LAN 10/100. 2. Connect the other end of the CAT5 cable to the LAN (Local Area Network). -
Page 8: Mfs-8 Installed In A Small System
Standard PoE Switch TKP-2000 TKP-2000 TKP-100 TKP-100 MC 75 CD IP MC 75 CD IP Camera 1 Camera 2 Notes: The Wireless Access Point CANNOT be connected to the MFS-8; it must be connected to the Router in the LAN. Page 5... -
Page 9: Mfs-8 Installed In A Large System
MFS-8; it must be connected to the Router in the LAN (Local Area Network). A standard network switch is used to connect the MFS-8 to the LAN. An MRX-10 doesn't have to be connected to the MFS-8, but can be connected to a standard network switch when convenient to do so. -
Page 10: Mfs-8 Installed In The Area With The Network Distribution
Occasionally you get a retrofit installation where only one CAT5 wire has been run to a room, and there's no way to run another one. In this case, locate the MFS-8 in the Utility Room, Garage, or where ever the central distribution point for the Network is located, and install standard network switches in rooms where you plan to locate a DMS-1200, DMS-100 or SNP-1. -
Page 11: Frequently Asked Questions
2. Can I connect both PoE (Power over Ethernet) devices like KP- 4000 keypads and Non-PoE devices to the MFS-8? No, you cannot use an MFS-8 to power Keypads or Cameras -- it is not PoE. 3. What if I have more than eight streaming devices? You can connect a standard network switch to the MFS-8 to expand the MAC Filtering capabilities of the MFS-8. -
Page 12: Limited Warranty Statement
MFS-8 N ETWORK WITCH NSTALLATION ANUAL Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. - Page 13 URC equipment. This limited warranty specifically excludes the URC equipment sold by unauthorized resellers. With the exception of URC’s IR-only, broad-based consumer remotes, none of URC’s PC programmable remotes or any of our Total Control® whole-house Page 10...
-
Page 14: End User Agreement
ANUAL equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. -
Page 15: Federal Communication Commission Interference Statement
MFS-8 N ETWORK WITCH NSTALLATION ANUAL Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 16: Regulatory Information To The User
: EN 55024 lPower : EN-61000-3-2, 3 n Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this MFS-8 is in compliance with the Essential requirements and other relevant provisions of EMC Directive 2004/108/EC.” Certification Type No.(Model No.) MFS-8 Batch/Serial No. -
Page 17: Declaration Of Conformity
MFS-8 N ETWORK WITCH NSTALLATION ANUAL Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Information Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name Mac Filtering Switch... - Page 18 Page 15...
- Page 20 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0076B Rev 02...
