LG-Ericsson GDC-500H Quick Manual

Dect wireless handset
Hide thumbs Also See for GDC-500H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

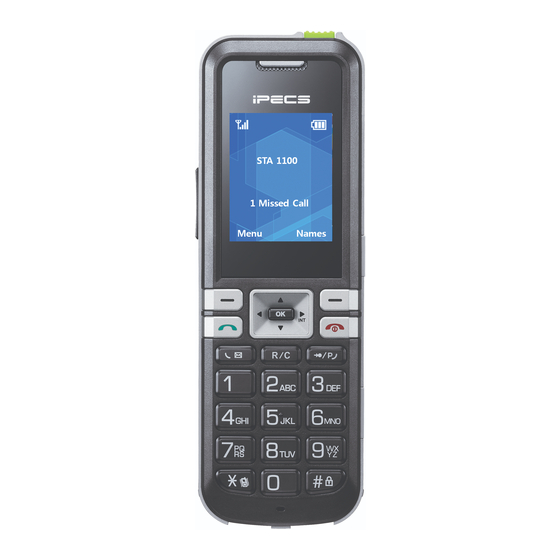

GDC-500H
DECT Wireless Handset

Quick Guide

Please read this guide carefully before operating your new Wireless handset.
Retain the guide for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDC-500H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG-Ericsson GDC-500H

Summary of Contents for LG-Ericsson GDC-500H

  • Page 1: Quick Guide

    GDC-500H DECT Wireless Handset Quick Guide Please read this guide carefully before operating your new Wireless handset. Retain the guide for future reference.

  • Page 2: What Is New In This Release

    Charger/base away from the edges of the surface to avoid the potential of a fall. • Avoid situations where you might drop the handset. While the GDC-500H is a rugged mobile device, dropping it on to the floor may cause critical damage.
  • Page 3 GDC-500H Wireless Handset User Guide Introduction GDC-500H is a wireless handset that employs DECT technology to provide local in-building mobility. Wireless Radio Frequencies (RF) signals are exchanged between the handset and base stations (GDC-400B / 600B/GDC-600BE). Multiple base stations connect to the Wireless Management Interface (WMI) in your LG-Ericsson phone system.

  • Page 4: Unpacking The Gdc-500H

    Unpacking the GDC-500H Each GDC-500H package contains the items below. These items include the GDC-500H handset, Charger/base, AC/DC adapter, Li-ion batteries, this User Guide and a belt clip. Unpack the carton and assure all items are available.

  • Page 5: Installing The Batteries

    GDC-500H Wireless Handset User Guide Batteries Quick Guide Belt Clip Ear-Microphone Installing the batteries The batteries are installed in the battery cavity in the rear of the unit. To install the batteries, 1. Remove the battery cover located on the rear of the unit. Press the latch at the top of the cover and slide the cover down to remove.

  • Page 6: Connecting The Charger/Base Unit

    GDC-500H Wireless Handset User Guide Use only with batteries provided for the GDC-500H. Use of other types of batteries may cause harm to the unit or explosion. Dispose of used batteries in accordance with local codes and regulations. Connecting the Charger/base Unit The Charger/base unit must be connected to power using the supplied AC/DC Adapter.

  • Page 7: Installing The Belt Clip

    USB port of PC. Installing the Belt Clip The GDC-500H comes with a belt clip that can be installed on the unit. To install the belt clip, refer to the figure and instructions below. When installing the belt clip: 1.
  • Page 8 GDC-500H Wireless Handset User Guide GDC-500H Icons Icon Name & Description Antenna Icon ( ) & RSSI Icon ( ) The antenna icon indicates a DECT connection is established with the Base station. The RSSI (Received Signal Strength Indicator) is a meter of the RF signal strength received by the handset.
  • Page 9 Using a headset permits you to move freely around phone and maintain a conversation. Bluetooth headset icon Before using the headset, the headset must be paired with GDC-500H handset. The Bluetooth headset icon is displayed if the paring is successful.

  • Page 10: Enabling Subscriptions

    (P -:Pause, D -:Go to DTMF, R -:Flash) Subscribing the GDC-500H to a System Prior to accepting a connection with a GDC-500H, a subscription to services must be entered into the WMI of your telephone system. This is accomplished in a two step process: the Attendant station enables subscription of a phone to the system, then the GDC-500H subscribes to the system for services.

  • Page 11: Terminating A Subscription

    User Guide 10. If the subscription fails, repeat procedure from Step 3 to 6 at the Attendant Station and Step 1 to 8 from the GDC-500H (refer to Note). Note: Depending on the system or radio channel environment, the system or the wireless terminal may not recognize that the system has the subscribed wireless terminal or the wireless terminal is subscribed to the system.
  • Page 12 Attendant Station. Registering GDC-500H to LWS-BS (LG-Ericsson Wireless SOHO-Base Station) Prior to accepting a connection with a GDC-500H, a registration to services must be entered into your LWS system. This is accomplished in a two step process: the LWS-BS enables registration of a phone to the system, then the GDC-500H subscribes to the LWS-BS for services.
  • Page 13 STATION: 10X SUBSCRIBED: SUCCESS Note: Don’t press Monitor or Speaker button at the LWS-BS until the GDC-500H completes the registration and registration confirmation tone is heard. Registering to the LWS-BS When registering to LWS-BS you will need the system’s unique Radio Frequency Personal Identification (RFPI).
  • Page 14 UNSUBSCRIBED: SUCCESS Note: DEREGISTER : You want to erase registration information of both Base Station (LWS- BS) and Wireless terminals (GDC-500H). FORCED ERASE : You want to erase registration information of the relevant Wireless Terminal. (e.g. in case that the terminal is OFF or missed) In this case, the registration information will be kept on the terminal itself.
  • Page 15 GDC-500H Wireless Handset User Guide Rejecting a Call while busy: 1. Press End button; all signaling will stop. Using Do Not Disturb (DND): 1. Press the Talk button and dial DND code (refer to system admin. or attendant); a confirmation tone is heard.
  • Page 16 GDC-500H Wireless Handset User Guide Delete Call Forward: 1. Press the Talk button. 2. Dial 5 + 5 +9 or 5+ 5 + 4 + #. (Confirmation tone will be heard) Call Transfer: 1. While on an active call, press the right arrow navigation button; the call is placed on hold and dial tone is received.

  • Page 17: User Program Codes

    GDC-500H Wireless Handset User Guide User Program Codes The host system permits user control of a number of features including Temporary COS, Wake-up Alarm Clock, etc. You access the various controls through the User Program (Pgm) feature using codes. The various codes and features vary between systems; your System Administrator can provide you with available codes.
  • Page 18 GDC-500H Wireless Handset User Guide User Pgm Code Description Display Remark clock ERASED WAKEUP Cancel Wake-up Alarm TIME MESSAGE DEACTIVATED [00] USER CUSTOM [01] LUNCH RETURN TIME [02] VACATION TIME [03] OUT OF OFFICE TIME [04] OUT OF OFFICE DATE 51 &...
