NetComm NB5PLUS4 Quick Setup Manual page 2

Before you Start
• You will need your username and password from your ISP.
• All devices on your phone line will need to have an ADSL Line Filter (See Figure 1) attached to them.
This includes Telephones, Fax Machines, Dial-up modems etc. Plug these devices into the PHONE
socket of the ADSL Line Filter (See Figure 1). Then plug the ADSL filter into the jackpoint.
Installing your Modem
Note: The following instructions relate to creating an Ethernet broadband connection i.e. installing
your modem using an Ethernet cable. Older computers may not support an Ethernet connection.
Refer to the setup guide on the Installation CD for alternative method (USB) and for setup of Apple
MAC computers.
Step 1: Turn off your computer.
Step 2: Plug one end of the Ethernet cable into Ethernet socketon the back of the (See Figure 2).
The other end of the cable is plugged into the Ethernet socket on the back of your computer.
Step 3: Plug one end of Phone Cable 1 into the socket marked (Line) on the back of the modem
(See Figure 2). The other end of the cable is plugged in to the socket marked (Line) on the
ADSL Line Filter.
Step 4: Plug the line filter into the wall jackpoint (See Figure 3).
Step 5: Plug the power adaptor into the "Power" socket on the back of the modem (See Figure 2).
Plug the other end of the power adaptor into the wall socket.
Step 6: Turn on the power on at the wall socket. If your modem has a power switch at the rear, please
turn it on now (See Figure 2).
Step 7: Turn on your computer.
Step 8: Open your internet browser (eg Internet Explorer) and enter the address
Enter admin for both User Name and Password to log in to modem configuration.
Step 9: You should see the screen as shown:
If your Model is NB6W
Authentication Required x
?
Enter username and password for "NetComm NB6W Wireless ADSL2+ Router" at
http://192.168.1.1
User Name:
admin
Password:
*****
Use Password Manager to remember this password
OK Cancel
Step 10: Enter your ISP provided username and password as shown. Then click Connect or Apply.
Depending on your model you should now see the time connected next to "Online Time" or a green
light."
Connect to Internet
Your DSL router is ready to connect to ADSL.
Enter your ADSL user name and password, then click "Connect"
Internet Connection: pppoa_0_100
Total Online Time: 23 sec
ADSL User Name
user@ISP.co.nz
Password ******
Connect
Congratulations- You are now connected and ready to use the internet!
http://192.168.1.1
If your Model isNB5PLUS4 or NB5PLUS4W
Please Log In to continue
Log In
Modem Username:
admin
Modem Password:
******
Log In
EasyConfig
Quick Settings
Protocol: PPPoA VC-Mux
ISP Username: user@isp.co.nz
ISP Password: ********
VPI:
0
VCI:
100
Connection Status:
Apply Cancel
Advanced Settings
Wireless Security (NB5PLUS4W and NB6W only)
By default wireless is activated on your modem and a minimum security level has been enabled to help
prevent unauthorized wireless access.
• The default wireless security is enabled.
• The default wireless SSID (network name) is "wireless" .
• The default WEP key is: a1b2c3d4e5.

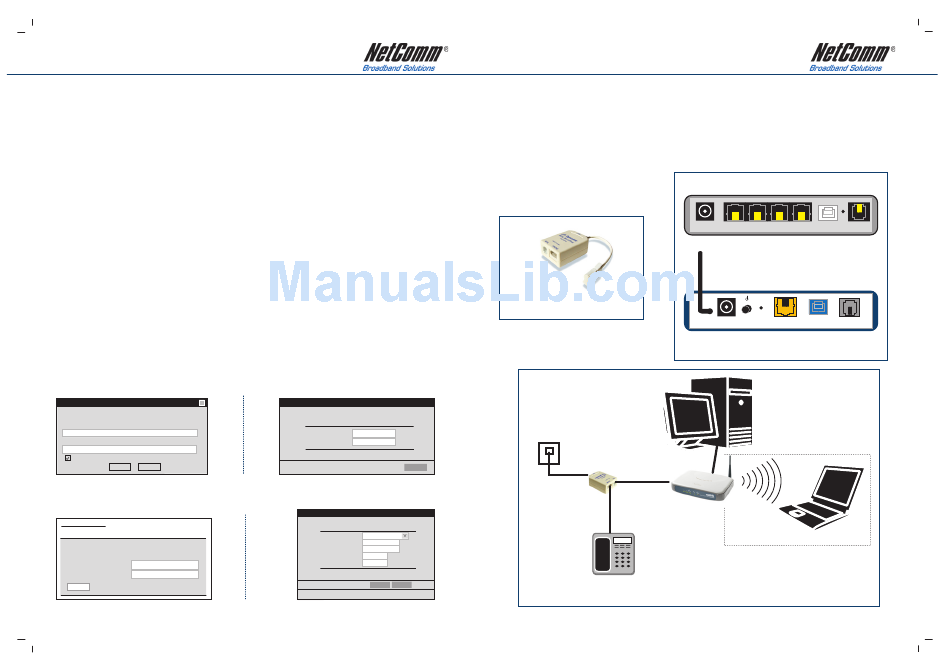

Figure 1: ADSL Line Filter
Jack Point
Computer
ADSL Line Filter
Phone Cable1
Phone
Modem/Router
Cable
Home Telephone or Fax
Figure 3: FINAL SETUP DIGRAM
Figure 2: View of the back of the modem
Power Ethernet USB Line
NB5PLUS4 and NB5PLUS4W
Power Ethernet USB Line
NB6W
Ethernet
cable
Laptop
NB5PLUS4W and NB6W only
