Summary of Contents for Kustom KDA50

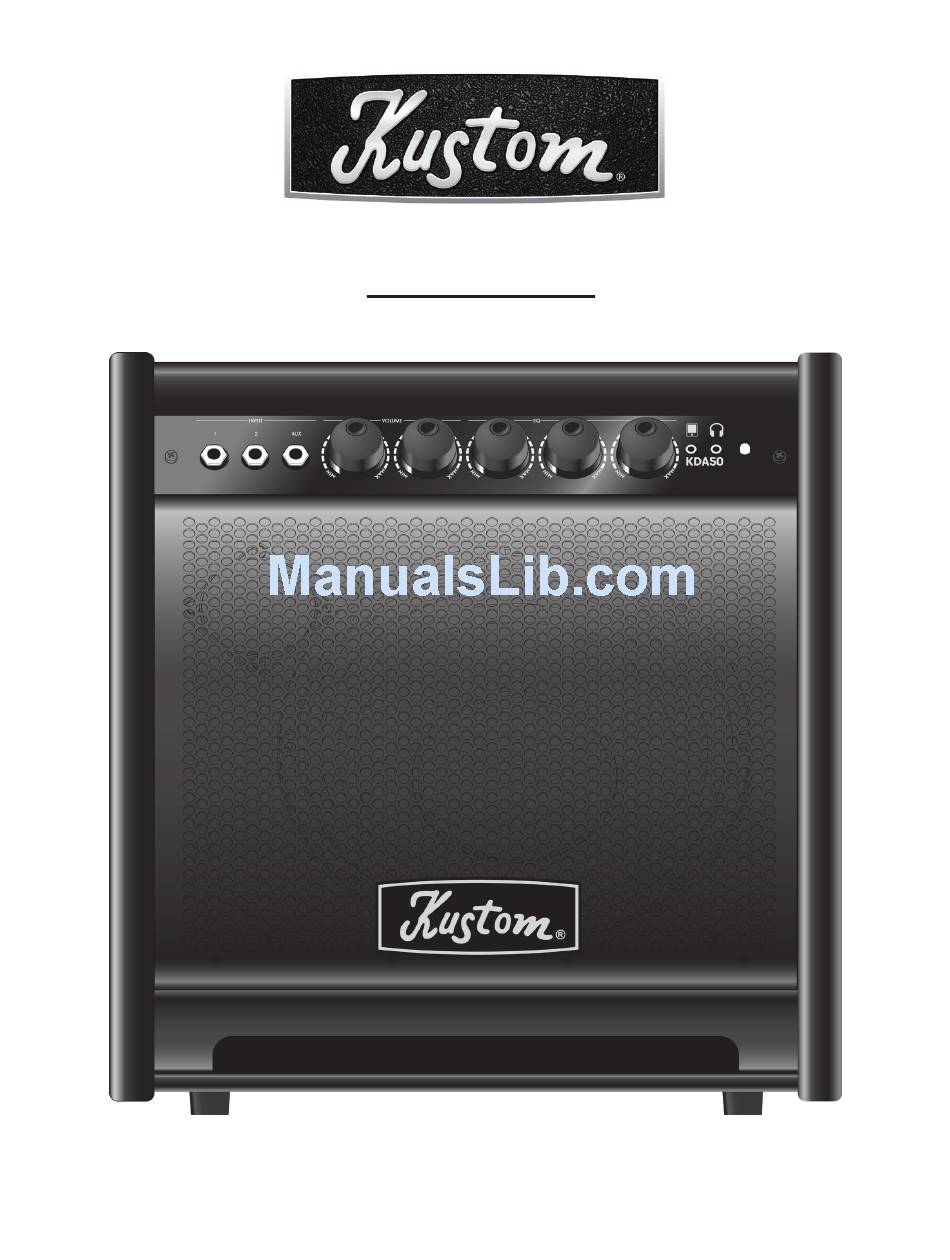

Page 1

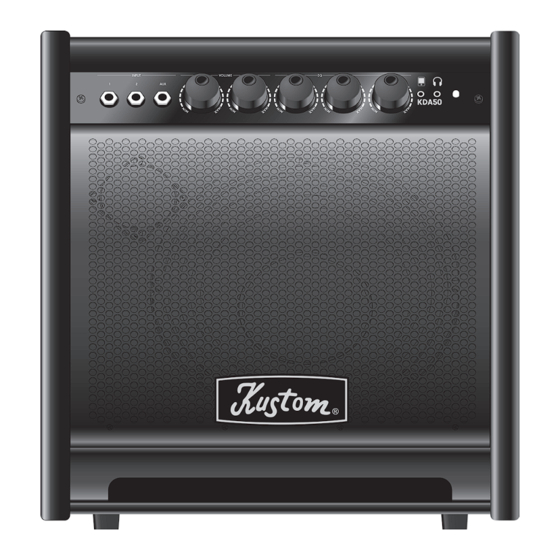

Congratulations on the purchase of your KDA50. Your KDA Model draws on decades of amp design and manufacturing experience at Kustom. This model was built from the ground up to offer world-class tone, useful features and reliable performance. Inside this manual, you’ll find valuable information about the amp’s controls and specifications.
IMPORTANT SAFETY INSTRUCTIONS Danger 1. Read all safety and operating instructions before Exposure to extremely high noise levels may cause a using this product. permanent hearing loss. Individuals vary considerably to noise 2. All safety and operating instructions should be kept induced hearing loss but nearly everyone will lose some for future reference.
Page 4
IMPORTANT SAFETY INSTRUCTIONS FRENCH Lire avec attention toutes les recommandations et précautions d'emploi avant d'utiliser ce produit. Danger Toutes les recommandations et précautions d'emploi L‘exposition a des niveaux eleves de bruit peut provoquer une doivent être conservées afin de pouvoir s'y reporter si perte permanente de l’audition, Chaque organisme humain nécessaire.
EC Declaration of Conformity Kustom Musical Amplification INC. 3015 Kustom Drive Hebron, Ky 41048 Tel: 1-859-817-7164 Fax: 1-859-817-7199 Declare that the product Product name: Kustom Product model number: KDA50 to which this declaration relates is in conformity with the following standards;...
Page 6
3) 1-2 Volume: This controls the volume level of the Drum Inputs to the power amplifier. 4) Aux Volume: This controls the volume level of the Aux Input. Equalization Section: These control the overall tone of the KDA50 drum amplifier. 5) Low: This controls frequencies centered at 60Hz with a +/-12 dB sweep.
Page 7
1) AC POWER CORD RECEPTACLE: Insert the AC cord (provided) firmly into the AC connector. NOTE: Replace the AC power cord if protective jacket is damaged or ground pin is damaged or removed. The fuse is located in a housing just below the receptacle. Replace only with same type and size. To remove the fuse, remove AC power cord and pull out on the tab above the fuse symbol located on the fuse carriage.
Page 8
Special design 8 ohm rated 100W RMS Speakers 2.5 inch (64mm) Tweeter Special design piezo Dimensions English In. 15 1/2" Deep, 15 1/2" Wide, 16.25" Tall (including feet) Dimensions Metric cm 394mm Deep, 394mm Wide, 413m Tall (including feet) Weight 31.4 lbs/14.3 Kg KDA50 Block Diagram...
