2 HP 1200 CFM DUST COLLECTOR
MODEL: KC-3109C
INSTRUCTION MANUAL
COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-3109C and is the answer not in the manual?

Questions and answers

Summary of Contents for King Industrial KC-3109C

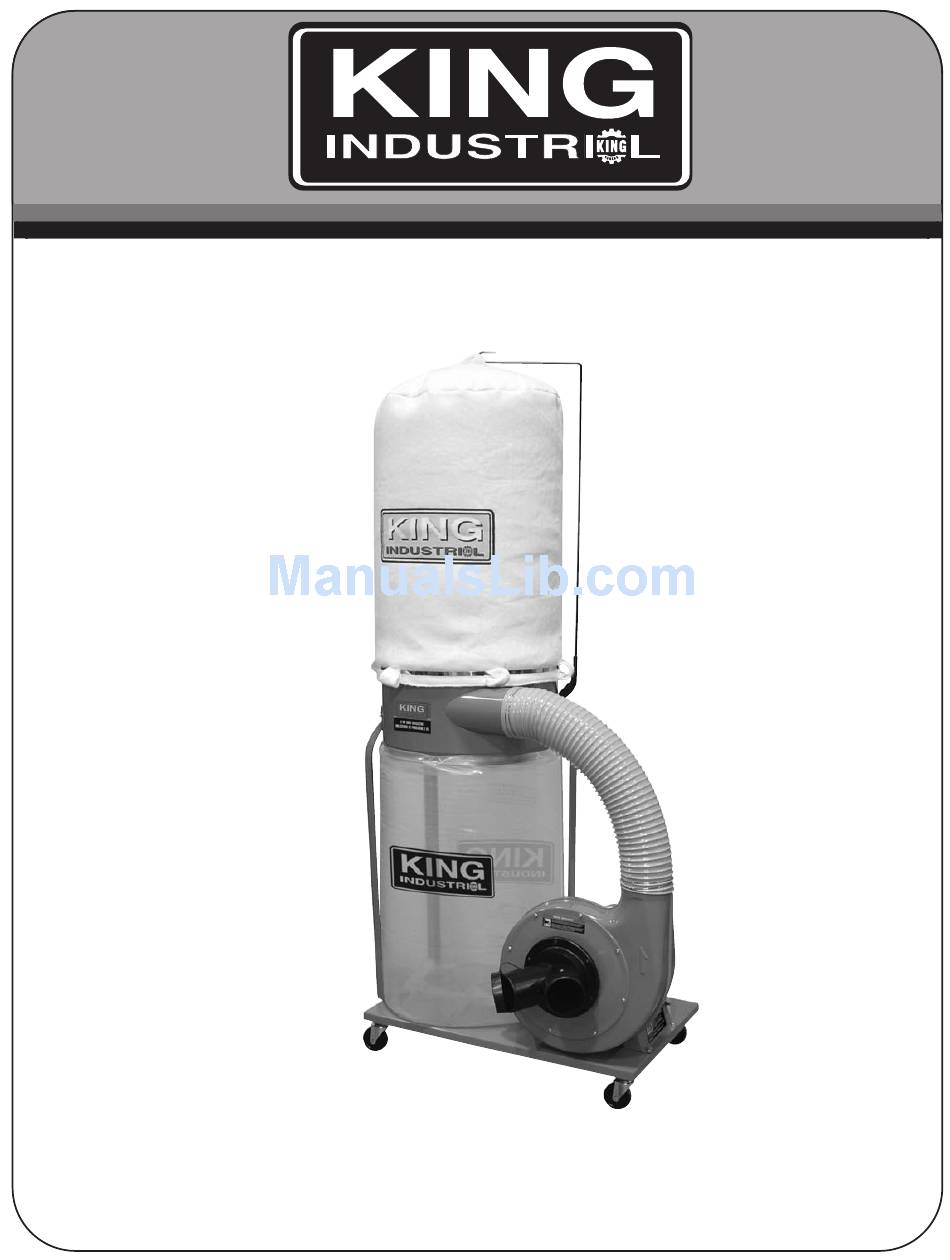

  • Page 1 2 HP 1200 CFM DUST COLLECTOR MODEL: KC-3109C INSTRUCTION MANUAL COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Warranty Information

    LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
  • Page 3: General Safety Instructions For Power Tools

    GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, thet are NOT specific potential hazards.
  • Page 4: Specifications

    SPECIFIC SAFETY INSTRUCTIONS FOR YOUR DUST COLLECTOR COMPLETED: 11) Use extra care when collecting dust on stairs. 12) To avoid injury from accidental starting, unplug power cord before 1) Assembly, mounting and alignment. changing or cleaning the filter/dust bag or the chip bag. 2) Learn the function and proper use of the ‘’ON/OFF’’...
  • Page 5: Electrical Information

    ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE DUST COLLECTOR DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 240V single phase operation PROPERLY GROUNDED OUTLET This dust collector comes with a 2 HP 240V single phase motor. WARNING: YOUR DUST COLLECTOR MUST BE CONNECTED TO A CURRENT CARRYING PRONGS 220V-240V, 1 PHASE ELECTRICAL SUPPLY.
  • Page 6 GETTING TO KNOW YOUR DUST COLLECTOR 1. Bottom dust collection bag 2. Housing 3. Dust bag strap 4. Top cloth filter bag (KC-3109C only) 5. Base plate 6. Inlet cover 7. Caster 8. Ventilation housing 9. Hose 10. Motor 11. On/Off switch UNPACKING 1.
  • Page 7 ASSEMBLY 1. Install the four casters (A) Fig.5 to the under side of the base (B). Do not remove the lock washers and nuts from caster roller shafts; these act as spacers. Insert caster shaft into threaded hole on the underside of the base, turn until it is snug, then tighten nut with wrench.
  • Page 8 (D). Before attaching the third support bracket, place hanger bracket (E) between the support bracket and the housing as shown (KC-3109C only). Tighten all bracket nuts and bolts at this time. FIGURE 9 7. Slide hose clamps (A) Fig.10 onto each end of the hose (B). Attach hose between the fan housing (C) and the main housing (D).
  • Page 9: Maintenance And Troubleshooting

    MAINTENANCE & TROUBLESHOOTING MOTOR some dust to escape. This is normal and will stop after a short period Excessive dust in the motor could cause excessive heat. Every effort of time. should be made to prevent foreign material from entering the motor. A visual inspection should be made at frequent intervals.
