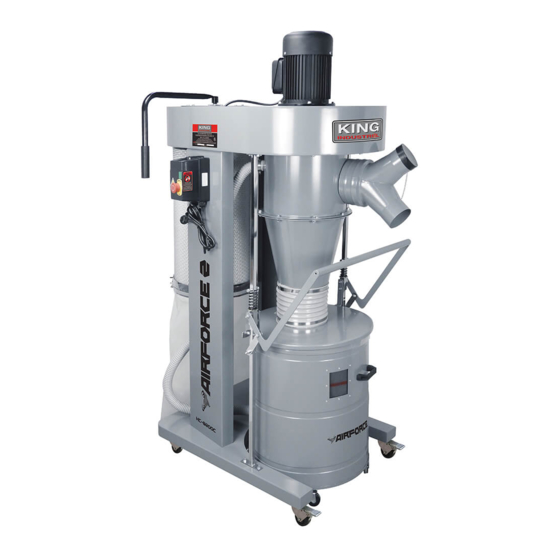

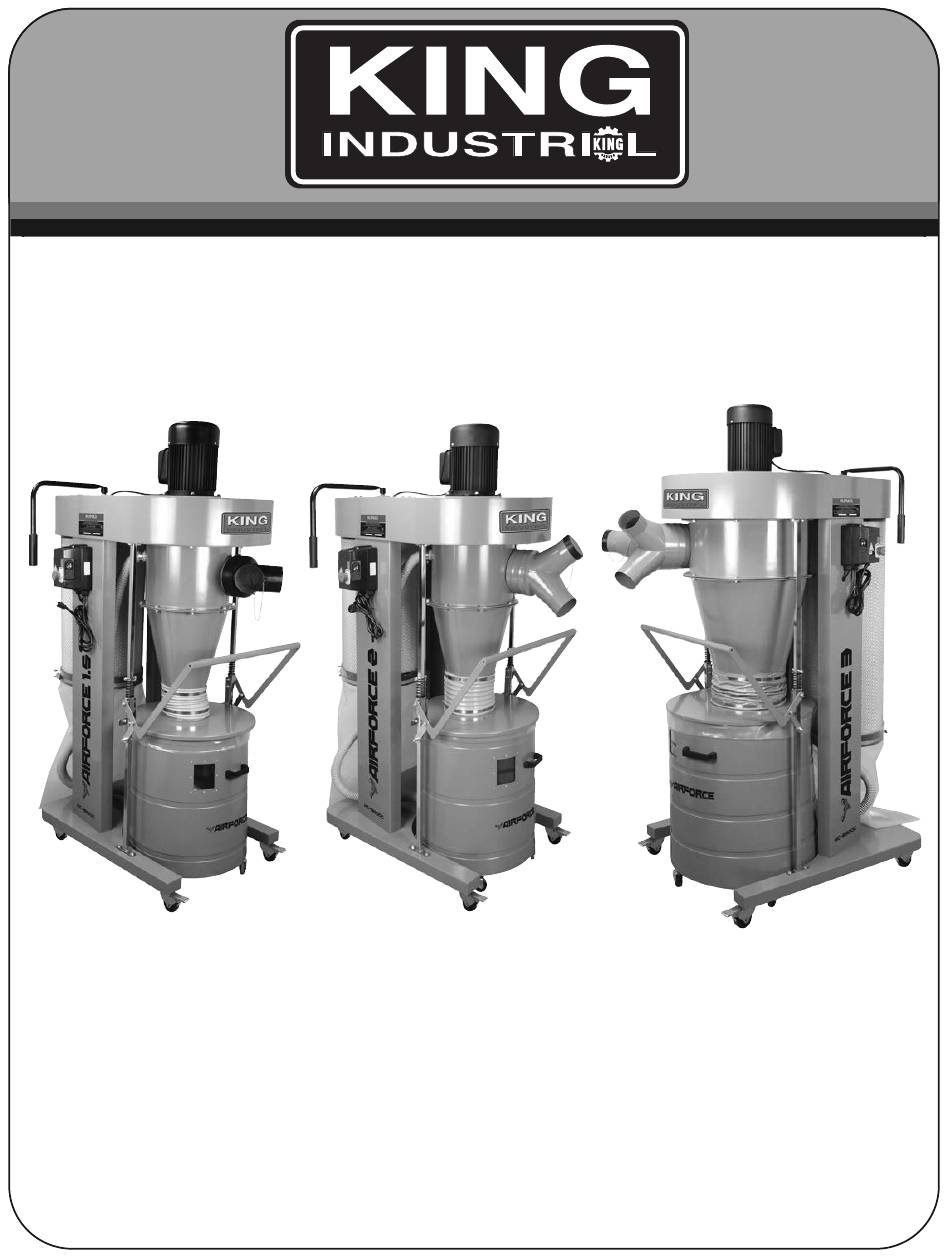

- Page 1 CYCLONE DUST COLLECTORS MODEL: KC-8150C MODEL: KC-8200C MODEL: KC-8300C (1.5 HP-120V) (2 HP-240V) (3 HP-240V) INSTRUCTION MANUAL COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THESE CYCLONE DUST COLLECTORS FOR COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, they are NOT specific potential hazards. -
Page 4: Before Each Use
SPECIFIC SAFETY INSTRUCTIONS FOR YOUR CYCLONE DUST COLLECTOR 11) Use extra care when collecting dust on stairs. 2) Plan your work to protect your eyes, hands, face, ears and body. 12) To avoid injury from accidental starting, unplug power cord before changing or cleaning the drum plastic bag or the canister filter 3) WEAR SAFETY GOGGLES. -
Page 5: Electrical Information
FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! KC-8150C information. 1.5 HP Cyclone Dust Collector. 120V single phase operation. LENGTH OF WIRE SIZES REQUIRED The KC-8150C Cyclone Dust Collector comes with a 1.5 HP 120V single EXTENSION CORD (AMERICAN WIRE GAUGE) phase motor. 110V-120V LINES ONLY 0-25 FEET NO.14... - Page 6 4. Magnetic switch & remote 5. Canister filter handle (for cleaning) 6. Motor 7. Hose inlet- with cap KC-8150C- 2 x 4” / 1 x 6” KC-8200C- 2 x 4” / 1 x 7” KC-8300C- 3 x 4” / 1 x 8” 8. Collector 9.
- Page 7 Carefully remove all components and hardware bags from the carton. Note: The following assembly instructions will illustrate the assembly of the 1.5 HP Cyclone Dust Collector model KC-8150C. The assembly instructions for all three models are identical. 1. Secure each wheel (A) Fig.4 to each corner of the base (B) using 4 flange head hex.
- Page 8 ASSEMBLY 5. The following assembly MUST be performed by a minimum of two people. Lift up the main impellor housing (A) Fig.7 and position it over the left and right columns (B) and drum lid supports (C) as shown. 6. Secure the main impellor housing (A) Fig.7 to the columns (B) using 8 flange head hex.
- Page 9 ASSEMBLY 12. Locate the drum (A) Fig.10 and install the 4 casters (B) under the drum by simply screwing them into the base. Use a wrench to tighten each caster. 13. Place the large drum bag (C) Fig.10 inside the drum and fold the edges as shown.
- Page 10 ASSEMBLY 16. Install handle shaft (A) Fig. 12 on canister filter shaft, tighten cap screws (B). Make sure one cap screw is tightened against the flat of the canister filter shaft. FIGURE 12 17. Position the canister filter under the main impeller housing and secure it using the 6 flange head hex.
-
Page 11: Assembly And Operation
ASSEMBLY & OPERATION 21. Install magnetic switch (A) Fig.16 to the left column (left column has an opening (B) to insert magnetic switch quick connect cord). Remove the magnetic switch cover (C) by removing the two screws (D) that secure it to the switch. -
Page 12: Maintenance
REPLACEMENT DRUM BAGS AND CANISTER FILTER BAG KIT A 6pc. kit including 5 drum bags and 1 canister filter bag is available for each Cyclone Dust Collector as follows: KDCB-82 (fits KC-8150C and KC-8200C) KDCB-83 (fits KC-8300C) Contact your distributor of King Canada products for more information.
