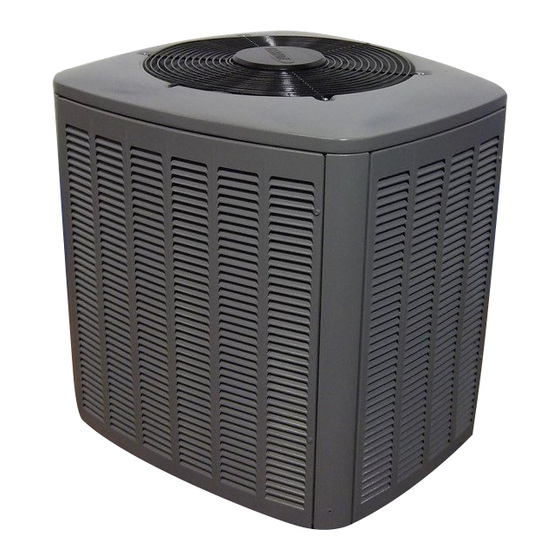

Lennox XC14 Engineering Data

Elite series
Hide thumbs Also See for XC14:

Advertisement

Quick Links

See also: Instruction and Installation Manual
E N G I N E E R I N G D A T A

MODEL NUMBER IDENTIFICATION

Refrigerant Type
X = R-410A
Unit Type
C = Air Conditioner
X C 14 - 036 - 230 - 2
Series
A I R C O N D I T I O N E R S
Cooling Capacity - 16,900 to 58,000 Btuh
Voltage
230 = 208/230V-1phase-60hz
Nominal Cooling Capacity
018 = 1.5 tons
024 = 2 tons
030 = 2.5 tons
036 = 3 tons
041 = 3.5 tons
042 = 3.5 tons
047 = 4 tons
048 = 4 tons
060 = 5 tons
XC14
ELITE
Series
®
R-410A
Bulletin No. 210484
November 2010
Supersedes October 2010
SEER up to 16.50
1.5 to 5 Tons
Minor Revision Number
