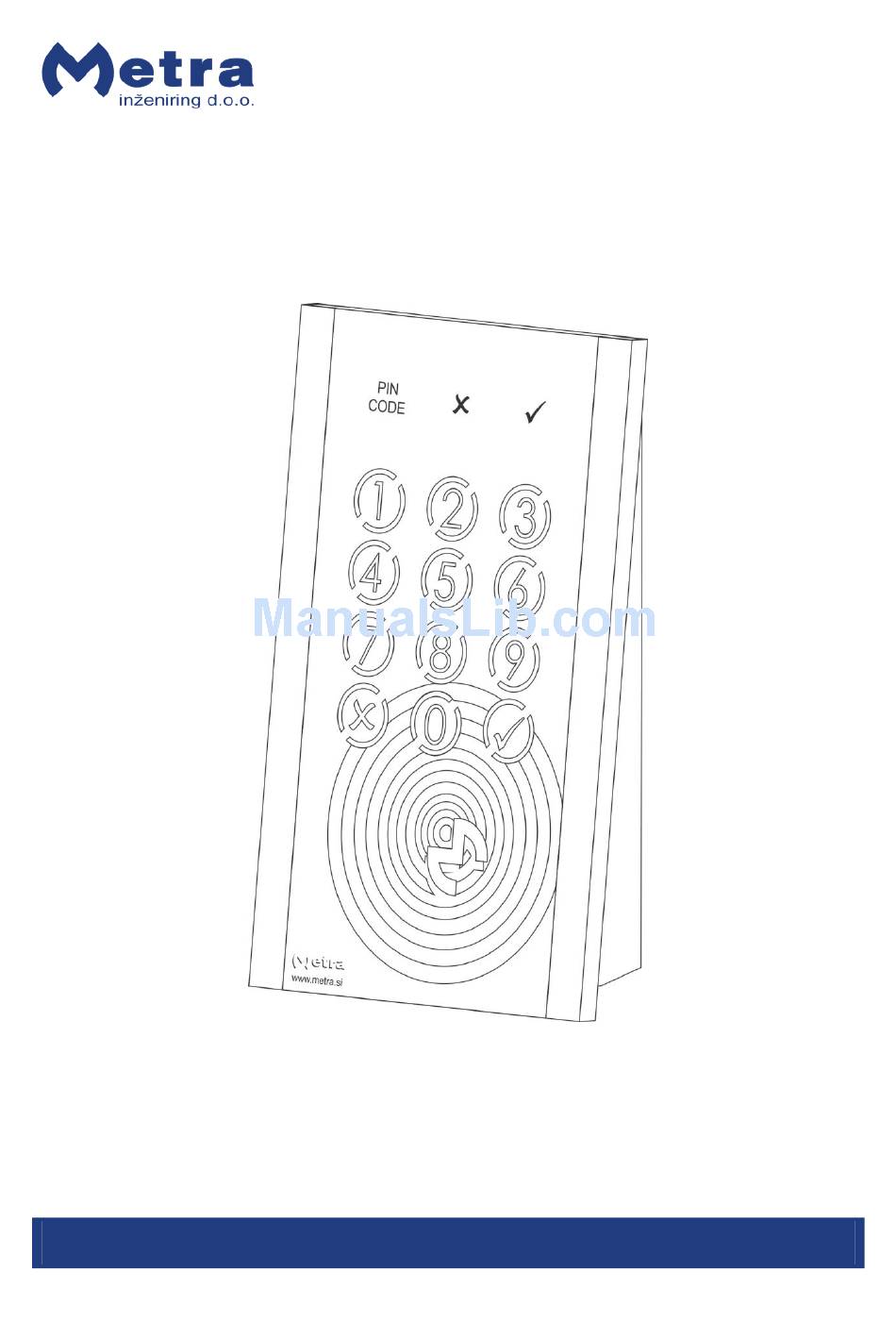

- Page 1 Door Access Terminal Combo Technical Manual...
-
Page 2: Table Of Contents
Door Access Terminal Combo Technical Manual Table of contents Door Access Terminal Combo Technical Manual ..................3 Product description ..........................3 Basic Parts ............................4 Door Access Terminal Combo user interface ................... 4 Door Access Terminal Combo control module ................4 6 pole connection cable ........................ -
Page 3: Door Access Terminal Combo Technical Manual
The contents of this manual are subject to change without notice. All efforts have been made to ensure the accuracy of the contents of this manual, however, should any errors be detected, Metra inženiring would greatly appreciate being informed of them. -
Page 4: Basic Parts
Door Access Terminal Combo Technical Manual Basic Parts Door Access Terminal Combo user interface Door Access Terminal Combo control module 6 pole connection cable 6 pole round to flat cable used to connect Door Access Terminal user interface to the control module. -
Page 5: Installation
Door Access Terminal Combo Technical Manual Installation User interface STEP 1: User interface can be mounted over an electrical box or directly to the wall. See appendices for exact dimensions and mounting holes positions for the user interface. -
Page 6: Control Module
Door Access Terminal Combo Technical Manual STEP 4: Connect the cable from the control module to the connector on the back of the user interface device. STEP 5: Attach the user interface to the metal wall mount and with 2mm hex screwdriver / inbus key lock it in place. - Page 7 STEP 2: Thread the wires (power, network, door lock, etc.) to the installation point. NOTE: Example on the photo shows wires for Metra NET Network, power, connection cable for user interface and electronic door lock. STEP 3: Attach the control module to the surface.
-
Page 8: Connections
Door Access Terminal Combo Technical Manual Connections User interface description User interface – control module communication Control module description description Metra NET Network Not Used Page 8... -
Page 9: Power Supply Connection
(UTP) cable. Total length of the twisted pair cable is limited to 1 km. One Network Line Terminator must be connected at the far end of the network cable. See also “Metra NET Network – Installation Manual” for different wiring schemes. -
Page 10: User Interface Connection
Door Access Terminal Combo Technical Manual User interface connection CONTROL MODULE Connect the connection cable to the terminal marked “READER”. USER INTERFACE Connect the connection cable to the terminal marked “READER IN”. Electronic door lock connection Set the relay output jumpers on the device or on the relay module according your electronic door lock. -
Page 11: Tamper Sensor Connection
Door Access Terminal Combo Technical Manual Tamper sensor connection Connect the tamper switch cable to the terminals marked “TAMP” on the control module. Push-button connection Connect the cable from “normally open” Push-button to the terminals marked “TIPKA” on the control module. -
Page 12: Dip Switch Settings
Parameters request button By changing the DIP Switch pins position, different operating modes and device’s Metra NET Network address can be set. To change between different pins positions, use a small flat headed screwdriver or similar object to push DIP switch pins to desired position. - Page 13 Door Access Terminal Combo Technical Manual 1 indicates the corresponding switch is in ON position (switch up) Coding table: switch positions switch positions address address Page 13...
-
Page 14: Operating Indicator
Door Access Terminal Combo Technical Manual Operating indicator When the unit is running a blue OPERATE signal light is flashing. Keypad illumination is ON or OFF, depending on the type of the system. Metra Electronic locking systems Metra Access Control systems ... -
Page 15: Signalization Lights
PIN CODE signal Keypad illumination NO signal OPERATE (Power) signal OK signal For more about signalization lights see “Door Access Terminal Combo – User Manual.pdf”. Operating parameters Parameter Value (Default) Description Signal Time 1 – 30 (6) Signalization duration in seconds. -
Page 16: Setting Operational Parameters - Via Metra Net Network
There are various ways of setting the operating parameters. Setting Operational parameters - via Metra NET Network Operating parameters are obtained through the Metra NET Network. The server must be set up and running for that purpose. To obtain operating parameters, press the PARAMETERS REQUEST button (number in the paragraph “DIP switch settings”). -
Page 17: Technical Data
Door Access Terminal Combo Technical Manual Regular cleaning is recommended. The user interface should be cleaned using soft cloth and dedicated cleaners for plastic surfaces e.g. car dashboard cleaning agents. Do not use any aggressive or abrasive agents or solvents as they might cause permanent damage to the device surface. - Page 18 Door Access Terminal Combo Appendix 1 Physical dimensions User interface...
- Page 19 Door Access Terminal Combo Appendix 2 Physical dimensions Control module...
- Page 20 Door Access Terminal Combo Appendix 3 Physical dimensions User interface mounting holes...
- Page 21 Door Access Terminal Combo Appendix 4 Physical dimensions Control module mounting holes 36.7...
- Page 22 Door Access Terminal Appendix 5 Inner connections...
- Page 23 Door Access Terminal Appendix 6 Electric installation schematic ceiling 12 V DC 12V DC in must be prepared power requirements: by a certified electrician! 0.5A + electric lock consumption for each connected unit 2 x 0.5 mm 12V DC to other units DAT Control Module UTP CAT5 CAN Network out...
