Amrel RF886EX User Manual

17” notebook computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
American Reliance, Inc.
17" NOTEBOOK COMPUTER
RF886EX
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF886EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amrel RF886EX

Summary of Contents for Amrel RF886EX

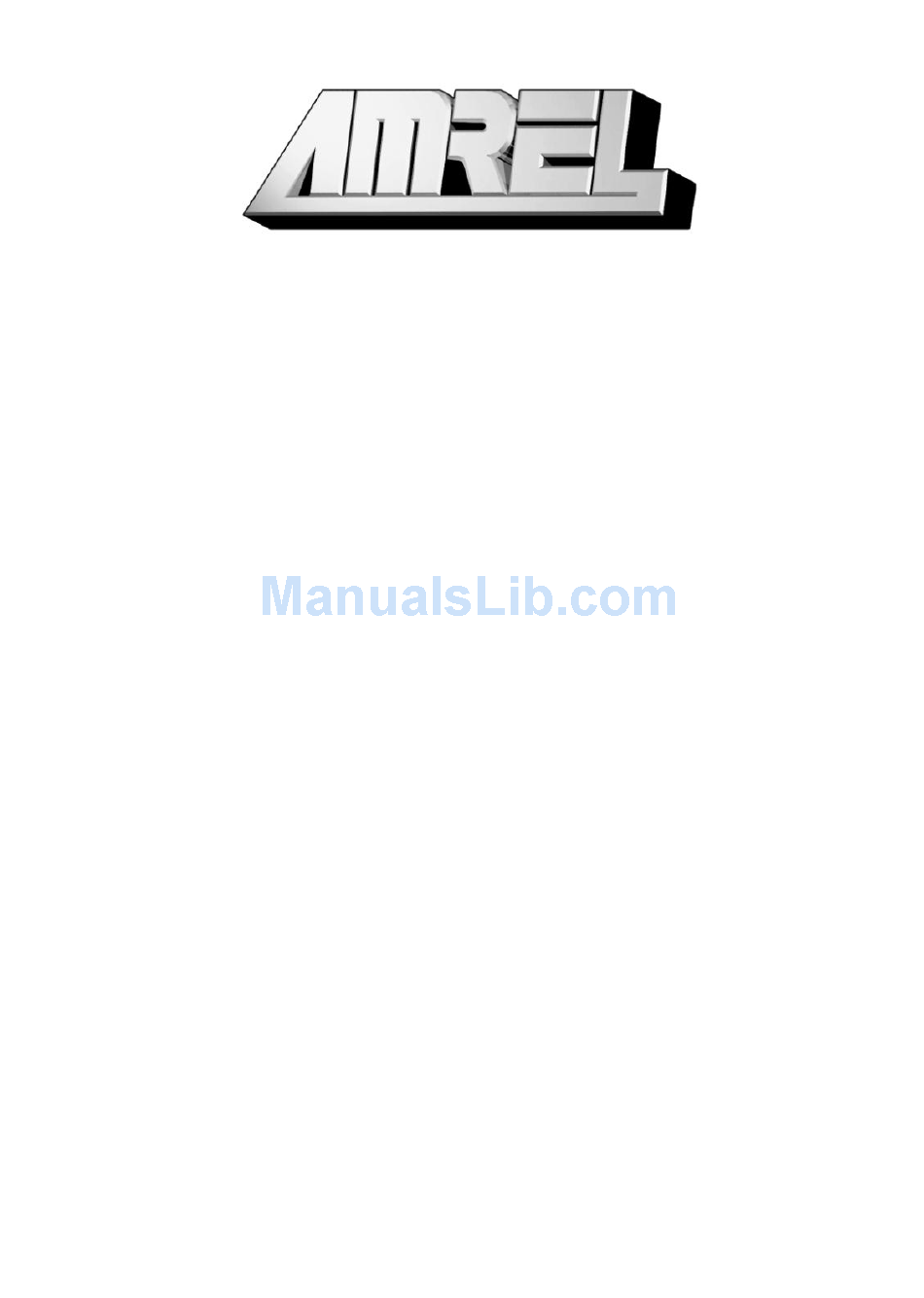

  • Page 1 American Reliance, Inc. 17” NOTEBOOK COMPUTER RF886EX USER’S GUIDE...
  • Page 2 Copyright © 2008 American Reliance, Inc. (AMREL) All rights reserved. No part of this publication may be processed; such as reproduced, transmitted, transcribed, stored in a retrieval system, translated into any computer language in any form, or by any means of electronic, mechanical, magnetic, optical, chemical, or others without the prior written permission of the manufacturer.

  • Page 3: Federal Communications Commission Statement

    EMC and Safety Notice Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Important Note FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operated with any other antenna or transmitter. Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
  • Page 5 and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards. EN 300 328 V.1.4.1 (2003-04) EN 301 489-1 V.1.4.1 (2002-04)/EN 301 489-17 V.1.2.1 (2002-04) EN 50371:2002 EN 60950:2000 UL, TÜV...

  • Page 6: Power Conservation

    Power Conservation This computer consumes much less power than conventional computers. However, power consumption may be reduced by properly configuring the Power Management Setup. It is recommended the power saving functions be enabled even when not running on battery power. Power Management does not degrade performance while saving power.

  • Page 7: Table Of Contents

    CONTENTS GETTING STARTED ........................1 ........................... 1 NPACKING ........................2 UICK PERATION ......................3 ONTROLS AND NDICATORS USEFUL INFORMATION ......................7 ............................. 7 OCATION ..........................7 UGGEDNESS ........................8 PERATING YSTEMS AC A ..........................8 DAPTER ............................9 ATTERY POST ........................11 P AND ....................
  • Page 8 ............................. 19 EMORY ............................19 ISPLAY ..........................20 EYBOARD ........................20 RIVE CD-ROM D ......................... 20 RIVE ............................ 20 PORTS AC A ..........................21 DAPTER ........................21 EHICLE DAPTER ............................ 21 ATTERY ..................21 YSTEM IMENSIONS AND EIGHT ...................... 22 ATERIALS AND ECYCLING ........................
  • Page 9 ........................... 45 LEANING ........................45 ROUBLESHOOTING RMA S ..........................45 ERVICE...

  • Page 10: Getting Started

    Getting Started GETTING STARTED Unpacking The following components come with your computer. If anything is missing or damaged, please notify the dealer immediately. Computer unit Removable drive installed on computer (CD-ROM/DVD) AC Adapter AC Power Cord Utility CD User's Guide External Keyboard Adapter Cable Printer adapter cable Carrying Bag...

  • Page 11: Quick Operation

    Getting Started Quick Operation Loosen the battery screw, remove the battery insulation sheet, and mount the battery. Attach the AC adapter and charge battery for at least 10 minutes. Turn ON the computer by pressing the power switch momentarily. Notice: When ambient temperature is under 0℃, the system may not boot up immediately.

  • Page 12: Controls And Indicators

    Getting Started Controls and Indicators Controls and Indicators (Upper) 1. Heater 2. BT/WLAN/GPS 3. Keyboard Number Lock 4. Keyboard Caps Lock 5. Keyboard Scroll Lock 6. HDD in use 7. Secondary Battery Charge 8. Primary Battery Charge 9. Power indicator 10.
  • Page 13 Getting Started Controls and Indicators (Right) CD-ROM Drive Configuration: 1. CD-ROM eject button 2. CD-ROM in use Battery Configuration: (optional) No special control or indicator.
  • Page 14 Getting Started eft)-Standard Controls and Indicators (L 1. External Keyboard + PS/2 port 2. Giga LAN Jack 3. IEEE1394 port (Fire Wire) 4. USB port (Universal Serial Bus) 5. USB port (Universal Serial Bus) 6. USB port (Universal Serial Bus) 7.
  • Page 15 Getting Started Controls and Indicators (Rear) 1. Optional Military connector port 2. DC Power Jack 3. External DVI port 4. External RGB Monitor Port 5. Printer/External FDD Port* 6. Docking Port 7. Serial Port COM2 8. Serial Port COM1 *: The port is a dual function port and default as printer output. System will detect the device attached then switch to proper output automatically.

  • Page 16: Useful Information

    Useful Information USEFUL INFORMATION Location A clean and moisture-free environment is preferred. Make room for air circulation. Avoid areas with: Sudden or extreme changes in temperature. Extreme heat. Strong electromagnetic fields (near television set, motor rotation area, etc.). Dust or high humidity. If it is necessary to work in a hostile environment, please regularly maintain your computer by cleaning dust, water, etc.

  • Page 17: Operating Systems

    Useful Information Operating Systems The computer is compatible with most operating systems (OS). However, not all functions are 100% compatible. For example, ACPI, APM, Smart Battery, etc. are not available on DOS, Windows NT, and other non-Microsoft OS. Consequently “Standby”, “Hibernation”, “Battery Gauge”, etc. would not work under such operating systems.

  • Page 18: Battery

    Useful Information Battery The computer will automatically switch to battery when the external power source (AC adapter or optional vehicle adapter) is disconnected. Battery Power Saving Tips The computer comes with an intelligent power-saving feature. You may extend the battery life by: Setup power saving functions in Operating System Power Management options (e.g.
  • Page 19 Useful Information Note: Battery characteristic varies depending on factors such as ambient temperature, charging method, load current, aging, etc. For example, the chemicals of the battery are more inactive at low temperature, thus decreases the output power. The battery gauge should only be used as a reference. Please do not expect it to show the exact amount of the power remaining.

  • Page 20: Boot Up And Post

    Useful Information Boot Up and POST The computer turns ON and loads the operating system (such as Windows) into the system memory. This start-up procedure is called “boot up”. The ROM BIOS Power On Self-Test (POST) Each time the computer powers on, it automatically performs a self-test of its memory and hardware devices.

  • Page 21: Dvi

    Useful Information LCD and DVI monitor simultaneous display needs both BIOS and Windows settings. BIOS setting: Advanced->Boot up display->"EFP" or "CRT+EFP" (EFP=DVI) The available BIOS options are as follows only: CRT+LCD CRT+EFP (No simultaneous LCD+CRT+EFP) Windows setting: Control panel -> Intel(R) Extreme Graphics -> select under Device Display resolution of notebook LCD and DVI monitor must be identical.

  • Page 22: Replacing Modules

    Useful Information Replacing Modules Caution: You must turn the power OFF before replacing the CD-ROM and HDD modules. To remove the modules: 1. Turn OFF the computer or hibernate. 2. Disconnect all cables from the computer. 3. Use a coin to turn and loose the screws on the modules. 4.

  • Page 23: Components And Functions

    Components and Functions COMPONENTS AND FUNCTIONS Keyboard The keyboard is functionally equivalent to a full size desktop keyboard. A sample key layout is shown below. The Numeric Keypad The numeric keypad functions like an electronic calculator. It is embedded in the main keyboard, with the numeric figures printed on the upper right of their respective keys.

  • Page 24: Printer Cable

    Components and Functions Keyboard Backlight (optional) Press [Fn] [F5] key for approximately 1 second turns keyboard backlight ON or OFF. Printer Cable For most printers there is no special requirement in connection. However, some printer cables do not contain all 25 wires. To avoid malfunction, the printer adapter cable comes with your computer should be attached to the printer cable.

  • Page 25: Cd-Rom Drive

    Components and Functions CD-ROM Drive The CD-ROM drive is a standard IDE ATAPI type, which accepts a variety of standard 12cm CDs such as CD-ROM, audio CD, CD-I, Photo CD, video CD, etc. The following procedure assumes that all the necessary CD-ROM utilities were installed on the computer.

  • Page 26: Optional Devices

    Optional Devices OPTIONAL DEVICES Memory Card The memory card will expand your memory to facilitate better system performance. The cards are available as following: 1 GB, 2 GB Battery A Lithium Ion rechargeable 2 battery may install into the CD-ROM compartment.

  • Page 27: Nd Hdd

    Optional Devices Swappable with CD-ROM drive. Set as IDE primary slave drive. PCMCIA Cover Besides the attached PCMCIA rubber cover, there is an optional cover with a metal frame that can be fixed using screws. The cover provides protection from dust or water for cabled PCMCIA cards.

  • Page 28: Specifications

    Specifications SPECIFICATIONS Intel Core2 Duo (Merom) CPU runs at multiple speeds dependent on CPU type and operating system: The CPU speed switches automatically by detecting AC adapter/battery operation and busy state. Memory System memory Standard: 512MB Expandable: 4GB (2GBx 2) Cache memory Internal Level-2: 2MB Video memory...

  • Page 29: Keyboard

    Specifications Keyboard Number of keys: Key travel: 2.5 mm (standard) 1.5 mm (optional backlight) Function: Emulates standard 101/102-key keyboard Hard Disk Drive 2.5” Type: Interface: Serial ATA CD-ROM Drive Speed: 24 X Interface: (ATAPI) Data transfer rate: 16.7MB/sec Modes: CD-ROM mode 1 & 2, CD-Audio, VCD, Multi- session Photo CD Dimensions: 128mm (W) x 130mm (D) x 12.7mm (H)

  • Page 30: Ac Adapter

    Specifications AC Adapter Voltage: AC 90~240 V Frequency: 50/60 Hz Output Voltage: DC 19V Maximum Power: 90 Watts Dimension: 130mm (W) x 60mm (D) x 34mm (H) Weight: 430 g (0.9 lb.) Vehicle Adapter Input Voltage 12V/24V (12~32V) Auto-sense Input Current 9A max.

  • Page 31: Materials And Recycling

    Specifications Weight: 5.5Kg (1.1 lb. including CD-ROM drive and primary battery) Note: Weight varies depending on system configurations. Materials and Recycling Materials of the computer are as follows: Cabinet: Magnesium alloy AZ91D, UL grade PC+ABS GE C6200 or TN-3813BW Bracket: Aluminum 5052, Steel with Nickel plating, or Stainless Steel S304 Cushion pad: Rubber...

  • Page 32: Bios Setup

    BIOS Setup BIOS SETUP Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options and [+/-] to modify them. When finished, move to ”Exit” and press [Enter] then confirm save by pressing [Y]. Main Menu Phoenix TrustedCore (tm) Setup Utility Main Advanced...

  • Page 33: Ide Channel 0 Master Sub-Menu

    BIOS Setup IDE Channel 0 Master Sub-Menu Phoenix TrustedCore (tm) Setup Utility Main IDE Channel 0 Master [None] Item Specific Help Type: [Auto] User = you enter parameters LBA Format of hard-disk drive installed Total Sectors: 78140160 at this connection. Maximum Capacity: 40008MB SATA1 Auto = autotypes hard-disk...

  • Page 34: Ide Channel 0 Slave Sub-Menu

    BIOS Setup IDE Channel 0 Slave Sub-Menu Phoenix TrustedCore (tm) Setup Utility Main IDE Channel 0 Slave [None] Item Specific Help Type: [Auto] User = you enter parameters of hard-disk drive installed Multi-Sector Transfers: [Disabled] at this connection. LBA Mode Control: [Disabled] Auto = autotypes hard-disk 32 Bit I/O:...

  • Page 35: Ide Channel 1 Master Sub-Menu

    BIOS Setup IDE Channel 1 Master Sub-Menu Phoenix TrustedCore (tm) Setup Utility Main IDE Channel 1 Master [None] Item Specific Help Type: [Auto] User = you enter parameters of hard-disk drive installed Multi-Sector Transfers: [Disabled] at this connection. LBA Mode Control: [Disabled] Auto = autotypes hard-disk 32 Bit I/O:...

  • Page 36: Ide Channel 1 Slave Sub-Menu

    BIOS Setup IDE Channel 1 Slave Sub-Menu Phoenix TrustedCore (tm) Setup Utility Main IDE Channel 1 Slave [None] Item Specific Help Type: [Auto] User = you enter parameters of hard-disk drive installed Multi-Sector Transfers: [Disabled] at this connection. LBA Mode Control: [Disabled] Auto = autotypes hard-disk 32 Bit I/O:...

  • Page 37: The General Help Window

    BIOS Setup The General Help Window Pressing <F1> or <Alt-H> on any menu brings up the General Help window that describes in detail the keys and functions for setup. The scroll bar on the right of any window indicates that there is more than one page of information in the window.

  • Page 38: Advanced Menu

    BIOS Setup Advanced Menu Phoenix TrustedCore (tm) Setup Utility Main Advanced Security TPM State Boot Exit Item Specific Help Legacy USB Support: [Enabled] Summary screen: [Disabled] QuickBoot Mode: [Enabled] Enable support for Legacy Extended Memory Testing [Just zero it] Universal Serial Bus IGD - Boot Type: [VBIOS Default] PS/2 Mouse...
  • Page 39 BIOS Setup Feature Options Description IGD - Boot Type VBIOS Default Select the Video Device that will be activated during POST CRT+LFP LFP-SDVO TV-SDVO CRT+LFP-SDVO CRT+EFP ’Disabled’ prevents any installed PS/2 mouse PS/2 Mouse Disabled from functioning, but frees up IRQ 12. Enable ’Enabled’...
  • Page 40 BIOS Setup Feature Options Description Processor Power Enabled Selects the Processor Power Management Management Disabled desired: GV3 only Disabled = C-States and GV3 are disabled. C-States Only GV3 Only = C-States and disabled. C-states Only = GV3 is disabled Enabled = C-States andGV3 are enabled. SIO SMC227 These items control the configuration of CONFGURATION...

  • Page 41: Sio Smc227 Configuration Sub-Menu

    BIOS Setup For most frequently altered setup “SIO SMC227 CONFIDURATION”, please refer following: Warning: Make sure internal COMx mode settings must be with the same type of the external connected devices. Otherwise it may cause serial components damage in either side. SIO SMC227 Configuration Sub-Menu Phoenix TrustedCore (tm) Setup Utility Advanced...
  • Page 42 BIOS Setup Feature Options Description COM1 mode RS232 Configure UART mode options: TTL1 [RS332]：External Device [TTL1]：Internal Device COM2 port Disabled Configure COM2 using device options: 2F8-IRQ 3 [Disabled] No configuration [2F8-IRQ 3] Set the base I/O address for COM2 COM2 mode RS232 Configure UART mode options: TTL2...
  • Page 43 BIOS Setup Feature Options Description Printer1 mode Standard Configure Printer1 mode options: Standard Printer2 Disabled Configure Printer2 device options: [Disabled] No configuration [3BC] Set the base I/O address for Printer2...

  • Page 44: Security Menu

    BIOS Setup Security Menu Warning: If you forget user/supervisor password, the computer has to send back to manufacturer and replace EEPROM to make it work again. Phoenix TrustedCore (tm) Setup Utility Main Advanced Security TPM State Boot Exit Item Specific Help Processor Serial Number [Disabled] Set Supervisor Password...
  • Page 45 BIOS Setup Feature Options Description Diskette access Supervisor Control access to diskette drives Password on boot Disabled Enables password entry on boot Enabled USB Interface Disabled Control the listed USB Functions by setting the item to the desired value. Enabled AC97 Audio Disabled Control Detection of the AC97 Audio...

  • Page 46: Rf Security Control Sub-Menu

    BIOS Setup For most frequently altered setup “RF Security Control” please refer following: RF Security Control Sub-Menu Phoenix TrustedCore (tm) Setup Utility Security RF Security Control: Item Specific Help Wireless Lan Control Wireless Lan: [Disabled] WWAN: [Disabled] GPS: [Disabled] Blue Tooth: [Disabled] –/+ ↑↓...

  • Page 47: Tpm State Menu

    BIOS Setup TPM State Menu Phoenix TrustedCore (tm) Setup Utility Main Advanced Security TPM State Boot Exit Item Specific Help Current TPM State: Enabled and Deactivated Change TPM State: [No Change] Change TPM State –/+ ↑↓ Help Select Item Change Values Setup Defaults ↔...

  • Page 48: Boot Menu

    BIOS Setup Boot Menu Phoenix TrustedCore (tm) Setup Utility Main Advanced Security TPM State Boot Exit Item Specific Help Boot priority order: 1: USB KEY: 2: USB FDC: Keys used to view or 3: IDE CD: configure devices: 4: IDE HDD: Up and Down arrows select 5: Legacy network Card a device.

  • Page 49: Exit Menu

    BIOS Setup Exit Menu Phoenix TrustedCore (tm) Setup Utility Main Advance Security TPM State Boot Exit Item Specific Help Exit Saving Changes Exit Discarding Changes Load Setup Defaults Exit System Setup and save Discard Changes your changes to CMOS. Save Changes –/+ ↑↓...

  • Page 50: Utilities And Drivers

    Utilities and Drivers UTILITIES AND DRIVERS Note: Most device drivers are available in Windows. Only when the default driver does not work properly you need to install the factory bundled drivers. The utility CD includes most drivers of the computer’s installed devices. Consult dealer if any driver is missing.

  • Page 51: Audio Driver

    Utilities and Drivers After restart and back to Settings window, choose proper Colors and Screen Area. Remark: MXM has a utility to adjust the speed. (1) There are 3 setting, 100/200/450 MHz in AC POWER SAVINGS mode. (2) There is only 100 MHz in BATT POWER SAVINGS mode. Audio Driver Windows Insert the Driver CD into the CD-ROM.

  • Page 52: Mini Pci-E 1G Rtl8111B Lan

    Utilities and Drivers Mini PCI-E 1G RTL8111B LAN Insert the Driver CD into the CD-ROM. Click Setup.exe in the directory of RF8EX\Driver\PCIe_1G Lan\2kXp3264\RTL8168_8101E_664 then follow the prompt to complete installation. Mini PCI-E Intel 3945ABG WLAN For the driver and software to function correctly on Windows, the recommendation is to install Service Pack 4 or later.

  • Page 53: Wireless Manager

    Utilities and Drivers Wireless Manager For flight safety and power saving reason, there is a utility to enable/disable RF devices Wireless LAN/WWANGPS/Bluetooth Insert the Driver CD into the CD- ROM. Click setup.exe in the directory of Utilities\Wireless Manager then follow the prompt to complete installation.

  • Page 54: Maintenance/Service

    Maintenance/Service MAINTENANCE/SERVICE Cleaning ALWAYS turn OFF the power, unplug the power cord and remove the battery before cleaning. The exterior of the system and display may be wiped with a clean, soft, and lint- free cloth. If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to the cloth and wipe.
  • Page 55 Maintenance/Service - Place and date of purchase or the original invoice number - Date of failure - A DETAILED Description of the problems you have encountered - A list of the hardware/software configuration, if applicable. 5. Clearly mark the outside of the shipping box with the RMA #. If an RMA # is not present on the shipping box, receiving will be unable to identify it and it might be returned.
  • Page 56 Recycled/Recycleable Printed in USA P/N: G630803000B...
