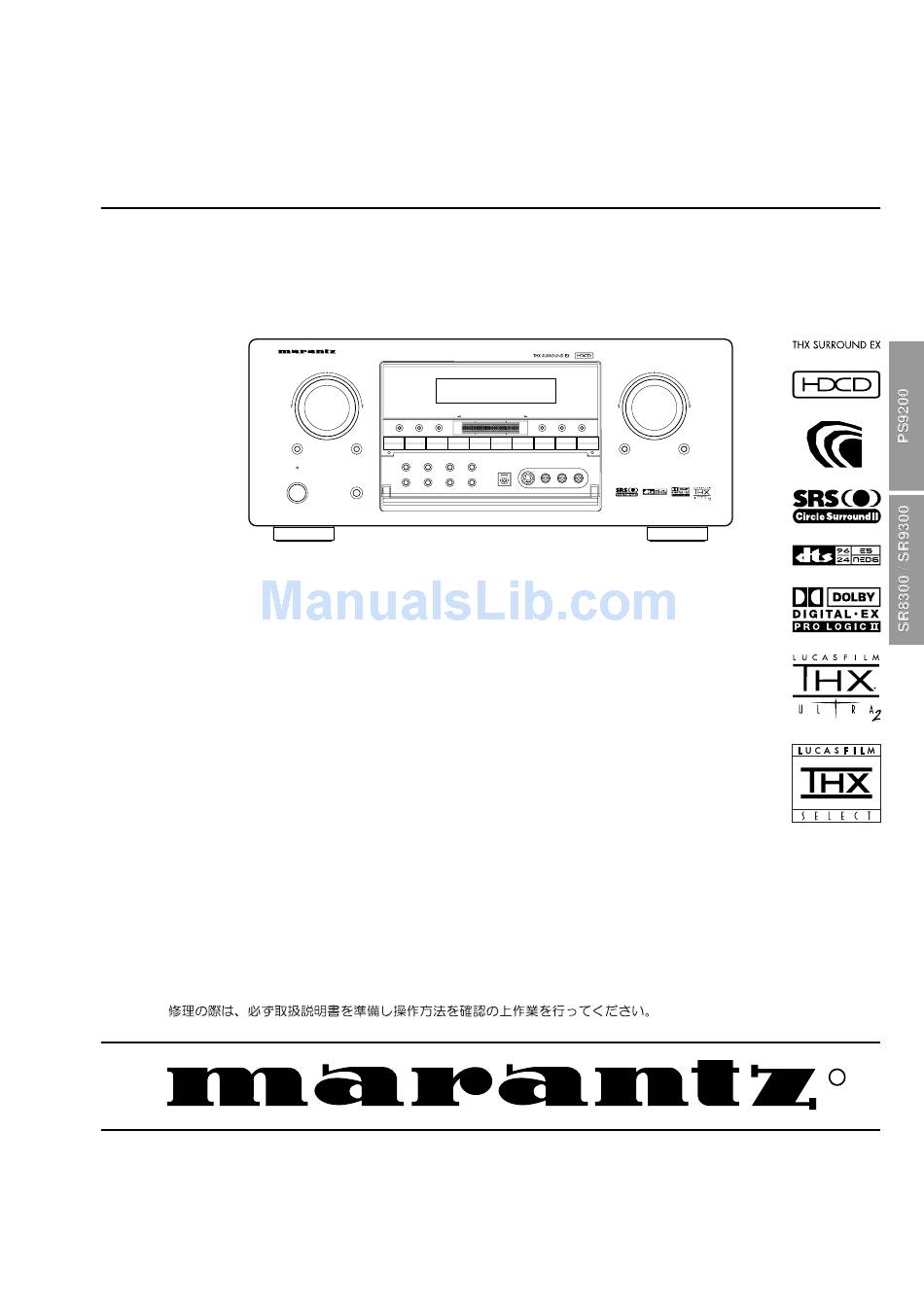

Marantz SR8300 Service Manual

Service
Manual
REMARK :
This service manual shows only the differences between the model SR9200 / SR8200 /
PS9200 and the model SR9300 / SR8300 / PS9200A.
All other information is described in the service manual of the model SR9200 / SR8200 /
PS9200 (Code number 344J855010).
The dispatch of the parts for after sales service has to be referred to these service
manuals, with the fi rst priority.
For this reason, please use this service manual with referring to the model SR9200 /
SR8200 / PS9200 service manual without fail.
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
SR8300 / SR9300 / PS9200
AV SURROUND RECEIVER SR9300
SELECTOR
DISPLAY CLEAR MEMO
SELECT ENTER
LD DVD DSS TV
MULTI-SPK SLEEP S-DIRECT
STANDBY
MULTI ROOM A/D 7.1CH-IN
POWER ON/STANDBY PHONES
AV Surround Receiver
AV Surround Amplifi er
DOWN
DOWN GYRO TUNING UP F/P AUTO-TUNE T-MODE
MUTE
VCR 1 VCR2/DVD-R CD TAPE CD-R TUNER
AUX1
AUX1 INPUT
DIGITAL S-VIDEO VIDEO L AUDIO R
AUX2
SR8300 /
N1B/S1B/U1B
/N1G/S1G/U1G
SR9300 /
N1B/S1B/U1B
/N1G/S1G/U1G
PS9200A /
VOLUME
UP
ATT
344J855020 MIT
First Issue 2002.12
F1N
R
