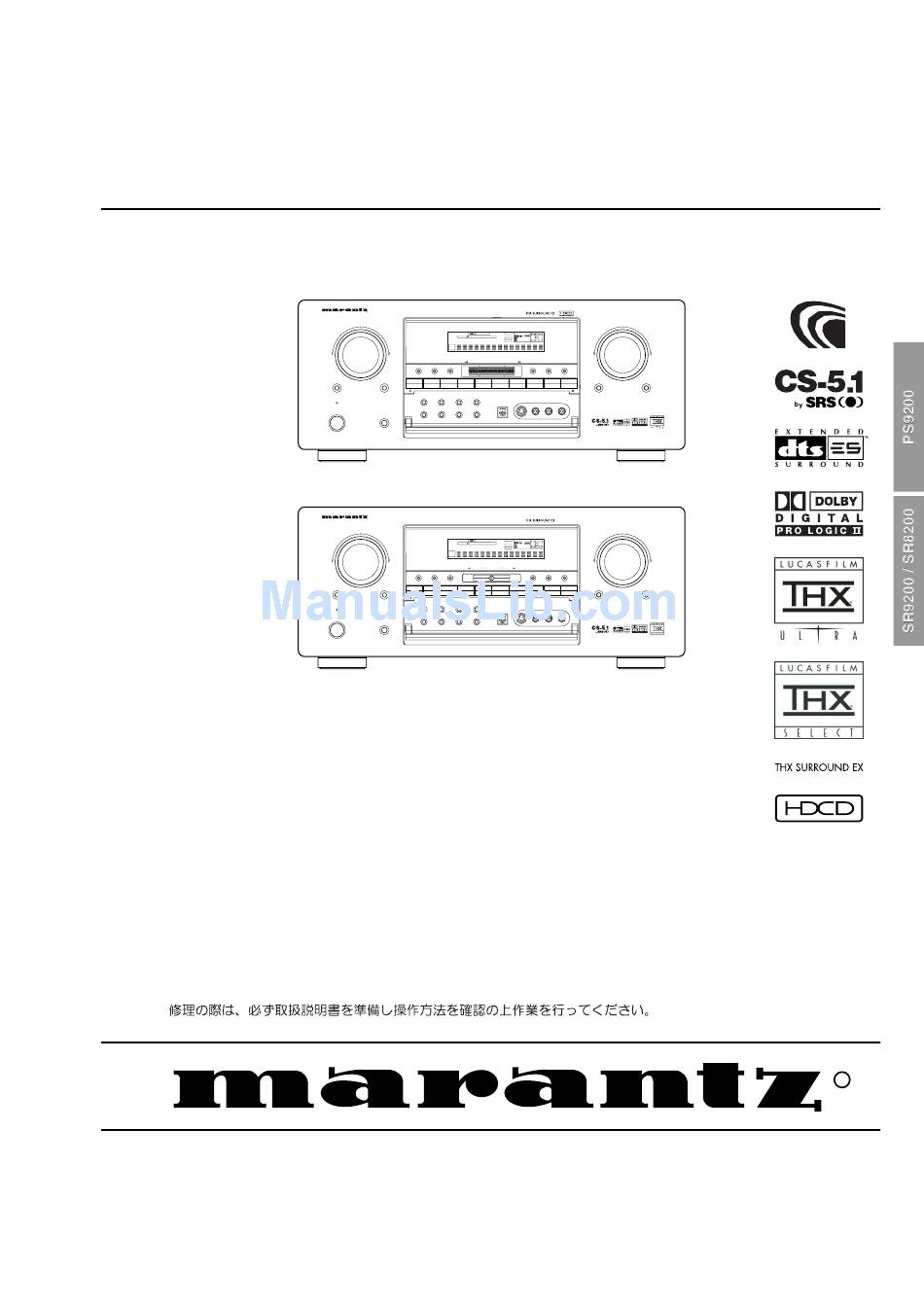

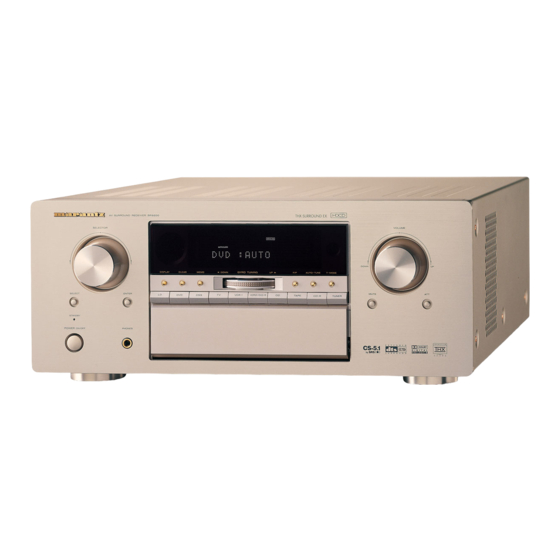

Marantz SR9200 Service Manual

Av surround receiver/amplifier
Hide thumbs Also See for SR9200:

Advertisement

Table of Contents

See also: User Manual
Service
Manual
SR9200
SR8200
SECTION
1. TECHNICAL SPECIFICATIONS ........................................................................... 1
2. WIRING DIAGRAM ............................................................................................. 11
3. BLOCK DIAGRAM .............................................................................................. 13
4. SCHEMATIC DIAGRAM ..................................................................................... 17
5. PARTS LOCATION ............................................................................................. 49
6. IC DATA .............................................................................................................. 73
7. EXPLODED VIEW AND PARTS LIST ................................................................ 83
8. SERVICE PROGRAM ......................................................................................... 95
9. UPDATE FIRMWARE ......................................................................................... 97
10. POWER AMPLIFIER ADJUSTMENT ................................................................. 99
11. SYSTEM ERROR ............................................................................................. 101
12. TROUBLE SHOOTING ..................................................................................... 103
13. ELECTRICAL PARTS LIST .............................................................................. 105
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
SR9200 / SR8200 / PS9200
AV SURROUND RECEIVER SR9200
SELECTOR
DISP
CINEMA
MUSIC
ST
PRO LOGIC
MOVIE
MUSIC
PRO LOGIC
ATT
AUTO
TUNED
DIRECT
AUTO SURR
THX SURR EX
DISC 6.1
MTX 6.1
TEST
COPY
NIGHT
SLEEP
MULTI
SLEEP
M-SPKR
DISPLAY
CLEAR
MEMO
DOWN
GYRO TUNING
SELECT
ENTER
LD
DVD
DSS
TV
VCR 1
VCR2/DVD-R
MULTI-SPK
SLEEP
S-DIRECT
AUX1
STANDBY
DIGITAL
POWER ON/OFF
PHONES
MULTI ROOM
A/D
7.1CH-IN
AUX2
AV SURROUND RECEIVER SR8200
SELECTOR
DISP
CINEMA
MUSIC
ST
PRO LOGIC
MOVIE
MUSIC
PRO LOGIC
ATT
AUTO
DIRECT
AUTO SURR
THX SURR EX
DISC 6.1
MTX 6.1
TUNED
TEST
COPY
NIGHT
SLEEP
MULTI
SLEEP
M-SPKR
DOWN
TUNING
DISPLAY
CLEAR
MEMO
SELECT
ENTER
7.1CH-IN
DVD
DSS
TV
VCR 1
VCR2/DVD-R
MULTI-SPK
SLEEP
S-DIRECT
AUX1
STANDBY
DIGITAL
POWER ON/OFF
PHONES
MULTI ROOM
A/D
NIGHT
AUX2

TABLE OF CONTENTS

SR9200 /
SR8200 /
AV Surround Receiver
AV Surround Amplifier
VOLUME
ANALOG
OTHER PCM
L
C
R
LFE
DIGITAL
DIGITAL
SURROUND
96kHz
SL
S
SR
PEAK
DOWN
UP
UP
F/P
AUTO-TUNE
T-MODE
MUTE
ATT
CD
TAPE
CD-R
TUNER
AUX1 INPUT
S-VIDEO
VIDEO
L
AUDIO
R
R
VOLUME
ANALOG
OTHER PCM
L
C
R
DIGITAL
LFE
DIGITAL
SL
S
SR
PEAK
SURROUND
96kHz
DOWN
UP
UP
F/P
T-MODE
P-SCAN
MUTE
ATT
CD
TAPE
CD-R
TUNER
AUX1 INPUT
S-VIDEO
VIDEO
L
AUDIO
R
R
N1B/S1B/U1B
/N1G/S1G/U1G
N1B/S1B/U1B
/N1G/S1G/U1G
PS9200 /
F1N
PAGE
R
344J855010 MIT
3120 785 22880
First Issue 2002.04
