Table of Contents Introduction Instrument Cluster Warning and control lights Gauges Entertainment Systems AM/FM stereo AM/FM Stereo single CD/MP3 system AM/FM Stereo cassette, CD/MP3 sound system In-dash CD6/MP3 disc Premium Pioneer audio system Climate Controls Heater only Manual heating and air conditioning Lights Headlamps Turn signal control...
Page 2 Table of Contents Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire Information Tire Inflation Vehicle loading Trailer towing Recreational towing Driving Starting Brakes Transmission operation Roadside Emergencies Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug Nut Torque...
Page 3 Table of Contents Maintenance and Specifications Engine compartment Engine oil Battery Engine Coolant Fuel information Refill capacities Lubricant specifications Engine data Accessories Index All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from MNAO.
Page 4: Introduction
The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Mazda and its products visit the following website: • In the United States: www.mazdausa.com •...
Page 5 Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment.
Page 6 Introduction Event Data Recorder The computer in your vehicle is capable of recording detailed data potentially including but not limited to information such as: • the use of restraint systems including seat belts by the driver and passengers, • information about the performance of various systems and modules in the vehicle, and •...
Page 7 Introduction Using your vehicle with a snowplow WARNING: Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package. Using your vehicle as an ambulance WARNING: Do not use this vehicle as an ambulance. Your vehicle is not equipped with an ambulance preparation package.
Page 8 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Protecting the Fasten Safety Belt Environment Airbag - Front Airbag - Side Child Seat Installation Child Seat Warning Child Seat Lower Child Seat Tether Anchor Anchor...
Page 9 Level Passenger Compartment Engine Air Filter Air Filter Jack Check fuel cap Powertrain Malfunction Speed Control INFORMATION ABOUT THIS GUIDE The information found in this guide was accurate at the time of printing. Mazda may change the contents without notice.
Page 10 Instrument Cluster Instrument cluster Instrument panel dimmer (pg. 12) control (pg. 36) Headlamp control (pg. 35) Turn signal and wiper/washer control Speed control* (pg. 47) (pg. 50) Driver air bag (pg. 77) Hood release * If equipped Parking brake release (pg.
Page 11 Instrument Cluster Audio system 4wd control* Auxiliary power point* (pg. 18) (pg. 154) (pg. 48) Fog lamp control* (pg. 36) Cigar lighter* Climate control system Passenger air bag (pg. 48) (pg. 32) deactivate switch (pg. 83) * if equipped...
Page 12: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works.
Page 13 Instrument Cluster Check fuel cap: Illuminates when the fuel cap may not be properly installed. Check the fuel filler cap if this light remains on. Continued driving with this light on may cause the Check Engine warning light to come on. It may take a long period of time for the system to detect an improperly installed or properly re-installed fuel filler cap depending on driving and fuel tank level conditions.
Page 14 Instrument Cluster Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
Page 15 Instrument Cluster Overdrive off (if equipped): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light does not come on or the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.
Page 16: Gauges
Instrument Cluster Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Door ajar warning chime: Sounds when any door is opened (or not fully closed).
Page 17 Instrument Cluster Odometer: Registers the total miles (kilometers) of the vehicle. Trip odometer: Registers the miles (kilometers) of individual journeys. Press the button once until “TRIP” appears in the display (this represents the trip mode). To reset the trip, press and hold the control again for approximately 2 seconds, until the trip reading is 0.0 miles (kilometers).
Page 18: Entertainment Systems
Entertainment Systems AUDIO SYSTEMS AM/FM stereo (if equipped) Display preference: You can select Clock mode, which displays the time, or Frequency mode, which displays the current radio frequency, to appear in the radio display. Press CLK repeatedly to toggle between Clock and Frequency modes.
Page 19 Entertainment Systems 3. AUDIO: Press AUDIO repeatedly to toggle through the following modes and to make adjustments in those modes. Bass: Press AUDIO to decrease/increase the bass setting. Treble: Press AUDIO to decrease/increase the treble setting. Balance: Press AUDIO to adjust the audio between the left and right speakers.
Page 20: Am/Fm Stereo Single Cd/Mp3 System
Entertainment Systems AM/FM stereo single CD/MP3 system 1. CD eject: Press to eject the 2. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINUTE is displayed. Press MENU to adjust the hours/minutes. Press CLK to display the time when the ignition is off.
Page 21 Entertainment Systems Autoset: Press MENU set the strongest local radio stations for AM/FM1/FM2 without losing your original manually set preset stations. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
Page 22 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Mazda CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 23: Am/Fm Stereo Cassette, Cd/Mp3 Sound System
Entertainment Systems AM/FM stereo cassette, CD/MP3 sound system 1. CD eject: Press to eject the 2. CLK (Clock): Press CLK until SELECT HOUR or SELECT MINUTE is displayed. Press MENU to adjust the hours/minutes. Press CLK to display the time of day when the ignition is off. 3.
Page 24 Entertainment Systems Autoset: Press MENU to access the autoset setting. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Use MENU set. When the six strongest stations are filled, the station stored in preset 1 will begin playing.
Page 25 Entertainment Systems 7. Tape 1–2: Press to change playing sides of the tape. 8. TEXT: In MP3 mode, press to view the next 12 characters in the MP3 Music name/file name of the current MP3 track and directory. 9. SHUFF (Shuffle): In CD or MP3 mode, press to play the tracks on the current CD/MP3 in random order.
Page 26 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Mazda CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 27: In-Dash Cd6/Mp3 Disc Premium Pioneer Audio System
Entertainment Systems Premium in-dash CD6/MP3 disc audio system 1. AM/FM: Press to select AM/FM1/FM2 frequency bands. 2. CD: Press to enter CD mode. If a CD is already in the system, the disc will start playing. 3. EJ (CD eject): To eject an individual CD, press CD and select the correct slot number by pressing the memory preset buttons.
Page 28 Entertainment Systems 5. MUTE: Press to mute the playing media. Press again to return to the playing media. 6. MENU: Press MENU repeatedly to toggle through the following modes and use to make adjustment in those modes. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for...
Page 29 Entertainment Systems 9. SHUFF (Shuffle): Press to play the tracks on the current CD/MP3 in random order. In MP3 directory mode, press to play the tracks within the current directory in random order. 10. REPEAT: Press to repeat the current CD/MP3 track. 11.
Page 30 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Mazda CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 31 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Mazda CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 32: Climate Controls
Climate Controls HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle.
Page 33: Manual Heating And Air Conditioning
Climate Controls WARNING: Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop. MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle.
Page 34 Climate Controls Operating tips • To reduce fog build up on the windshield during humid weather, place the air flow selector in the position. • To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF position. •...
Page 35: Lights
Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the headlamps on. High beams After turning the headlamps on, push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.
Page 36 Lights Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position and • the headlamp control is in the OFF or parking lamp. WARNING: Always remember to turn on your headlamps at dusk or during inclement weather.
Page 37: Headlamps
Lights AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.
Page 38: Turn Signal Control
Lights 5. Locate the vertical adjuster for each headlamp. Adjust the aim by using a 4 mm wrench to turn the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the...
Page 39: Bulb Replacement
Lights INTERIOR LAMPS Courtesy/reading lamps (if equipped) The courtesy lamp lights when: • any door is opened. • the instrument panel dimmer switch is held up until the courtesy lamps come on. • the remote entry controls are pressed and the ignition is OFF. BULB REPLACEMENT Headlamp Condensation The headlamps are vented to equalize pressure.
Page 40 For bulb replacement, see an authorized Mazda dealer. Replacing headlamp bulbs NOTE: The procedure can be difficult. Your Mazda dealer has the proper tools, training and parts to perform this task. If you have difficulty with this, visit your local Mazda dealer.
Page 41 Lights WARNING: Handling Halogen Bulbs: When a halogen bulb breaks, it is dangerous. These bulbs contain pressurized gas. If one is broken, it will explode and serious injuries could be caused by the flying glass. If the glass portion of the bulb is touched with bare hands, body oil could cause the bulb to overheat and explode when lit.
Page 42 Lights To install the new bulb: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hands could cause the bulb to break the next time the headlamps are operated.
Page 43 Lights Replacing front park/turn side marker bulbs 1. Make sure headlamp switch is in OFF position, then open the hood. 2. Remove the screw from lamp assembly. 3. Disengage lamp assembly by pulling it straight forward. It has a snap fit. 4.
Page 44 Lights Replacing stop lamp/tail lamp/sidemarker lamp/turn lamp/backup lamp bulbs These bulbs are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb: 1. Open the tailgate to expose the lamp assemblies.
Page 45 Lights Replacing fog lamp bulbs WARNING: Handling Halogen Bulbs: When a halogen bulb breaks, it is dangerous. These bulbs contain pressurized gas. If one is broken, it will explode and serious injuries could be caused by the flying glass. If the glass portion of the bulb is touched with bare hands, body oil could cause the bulb to overheat and explode when lit.
Page 46 Lights Replacing license plate lamp bulbs The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs: 1. Reach behind the rear bumper to locate the bulb socket. 2. Twist the socket counterclockwise and remove. 3.
Page 47: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers (from desired interval to low or high speed position); rotate towards you to decrease the speed of the wipers. Windshield washer: Push the end of the stalk: •...
Page 48 Driver Controls WARNING: Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an accident. Never adjust the steering wheel while the vehicle is moving.
Page 49: Power Windows
Driver Controls CENTER CONSOLE (IF EQUIPPED) Your vehicle may be equipped with a variety of console features. These include: • Utility compartment with cassette/compact disc storage • Cupholders • Coin holder slots • Flip up armrest • Passenger airbag on/off switch (if equipped) WARNING: Use only soft cups in the cupholder.
Page 50: Mirrors
Driver Controls One touch down Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop. EXTERIOR MIRRORS Power mirror control (if equipped) To adjust your mirrors: 1.
Page 51 Driver Controls WARNING: Do not shift the gearshift lever into N (Neutral) with the speed control on. You may lose control of the vehicle or cause engine system damage. Setting speed control The controls for using your speed control are located on the steering wheel for your convenience.
Page 52 Driver Controls Resuming a set speed Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 30 mph (48 km/h). Increasing speed while using speed control There are three ways to set a higher speed:...
Page 53 Driver Controls Turning off speed control There are three ways to turn off the speed control: • Depress the brake pedal or the clutch pedal (if equipped). This will not erase your vehicle’s previously set speed. • Press the speed control OFF control.
Page 54 Driver Controls BED EXTENDER (IF EQUIPPED) Your vehicle may be equipped with a bed extender designed to extend the pickup box for longer loads. To extend the bed extender: 1. Lower tailgate. 2. Pull the round knobs on each side of the extender to release it from the pickup box.
Page 55 Driver Controls To remove the bed extender: 1. Extend the bed extender. 2. Pull the round knobs on each side of the extender to unlock Make sure the locking clip screws are loose before removing the extender. 3. Press the locking clips below the middle bar on each side and lift the extender out of the bed.
Page 56: Locks And Security
Locks and Security KEYS The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer. You should always carry a second key with you in a safe place in case you require it in an emergency. POWER DOOR LOCKS (IF EQUIPPED) Press the top of the control to UNLOCK...
Page 57 Locks and Security Your vehicle is equipped with a remote entry system which allows you to: • unlock the vehicle doors without a key. • lock all the vehicle doors without a key. • activate the personal alarm. If there are problems with the remote entry system, make sure to take ALL remote entry transmitters with you to your authorized dealer in order to aid in troubleshooting the problem.
Page 58 Locks and Security Replacing the battery The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent. To replace the battery: 1. Twist a thin coin between the two halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF...
Page 59 Locks and Security Replacing lost remote entry transmitters If you would like to have your remote entry transmitter reprogrammed because you lost one, or would like to buy additional remote entry transmitters, you can either reprogram them yourself, or take all remote entry transmitters to your authorized dealer for reprogramming.
Page 60: Anti-Theft System
Note: The SecuriLock passive anti-theft system is not compatible with non-Mazda aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.
Page 61 Locks and Security Anti-theft indicator The anti-theft indicator is located in the instrument cluster. • When the ignition is in the 2 (LOCK) position, the indicator will flash once every 2 seconds to indicate the SecuriLock system is functioning as a theft deterrent. •...
Page 62 Locks and Security 1. Insert a previously programmed coded key into the ignition. 2. Turn the ignition from the 3 (OFF) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second, but no more than 10 seconds.
Page 63: Seating And Safety Restraints
Seating and Safety Restraints SEATING Adjusting the front manual seat (if equipped) WARNING: Never adjust the driver’s seat or seatback when the vehicle is moving. WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips. Sitting in a reclined position while the vehicle is moving is dangerous because you cannot get the full protection from seat belts.
Page 64 Seating and Safety Restraints 60/40 seat (if equipped) To gain access to the storage compartment in your armrest (if equipped), lift the latch to open lid. The 60/40 seat cupholder (if equipped) is detachable for cleaning. • Firmly grasp the bottom of the cup holder and pull up.
Page 65: Safety Restraints
Seating and Safety Restraints To return seat to original position, slide the seat bottom back, then push the seatback up to lock it in place. The seat will lock, and you will have to use the release bar to move the seat back to the original position. REAR SEATS Center facing jump seat (two–door Cab Plus) (if equipped) To open, pull inboard and down on the seat strap.
Page 66 Seating and Safety Restraints WARNING: Never adjust the driver’s seat or seatback when the vehicles is moving. Adjusting the driver’s seat while the vehicle is moving is dangerous. The driver could lose control of the vehicle and have an accident. Adjust the driver’s seat only when the vehicle is stopped.
Page 67 Seating and Safety Restraints Combination lap and shoulder belts 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
Page 68 Seating and Safety Restraints Adjusting the center and rear center facing jump seat lap belts The lap belt does not adjust automatically. WARNING: The lap belts should fit snugly and as low as possible around the hips, not around the waist. Failure to position the lap belt correctly may cause serious injury in an accident.
Page 69 Seating and Safety Restraints Automatic locking mode (outboard front passenger seating position only) for use with child safety seats In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.
Page 70 Seating and Safety Restraints How to disengage the automatic locking mode Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode. WARNING: After any vehicle collision, the entire seat belt system should be checked for proper operation by an authorized dealer.
Page 71 Seating and Safety Restraints Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder. • Regular Cab and four–door Cab Plus 4 •...
Page 72 20 cm (8 inches) can be added to the safety belt assembly by adding a safety belt extension assembly. Safety belt extension assemblies can be obtained from your authorized Mazda dealership. Use only extensions manufactured by the same supplier as the safety belt.
Page 73 Seating and Safety Restraints If... Then... The driver’s safety belt is not The BeltMinder feature is activated - buckled before the vehicle has the safety belt warning light reached at least 5 km/h (3 illuminates and the warning chime mph) and 1-2 minutes have sounds for 6 seconds every 30 elapsed since the ignition seconds, repeating for approximately...
Page 74 Seating and Safety Restraints Reasons given... Consider... I was in a hurry Prime time for an accident. Safety Belt Warning Chime reminds us to take a few seconds to buckle up. Seat belts don’t work Safety belts, when used properly, reduce risk of death to front seat occupants by 45% in cars, and by 60% in light trucks.
Page 75 Seating and Safety Restraints One time disable Any time the safety belt is buckled and then unbuckled during an ignition ON cycle, the BeltMinder will be disabled for that ignition cycle only. Deactivating/activating the BeltMinder feature Read Steps 1 - 9 thoroughly before proceeding with the deactivation/activation programming procedure.
Page 76 Mazda recommends that all safety belt assemblies used in vehicles involved in a collision be replaced. However, if the collision was minor and an authorized Mazda technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced.
Page 77: Airbags
Seating and Safety Restraints The energy absorbing functions may have been activated in a collision so the restraints should be examined; if the front airbags have deployed, the pretensioners have also deployed and must be replaced — regardless of whether there was an occupant in the passenger seat or not. WARNING: Failure to inspect and if necessary replace the safety belt assembly under the above conditions could result in severe personal injuries in the event of a collision.
Page 78 Seating and Safety Restraints WARNING: Airbags have been known to kill or injure a child in front facing child restraints. When placing a child safety seat in a front seating position including the center (if equipped), you should turn off the passenger airbag switch after being certain the child is properly restrained.
Page 79 WARNING: Additional equipment may effect the performance of the airbag sensors increasing the risk of injury. Consult your authorized Mazda dealership before installation of additional equipment. WARNING: The front passenger airbag is not designed to offer...
Page 80 Seating and Safety Restraints Children and airbags For additional important safety information, read all information on safety restraints in this guide. WARNING: Never place a rearward facing child safety restraint in front of an activated airbag. Airbags have been known to kill or injure children in front facing child safety restraints.
Page 81 Seating and Safety Restraints WARNING: Booster seats must be installed only in seating positions equipped with a combination lap/shoulder belt. WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained. How does the airbag supplemental restraint system work? The airbag SRS is designed to activate when the vehicle sustains sufficient longitudinal deceleration.
Page 82 Seating and Safety Restraints restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control. WARNING: Several airbag system components get hot after inflation.
Page 83 Disposal of airbags and airbag equipped vehicles (including safety belt pretensioners) For disposal of safety belt pretensioners, airbags, or airbag equipped vehicles, see your authorized Mazda dealership or qualified technician. Airbags MUST BE disposed of by qualified personnel. Passenger airbag ON/OFF switch...
Page 84 OFF position and the ignition switch is in the ON position, have the passenger airbag switch serviced at your authorized Mazda dealership. WARNING: In order to avoid inadvertent activation of the switch, always remove the ignition key from the passenger air...
Page 85: Child Restraints
ON/OFF switch is in the ON position and the ignition switch is ON, have the passenger airbag ON/OFF switch serviced at your authorized Mazda dealership immediately. The passenger side airbag should always be ON (the airbag OFF light should not be illuminated) except for certain vulnerable persons. See guidance on following pages.
Page 86 Seating and Safety Restraints The vast majority of drivers and passengers over the age of 12 years are much safer with an airbag than without. To do their job and reduce the risk of life threatening injuries, airbags must open with great force, and this force can pose a potentially deadly risk in some situations, particularly when a front seat occupant is not properly buckled up.
Page 87 Seating and Safety Restraints • makes the potential harm from the passenger airbag in a crash greater than the potential harm from turning OFF the airbag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.
Page 88 Seating and Safety Restraints 3. Medical condition: A passenger has a medical condition that, according to his or her physician: • poses a special risk for the passenger if the airbag deploys; and • makes the potential harm from the passenger airbag deployment greater than the potential harm from turning OFF the airbag and experiencing a crash without the protection offered by the airbag WARNING: This vehicle has special energy management safety...
Page 89 Seating and Safety Restraints WARNING: Airbags can kill or injure a child in a child seat. Never place a rear facing child seat in front of an active airbag. If you must use a forward facing child seat in the front seat, position the vehicle seat fully rearward and turn the passenger airbag off.
Page 90 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Mazda recommends use of a belt-positioning booster. Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably.
Page 91 Seating and Safety Restraints Booster seats should be used until you can answer YES to ALL of these questions: • Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat without slouching? •...
Page 92 Seating and Safety Restraints • Those with a high back. If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. Both can be used in any vehicle in a seating position equipped with lap/shoulder belts if your child is over 40 lb..
Page 93 Seating and Safety Restraints WARNING: Never put the shoulder belt under a child’s arm or behind the back because it eliminates the protection for the upper part of the body and may increase the risk of injury or death in a collision. WARNING: Never use pillows, books, or towels to boost a child.
Page 94 80 pounds (36 kg) using an upper torso harness and a belt-positioning booster. Mazda recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with LATCH and tether anchors.
Page 95 Seating and Safety Restraints WARNING: Airbags can kill or injure a child in a child seat. Never place a rear facing child seat in the right front seat unless the airbag on/off switch is turned OFF. If you place a forward-facing child seat in the right front seat, turn the airbag on/off switch to OFF.
Page 96 Seating and Safety Restraints 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
Page 97: Bucket Seats
Seating and Safety Restraints 8. Allow the safety belt to retract to remove any slack in the belt. 9. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place.
Page 98 Seating and Safety Restraints • 60/40 seats WARNING: Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor. WARNING: This anchor information applies to child safety seats equipped with tether straps.
Page 99 Seating and Safety Restraints The tether anchor is located on the rear lower portion of the passenger seat. 4. Clip the tether strap to the anchor. WARNING: If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision.
Page 100 Seating and Safety Restraints Center seating location 60/40 seats with folding armrest When installing a child safety seat in the center position, route the tether strap over the center arm rest and clip it to the center anchor. WARNING: If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision.
Page 101 Seating and Safety Restraints Attaching safety seats with LATCH (Lower Anchors and Tethers for Children) attachments for child seat anchors Some child safety seats have two rigid or webbing mounted attachments that connect to two anchors at certain seating positions in your vehicle. This type of child seat eliminates the need to use seat belts to attach the child seat.
Page 102 The LATCH anchors are below locator symbols on the seat back. Two plastic LATCH guides may be purchased from your local Mazda dealer (part number 1F60–57–751). They snap onto the latch lower anchor in the vehicle to help attach a child seat with rigid latch attachments.
Page 103 Seating and Safety Restraints Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments. WARNING: Attach LATCH lower attachments of the child seat only to the anchors shown. If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off the vehicle seat cushion when the child is seated in it.
Page 104: Tires, Wheels And Loading
Tires, Wheels and Loading NOTICE TO UTILITY VEHICLE AND TRUCK OWNERS Utility vehicles and trucks handle differently than passenger cars in the various driving conditions that are encountered on streets, highways and off-road. Utility vehicles and trucks are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed...
Page 105 Tires, Wheels and Loading Power is supplied to all four wheels through a transfer case or power transfer unit. 4WD vehicles allow you to select different drive modes as necessary. Information on transfer case operation and shifting procedures can be found in the Driving chapter.
Page 106 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Mazda to give you the following information about tire grades exactly as the government has written it.
Page 107 Tires, Wheels and Loading Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 108: Tire Information
Tires, Wheels and Loading TIRES Tires are designed to give many thousands of miles of service, but they must be maintained in order to get the maximum benefit from them. Glossary of tire terminology • Tire label: A label showing the OE (Original Equipment) tire sizes, recommended inflation pressure and the maximum weight the vehicle can carry.
Page 109: Tire Inflation
(if equipped), at least monthly and before long trips. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Mazda recommends the use of a digital or dial type tire pressure gauge rather than a stick type tire pressure gauge.
Page 110 Always inflate your tires to the Mazda recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. The Mazda recommended tire inflation pressure is found on the Safety Compliance Certification Label or Tire Label which is on the B-Pillar or the edge of the driver’s door.
Page 111 Tires, Wheels and Loading 3. Add enough air to reach the recommended air pressure Note: If you overfill the tire, release air by pushing on the metal stem in the center of the valve. Then recheck the pressure with your tire gauge. 4.
Page 112 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 113 (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Mazda. Use of any tire or wheel not recommended by Mazda can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 114 Wheel misalignment in the front or the rear can cause uneven and rapid treadwear of your tires and should be corrected by a qualified technician at a Mazda dealer. Front wheel drive (FWD) vehicles and those with an independent rear suspension require alignment of all four wheels.
Page 115 Tires, Wheels and Loading Tire rotation Rotating your tires at the recommended interval (as indicated in the Scheduled maintenance section of the Maintenance and Specifications chapter) will help your tires wear more evenly, providing better tire performance and longer tire life. •...
Page 116 Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask a qualified technician at a Mazda dealership to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 117 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 118 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 119 Tires, Wheels and Loading 11. Maximum Load: Indicates the maximum load in kilograms and pounds that can be carried by the tire. Refer to the Safety Compliance Certification Label, which is located on the B-Pillar or the edge of the driver’s door, for the correct tire pressure for your vehicle.
Page 120 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below: 1. LT: Indicates a tire, designated by the Tire and Rim Association (T&RA), that is intended for service on light trucks.
Page 121 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 122: Vehicle Loading
Tires, Wheels and Loading SNOW TIRES AND CHAINS WARNING: Driving too fast for conditions creates the possibility of loss of vehicle control. Driving at very high speeds for extended periods of time may result in damage to vehicle components. NOTE: Snow tires must be the same size and grade as the tires you currently have on your vehicle.
Page 123 Tires, Wheels and Loading your vehicle’s weight ratings, with or without a trailer, from the vehicle’s Safety Compliance Certification Label: Base Curb Weight – is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment.
Page 124 Tires, Wheels and Loading Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight.
Page 125 Tires, Wheels and Loading GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) – including vehicle curb weight and all payload. GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door.
Page 126 Tires, Wheels and Loading GVWR (Gross Vehicle Weight MFD. BY FORD MOTOR CO. IN U.S.A. FOR MAZDA MOTOR CORPORATION Rating) – is the maximum DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG allowable weight of the fully loaded FRONT GAWR: XXXXL REAR GAWR: XXXXLB...
Page 127 Tires, Wheels and Loading 10–15% (conventional trailer) or king pin weight of 15–25% (fifth wheel trailer), and driver only (150 lb. [68 kg]). Consult your authorized dealer (or the RV and Trailer Towing Guide provided by your authorized dealer) for more detailed information. Tongue Load or Fifth Wheel King Pin Weight –...
Page 128 Tires, Wheels and Loading 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
Page 129: Trailer Towing
Tires, Wheels and Loading Special loading instructions for owners of pickup trucks and utility-type vehicles WARNING: For important information regarding safe operation of this type of vehicle, see the Preparing to drive your vehicle section in the Driving chapter of this Owner’s Guide. WARNING: Loaded vehicles may handle differently than unloaded vehicles.
Page 130 Tires, Wheels and Loading 4x2 w/manual transmission Engine Rear axle Maximum Maximum Maximum ratio GCWR - lb. trailer weight frontal area of (kg) - lb. (kg) trailer - ft Cab Plus/Cab Plus 4 2.3L 4,800 (2,177) 1,440 (653) Equal to frontal area of vehicle 3.0L* 3.73...
Page 131 Tires, Wheels and Loading 4x4 w/manual transmission Engine Rear axle Maximum Maximum Maximum ratio GCWR - lb. trailer frontal area (kg) weight - lb. of trailer - (kg) Regular Cab 3.0L* 6,000 (2,722) 2,360 (1,070) 50 (4.64) 4.0L 7,000 (3,175) 3,280 (1,487) 50 (4.64) Cab Plus/Cab Plus 4...
Page 132 Tires, Wheels and Loading 4x2 w/automatic transmission Engine Rear axle Maximum Maximum Maximum ratio GCWR - lb. trailer weight frontal area of (kg) - lb. (kg) trailer - ft Regular Cab 2.3L 5,500 (2,495) 2,260 (1,025) Equal to frontal area of vehicle 3.0L* 3.73 6,000 (2,722)
Page 133 Tires, Wheels and Loading 4x4 w/automatic transmission Engine Rear axle Maximum Maximum Maximum ratio GCWR - lb. trailer weight frontal area of (kg) - lb. (kg) trailer - ft Regular Cab 3.0L* 3.73 6,000 (2,722) 2,320 (1,052) 50 (4.64) 4.0L 9,500 (4,309) 5,740 (2,603) 50 (4.64)
Page 134 Tires, Wheels and Loading Hitches For towing trailers up to 2,000 lb. (907 kg), use a weight carrying hitch and ball which uniformly distributes the trailer tongue loads through the underbody structure. Use a frame-mounted weight distributing hitch for trailers over 2,000 lb. (907 kg). Do not install a single or multi-clamp type bumper hitch, or a hitch which attaches to the axle.
Page 135 Tires, Wheels and Loading Using a step bumper The optional step bumper is equipped with an integral hitch and requires only a ball with a 3/4 inch (19 mm) shank diameter. The bumper has a 2,000 lb. (907 kg) trailer weight and 200 lb. (91 kg) tongue weight capability.
Page 136 Tires, Wheels and Loading Trailer tow connector Color Function Comment 3. Tan/White Tail lamp Relay controlled circuit activated when the park lamps/headlamps are on. 4. White Ground Matching vehicle circuit returns to battery’s negative ground. Driving while you tow When towing a trailer: •...
Page 137 Tires, Wheels and Loading Trailer towing tips • Practice turning, stopping and backing up before starting on a trip to get the feel of the vehicle trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles. •...
Page 138: Recreational Towing
Tires, Wheels and Loading RECREATIONAL TOWING Follow these guidelines if you have a need for recreational towing. An example of recreational towing would be towing your vehicle behind a motorhome. These guidelines are designed to ensure that your transmission is not damaged. Vehicles equipped with a manual transmission: Note: 4x2 and 4x4 vehicles with a manual transmission follow these guidelines for recreational towing:...
Page 139 Tires, Wheels and Loading For 4x4 vehicles with an automatic transmission, Mazda recommends that a Neutral Tow Kit be purchased and installed by an authorized dealer if a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must be exceeded.
Page 140: Driving
Driving STARTING Positions of the ignition 1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal. 3. OFF, shuts off the engine and all accessories without locking the steering wheel.
Page 141 Driving WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. WARNING: Do not start your vehicle in a closed garage or in other enclosed areas.
Page 142 Driving If starting a vehicle with a manual transmission: 1. Make sure the parking brake is set. 2. Push the clutch pedal to the floor. 3. Turn the key to 4 (ON) without turning the key to 5 (START). If there is difficulty in turning the key, firmly rotate the steering wheel left and right until the key turns freely.
Page 143 Driving Starting the engine Note: Whenever you start your vehicle, release the key as soon as the engine starts. Excessive cranking could damage the starter. 1. Turn the key to 4 (ON) without turning the key to 5 (START). If there is difficulty in turning the key, rotate the steering wheel until the key turns freely.
Page 144: Brakes
Driving USING THE ENGINE BLOCK HEATER (IF EQUIPPED) An engine block heater warms the engine coolant which aids in starting and heater/defroster performance. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -10°F (-23°C) or below.
Page 145 Driving The ABS operates by detecting the onset of wheel lockup during brake applications and compensates for this tendency. The wheels are prevented from locking even when the brakes are firmly applied. The accompanying illustration depicts the advantage of an ABS equipped vehicle (on bottom) to a non-ABS equipped vehicle (on top) during hard braking with loss of front braking traction.
Page 146 Driving Parking brake Apply the parking brake whenever the vehicle is parked. To set the parking brake, press the parking brake pedal down until the pedal stops. The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated (when the BRAKE ignition is turned ON) until the parking brake is released.
Page 147 Driving STEERING Your vehicle is equipped with power steering. Power steering uses energy from the engine to decrease the driver’s effort in steering the vehicle. To prevent damage to the power steering pump: • Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running.
Page 148: Transmission Operation
Driving WARNING: Vehicles with a higher center of gravity such as utility and four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions.
Page 149 Driving 3. Start the vehicle. If it is necessary to use the above procedure to move the gearshift lever, it is possible that a fuse has blown or the vehicle’s brakelamps are not operating properly. Refer to Fuses and relays in the Roadside Emergencies chapter.
Page 150 Driving P (Park) This position locks the transmission and prevents the rear wheels from turning. To put your vehicle in gear: • Start the engine • Depress the brake pedal • Move the gearshift lever into the desired gear To put your vehicle in P (Park): •...
Page 151 Driving Drive (not shown) Drive is activated when the transmission control switch is pressed. • This position allows for all forward gears except overdrive. • O/D OFF lamp is illuminated. • Provides engine braking. • Use when driving conditions cause excessive shifting from O/D to other gears.
Page 152 Driving To start the vehicle: 1. Make sure the parking brake is fully set. 2. Press the clutch pedal to the floor, then put the gearshift lever in the neutral position. 3. Start the engine, then press the brake pedal and release the parking brake.
Page 153 Driving 2. Move the gearshift lever into the neutral position and wait at least three seconds before shifting into R (Reverse). • The gearshift lever can only be moved into R (Reverse) by moving it from left of 3 (Third) and 4 (Fourth) before shifting into R (Reverse). This is a lockout feature that protects the transmission from accidentally being shifted into R (Reverse) from 5 (Overdrive).
Page 154 Driving FOUR-WHEEL DRIVE (4WD) OPERATION (IF EQUIPPED) WARNING: For important information regarding safe operation of this type of vehicle, see Preparing to drive your vehicle in this chapter. Four–wheel drive (4WD) supplies power to all four wheels. 4WD should not be operated on dry pavement; driveline damage may occur. If equipped with the Electronic Shift 4WD System, and 4WD Low is selected while the vehicle is moving above 3 mph (5 km/h), the 4WD system will not engage.
Page 155 Driving vehicle is moving; this is normal and should be no reason for concern. Refer to Shifting to/from 4X4 for proper operation. Shifting between 2WD and 4X4 HIGH • Move the 4WD control between 2WD and 4X4 HIGH at any forward speed.
Page 156 Driving steering and braking control of your vehicle, you must have all four wheels on the ground and they must be rolling, not sliding or spinning. Basic operating principles • Do not use 4WD on dry, hard surfaced roads. Doing so will produce excessive noise, increase tire wear and may damage drive components.
Page 157 Driving Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur. Do not rock the vehicle for more than a few minutes or damage to the transmission and tires may occur or the engine may overheat. WARNING: Do not spin the wheels at over 35 mph (56 km/h).
Page 158 Driving gear and drive steadily through the terrain. Apply the accelerator slowly and avoid spinning the wheels. Mud and water If you must drive through high water, drive slowly. Traction or brake capability may be limited. When driving through water, determine the depth; avoid water higher than the bottom of the hubs (if possible) and proceed slowly.
Page 159 Driving If speed control cancels after climbing the hill, reset speed by pressing and holding the SET ACCEL button (to resume speeds over 30 mph [50 km/h]). Automatic transmissions may shift frequently while driving up steep grades. Eliminate frequent shifting by shifting out of (Overdrive) into a lower gear.
Page 160: Roadside Emergencies
Roadside Emergencies HAZARD FLASHER The hazard flasher is located on the steering column, just behind the steering wheel. The hazard flashers will operate when the ignition is in any position or if the key is not in the ignition. Push in the flasher control and all front and rear direction signals will flash.
Page 161: Fuses And Relays
Roadside Emergencies The fuel pump shut-off switch is located under the right-hand side of the glove box, just above the carpet. To reset the switch: 1. Turn the ignition OFF. 2. Check the fuel system for leaks. 3. If no leaks are apparent, reset the switch by pushing in on the reset button.
Page 162 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
Page 163 Roadside Emergencies The fuses are coded as follows: Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Instrument panel dimmer switch Trailer tow park lamps Right low beam headlamp Left low beam headlamp Windshield wipers/washer Radio (RUN/ACCY) Headlamp switch illumination Restraints Control Module (RCM), PADI (Passenger Air bag Deactivation Indicator)
Page 164 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Smart Junction Box (SJB) (Logic power) — Not used Horn, Interior lamps High beam headlamp, High beam indicator (cluster) — One-touch down relay 30A cartridge Power windows fuse Turn signals/Hazards —...
Page 165 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps Brake switch (logic) Instrument cluster battery feed (B+) Power point Power locks Power distribution box The power distribution box is located in the engine compartment.
Page 166 Roadside Emergencies 2.3L engine (if equipped) The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 40A** Passenger compartment fuse panel — Not used 40A** Passenger compartment fuse panel — Not used 50A** Passenger compartment fuse panel —...
Page 167 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not used 30A** Blower motor (climate control) — Not used — Not used — Not used 40A** ABS (motor) — Not used 20A** Engine fan — Not used 10A* PCM keep alive power —...
Page 168 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 7.5A* Trailer tow (left turn) — Not used — Not used — Wiper HI/LO relay — Wiper Park/Run relay — Fuel pump relay — Washer pump relay — Engine fan relay —...
Page 169 Roadside Emergencies 3.0L and 4.0L engines (if equipped) The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 40A** Passenger compartment fuse panel — Not used 40A** Passenger compartment fuse panel — Not used 50A** Passenger compartment fuse panel...
Page 170 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not used 30A** Blower motor (climate control) — Not used — Not used — Not used 40A** ABS (motor) — Not used — Not used — Not used 10A* PCM keep alive power —...
Page 171: Changing Tires
Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 7.5A* Trailer tow (left turn) — Not used — Not used — Wiper HI/LO relay — Wiper Park/Run relay — A/C clutch solenoid — Washer pump relay — PCM relay —...
Page 172 Mazda. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 173 Roadside Emergencies 3. Full-size dissimilar spare without label on wheel When driving with the full-size dissimilar spare tire/wheel, do not: • Exceed 70 mph (113 km/h) • Use more than one dissimilar spare tire/wheel at a time • Use commercial car washing equipment •...
Page 174 Roadside Emergencies Location of the spare tire and tools The spare tire and tools for your vehicle are stowed in the following locations: Tool Location Spare tire Under the vehicle, just forward of the rear bumper Jack, jack handle, Regular Cab: behind seats and underneath the wheel nut wrench jack and tools cover Cab Plus: stowed in the passenger side rear cab...
Page 175 Roadside Emergencies 2. If equipped, unlock and remove the spare tire carrier lock from the rear access hole located just above the rear bumper and below the tailgate. 3. Insert the straight end of the jack handle into the rear access hole located just above the rear bumper and below the tailgate.
Page 176 Roadside Emergencies 4. If your vehicle is equipped with P265/75 R15 AT tires, do not stow a flat or inflated full size spare tire in the spare tire carrier. The flat full size tire should be stowed and tied down in the pickup box bed until it can be repaired.
Page 177 Roadside Emergencies 3. Block the diagonally opposite wheel. 4. Insert tapered end of the lug wrench behind hub caps and twist them off. 5. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground.
Page 178 Roadside Emergencies • Rear Never use the differential as a jacking point. It is too easy for the vehicle to tilt or fall and you can be injured. 7. Remove the wheel lug nuts with the lug wrench. 8. Replace the flat tire with the spare tire, making sure the valve stem is facing outward.
Page 179: Lug Nut Torque
Wheel lug nut torque* size/Bolt size lb.ft. N•m Lug nut socket size: ⁄ ” (19 mm) hex Bolt size: ⁄ x 20 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Mazda recommended replacement fasteners.
Page 180: Overheating
Roadside Emergencies WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Ensure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel.
Page 181: Jump Starting
Roadside Emergencies If you find a leak or other damage, or if coolant is still leaking, stop the engine and call an authorized dealer. See Adding coolant in the Maintenance and Specifications section. If you find no problems, the engine is cool and no leaks are obvious, carefully add coolant as required.
Page 182 Roadside Emergencies 4. Check all battery terminals and remove any excessive corrosion before you attach the battery cables. Ensure that vent caps are tight and level. 5. Turn the heater fan on in both vehicles to protect any electrical surges. Turn all other accessories off. Connecting the jumper cables 1.
Page 183 Roadside Emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the fuel injection system.
Page 184 Roadside Emergencies 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables. Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery.
Page 185 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 186: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Mazda has not approved a slingbelt towing procedure. On 4x2 vehicles, it is acceptable to tow the vehicle with the front wheels on the ground and the rear wheels off the ground.
Page 187: Customer Assistance
STEP 1: Contact Your Authorized Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the authorized dealer or the OWNER.
Page 188 STEP 2: Call the Mazda Regional Office If you feel that you still require assistance, ask the authorized dealer Service Manager to arrange for you to meet the local Mazda Service Representative. If more expedient, contact Mazda Canada Inc. Regional Office nearest you for such arrangements.
Page 189 Your complete satisfaction is the goal of Mazda Canada Inc. and our authorized dealers. Mazda’s participation in CAMVAP makes a valuable contribution to our achieving that goal.
Page 190 Administrator at 1 (800) 207-0685, or by contacting the Canadian Motor Vehicle Arbitration Office At: 235 Yorkland Boulevard, Suite 407 North York, Ontario M2J 4Y8 http://camvap.ca Regional Offices Regional Offices Areas Covered Mazda Canada Inc. Western Region Alberta, 8171 Ackroyd Road British Columbia, Suite 2000 Manitoba, Richmond, B.C. Saskatchewan,...
Page 191 Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle in top condition. If you have any questions or recommendations for improvement regarding the service of your Mazda vehicle or servicing by Authorized Mazda Dealer personnel, we recommend that you take the following steps: STEP 1 Discuss the matter with an Authorized Mazda Dealer.
Page 192 Richmond Hill, Ontario L4B 3K5 Canada TEL: 1 (800) 263–4680 (in Canada) (416) 609–9909 (outside Canada) PUERTO RICO & VIRGIN ISLANDS Plaza Motors Corp. (Mazda de Puerto Rico) P.O. Box 362722, San Juan, Puerto Rico 00936–2722 TEL: (787) 788–9300 GUAM (d.b.a.
Page 193 NOT take your Mazda outside the United States. However, in the event that you are moving to Canada permanently, Mazda vehicles built for use in the United States could be eligible for exportation to Canada with specific vehicle modifications to comply with the Canadian Motor Vehicle Safety requirements.
Page 194 We strongly recommend that you NOT take your Mazda outside Canada. However, in the event that you are moving to the United States permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the United States with specific vehicle modifications to comply with the United States Federal Motor Vehicle Safety requirements.
Page 195 Mazda assumes no responsibility for death, injury, or expenses that may result from the installation of add-on non-genuine parts or accessories. SERVICE PUBLICATIONS Factory-authorized Mazda service publications are available for owners who wish to do some of their own maintenance and repair.
Page 196 Irvine, California 92618–2922 P.O. Box 19734 Irvine, CA 92623–9734 Customer Assistance Center or toll free at 1 (800) 222–5500 If you live outside of the U.S.A., please contact the nearest Mazda Distributor. See the Mazda importers/distributors section in this chapter.
Page 197: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo. • Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolor and spot painted surfaces.
Page 198 • Never spray the engine or other engine components with water. Water will damage the engine or other engine components. • Spray Engine Shampoo and Degreaser (0000–77–410E-09), available at your authorized Mazda dealer, on all parts that require cleaning and pressure rinse clean.
Page 199 Cleaning • Cover the highlighted areas to prevent water damage when cleaning the engine. • 2.3L Engine • 3.0L Engine...
Page 200 • For routine cleaning, use cool or lukewarm water with a neutral pH shampoo. • If tar or grease spots are present, use Extra Strength Tar and Road Oil Remover (0000–77–410E-01), available at your authorized Mazda dealer. WINDOWS AND WIPER BLADES The windshield, rear and side windows and the wiper blades should be cleaned regularly.
Page 201 INTERIOR TRIM • Clean the interior trim areas with a damp cloth, then with a clean, dry cloth; you may also use Mazda Deluxe Leather and Vinyl Cleaner (0000–77–430E-15). • Do not use household or glass cleaners, as these may damage the...
Page 202 MAZDA CAR CARE PRODUCTS Your Mazda dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.
Page 203: Maintenance And Specifications
This could lead to vehicle damage or an accident and injuries. For expert advice and quality service, consult an authorized Mazda Dealer. The owner should retain evidence that proper maintenance has been performed as prescribed.
Page 204 Maintenance and Specifications CHART SYMBOLS I: Inspect and if necessary, correct, clean or replace A Adjust R: Replace L: Lubricate Normal driving service intervals — perform at the months or distances shown, whichever occurs first. Maintenance Interval (Number of months or Miles (km), whichever comes first) Months Maintenance Item...
Page 205 Maintenance and Specifications Maintenance Interval (Number of months or Miles (km), whichever comes first) Months Maintenance Item x 1000 miles (x 1000 km) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96) Disc brake system Caliper slide rails Drum brake system, lines and hoses Exhaust system for leaks, damage, looseness...
Page 206 Maintenance and Specifications *5 The California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty nor limit recall liability prior to completion of the vehicle’s useful life. Schedule 1 continued Maintenance Interval (Number of months or Miles (km), whichever comes first) Maintenance...
Page 207 Maintenance and Specifications Maintenance Interval (Number of months or Miles (km), whichever comes first) Maintenance Months Item x 1000 miles (x 1000 km) (104) (112) (121) (128) (136) (144) (152) (160) (168) (176) (184) (192) Caliper slide rails Drum brake system, lines and hoses Exhaust system for leaks, damage, looseness...
Page 208 (door-to-door delivery, taxi, police, power/utility company trucks, or similar duty), then Mazda recommends you increase the frequency of oil and filter changes to an interval equivalent to 200 ENGINE HOURS or use. Since most vehicles are not equipped with hour-meters, it may be necessary for you to approximate your idle time and plan oil/filter changes accordingly.
Page 209 The owner or a qualified service technician should make these vehicle inspections at the indicated intervals to ensure safe and dependable operation. Bring any problem to the attention of an Authorized Mazda Dealer or qualified service technician as soon as possible.
Page 210 Maintenance and Specifications While operating your vehicle • Note any changes in the sound of the exhaust or any smell or exhaust fumes in the vehicle. • Check for vibrations in the steering wheel. Notice any increased steering effort or looseness in the steering wheel, or change in the straight ahead position.
Page 211 Use only recommended fuels, lubricants, fluids and service parts conforming to specifications. Genuine Mazda parts are designed and built to provide the best performance in your vehicle. PRECAUTIONS WHEN SERVICING YOUR VEHICLE •...
Page 212 Maintenance and Specifications • Manual transmission: 1. Set the parking brake, depress the clutch and place the gearshift in 1 (First). 2. Turn off the engine and remove the key. 3. Block the wheels. Working with the engine on • Automatic transmission: 1.
Page 213: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 2.3L I4 engine 1. Windshield washer fluid reservoir 2. Engine coolant reservoir 3. Engine oil dipstick 4. Transmission fluid dipstick (automatic transmission) 5. Engine oil filler cap 6. Brake fluid reservoir 7.
Page 214 Maintenance and Specifications 3.0L V6 engine 1. Engine coolant reservoir 2. Windshield washer fluid reservoir 3. Engine oil filler cap 4. Transmission fluid dipstick (automatic transmission) 5. Engine oil dipstick 6. Brake fluid reservoir 7. Power distribution box 8. Clutch fluid reservoir (manual transmission) 9.
Page 215 Maintenance and Specifications 4.0L SOHC V6 engine 1. Windshield washer fluid reservoir 2. Transmission fluid dipstick (automatic transmission) 3. Engine oil filler cap 4. Engine oil dipstick 5. Brake fluid reservoir 6. Power distribution box 7. Clutch fluid reservoir (manual transmission) 8.
Page 216 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Mazda specification . Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.
Page 217: Engine Oil
Maintenance and Specifications Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.
Page 218 Maintenance and Specifications 5. Locate and carefully remove the engine oil level indicator (dipstick). • 2.3L I4 engine • 3.0L V6 engine...
Page 219 Maintenance and Specifications • 4.0L SOHC V6 engine 6. Wipe the indicator clean. Insert the indicator fully, then remove it again. • If the oil level is between the two holes or between the MIN and MAX marks (depending on application), the oil level is acceptable, DO NOT ADD OIL.
Page 220 Maintenance and Specifications • 3.0L V6 engine SAE 5W-20 • 4.0L SOHC V6 engine SAE 5W-30 • Oil levels above the MAX mark or upper hole may cause engine damage. Some oil must be removed from the engine by an authorized dealer.
Page 221 International Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. Use an equivalent oil Mazda specification. SAE 5W-20 oil provides optimum fuel economy and durability performance meeting all requirements for your vehicle’s engine.
Page 222 Change your engine oil filter according to the appropriate schedule listed in the service maintenance section. Mazda production and aftermarket (Mazda) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Mazda Material and...
Page 223: Battery
Maintenance and Specifications It is recommended you use the appropriate Mazda oil filter (or another brand meeting Mazda specifications) for your engine. BATTERY Your vehicle is equipped with a Mazda maintenance-free battery which normally does not require additional water during its life of service.
Page 224 Maintenance and Specifications WARNING: Batteries normally produce explosive gases which can cause personal injury. Therefore, do not allow flames, sparks or lighted substances to come near the battery. When working near the battery, always shield your face and protect your eyes. Always provide proper ventilation. WARNING: When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to flow through the vent caps, resulting in personal injury and/or damage to the...
Page 225: Engine Coolant
Checking engine coolant Your engine’s cooling system has been factory-filled with a 50/50 mixture of distilled water and Mazda Genuine Engine Coolant, or an equivalent premium engine coolant that meets Mazda specification. A 50/50 mixture of distilled water and Mazda Genuine Engine Coolant provides: •...
Page 226 Maintenance and Specifications • 2.3L engine • 3.0L & 4.0L engines...
Page 227 Adding engine coolant Use only Mazda Genuine Engine Coolant or a premium engine coolant that meets a Mazda specification. • DO NOT USE Extended Life Engine Coolant (orange in color).
Page 228 Maintenance and Specifications WARNING: Do not put engine coolant in the windshield washer fluid reservoir. If engine coolant is sprayed onto the windshield, it could make it difficult to see through the windshield. When adding coolant, make sure it is a 50/50 mixture of engine coolant and distilled water.
Page 229 Recycled engine coolant Not all coolant recycling processes produce coolant which meets Mazda specification. Use of a recycled engine coolant which does not meet Mazda specifications may harm engine and cooling system components.
Page 230 Replace the fuel filter with an authorized Mazda part. The customer warranty may be void for any damage to the fuel system if an authorized Mazda fuel filter is not used.
Page 231: Fuel Information
Maintenance and Specifications WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS Important safety precautions WARNING: Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire. WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 232 Maintenance and Specifications • Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.
Page 233 The warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Mazda fuel filler cap is not used. WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 234 Repairs to correct the effects of using a fuel for which your vehicle was not designed may not be covered by your warranty. Cleaner air Mazda endorses the use of reformulated “cleaner-burning” gasolines to improve air quality. Octane recommendations Your vehicle is designed to use “Regular”...
Page 235 Maintenance and Specifications performance and emission control system protection for your vehicle. Gasolines that meet the World-wide Fuel Charter should be used when available. Ask your fuel supplier about gasolines that meet the World-wide Fuel Charter. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components.
Page 236 Maintenance and Specifications For consistent results when filling the fuel tank: • Turn the engine/ignition switch to the off position prior to refueling, an error in the reading will result if the engine is left running. • Use the same filling rate setting (low — medium — high) each time the tank is filled.
Page 237 Maintenance and Specifications Habits • Smooth, moderate operation can yield up to 10% savings in fuel. • Steady speeds without stopping will usually give the best fuel economy. • Idling for long periods of time (greater than one minute) may waste fuel.
Page 238 Maintenance and Specifications • Adding certain accessories to your vehicle (for example bug deflectors, rollbars/light bars, running boards, ski/luggage racks) may reduce fuel economy. • Using fuel blended with alcohol may lower fuel economy. • Fuel economy may decrease with lower temperatures during the first 8–10 miles (12–16 km) of driving.
Page 239 If other than Mazda authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Mazda parts should be equivalent to genuine Mazda parts in performance and durability. WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover.
Page 240 Maintenance and Specifications 3. The fuel cap may not have been securely tightened. See Fuel filler cap in this chapter. These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the indicator should turn off—A driving cycle consists of a...
Page 241 Maintenance and Specifications POWER STEERING FLUID • 2.3L I4 engine • 3.0L V6 engine • 4.0L V6 engine...
Page 242 Maintenance and Specifications Check the power steering fluid. Refer to the service maintenance section for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C).
Page 243 If the fluid level drops, refill the fluid level to the step in the reservoir. Use only a DOT 3 brake fluid designed to meet Mazda specification. Refer to Lubricant Specifications in this chapter. WARNING: Brake fluid is toxic. If brake fluid contacts the eyes, flush eyes with running water for 15 minutes.
Page 244 Maintenance and Specifications • Check fluid when transmission is not operating properly or if you see a leak. • Fluid level must be checked at normal operating temperature, 20 miles (30 km) of driving. To check and add fluid: 1. Drive the vehicle 20 miles (30 km) to reach normal operating temperatures.
Page 245 7. Add enough fluid through the filler opening so that the fluid level is at the bottom of the opening. 8. Install and tighten the fill plug securely. Use only fluid that meets Mazda specifications. Refer to Lubricant specifications in this chapter.
Page 246 8. Install and tighten the fill plug securely. Use only fluid that meets Mazda specifications. Refer to Lubricant specifications in this chapter. DRIVELINE UNIVERSAL JOINT AND SLIP YOKE Your vehicle may be equipped with universal joints that require lubrication.
Page 247: Refill Capacities
8. Install and tighten the fill plug securely. Use only fluid that meets Mazda specifications. Refer to Lubricant Specifications in this chapter. REFILL CAPACITIES Fluid Mazda Part...
Page 248 Maintenance and Specifications Fluid Mazda Part Application Capacity Name Transmission Mazda MERCON 5-speed manual 2.8 quarts fluid (2.65L) Mazda 4x2 vehicles with 9.9 quarts MERCON V ATF automatic and (9.4L) 2.3L I4 engine 4x2 vehicles with 10.0 quarts automatic and (9.5L)
Page 249 Add the coolant type originally equipped in your vehicle. DO NOT MIX different colors or types of coolant. DO NOT USE Mazda Extended Life Engine Coolant (orange in color). Refer to Adding engine coolant, in this chapter.
Page 250: Lubricant Specifications
MERCON V ATF and 5R55E) Ultra-clear Windshield Washer Windshield washer fluid Concentrate Add 4 oz. (118 ml) of Additive Friction Modifier meeting Mazda specifications for complete refill of Traction-Lok axles. If submerged in water, the rear axle lubricant should be changed.
Page 251: Engine Data
Maintenance and Specifications Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick or on the dipstick handle. MERCON and MERCON V are not interchangeable. DO NOT mix MERCON and MERCON V. Refer to your service maintenance section to determine the correct service interval.
Page 252 Maintenance and Specifications...
Page 253: Safety Compliance Certification Label
Maintenance and Specifications IDENTIFYING YOUR VEHICLE Safety Compliance Certification Label The National Highway Traffic Safety MFD. BY FORD MOTOR CO. IN U.S.A. Administration Regulations require FOR MAZDA MOTOR CORPORATION DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG that a Safety Compliance FRONT GAWR: XXXXL REAR GAWR:...
Page 254 Maintenance and Specifications Vehicle identification number (VIN) The vehicle identification number is attached to a metal tag and is located on the driver side XXXXXXXXXXXXXXXXX instrument panel. Please note that in the graphic, XXXX is representative of your vehicle identification number. The Vehicle Identification Number (VIN) contains the following information: 1.
Page 255 Maintenance and Specifications TRANSMISSION/TRANSAXLE CODE DESIGNATIONS You can find a MFD. BY FORD MOTOR CO. IN U.S.A. FOR MAZDA MOTOR CORPORATION transmission/transaxle code on the DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG Safety Compliance Certification FRONT GAWR: XXXXL REAR GAWR: XXXXLB WITH WITH...
Page 256: Accessories
Accessories CELL PHONES Use of cell phones and other devices by driver: WARNING: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a number on a cell phone while driving also ties-up the driver’s hands.
Page 257: Index
Index jumping a disabled battery ..181 maintenance-free ....223 servicing ........223 ABS (see Brakes) .....144 Bed extender ......54 Airbag supplemental restraint system ......77 BeltMinder ........72 and child safety seats ....80 Brakes ........144 description ........77 anti-lock ......144–145 disposal ........83 anti-lock brake system driver airbag ......81 (ABS) warning light ....145 indicator light ......82...
Page 258 Index Mazda car care products ..202 mud ..........158 plastic parts ......200 sand .........157 washing ........197 snow and ice ......159 waxing ........197 through water ....158–159 wheels ........198 wiper blades ......200 Clock adjust Emergencies, roadside AM/FM Stereo ......18 jump-starting ......181 AM/FM stereo CD .....20 AM/FM stereo tape/CD/MP3 ..23...
Page 259 Index Fuel ..........231 Heating heating and air calculating fuel economy ..235 conditioning system ...32–33 cap ...........233 Hood ..........212 capacity ........247 choosing the right fuel ...233 comparisons with EPA fuel economy estimates ....238 Ignition .......140, 251 detergent in fuel .....234 Infant seats filling your vehicle (see Safety seats) .......93 with fuel ....231, 233, 235...
Page 260 Index interior lamps .....39–40 Power mirrors ......50 replacing bulbs ..39–40, 43–46 Power point .........48 Lane change indicator Power steering ......147 (see Turn signal) ......38 fluid, checking and adding ..241 LATCH anchors ......101 fluid, refill capacity ....247 fluid, specifications ..250–251 Lights, warning and indicator ..12 anti-lock brakes (ABS) ..145 Power Windows ......49 Load limits .........122...
Page 261 Index Seat belts (see replacing ........113 Safety restraints) ......65 rotating ........115 safety practices .......113 Seats ..........63 sidewall information ....116 child safety seats ......93 snow tires and chains ....122 Servicing your vehicle ....211 spare tire ......171, 173 Setting the clock terminology ......108 AM/FM stereo ......18 tire grades .......107 AM/FM stereo CD .....20...
Page 262 Index Washer fluid ......216 Windshield washer fluid and wipers ..........47 Water, Driving through .....159 checking and adding fluid ..216 Windows checking and cleaning ....216 power .........49 replacing wiper blades ...217 Wrecker towing ......186...

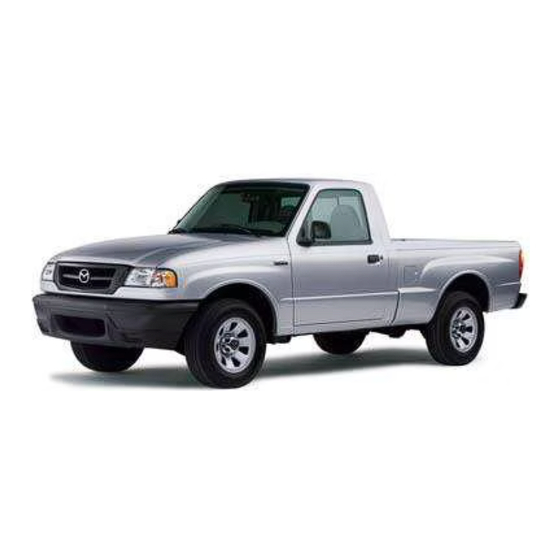

Mazda 2006 B-Series Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Roadside Emergencies

Customer Assistance

Cleaning

Maintenance and Specifications

Accessories

Index

Quick Links

Table of Contents

Related Manuals for Mazda 2006 B-Series

Summary of Contents for Mazda 2006 B-Series

Table of Contents
